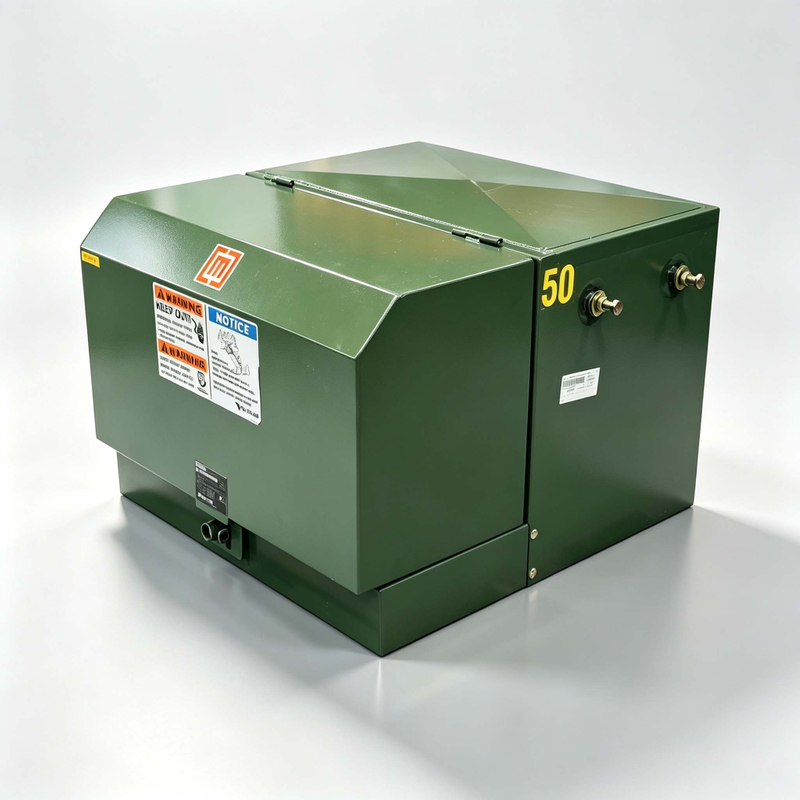

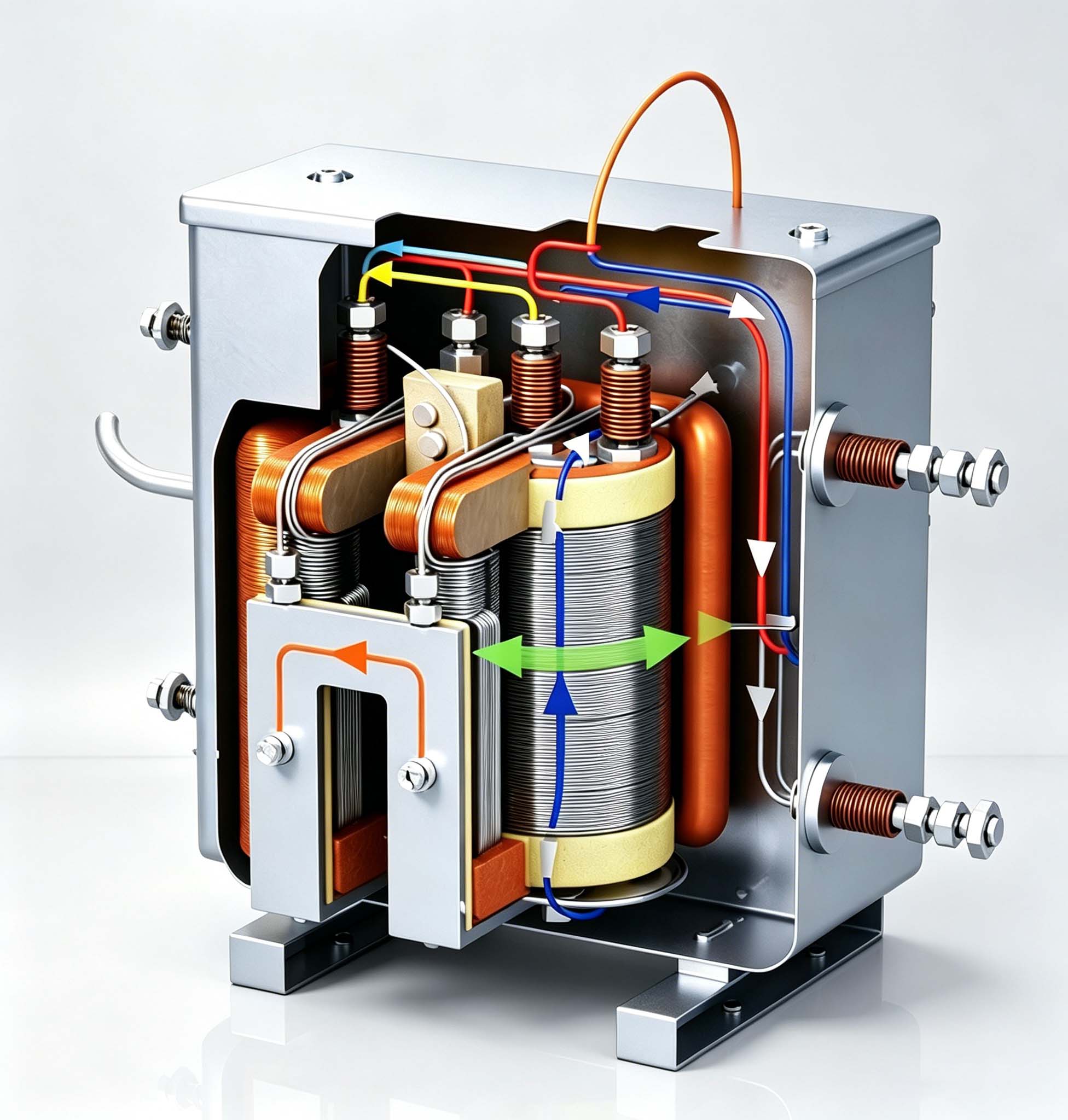

5kVA Single Phase Pad Mounted Transformer

Technical Specifications

5kVA Single Phase Pad Mounted Transformer

Technical Specifications

Customization Optional

5kVA Single Phase Pad Mounted Transformer

Zisheng’s single-phase pad-mounted transformers can be fully customized to meet your specific requirements. Zisheng’s single-phase pad-mounted transformers can be fully customized to meet your specific requirements. The 5kVA Single Phase Pad Mounted Transformer offers a range of optional specifications to cater to specific customer needs. These options may include different insulating oil types (such as mineral oil or biodegradable oil), on-load tap changers (OLTC) for precise voltage regulation, and additional protective features like surge arresters or pressure relief devices to safeguard against faults. These selections boost overall system reliability, reduce installation footprint, and ensure seamless integration in pad-mounted underground setups focused on safety and minimal disruption.

Customers can also opt for temperature monitoring systems to ensure efficient operation, as well as enhanced corrosion protection through special coatings, making the transformer suitable for harsh environments. These customizable options allow the transformer to be tailored for optimal performance, safety, and reliability based on the installation requirements. Whether for new subdivisions or retrofits, these options make the 5kVA single phase pad mounted transformer a practical, customizable choice that delivers efficient, secure power distribution with long-term cost savings and compliance in underground residential applications.

Packing and Shipping

5kVA Single Phase Pad Mounted Transformer

Zisheng single-phase pad mounted transformers are designed to be securely packaged for sea freight transport, ensuring safe delivery across long distances. For this purpose, the Packing and Shipping process for a 5kVA Single Phase Pad Mounted Transformer is designed to ensure safe and secure transportation to the customer. The transformer is carefully packed in a sturdy, weather-resistant wooden crate or metal container to protect it from physical damage, moisture, and environmental factors during transit.
The packing includes appropriate padding and shock-absorbing materials to prevent any movement or impact that could damage the transformer’s components.
For shipping, the transformer is typically transported by road, rail, or sea, depending on the destination.
The shipment is clearly labeled with handling instructions and safety warnings to ensure proper handling throughout the transportation process.
The transformer is securely fastened to the shipping pallet or platform, and necessary documentation, such as shipping labels, certificates, and customs declarations, are included to comply with international shipping regulations.
Once the transformer reaches its destination, the packaging is carefully removed, and the transformer is inspected for any transit-related damage before installation. The packing and shipping process ensures that the 5kVA Single Phase Pad Mounted Transformer arrives in perfect condition, ready for safe installation and reliable performance.
Delivery coordination includes site-specific guidance for pad placement, unpacking steps, oil refill instructions, and connection guidelines. This end-to-end process guarantees the transformer arrives undamaged, ready for quick pad installation, and contributes to reliable underground power deployment without logistical hurdles.

Manufacturer Test

5kVA Single Phase Pad Mounted Transformer

Progress test

Zisheng manufacture pad mounted transformer have the strict quality control. The Progress Test for a 5kVA Single Phase Pad Mounted Transformer is conducted at various stages during its manufacturing process to ensure that the transformer meets all technical specifications and quality standards. This includes testing of core insulation, winding resistance, and dielectric strength, as well as verifying the performance of electrical components like bushings and tap changers. The progress tests also assess the transformer’s ability to handle load and voltage variations, ensuring it operates efficiently and safely under real-world conditions. Any adjustments or corrections are made based on test results before the final inspection and factory acceptance testing (FAT). This process guarantees that the transformer meets safety, performance, and reliability standards before delivery. Tap changer operations cycle repeatedly, checking contact resistance under 1.2 milliohm. Cooling circulation paths verify unobstructed flow in tank. Wiring insulation tests achieve high megohm readings at 1000V. Protective element simulations confirm coordination. Reports adhere to ANSI/IEEE protocols, allowing adjustments before final enclosure and oil processing.

Transformer Factory Acceptance Test

Zisheng will tests made for quality control by the manufacturer on every device or representative samples, or on parts or materials as required, to verify during production that the product meets the design specifications.

The Transformer Factory Acceptance Test (FAT) for a 5kVA Single Phase Pad Mounted Transformer is a comprehensive testing process conducted before the transformer is shipped to the customer. The FAT ensures that the transformer meets all design specifications, safety standards, and performance criteria. Key tests performed include:

Visual Inspection: Verifying the overall build quality, including welds, enclosures, and labeling.

Electrical Tests: Measuring insulation resistance, winding resistance, and performing a turns ratio test to ensure proper functionality of the electrical components.

Dielectric Testing: Checking the transformer’s insulation strength by applying high voltage to ensure it can withstand operating conditions without breakdown.

Operational Tests: Simulating load conditions to verify that the transformer operates efficiently and safely within specified parameters.

The FAT confirms the transformer’s compliance with international standards and guarantees its readiness for installation and reliable long-term operation.
Routine Test - Winding Resistance

Purpose of Testing

The purpose of winding resistance testing is to detect the continuity and connection quality of the internal conductors of the motor or transformer windings, and to promptly detect potential faults such as open circuits, poor contact or local heating.

Testing Equipment

Winding resistance tester (e.g. OMICRON, DV Power, Raytech, Megger, ISA, etc.)
Test voltage source (commonly used are 6V, 10V, 20V, 40V or 100V, depending on the equipment model or customer requirements)
Temperature and humidity meter (used to record the ambient temperature and humidity during the test)

Pre-Test Preparation

Check if the instrument has been calibrated to ensure the test accuracy.
Disconnect the electrical connection between the test cable and the equipment to ensure that there is no external current or voltage interference.
Select a suitable voltage range for testing and set the test voltage according to the equipment requirements.

Test Progress

Connect the Test Instrument:
Connect the test equipment to the winding terminals of the device under test, making sure the connections are secure and properly grounded to avoid measurement errors.
Apply Test Voltage:
Select the appropriate test current according to the equipment specifications (such as test current for low-voltage windings, single-phase or three-phase windings).

Measure and Record

Start the test and record the following parameters:
Winding resistance (usually expressed in units of "Ω")
Test current (A)
Test voltage (V)
Temperature (record the winding temperature before and after the test)

Temperature Correction

The measured winding resistance values are converted to a reference temperature (usually 20°C) based on a temperature correction formula to allow accurate evaluation and comparison.

Repeat Testing (if necessary)

Test the different windings (high voltage, medium voltage, low voltage) separately and make sure to record the resistance value of each winding.

Evaluation Criteria (Reference)

Resistance deviation is less than 5% (normal)
Resistance deviation is between 5% and 10% (warning)
Resistance deviation exceeds 10% (further inspection or corrective action is required)

*These comprehensive tests ensure that each transformer meets performance standards and operates reliably under various conditions.
