An Oil Immersed Transformer remains one of the most widely used transformer types in modern power systems because it combines electrical insulation and heat dissipation in a single integrated design. In utility networks, industrial plants, substations, renewable energy projects, and many heavy-duty installations, an Oil Immersed Transformer is selected for stable thermal performance, long operating life, and strong load capability. As power infrastructure continues to expand in 2026, the Oil Immersed Transformer is still central to distribution and transmission systems where reliability, efficiency, and durable field operation are required.
● An Oil Immersed Transformer uses insulating oil for cooling and electrical insulation.
● Oil Immersed Transformer types can be classified by cooling method, oil type, voltage regulation method, and application level.
● An Oil Immersed Transformer is widely used in substations, industrial plants, renewable energy projects, and distribution systems.
● Key strengths of an Oil Immersed Transformer include strong heat dissipation, overload capability, and long service life.
● The right Oil Immersed Transformer depends on voltage, capacity, environment, efficiency targets, and maintenance planning.

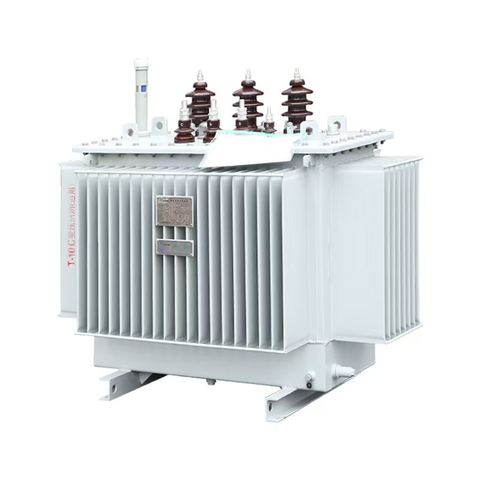

An Oil Immersed Transformer is a transformer whose active parts, including the core and windings, are immersed in insulating oil. That oil acts as both a dielectric medium and a coolant, allowing the Oil Immersed Transformer to maintain electrical insulation while carrying heat away from internal components. Because of this structure, an Oil Immersed Transformer is particularly well suited to applications where long operating hours and continuous electrical load are common.
The standard Oil Immersed Transformerincludes a tank, magnetic core, windings, bushings, transformer oil, radiators, and protective accessories. These components work together to create a sealed or semi-sealed system that protects the internal insulation from moisture and external contamination. In many projects, the robust structure of an Oil Immersed Transformer is one of the reasons it remains preferred in substations, industrial plants, and outdoor environments.
Oil cooling is used because liquid heat transfer is highly effective in transformer service conditions. In an Oil Immersed Transformer, the oil absorbs heat from the core and windings, then transfers that heat to cooling surfaces where it can dissipate into the surrounding air. This thermal advantage allows an Oil Immersed Transformer to operate with lower temperature rise than many other transformer designs under comparable load conditions.
The fundamental operating principle of an Oil Immersed Transformer is electromagnetic induction. Alternating current in the primary winding creates a changing magnetic field in the core, and that field induces voltage in the secondary winding at the desired level. Although the voltage conversion principle is shared by other transformer types, the Oil Immersed Transformer differs in the way it manages heat and insulation during this process.
As current flows through the windings of an Oil Immersed Transformer, heat is generated by electrical losses in the windings and core. The insulating oil absorbs this heat and circulates naturally or with enhanced cooling arrangements, moving thermal energy away from critical internal parts. This continuous heat transfer process is one of the main reasons an Oil Immersed Transformer is widely chosen for medium- and high-load operation.
Temperature directly affects insulation aging, and insulation aging strongly influences transformer lifespan. Because an Oil Immersed Transformer can manage heat efficiently, it often maintains more stable long-term performance under demanding service conditions. For this reason, the thermal behavior of an Oil Immersed Transformer is closely linked to reliability, service life, and operating stability.
An Oil Immersed Transformer can be classified by cooling method, such as ONAN, ONAF, OFAF, or OFWF systems. These designations describe how oil and external cooling media circulate, with some systems using natural air flow and others using fans or forced oil movement. The cooling method chosen for an Oil Immersed Transformer depends on rating, installation conditions, and expected thermal demand.
Another way to classify an Oil Immersed Transformer is by the type of insulating oil used. Mineral oil remains common because of its proven performance and cost profile, while ester-based fluids are used in some projects where biodegradability or higher fire point is desired. The oil type affects the insulation system, operating characteristics, and maintenance strategy of an Oil Immersed Transformer.
An Oil Immersed Transformer may also be classified by voltage regulation method, including off-circuit tap changing and on-load tap changing designs. Off-circuit tap changers are typically used where voltage adjustment is occasional and can be performed when the transformer is de-energized. On-load tap changing allows an Oil Immersed Transformer to regulate voltage during operation, which is especially useful in substations and grid applications with variable demand.
A further classification method is based on application or voltage class. A distribution Oil Immersed Transformer is usually used in medium-voltage distribution networks, while a power Oil Immersed Transformer is designed for higher voltage transmission and large substations. This application-based distinction is useful because the structure, cooling requirements, and accessory configuration of an Oil Immersed Transformer often change as the voltage class increases.
Classification Basis | Common Options | Typical Use |
Cooling method | ONAN, ONAF, OFAF, OFWF | Distribution, substations, heavy load |
Oil type | Mineral oil, natural ester, synthetic ester | Standard grid use or specialized projects |
Voltage regulation | Off-circuit tap changer, on-load tap changer | Fixed networks or dynamic voltage control |
Application level | Distribution transformer, power transformer | Utility, industry, transmission |
An Oil Immersed Transformer is widely used in power transmission and distribution because of its strong thermal behavior and durable field performance. Utility networks often require equipment that can operate outdoors for long periods under changing load conditions, and an Oil Immersed Transformer fits that requirement well. In both rural and urban distribution systems, the Oil Immersed Transformer remains a standard solution.
Industrial plants rely on stable power supply for production lines, motors, furnaces, compressors, and process equipment. In these settings, an Oil Immersed Transformer is often selected because it can handle sustained load, harsh site conditions, and demanding duty cycles. The robust design of an Oil Immersed Transformer supports long service intervals and dependable performance in manufacturing, mining, and processing sectors.
Railway traction systems require reliable voltage conversion and strong operating stability. An Oil Immersed Transformer is used in many railway-related substations because of its cooling capability and suitability for heavy electrical duty. Where traction loads fluctuate significantly, an Oil Immersed Transformer can provide dependable support for continuous transport infrastructure.
Renewable energy facilities, including solar farms and wind projects, often require transformer solutions that can manage variable load patterns and grid connection demands. An Oil Immersed Transformer is common in these projects because it offers efficient thermal performance and strong field reliability. In offshore wind and remote renewable installations, the durability of an Oil Immersed Transformer is especially important.
An Oil Immersed Transformer may also be used in urban underground substations when project design, ventilation, and protection requirements are carefully addressed. These applications demand close attention to fire safety, containment, and maintenance access, so the design conditions are more specific than in standard outdoor installations. Even in these cases, an Oil Immersed Transformer remains relevant because of its strong operating performance and voltage handling capability.
Application Area | Why Oil-Immersed Design Is Used | Operating Focus |
Transmission and distribution | Stable outdoor service and cooling strength | Utility reliability |
Heavy industry | Sustained load and rugged structure | Continuous production |
Railway systems | Reliable voltage conversion under variable demand | Traction support |
Renewable energy | Durable operation in changing generation profiles | Grid integration |
Underground substations | High performance under project-specific design controls | Urban infrastructure |
The leading advantage of an Oil Immersed Transformer is excellent cooling performance. Efficient heat transfer reduces internal temperature rise and allows the transformer to operate more steadily under continuous electrical load. Because of this, an Oil Immersed Transformer is often favored in environments where thermal control is directly tied to equipment longevity.
An Oil Immersed Transformer generally offers strong overload capability compared with designs that rely only on air and solid insulation. Better cooling enables the transformer to manage temporary load peaks more effectively without creating the same level of thermal stress. This makes an Oil Immersed Transformer especially suitable for industrial duty, grid fluctuations, and utility service.
Service life depends on insulation condition, thermal management, maintenance quality, and operating environment. Since an Oil Immersed Transformer manages heat efficiently, its insulation system often ages more slowly under comparable heavy-duty conditions. The result is that an Oil Immersed Transformer is frequently associated with long-term reliability and durable field operation.
At medium and high power ratings, an Oil Immersed Transformer can be economically attractive relative to its performance profile. The combination of mature design, efficient cooling, and wide industrial use contributes to favorable project economics in many sectors. For substations, factories, and infrastructure installations, an Oil Immersed Transformer often balances cost and operating strength effectively.
The first step in selecting an Oil Immersed Transformer is to define the required voltage class and rated capacity. A mismatch in these core specifications can affect efficiency, safety margin, and overall system performance. Any Oil Immersed Transformer should be matched carefully to actual load demand and network design rather than chosen only by general category.
The installation environment determines cooling conditions, maintenance access, enclosure needs, and protection requirements. An outdoor Oil Immersed Transformer may need corrosion resistance, weather protection, and site-specific structural planning, while an enclosed installation may require more careful design of safety and ventilation. The surrounding environment therefore shapes the final specification of an Oil Immersed Transformer in practical ways.
Loss performance matters in long-term operation, especially in utility and industrial applications with continuous service. A modern Oil Immersed Transformer can be selected according to no-load loss, load loss, and energy-efficiency targets that align with project standards. Choosing an Oil Immersed Transformer with appropriate efficiency characteristics improves operational economics over the equipment lifetime.
Selection should also account for inspection intervals, oil management, operating conditions, and expected service duration. An Oil Immersed Transformer with strong engineering design may deliver stable performance for many years, but only when maintenance planning matches the application. Lifecycle thinking leads to a more accurate choice than a purchase decision based only on initial cost.
An Oil Immersed Transformer remains one of the most important transformer solutions in 2026 because it combines strong insulation performance, effective cooling, reliable overload capability, and broad application flexibility. Whether used in transmission and distribution, heavy industry, renewable energy, railway systems, or specialized substations, the Oil Immersed Transformer continues to serve as a durable and technically mature option. For projects that require dependable transformer solutions and long-term operating stability, Zisheng Electrical is a relevant reference point when evaluating an Oil Immersed Transformer for utility, industrial, or substation use.
An Oil Immersed Transformer is a transformer whose core and windings are immersed in insulating oil. The oil provides electrical insulation and removes heat generated during operation. This design makes an Oil Immersed Transformer highly suitable for distribution, industrial, and substation applications.
The main types of Oil Immersed Transformer are commonly classified by cooling method, oil type, voltage regulation method, and application class. Typical categories include ONAN and ONAF cooling, mineral oil and ester oil insulation, and off-circuit or on-load tap changing structures. Each Oil Immersed Transformer type is designed for different operating conditions and network requirements.
An Oil Immersed Transformer is commonly used in utility grids, substations, industrial plants, renewable energy projects, and railway power systems. It is especially common where outdoor operation, heavy load, and strong cooling are required. The broad use of an Oil Immersed Transformer reflects its proven performance in demanding environments.
The main advantages of an Oil Immersed Transformer include efficient cooling, strong overload capacity, long service life, and cost-effectiveness at larger ratings. These characteristics make it highly suitable for infrastructure and industrial applications. In many projects, an Oil Immersed Transformer is chosen because it combines thermal stability with reliable long-term operation.
