Zisheng Electric has been deeply engaged in the medium-voltage transformer field, providing professional solutions including oil-immersed transformers, dry-type transformers, and amorphous alloy transformers covering voltage levels of 11kV, 22kV, and 33kV. All products are manufactured in strict compliance with international standards such as IEC 60076 and GOST, and are widely used in industrial plants, energy projects, mining operations, and power grid upgrade programs.
In various power projects, medium-voltage transformers play a core role in energy conversion and regional power distribution. They serve as a critical link between the utility grid and end-user equipment. Their reliability directly affects production efficiency, operational continuity, and the overall return on investment of a project.
As industrial production continues to expand, the requirements for power supply systems have evolved from simply “having electricity available” to achieving stable, efficient, and continuous operation. In large manufacturing facilities, data centers, renewable energy bases, and infrastructure projects, insufficient transformer capacity, reduced efficiency, or unexpected failures can lead to production downtime, project delays, and significant economic losses. Therefore, during the early design stage of a project, selecting the appropriate voltage level and transformer model has become one of the most critical tasks in electrical engineering design and equipment procurement.
Currently, the most common medium-voltage levels used in global industrial and distribution projects include 11kV, 22kV, and 33kV. Each voltage level corresponds to different grid structures, power transmission distances, and load characteristics. 11kV is typically suitable for small and medium-sized industrial parks or short-distance distribution networks; 22kV is widely adopted as a standard industrial distribution voltage in many Southeast Asian and European countries; while 33kV is commonly applied in large industrial facilities or projects requiring longer-distance power transmission. Improper selection may not only increase equipment investment costs but also reduce system efficiency and create potential safety risks.
To meet these practical requirements, Zisheng Electric does more than provide standard transformer products. We develop customized medium-voltage transformer solutions based on local grid requirements, environmental conditions, and load characteristics of each project. Whether it is meeting Vietnam EVN’s 22kV Dyn11 requirements or fulfilling the high-temperature resistance design needs of 33kV systems in the Middle East, we provide comprehensive technical support from product selection and engineering design to manufacturing and delivery.
Through professional project experience and customized solutions, Zisheng Electric helps customers reduce risks and avoid unnecessary delays in complex international power projects, ensuring efficient implementation and reliable operation from the beginning to the end.
A medium-voltage transformer generally refers to a power transformer with a primary-side voltage above 1kV and below 35kV. In actual projects, customers are usually less concerned about the definition itself. What matters more is the voltage level provided by the local power grid, the required transformer capacity, and which transformer design is most suitable for the site conditions.
For example, an industrial plant may be connected to an 11kV, 22kV, or 33kV power grid, while the production equipment inside the workshop typically operates on a 400V or 415V low-voltage system. The voltage difference between the grid and the end-use equipment needs to be converted through a medium-voltage transformer.
The typical structure of a medium-voltage transformer includes the core system, high-voltage and low-voltage windings, insulation system, oil tank or resin casting structure, cooling system, and protection devices. Based on different insulation and cooling methods, medium-voltage transformers are mainly divided into two categories:

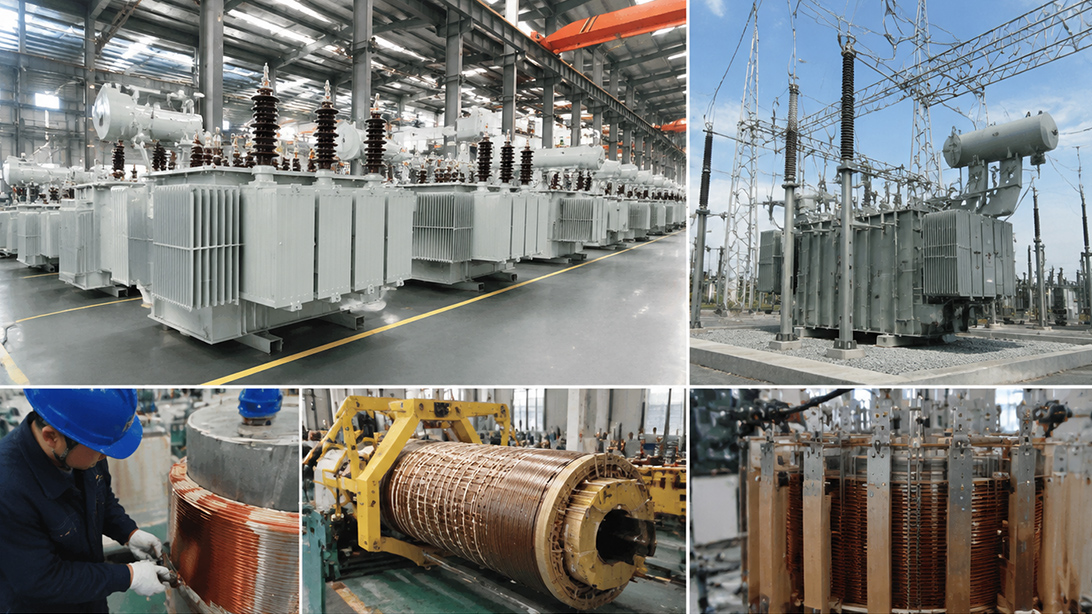

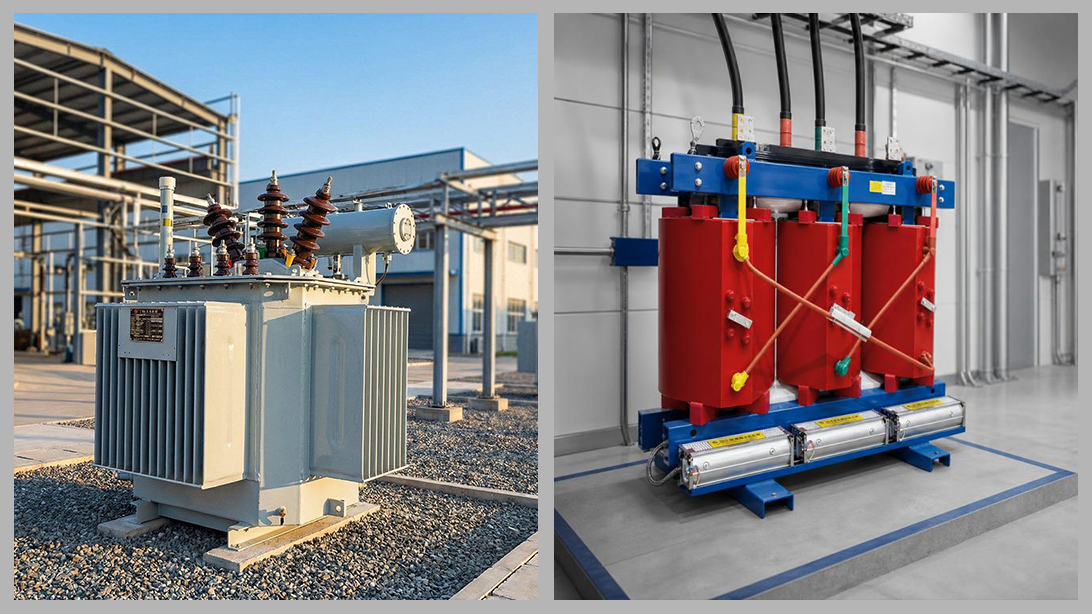

Oil-immersed medium-voltage transformers use transformer oil for insulation and heat dissipation. They offer high reliability, strong cooling performance, and a long service life, making them especially suitable for outdoor installations and large-scale industrial projects. They are widely used in power grid projects, industrial plant distribution systems, mining operations, and renewable energy power stations.
Dry-type medium-voltage transformers use epoxy resin insulation instead of oil. They feature excellent fire resistance, low maintenance requirements, and environmental advantages, making them suitable for applications such as commercial buildings, data centers, hospitals, and indoor substations.

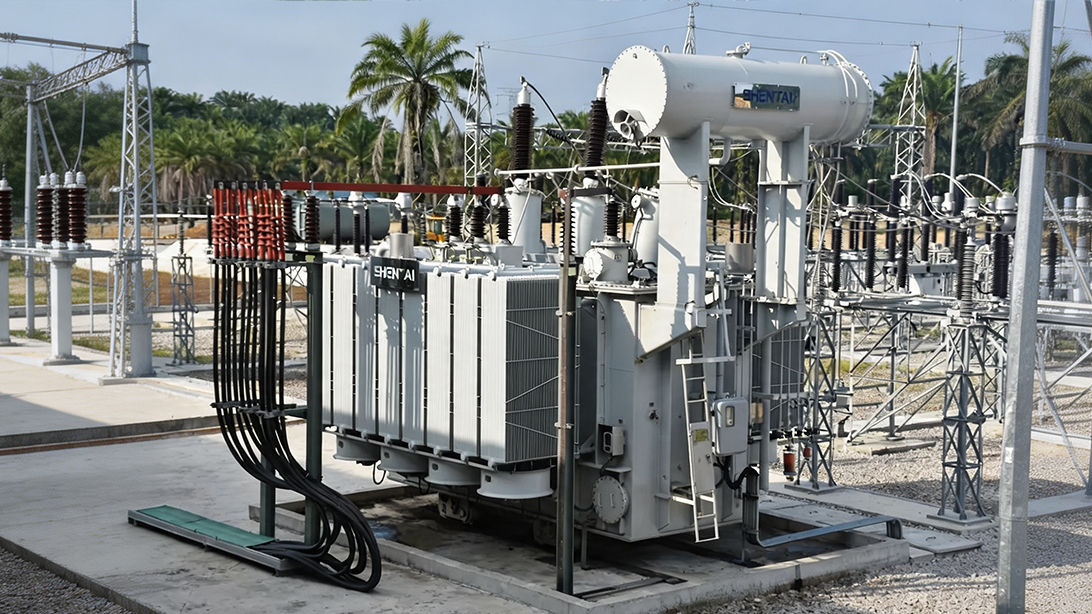

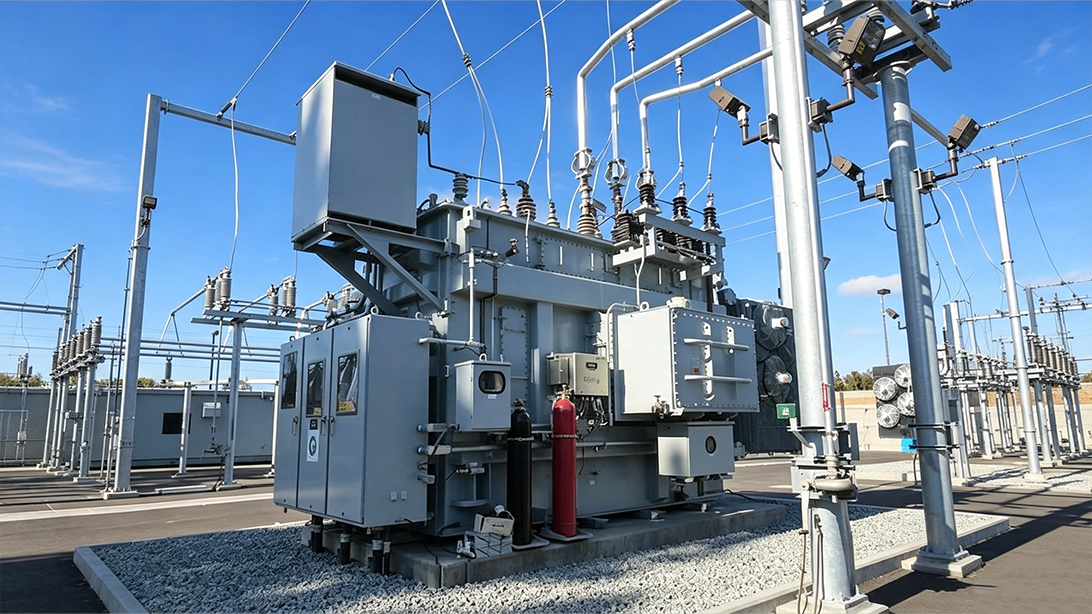

11kV transformers are among the most widely used medium-voltage distribution transformers worldwide. The 11kV voltage level is commonly adopted as a standard industrial distribution voltage in the UK, many Commonwealth countries, Southeast Asia, numerous African countries, and some industrial areas in the Middle East.
The standard configuration of an 11kV transformer is a primary voltage of 11kV and a secondary voltage of 400V or 415V. In terms of capacity, common ratings include 100kVA, 250kVA, 500kVA, 1000kVA, 1600kVA, and 2500kVA, while customized capacities can also be designed according to specific project requirements.
Industrial Plant Power Distribution
In locations such as machinery manufacturing plants, food processing factories, chemical plants, and logistics centers, 11kV transformers are responsible for converting grid power into low-voltage electricity suitable for factory operations. In these applications, transformers are required to operate continuously for long periods, with low energy losses and stable load performance.
Commercial Building Power Supply
Shopping malls, hotels, office buildings, and integrated commercial centers usually place greater emphasis on safety, noise control, and space utilization. Therefore, 11kV dry-type transformers are commonly selected for these types of projects due to their excellent fire safety performance and suitability for indoor installation.
Renewable Energy Projects
Solar power plants, energy storage facilities, and small-scale wind farms also frequently use 11kV transformers. They are mainly applied for voltage step-up or step-down within the plant, as well as supplying power to auxiliary systems and equipment.

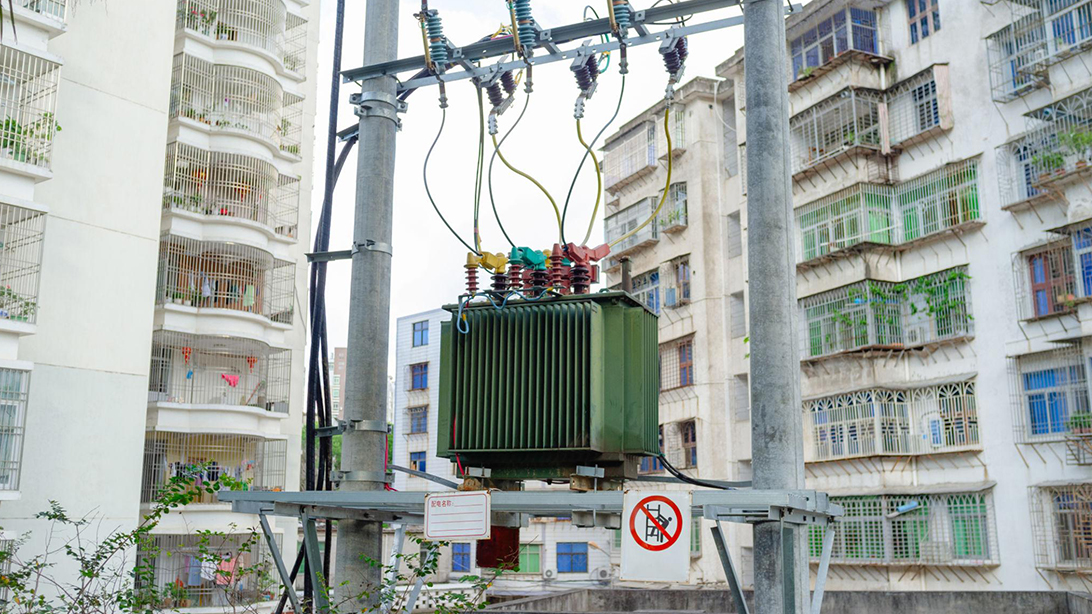

Compared with 11kV transformers, 22kV transformers provide stronger power transmission capability and lower line losses. For the same power capacity, increasing the voltage level reduces the current, which helps decrease cable losses and voltage drop. Therefore, 22kV power distribution systems are becoming increasingly common in large industrial parks, urban distribution networks, and energy projects.
Large Industrial Projects
In industries such as steel plants, cement factories, mining processing facilities, and large manufacturing bases, the power demand is usually high. 22kV transformers can provide higher capacity, more stable voltage output, and longer-distance power distribution capability, making them suitable for large-scale industrial power systems.
Urban Power Distribution Systems
During urban expansion, 22kV distribution systems can effectively support the increasing power demand from commercial areas, residential communities, and public infrastructure facilities. Compared with long-distance low-voltage power supply solutions, 22kV systems offer better economic performance, lower energy losses, and greater distribution efficiency.

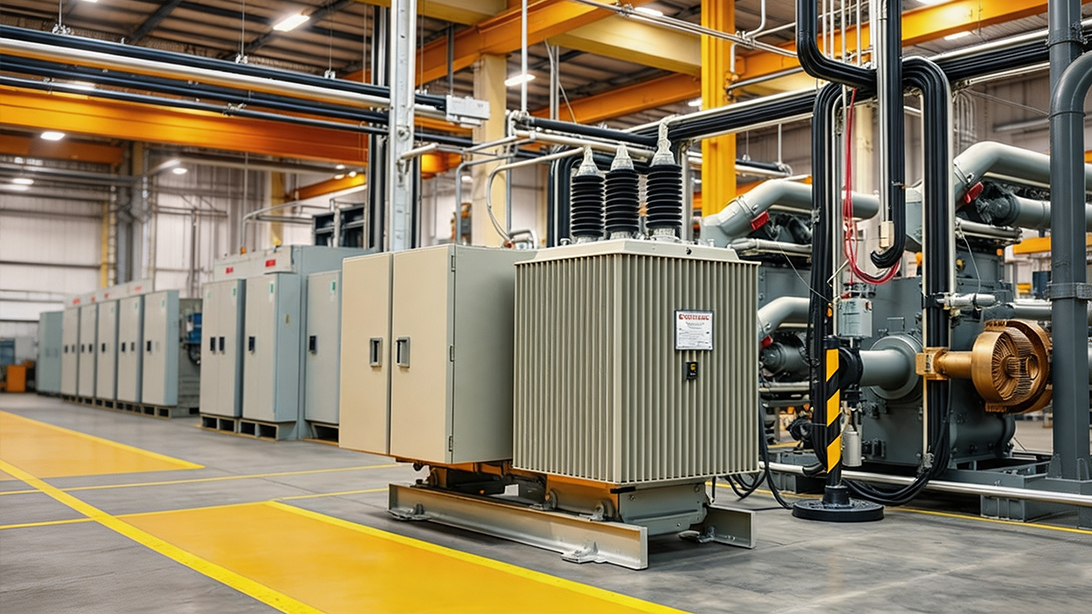

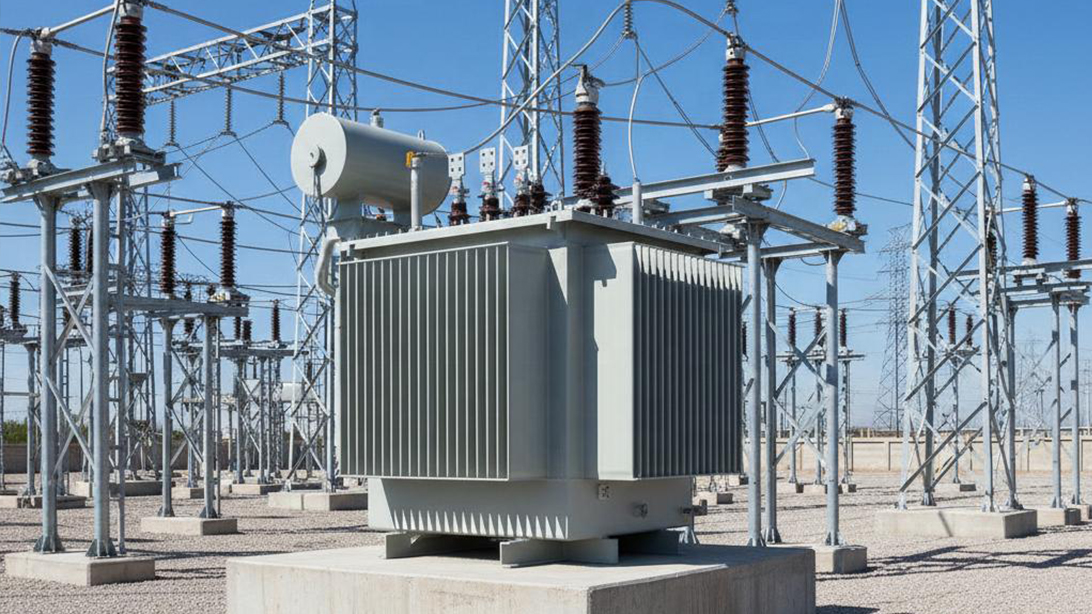

33kV transformers are considered one of the higher voltage levels within medium-voltage power distribution systems. They are mainly used in large industrial projects, power infrastructure, and long-distance power supply networks. Compared with 11kV and 22kV systems, 33kV transformers provide stronger transmission capacity and are more suitable for larger loads, longer power transmission distances, and more complex power distribution networks.
In many countries and regions, 33kV has become a commonly adopted distribution voltage level for industrial users and utility companies.
The typical configuration of a 33kV transformer includes a 33kV primary side, while the secondary side can be customized according to project requirements, such as 6.6kV, 10.5kV, 11kV, 400V, or 415V. The specific configuration depends on local grid standards and the electrical requirements of the project.
In terms of capacity, common ratings include 1000kVA, 1600kVA, 2500kVA, 3150kVA, 5000kVA, and above, with customized solutions available for large-scale applications.
Large Industrial Plants
Industries such as steel production, petrochemicals, mining, automotive manufacturing, and large-scale processing facilities typically have high power demand and require continuous operation throughout the year. A 33kV power supply system can reduce transmission losses over long distances and improve the overall power distribution efficiency of the entire facility.
For these projects, customers usually place greater emphasis on transformer performance, including high load capacity, short-circuit withstand capability, temperature rise control, and long-term operational reliability. These factors directly affect production continuity and the stability of the entire industrial power system.

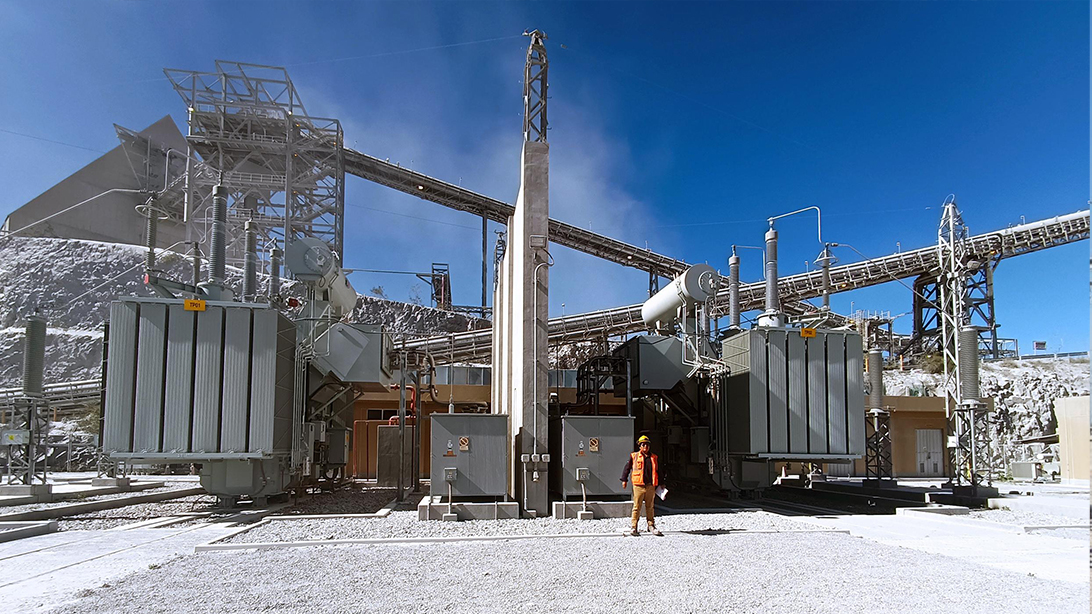

Mining projects often face a common challenge — the power source is located far away. Especially in regions such as Africa, South America, and Central Asia, mining sites are often located far from urban power grids.
If a lower voltage level is used for power transmission over long distances, it can result in higher cable investment costs, increased transmission losses, and greater voltage fluctuations.
Therefore, 33kV power supply systems have become a practical and efficient solution for mining operations, power stations, and large industrial bases, providing reliable power transmission over long distances while improving system stability and overall energy efficiency.
Power Grid Upgrades and Infrastructure Projects
33kV transformers are widely used in regional substations, distribution substations, and dedicated substations for industrial customers. With developing countries continuously upgrading their power infrastructure, the demand for 33kV equipment has been steadily increasing.
Although all three belong to the category of medium-voltage transformers, the selection should be based on specific project conditions. Factors such as grid requirements, load characteristics, transmission distance, and investment cost all need to be considered.
Selection Factor | 11kV | 22kV | 33kV |
|---|---|---|---|
Power Supply Distance | Short-distance internal plant distribution | Medium-distance industrial park distribution | Long-distance supply for large-scale projects |
Suitable Load Range | Small and medium loads | Medium to large loads | Large to extra-large loads |
Typical Applications | General industries, commercial buildings | Large industrial parks, urban distribution networks | Energy projects, grid infrastructure, mining operations |
Transmission Capability | Basic level | Higher | Highest |
Line Losses | Standard level | Lower | Lowest |
Equipment Investment | Lower | Medium | Higher |
During the transformer selection process, several key factors need to be confirmed one by one.
Grid voltage standards are the first consideration. The primary voltage of the transformer must match the local utility grid voltage; otherwise, the equipment cannot be properly connected to the power system.
For the load side, engineers need to evaluate the current maximum demand, future expansion requirements, equipment starting currents, and expected load growth trends. The power transmission distance is also a major factor that determines which voltage level provides the most economical solution.
When selecting transformers for engineering projects, it is not enough to focus only on voltage level and capacity. The actual operating environment must also be considered. Different countries have significant differences in climate conditions, grid characteristics, and installation methods, which directly affect transformer design requirements.

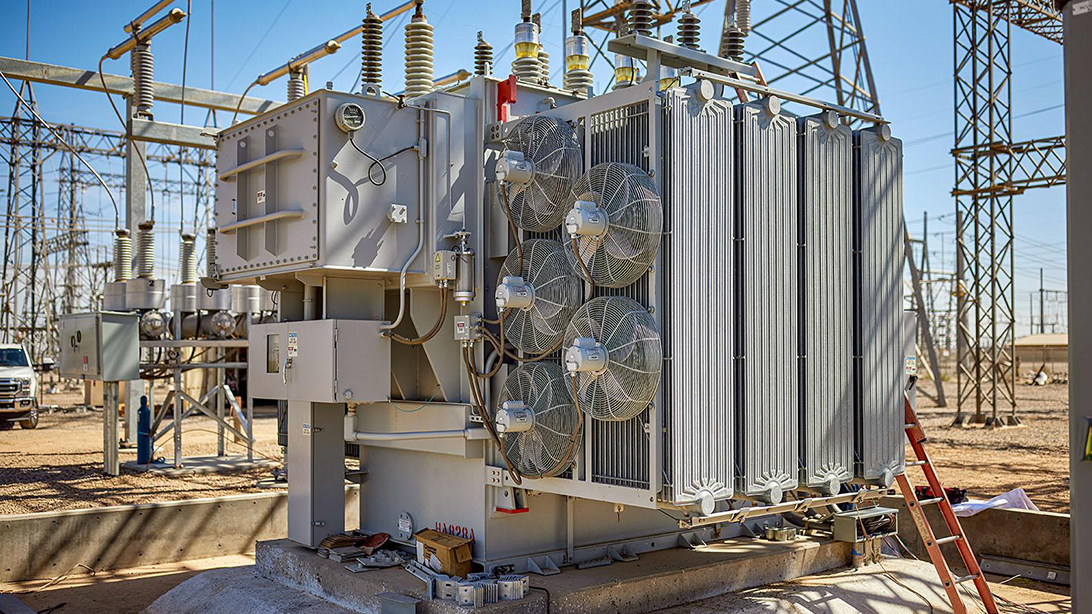

High-Temperature Environment Design
In regions such as the Middle East and Africa, ambient temperatures can remain above 40°C for long periods. High temperatures reduce transformer cooling efficiency, increase winding temperature rise, and accelerate insulation aging.
To ensure reliable operation under these conditions, transformer designs typically include measures such as:
Optimizing the cooling structure
Increasing heat dissipation area
Providing sufficient temperature rise margin
Selecting suitable insulation materials and components
These design improvements help ensure that transformers maintain stable performance and a longer service life even under harsh environmental conditions.
Protection Against High Humidity and Salt Spray Environments，Coastal and tropical regions often experience high humidity and heavy salt spray, which can accelerate corrosion of metal components. Therefore, transformers used in these environments require enhanced protection.
Key measures include improving oil tank corrosion resistance, ensuring sufficient enclosure protection ratings, and using corrosion-resistant fasteners and hardware. For coastal industrial projects, the requirements for anti-corrosion coatings and surface protection are usually much higher to ensure long-term reliable operation.
High-Altitude Project Design
At higher altitudes, the air density decreases, which affects both insulation performance and cooling capability. Therefore, transformer design needs to consider altitude-related corrections, including adjustments to:
Insulation level
Cooling capacity
Rated power capacity
Proper altitude adaptation ensures that transformers can maintain safe and stable operation in high-altitude environments.
Transformers used in engineering projects are generally required to comply with international standards. IEC 60076 is one of the most widely adopted transformer standards worldwide, covering requirements related to transformer design, testing, performance, and insulation.
In Russia and some CIS countries, GOST standards are commonly applied. These standards provide detailed requirements for environmental adaptability, mechanical structure, and electrical performance.
In addition to international standards, many EPC projects also have their own technical requirements, such as:
Specified energy loss levels
Special protection ratings
Specific testing reports
Third-party inspection requirements
Choosing a transformer manufacturer with international export project experience can significantly reduce technical risks and communication issues during project execution.
Market Region | Applicable Standards | Key Requirements |
|---|---|---|
Middle East | IEC 60076 | High-temperature design, corrosion protection |
Africa | IEC 60076 | Grid fluctuation tolerance, optimized cooling |
South America | IEC 60076 | High-altitude correction, salt spray protection |
Russia | GOST | Low-temperature operation, sealing materials |

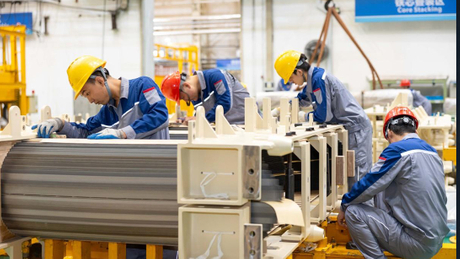

Zisheng Electric has long been engaged in the manufacturing of oil-immersed transformers, dry-type transformers, and related power equipment, with extensive applications in industrial plants, power grids, renewable energy projects, and EPC engineering projects.
The company provides solutions covering 11kV, 22kV, and 33kV voltage levels, with customized options available for:
Transformer capacity
Installation methods
Protection solutions
Environmental adaptation requirements
Based on different project conditions and regional requirements, Zisheng Electric provides complete technical support from transformer selection, engineering design, manufacturing, testing, and delivery, helping customers build reliable and efficient medium-voltage power systems for global projects.
To address different operating conditions, Zisheng Electric provides targeted transformer solutions:
High-Temperature Region Solutions
For projects in the Middle East, Africa, and tropical regions, cooling performance and temperature rise control are the key design considerations. Transformer insulation systems are also designed with sufficient safety margins to ensure long-term service life under high-temperature conditions.
Coastal Region Solutions
Salt spray environments create higher corrosion risks. Zisheng Electric applies targeted solutions in both design and manufacturing processes, including enhanced corrosion protection measures to improve equipment durability in coastal areas.
High-Altitude Region Solutions
For high-altitude applications, insulation performance and cooling capability are adjusted according to altitude correction requirements, ensuring reliable operation even in plateau environments.
EPC Project Solutions
Zisheng Electric provides full project support, including technical specification confirmation, transformer selection, preparation of technical documents, factory acceptance testing (FAT), and project delivery coordination, helping customers reduce procurement risks and improve project execution efficiency.
Zisheng Electric has participated in numerous medium-voltage transformer projects across different regions and industries.
Large-Scale Solar Power Plant Project in Saudi Arabia
The project was located in western Saudi Arabia, where ambient temperatures remain above 45°C for extended periods, with even higher ground temperatures.
Zisheng Electric supplied several 33/0.415kV, 2500kVA step-up transformers. The transformer cores adopted 0.23mm high magnetic induction grain-oriented silicon steel, with a lower magnetic flux density design compared with conventional solutions. Unit losses were effectively controlled, ensuring stable operation under harsh desert high-temperature conditions.
Industrial Park Distribution Project in Zambia
The project was located in Zambia’s Copperbelt Province, at an altitude of approximately 1,200 meters, with significant temperature differences between day and night.
Zisheng Electric supplied 11/0.415kV, 1600kVA distribution transformers. The transformer design was optimized for tropical highland conditions, including improved temperature rise control. After commissioning, the equipment has maintained stable operation and met the continuous operating requirements under local environmental conditions.
Brazzaville Substation Project in Republic of the Congo
The local power grid experiences relatively significant voltage fluctuations. Zisheng Electric supplied 33/0.4kV, 2500kVA distribution transformers with reinforced winding structures to improve resistance against voltage fluctuations and enhance operational reliability.
Industrial Park Distribution Project in Russia
The project was located in Siberia, where winter temperatures can drop as low as -45°C.
Zisheng Electric supplied 10/0.4kV, 2000kVA oil-immersed transformers. The transformer oil used has a pour point below -45°C, and the sealing materials maintain flexibility under extremely cold conditions. The equipment meets local requirements for low-temperature starting capability and long-term reliable operation.
Although 11kV, 22kV, and 33kV transformers all belong to the medium-voltage category, each voltage level has its own application focus.
11kV transformers are suitable for conventional industrial facilities, commercial buildings, and regional distribution systems.
22kV transformers are more suitable for large industrial parks and urban distribution networks.
33kV transformers are mainly used in large-scale energy projects, power grid infrastructure, and long-distance power supply applications.
Transformer selection is not simply an equipment purchasing decision. It directly affects the operational stability and reliability of a project over decades. Choosing a transformer manufacturer with strong R&D capabilities, manufacturing experience, and project service expertise can significantly reduce risks throughout the stages of design, equipment selection, installation, and operation.
Zisheng Electric provides complete medium-voltage transformer solutions covering 11kV, 22kV, and 33kV systems. Supporting international standards such as IEC 60076 and GOST, the company provides customized solutions based on different countries’ grid conditions and project requirements, delivering reliable and efficient power equipment support for global industrial and energy projects.
Zisheng Electric — with years of experience in power equipment research, development, and manufacturing. Its product portfolio covers dry-type transformers, oil-immersed transformers, amorphous alloy transformers, and switchgear equipment, with customized production available according to international standards including IEC 60076 and GOST. The company serves customers across the Middle East, South America, Africa, and Russia.
For medium-voltage transformer project selection, technical specifications, and procurement support, customers are welcome to send project details through Zisheng Electric’s official channels for professional technical assistance.
