Single Phase American-Type Pad Mounted Transformer

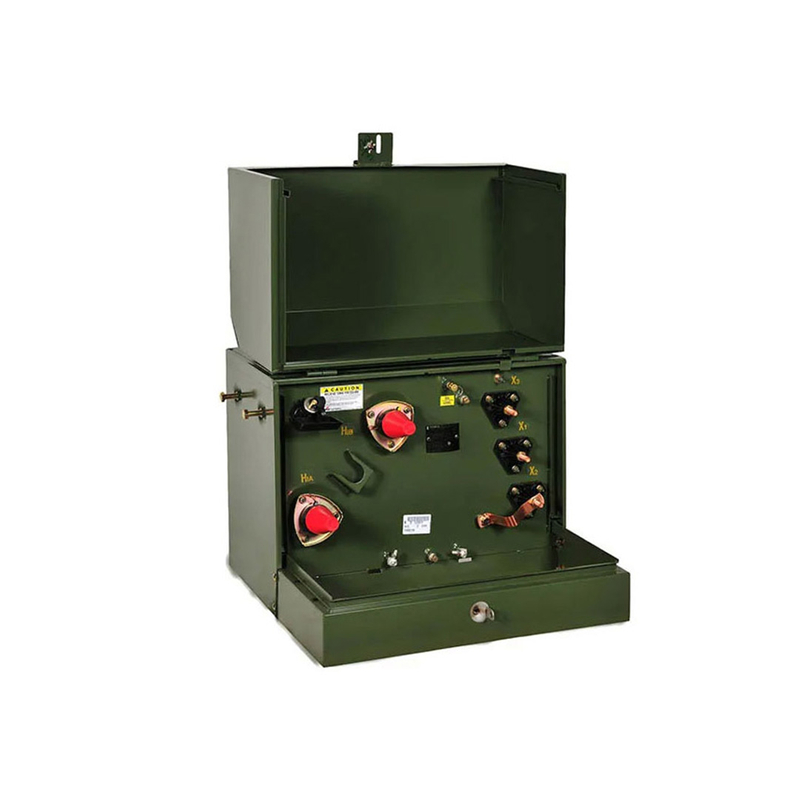

Designed and manufactured by Zisheng with uncompromising quality, our single-phase padmount transformers are liquid-filled units built to meet rigorous performance and safety requirements. The clamshell cabinet design ensures easy access for maintenance without sacrificing space efficiency, making them ideal for urban public locations, commercial complexes, and industrial facilities where low visibility and security are priorities.

At the core of each transformer lies a high-grade silicon-steel core paired with either premium aluminum windings or optional pure copper windings—reflecting Zisheng’s commitment to durability and optimal conductivity. We use Type II non-PCB mineral oil for ONAN cooling as standard, with an eco-friendly FR3 high fire-point oil option (KNAN) available for enhanced environmental safety. The reinforced carbon steel tank, equipped with lifting lugs and a pressure relief valve, ensures structural integrity and protection against overpressure, while a nitrogen blanket preserves oil quality for long-term reliability.

Standard features include a pad-lockable door handle for tamper resistance, 65°C temperature rise rating, bayonet fuses with drip shields, and dead-front well inserts for high-voltage bushings—all engineered to minimize operational risks. Low-voltage bushings come in paddle/spade or lug-connector types to suit diverse installation needs. For customized requirements, Zisheng offers stainless steel tanks, high-voltage taps, dual voltage configurations, internal backup CL fuses, and on-off high-voltage switches, as well as removable stud bushing wells.

Every Zisheng single-phase padmount transformer undergoes strict testing to comply with industry benchmarks, ensuring consistent performance under normal and transient conditions. With a focus on longevity, efficiency, and safety, our transformers are the trusted choice for non-utility customers seeking a robust power solution that integrates seamlessly into commercial, industrial, and residential power systems.
