Understanding Transformer Types and Their Applications in Modern Power Systems

Transformers are the foundation of modern electrical infrastructure. Every power generation plant, transmission network, industrial facility, commercial building, and residential community relies on transformers to safely and efficiently transfer electrical energy. By changing voltage levels through electromagnetic induction, transformers minimize transmission losses, improve energy efficiency, and ensure reliable power delivery across every stage of the power grid.

According to the International Energy Agency (IEA), global electricity demand continues to grow by more than 3% annually, increasing the need for high-efficiency power and distribution transformers that comply with international standards such as IEC 60076, IEEE C57, and ANSI requirements.

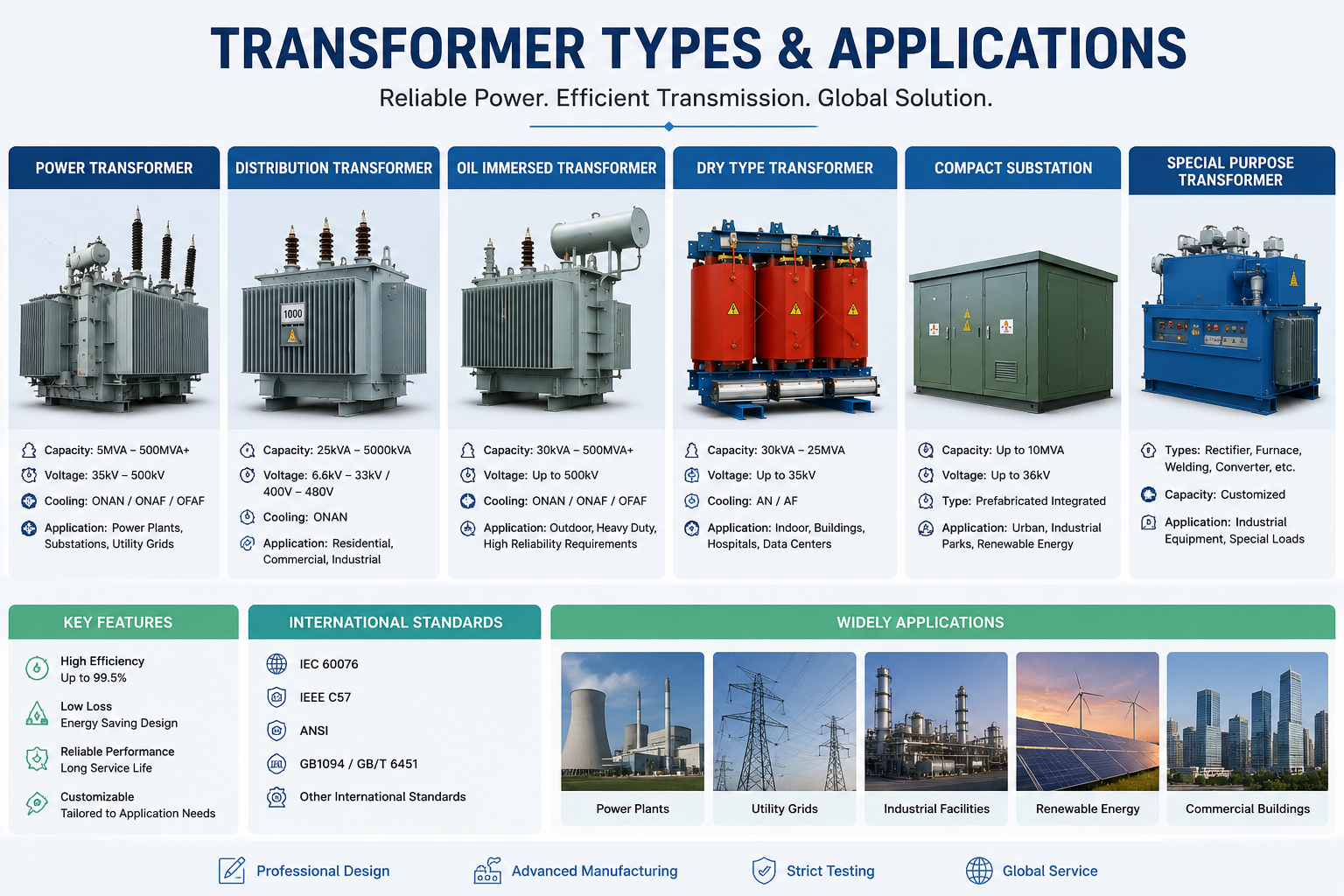

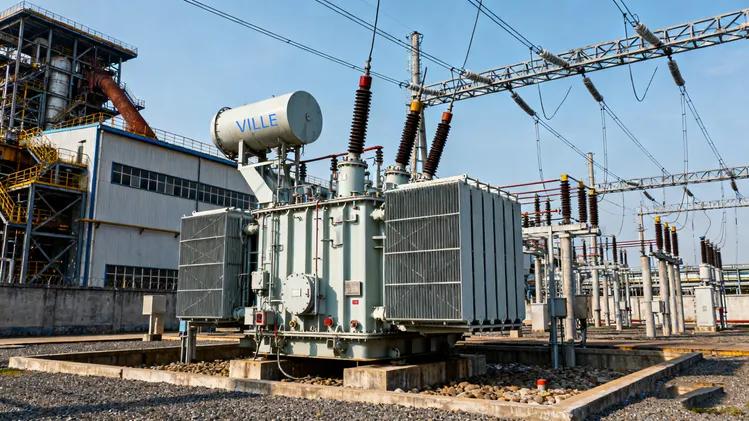

Power Transformers – Designed for High-Voltage Transmission

Power transformers are primarily installed in power plants and transmission substations, where they transfer large amounts of electrical energy between different voltage levels.

Typical technical specifications include:

A 220kV transmission transformer can transfer hundreds of megawatts of electricity while maintaining extremely low energy losses, making it an essential component of national power grids and utility infrastructure.

Typical Applications

• Utility substations

• Power generation stations

• Wind farms

• Solar power plants

• HV transmission networks

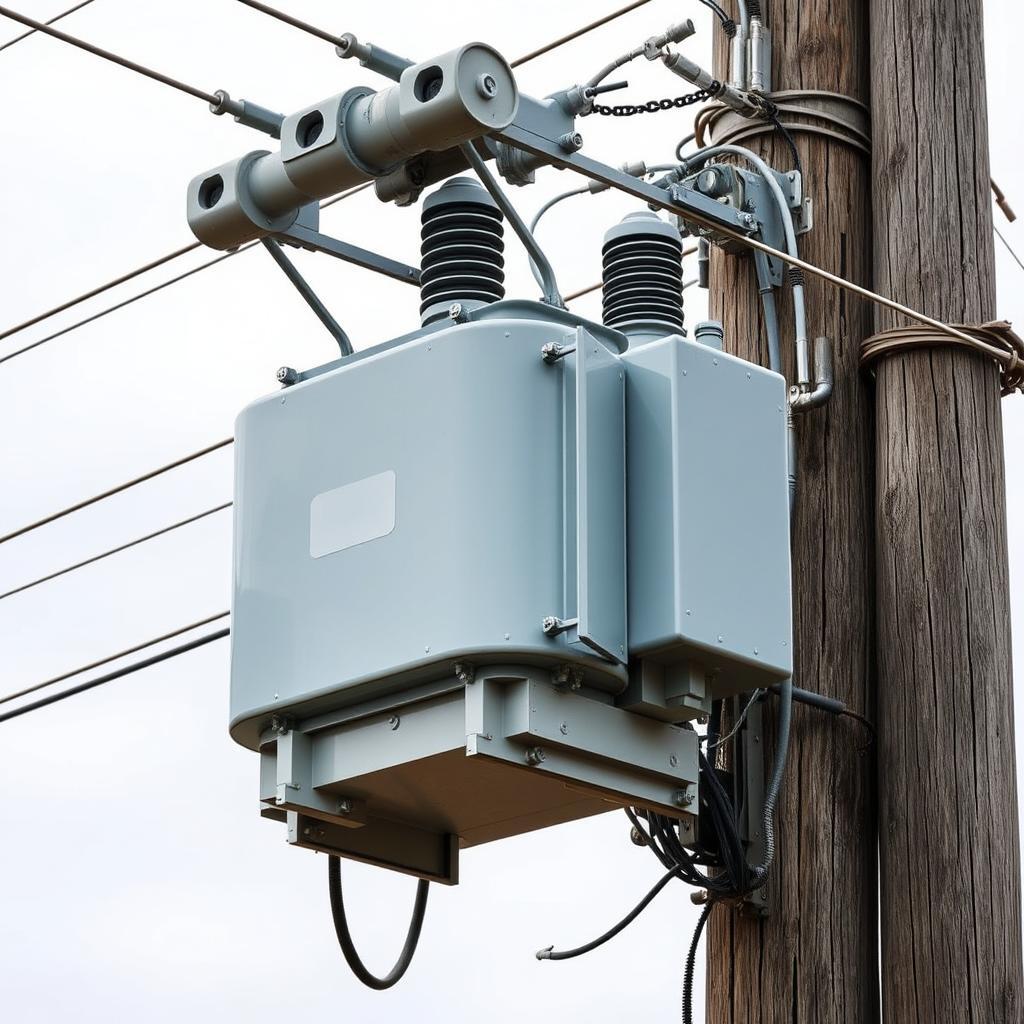

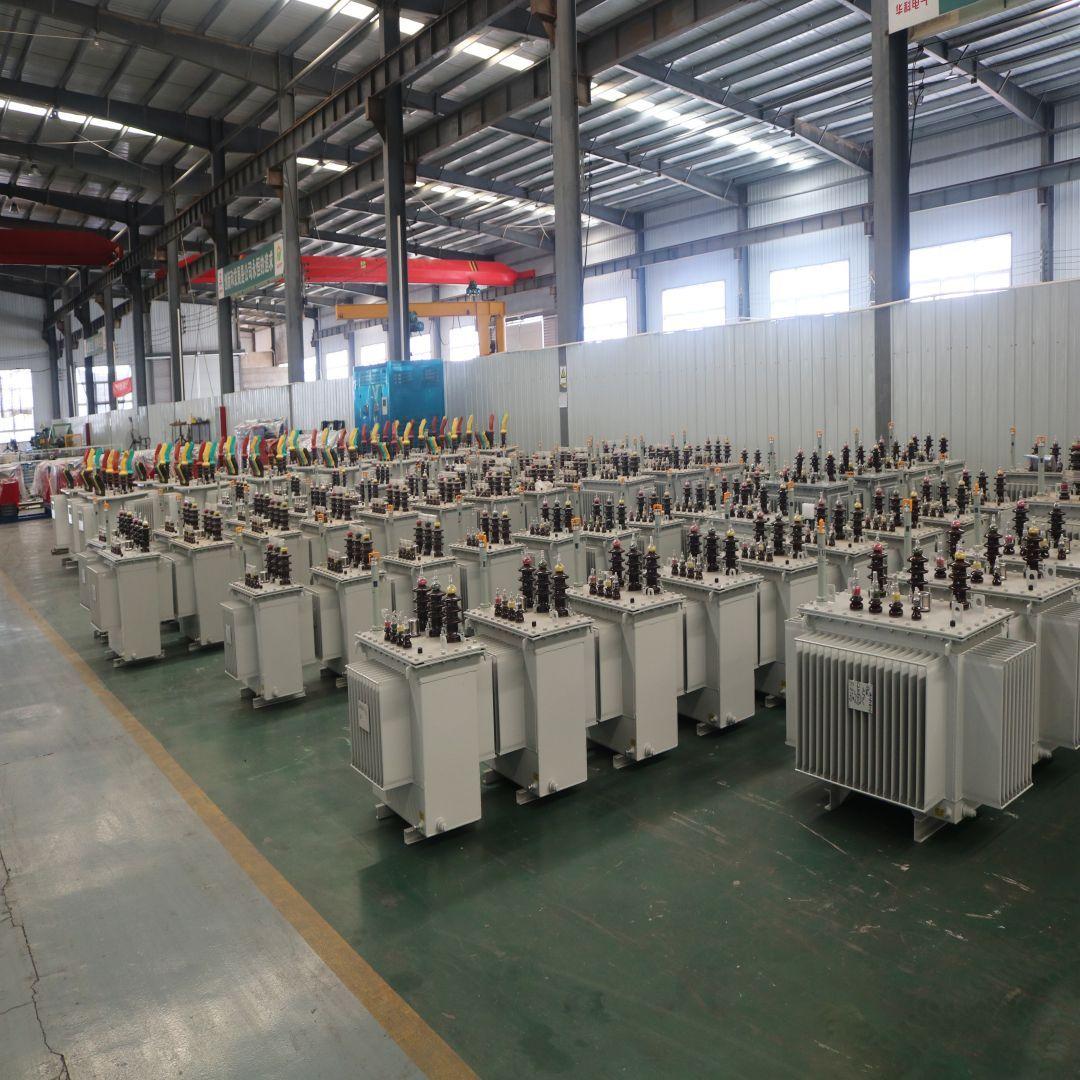

Distribution Transformers – Delivering Electricity to End Users

Distribution transformers reduce medium voltage to low voltage for residential, commercial, and industrial applications. They operate continuously, making efficiency and reliability critical factors.

Typical specifications include:

High-efficiency distribution transformers can reduce annual energy losses by thousands of kilowatt-hours compared with older designs, helping utilities and industrial users lower operating costs over the equipment's 25–35 year service life.

Common installation locations include residential neighborhoods, industrial parks, commercial centers, hospitals, schools, and public infrastructure.

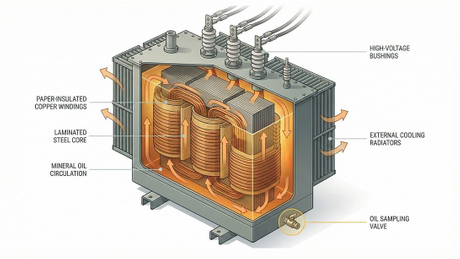

Oil Immersed Transformers – High Capacity and Superior Cooling

Oil immersed transformers use mineral insulating oil to provide both electrical insulation and heat dissipation. Because oil has excellent thermal conductivity, these transformers can safely operate under continuous heavy loads.

Typical technical specifications:

• Capacity: 30kVA–500MVA+

• Voltage Class: Up to 500kV

• Cooling: ONAN, ONAF, OFAF

• Insulation Class: IEC 60076

• Temperature Rise: 55K / 65K

• Expected Service Life: 30–40 years

Compared with dry type transformers of similar ratings, oil immersed transformers generally offer higher overload capability and better thermal performance, making them the preferred solution for outdoor substations, mining operations, manufacturing plants, and renewable energy projects.

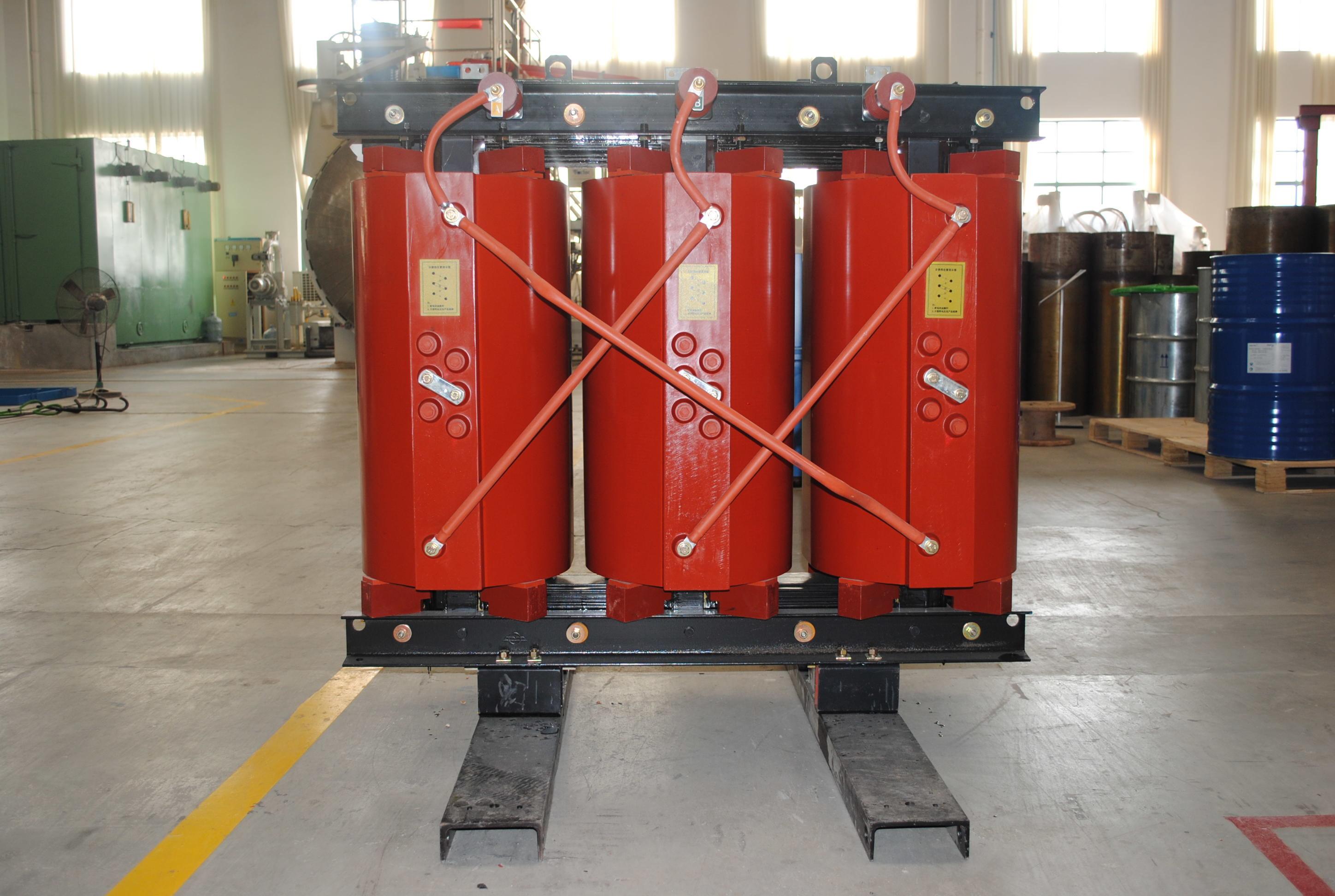

Dry Type Transformers – Safe and Reliable for Indoor Installations

Dry type transformers eliminate insulating oil and rely on air cooling, significantly reducing fire risk and maintenance requirements.

Typical specifications include:

• Capacity: 30kVA–25MVA

• Voltage Level: Up to 35kV

• Insulation Class: Class F (155°C) or Class H (180°C)

• Cooling Method: AN / AF

• Protection Rating: IP20–IP54 (optional enclosure)

Because of their low environmental impact and excellent fire resistance, dry type transformers are widely used in:

• Airports

• Hospitals

• Metro stations

• High-rise buildings

• Shopping malls

• Data centers

• Semiconductor factories

Selecting the Right Transformer

Choosing the correct transformer requires evaluating several engineering parameters beyond capacity alone.

Key selection factors include:

• Rated Power (kVA/MVA)

• Primary and Secondary Voltage

• Load Profile

• Ambient Temperature

• Altitude

• Frequency (50Hz or 60Hz)

• Cooling Method

• Vector Group

• Short-Circuit Impedance

• Energy Efficiency Level

• Compliance with IEC 60076 or IEEE C57 Standards

For example, a 1000kVA 11/0.4kV oil immersed transformer is widely used in industrial manufacturing plants, while a 2500kVA dry type transformer is often selected for commercial buildings where fire safety is a priority.

Engineering Solutions for Global Power Projects

Modern transformers are expected to deliver high efficiency, low losses, and long-term operational reliability.

At Zisheng Transformer, we manufacture a complete range of transformer solutions, including:

• Oil Immersed Distribution Transformers (25kVA–5000kVA)

• Dry Type Transformers (30kVA–25MVA)

• Power Transformers (Up to 500MVA)

• Pad Mounted Transformers

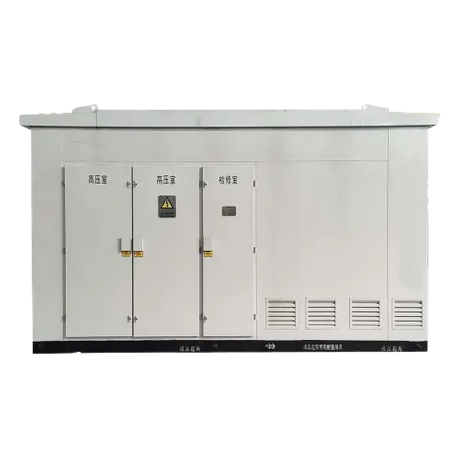

• Compact Substations

• Renewable Energy Step-Up Transformers

• Customized Power Distribution Solutions

Every transformer undergoes comprehensive routine testing before shipment, including:

• Transformer Ratio Test (TTR)

• Winding Resistance Measurement

• No-Load and Load Loss Test

• Insulation Resistance Test

• Induced Voltage Test

• Applied Voltage Test

• Partial Discharge Test (Dry Type)

• Oil Dielectric Strength Test (Oil Immersed)

Designed in accordance with IEC 60076, IEC 60296, IEEE C57, and customer-specific project requirements, our transformer solutions are exported to utility companies, EPC contractors, renewable energy developers, and industrial customers worldwide, delivering safe, efficient, and reliable power distribution for projects of every scale.
