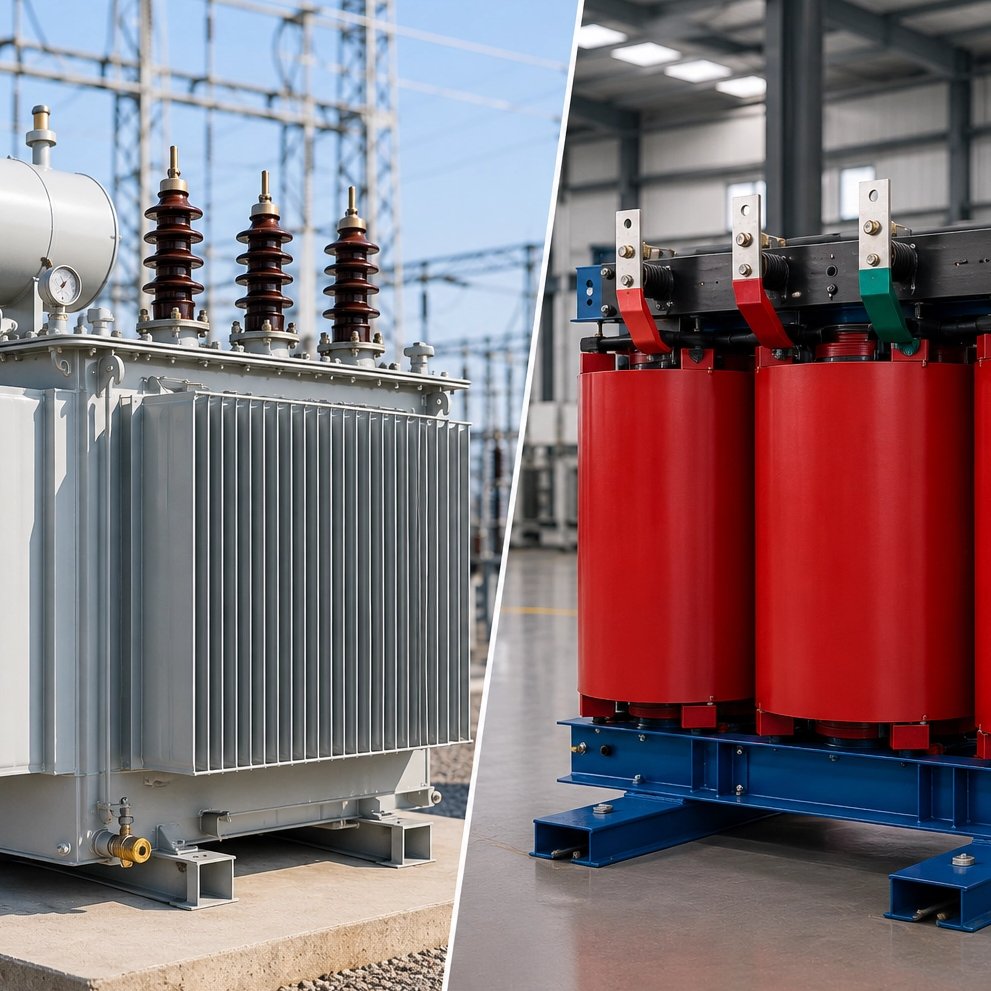

Selecting the right power distribution equipment is a high-stakes decision for electrical engineers and facility managers. It is rarely a simple case of one technology being strictly "better" than the other. Instead, the choice between oil-filled (liquid-immersed) and dry-type transformers depends entirely on balancing site constraints against load requirements. This trade-off often dictates the safety, efficiency, and long-term viability of your electrical infrastructure.
The primary tension is clear. Dry-type units offer exceptional safety and low maintenance, making them the standard for indoor environments. In contrast, an oil-filled transformer delivers superior cooling, longevity, and high-voltage capacity, dominating outdoor and utility grid applications. This guide moves beyond basic definitions. We will analyze the Total Cost of Ownership (TCO), contrast maintenance realities like DGA testing versus cleaning, and navigate critical installation codes to help you make the right choice.
Location Rule of Thumb: Dry-type is the standard for indoor/commercial buildings (fire safety); Oil-filled is the standard for outdoor utility and industrial substations.
Capacity Ceiling: Oil-filled units are required for high-voltage transmission (>35kV) and heavy capacities (>2500kVA), whereas dry-type hits a ceiling in size and voltage.
Maintenance Reality: Dry-type requires minimal maintenance (cleaning), while oil-filled requires active fluid monitoring (DGA) and containment infrastructure.
Cost Dynamics: Oil-filled generally has a lower initial purchase price and higher efficiency but higher installation costs (fire vaults/catch basins). Dry-type has a higher upfront price but lower civil engineering costs.
To understand performance differences, we must look at the core design. The primary distinction lies in how the transformer insulates its windings and dissipates the heat generated during operation.
In liquid-filled designs, the core and windings are completely submerged in a dielectric fluid. Traditionally, this is mineral oil, though modern units may use silicone or natural esters (vegetable-based oils) for better environmental safety. This fluid serves a dual purpose:
Electrical Insulation: The oil suppresses arcing between windings, allowing for tighter construction.
Heat Transfer: Through natural convection, the oil absorbs heat from the core and circulates it to the tank walls or external radiators.
Liquid is a far more efficient thermal conductor than air. This allows manufacturers to build compact, high-density windings that remain cool even under heavy electrical loads.
Dry-type transformers rely on air or gas as the cooling medium. The core and coils are not immersed in liquid but are instead housed in a ventilated enclosure. Air circulates through vents, carrying heat away via natural convection or forced fan cooling. Because air is a less efficient insulator and coolant than oil, these units require larger internal clearances.
There are two primary technologies in this category:
VPI (Vacuum Pressure Impregnated): The coils are impregnated with polyester resin under a vacuum to eliminate voids and provide environmental protection.
Cast Resin: The windings are completely encapsulated in solid epoxy resin. This offers superior protection against moisture and dust but makes the coil unit effectively unrepairable.
When evaluating specifications, seven key technical factors separate these two technologies. We have summarized the critical data points below to assist with your comparison.
| Feature | Oil-Filled Transformer | Dry-Type Transformer |
|---|---|---|
| Cooling Efficiency | High (Liquid convection) | Moderate (Air convection) |
| Overload Tolerance | Excellent (High thermal mass) | Limited (Susceptible to hotspots) |
| Voltage Class | Up to 1000kV+ (EHV ready) | typically < 35kV |
| Typical Lifespan | 25–30+ Years | 15–25 Years |
| Footprint | Smaller unit, larger site (containment) | Larger unit, compact install |
| Noise Level | Quieter (Liquid dampens sound) | Louder (Hum + Fan noise) |
| Recyclability | High (Easy material separation) | Low (Resin bonds to copper) |
Oil-filled units possess superior thermal mass. The volume of oil surrounding the core acts as a heat buffer. This allows the transformer to withstand temporary overloads—sometimes up to 150% of rated capacity—without sustaining immediate damage. Dry-type units lack this thermal inertia. If you push them beyond their rated capacity, the windings heat up rapidly, risking insulation failure.
If your project involves high-voltage transmission, the choice is made for you. Oil insulation is scalable to Extra High Voltage (EHV) levels, easily handling 500kV or 1000kV applications. Dry-type technology is physically limited by the dielectric strength of air and resin. Consequently, dry units are almost exclusively found in medium voltage applications, typically capped under 35kV.
There is a counter-intuitive dynamic regarding space. Physically, an oil-filled transformer is smaller than a dry-type of the same kVA rating because liquid cooling allows for smaller coils. However, the installation footprint tells a different story. Oil units require mandatory fire clearances, radiators, and spill containment basins, which consume significant site area. Dry-type units are physically larger but can be installed right next to loads without complex civil works.
Noise pollution is a critical factor for hospitals and offices. Oil-filled units are generally quieter because the liquid acts as a sound-dampening barrier against the magnetostriction hum of the core. Dry-type transformers, essentially metal cores in a metal box, resonate more freely. Air-cooled units relying on forced fans will generate significant additional decibels.
Oil-filled transformers typically offer a longer service life, often exceeding 30 years. The oil prevents oxygen from reaching the windings, effectively pausing the oxidation and corrosion process. If a fault occurs, the core can be untanked and repaired. Dry-type units, particularly cast resin models, have a shorter expectancy of 15–25 years. Since the coils are cast in solid epoxy, a winding failure usually necessitates scrapping the entire unit.
The interface between the grid and the transformer differs. Oil units typically utilize porcelain bushings, which are robust and weather-resistant. Dry units often utilize silicone rubber or epoxy bushings, which offer flexibility and resistance to vandalism but handle different environmental stresses.
Historically, oil-filled units have maintained a lead in standard efficiency ratings. They exhibit lower no-load losses. While high-tier dry-type models using amorphous cores are closing this gap, liquid-filled designs generally remain the leader in energy efficiency for standard applications.
Your specific application environment is the strongest filter for this decision. We categorize suitability into three distinct scenarios.
For installations inside commercial buildings, hospitals, shopping malls, and residential complexes, dry-type is the clear winner. The primary driver is fire safety. Cast resin transformers are self-extinguishing and do not introduce a fire load to the building. They eliminate the risk of toxic leaks and remove the expensive requirement for building fire-proof vaults. Underground mining operations also favor dry-type units to prevent hazardous smoke accumulation.
Utility substations, renewable energy farms, and long-distance transmission lines rely on oil-filled technology. These units are engineered to survive the elements. Their sealed tanks resist moisture ingress, and the radiator fins effectively dissipate heat even under direct sunlight. When kVA requirements soar into the tens of MVA, liquid cooling is the only viable method to manage the thermal load.
Industrial settings present a debate. Sealed oil units are impervious to chemical vapors and corrosive air because the core is hermetically sealed. However, specially treated cast coil dry-types can also perform well. Sourcing is critical here. When selecting an oil-filled transformer manufacturer for industrial use, you must verify their tank coating standards. Look for C4 or C5M ISO-rated coatings to ensure the steel tank survives corrosive atmospheres.
Budgeting for a transformer involves more than the purchase price. You must calculate the Total Cost of Ownership (TCO) over a 20-year horizon.
The cost structure is inverted between the two types:
Oil-Filled: You pay less for the asset itself. However, you pay significantly more for installation (civil work for catch basins, fire walls) and ongoing maintenance.
Dry-Type: You pay a premium for the asset upfront. In return, you save heavily on installation (no pits, no vaults) and enjoy lower maintenance costs over the asset's life.
The maintenance philosophy differs drastically:
Dry-Type ("Inspect and Clean"): Maintenance is simple but manual. It requires shutting down the unit to vacuum dust accumulation from the windings and checking bolt torque. In clean environments, this is minimal; in dirty factories, it is frequent.
Oil-Filled ("Monitor and Analyze"): You manage the fluid chemistry. This requires taking oil samples for Dissolved Gas Analysis (DGA). DGA is a powerful diagnostic tool that detects arcing or thermal faults before they cause failure. You must also inspect gaskets for leaks and occasionally filter or replace the oil.
When the transformer reaches the end of its life, oil units have high scrap value. The copper, steel, and oil can be easily separated and recycled. Dry-type units, especially cast resin, are difficult to recycle. The epoxy resin bonds permanently to the copper windings, making separation expensive and energy-intensive.
Regulatory compliance often dictates the final decision, particularly regarding fire codes and environmental protection.
Mineral oil is flammable. Installing an oil-filled unit indoors triggers strict building codes, often requiring expensive fire-rated vaults, blast walls, and automatic suppression systems. This infrastructure cost usually makes indoor oil installations prohibitive for commercial buildings. The industry has introduced "High Fire Point" fluids like FR3 (natural esters) which have a higher flash point, but regulations often still require significant safety infrastructure.
Oil leaks are a major liability. A leaking tank can contaminate soil and groundwater, leading to massive EPA fines and remediation costs. Oil-filled transformers require spill containment logic—concrete catch basins or pits designed to hold 110% of the unit’s fluid volume. Dry-type transformers contain no hazardous liquids. They present zero leak risk, removing environmental compliance headaches entirely.
Ultimately, the choice between transformer types is rarely a matter of preference. It is a requirement dictated by voltage class, location, and safety codes. While dry-type units provide peace of mind for indoor safety, oil-filled units remain the workhorses of the high-voltage grid.
Final Recommendation:
Choose Dry-Type for indoor, safety-first, low-maintenance commercial applications near load centers where fire risk is unacceptable.
Choose Oil-Filled for outdoor, high-capacity, utility-grade applications where footprint and noise control are managed via site design.
A: Oil-filled transformers typically have a lower initial purchase price compared to dry-type units of the same rating. However, the installed cost can be higher for oil-filled units due to the need for civil works like spill containment basins and fire-rated vaults. Dry-type units cost more upfront but save money on installation and civil engineering.
A: Yes, but with significant restrictions. Because mineral oil is flammable, indoor installation requires a dedicated fire-proof vault (usually 3-hour fire rating) and automatic fire suppression systems. This often increases insurance premiums and construction costs, making dry-type transformers the preferred choice for most indoor applications.
A: Oil-filled transformers generally last longer, often exceeding 25–30 years. The oil protects the windings from oxygen, preventing oxidation and corrosion. Dry-type transformers typically have a lifespan of 15–25 years, as the insulation is more exposed to thermal cycling and environmental aging.
A: Dry-type transformers rely on air for insulation, which has a lower dielectric strength than oil. To prevent electrical arcing, the internal clearances between windings and the core must be larger. Additionally, air is less efficient at cooling than liquid, requiring larger air ducts and surface areas to dissipate heat effectively.
A: Yes, adequate ventilation is critical. Since they rely on air convection to cool the core and coils, the installation room must have sufficient airflow to remove the heat generated by the transformer. In confined spaces, exhaust fans or AC units may be necessary to prevent overheating.
