Project Overview

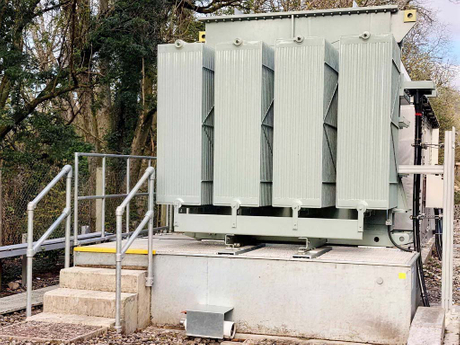

Zisheng supplied a customized oil immersed power transformer for a self-operated adhesive tape manufacturing plant in Malaysia. The solution was designed according to the client’s continuous production load, equipment startup characteristics, and local grid requirements.
Main Transformer Parameters
* Transformer Type: Oil Immersed Distribution Transformer
* Rated Capacity: 1250 kVA
* High Voltage: 33kV
* Low Voltage: 0.415kV
* Frequency: 50Hz
* Cooling Method: ONAN
* Vector Group: Dyn11
* Impedance: 6%
* Insulation Class: Class A
* Protection Level: IP54
* Standard: IEC 60076
### Customized Features
* Capacity optimized for coating machines, slitting lines, and heating equipment
* Enhanced short-circuit resistance for frequent motor startup conditions
* Anti-corrosion tank treatment suitable for Malaysia’s high humidity climate
* Equipped with oil temperature indicator, oil level gauge, and pressure relief device
Project Result
The transformer achieved stable power distribution after commissioning, effectively reducing voltage fluctuation during equipment startup and supporting continuous factory operation with improved energy efficiency and reliability.
