Choosing the wrong transformer leads to safety risks, inefficiency, and costly downtime. A poor decision can delay projects and increase expenses—understanding the right solution is essential.
Dry type transformers and oil immersed transformers serve different purposes. Dry type transformers are ideal for indoor, fire-sensitive environments, while oil filled transformers offer higher efficiency and overload capacity for outdoor and heavy-duty applications. Selecting the right option depends on installation conditions, safety requirements, and total lifecycle cost.
Understanding the differences between these transformer types helps ensure optimal performance, safety, and return on investment for your project.
Selecting between a dry type transformer and an oil immersed transformer depends on several key factors, including installation environment, load requirements, and safety considerations. Dry type transformers, especially cast resin transformers, are designed for indoor use where fire safety and environmental protection are priorities. They do not use flammable liquids, making them suitable for commercial buildings, hospitals, and data centers.
In contrast, oil filled transformers are typically used in outdoor or industrial applications where higher capacity and efficiency are required. These transformers rely on insulating oil for cooling, allowing them to handle larger loads and operate under more demanding conditions.
Additionally, oil immersed transformers are commonly used in substation transformer systems and pad mounted transformer installations due to their durability and cost-effectiveness. Ultimately, the right choice depends on balancing safety, performance, and operational requirements.

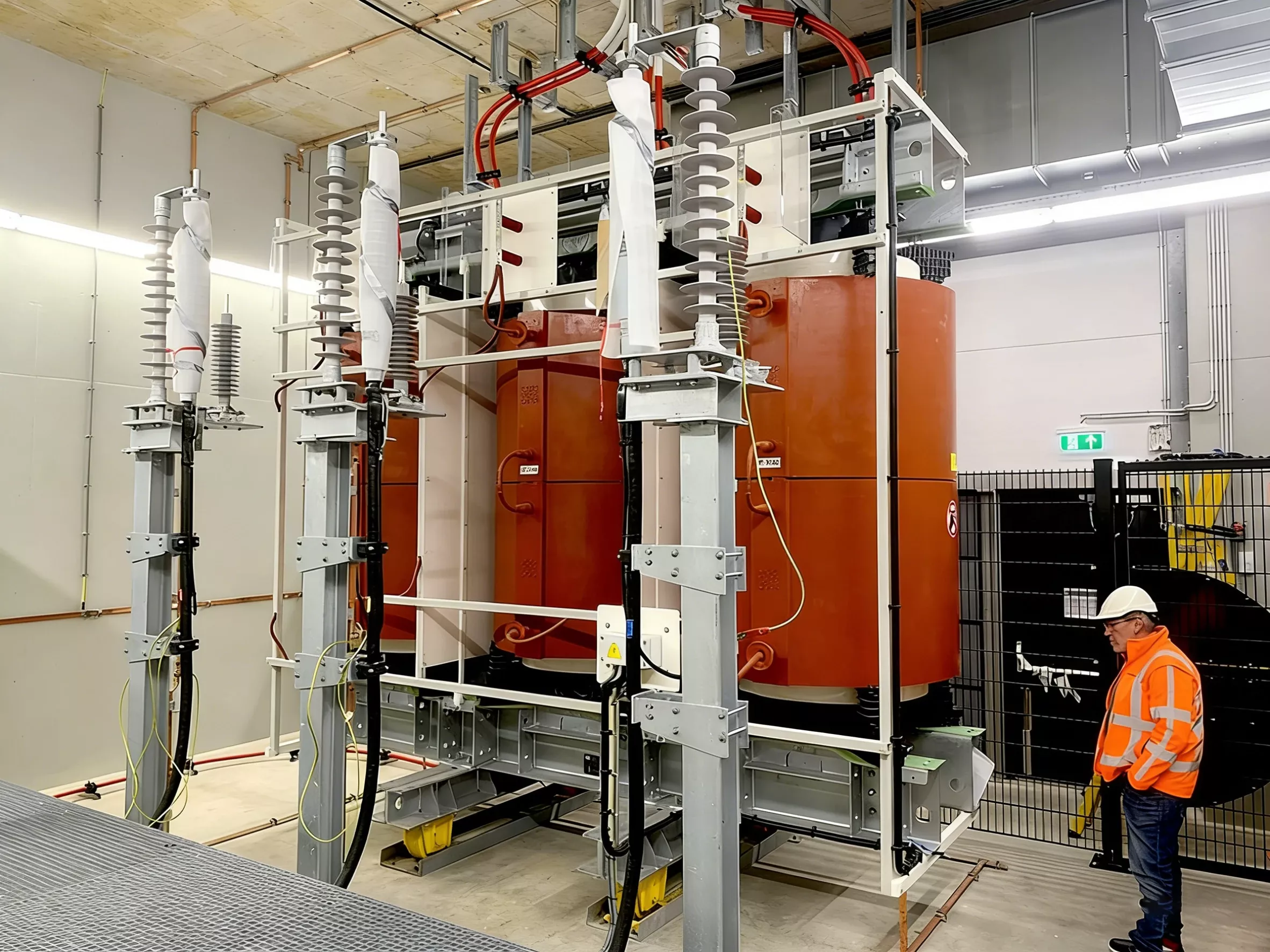

Fire safety is one of the most critical considerations when selecting a transformer for indoor environments. Dry type transformers, particularly cast resin transformers, are designed with non-flammable insulation materials, significantly reducing the risk of fire hazards. This makes them the preferred choice for installations in high-occupancy buildings such as shopping malls, office complexes, hospitals, and airports.
Unlike oil immersed transformers, dry type transformers do not contain combustible liquids, eliminating the risk of oil leakage or fire caused by insulation failure. This is especially important in environments where safety regulations are strict and evacuation risks must be minimized.
Furthermore, dry type transformers produce lower environmental impact in enclosed spaces, as they do not emit harmful gases or require oil containment systems. Their compact design also allows for easier installation within buildings, making them highly suitable for modern infrastructure projects.

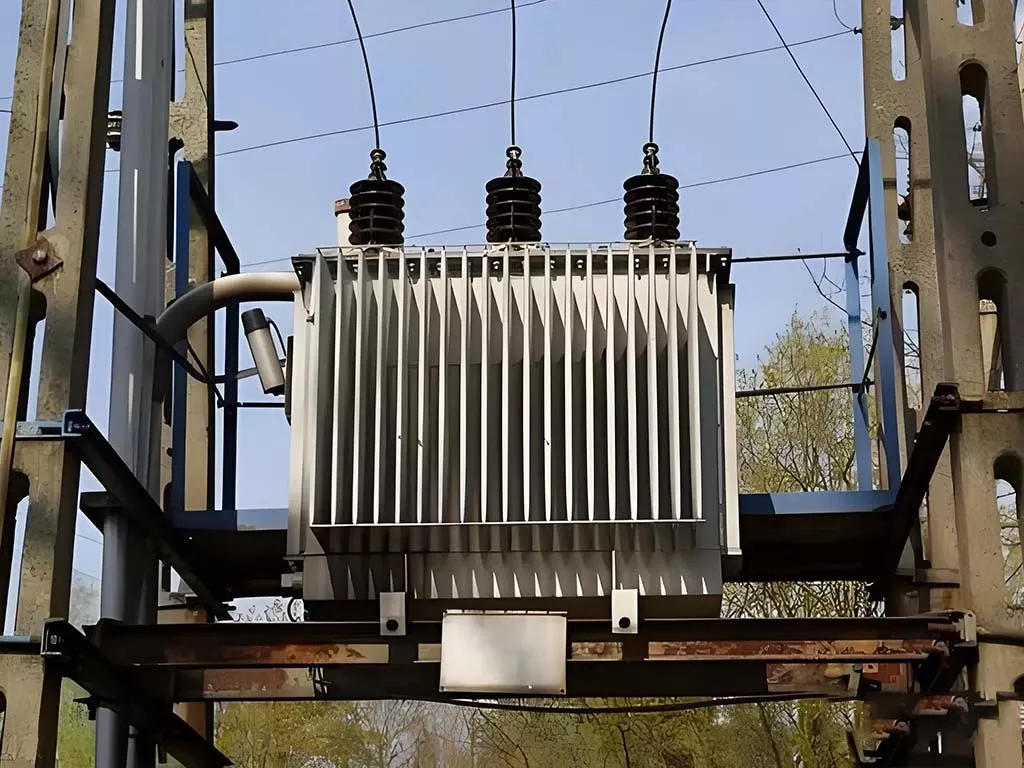

When projects demand high load capacity and reliable performance under heavy stress, oil immersed transformers provide a clear advantage. These transformers use insulating oil as both a coolant and dielectric medium, enabling efficient heat dissipation and improved thermal performance.
This superior cooling capability allows oil filled transformers to handle higher overload conditions compared to dry type transformers. As a result, they are widely used in industrial facilities, power distribution networks, and large-scale substation transformer applications.
In addition, oil immersed transformers typically have longer service life when properly maintained, as the oil helps protect internal components from oxidation and thermal degradation. Their ability to operate efficiently under fluctuating loads makes them ideal for energy-intensive industries and outdoor installations.
For projects requiring robust and continuous power supply, oil immersed transformers remain a reliable and cost-effective solution.
While initial purchase price is an important factor, evaluating the total cost of ownership (TCO) provides a more accurate comparison between dry type transformers and oil immersed transformers. Dry type transformers generally have higher upfront costs due to advanced insulation materials and manufacturing processes, especially in the case of cast resin transformers.
However, they offer lower maintenance requirements since there is no need for oil testing, replacement, or leakage management. This can significantly reduce operational costs over time, particularly in indoor applications.
On the other hand, oil filled transformers typically have lower initial costs and higher efficiency, which can result in reduced energy losses. However, they require regular maintenance, including oil inspection and cooling system checks.
For pad mounted transformer and substation transformer installations, the choice often depends on balancing capital expenditure with long-term operational and maintenance costs.
Dry type transformers are often considered more environmentally friendly due to their oil-free design. Without the risk of oil leakage, they eliminate potential soil and water contamination, making them suitable for environmentally sensitive areas.
Additionally, cast resin transformers use solid insulation materials that are more stable and require minimal maintenance. This reduces the need for periodic servicing and minimizes operational disruptions.
However, oil immersed transformers can also be designed with environmentally friendly insulating oils, such as biodegradable fluids, which reduce environmental impact. Moreover, their higher efficiency can contribute to lower energy consumption in large-scale applications.
Therefore, while dry type transformers are generally preferred for green building projects, oil filled transformers can still be a sustainable choice when designed and maintained properly.
Zisheng Electric provides comprehensive solutions as a professional transformer factory, offering both dry type transformers and oil immersed transformers to meet diverse global project requirements. With advanced production lines and strict quality control, the company ensures reliable performance and compliance with international standards.
As a custom transformer manufacturer, Zisheng Electric supports tailored designs, including cast resin transformers for indoor applications and oil filled transformers for outdoor and industrial use. The company also supplies pad mounted transformer and substation transformer solutions for power distribution systems.
With extensive export experience across Africa, Southeast Asia, the Middle East, and South America, Zisheng Electric understands the unique challenges of different markets. Their ability to provide flexible customization, stable quality, and efficient delivery makes them a trusted partner for EPC contractors, utilities, and distributors worldwide.
Choosing between dry type and oil immersed transformers depends on safety, performance, and cost, ensuring the best fit for each application.
