I. The Proposal of Energy Efficiency Issues in Distribution Transformers

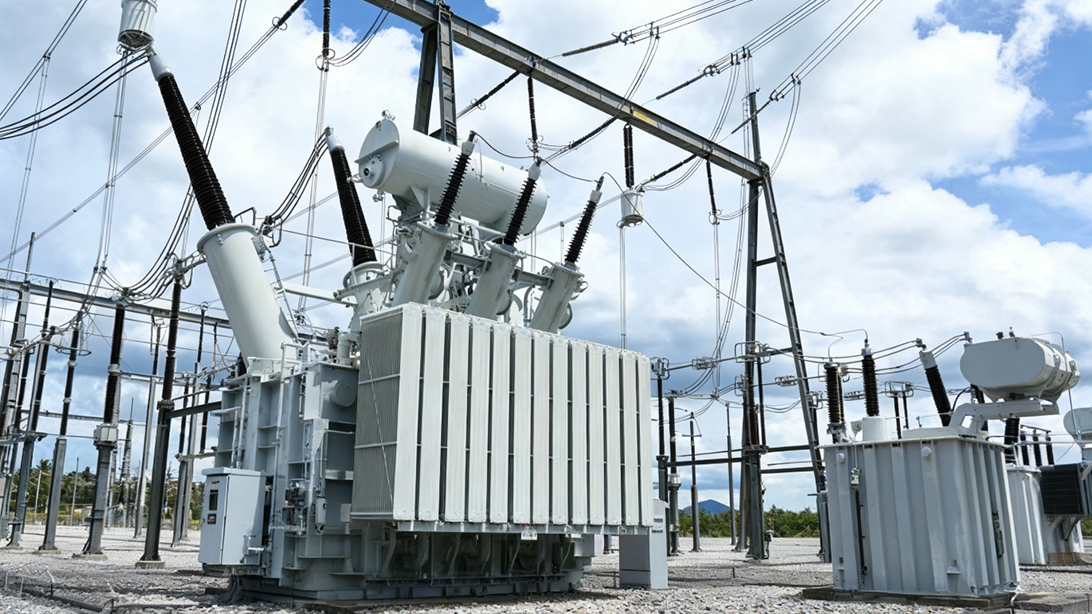

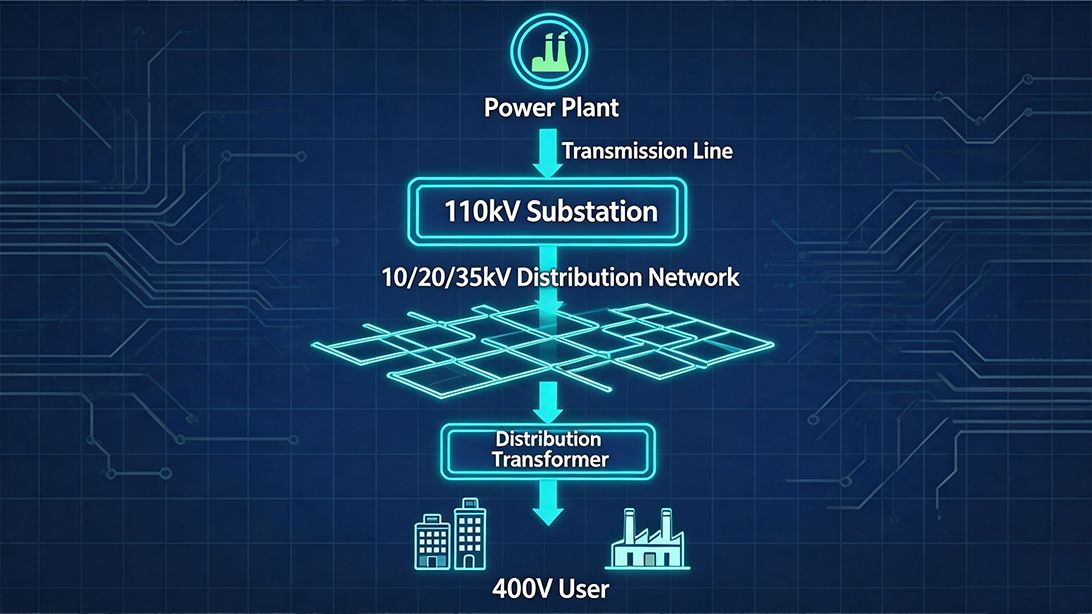

Distribution transformers are installed at the end of the power grid and are responsible for stepping down medium-voltage electricity of 11kV, 22kV, or 33kV to 400V three-phase or 230V single-phase power for end users. They are located between the transmission network and electricity consumption points, making them one of the most widely distributed and extensively installed types of equipment in the distribution system.

Distribution transformers have two characteristics that are highly relevant to energy-saving issues.

First, they operate continuously without being switched off. As long as the power grid is energized, the distribution transformer remains connected and runs 24 hours a day, regardless of whether the load is full, half, or close to no-load. This means it operates for 8,760 hours every year.

Second, they are installed in large quantities. In a medium-sized city distribution network, the number of distribution transformers may range from several hundred to several thousand units. For large power utilities, the total number of transformers under management can reach tens of thousands.

When these two characteristics are combined, small losses from individual units become a significant amount of energy consumption. The no-load loss of a single distribution transformer is usually only a few hundred watts, which may seem insignificant on its own. However, for example, 10,000 transformers with a no-load loss of 300W each would consume approximately 26 million kWh of electricity per year, which is equivalent to the annual electricity consumption of a medium-sized town.

For power utilities and large industrial users, differences in distribution transformer efficiency directly affect electricity bills and operating costs. For transformer manufacturers, the ability to provide products that comply with international energy efficiency standards directly determines whether they can enter overseas markets.

Zisheng Electric specializes in distribution transformers, with products covering three major series: oil-immersed distribution transformers, dry-type distribution transformers, and amorphous alloy distribution transformers. The company can design and manufacture products according to international standards such as IEC 60076 and GOST, serving markets in the Middle East, South America, Africa, and Russia. Years of export manufacturing experience have enabled the company to accumulate technical capabilities in standard compliance, special operating condition handling, and project delivery.

II. Energy Efficiency Standard System for Distribution Transformers

The IEC 60076 series standards issued by the International Electrotechnical Commission (IEC) are among the most widely adopted technical specifications worldwide for the design and manufacture of power transformers. These standards cover all aspects from design and manufacturing to testing and operation. The main standards related to energy efficiency include the following:

Among these standards, IEC 60076-12 is the core document related to energy efficiency.

This standard classifies distribution transformers into five efficiency levels: A0 to A4. Each level corresponds to different limits for no-load losses (P₀) and load losses (Pₖ).

• A0 is the lowest efficiency level, representing traditional non-energy-saving products.

• A1 to A3 provide progressively improved efficiency, with increasingly stricter loss limits.

• A4 represents the highest efficiency level achievable under current technical conditions. Transformers usually need to adopt amorphous alloy cores, three-dimensional wound core structures, or a combination of both to achieve this level.

The value of this classification system lies in providing a globally unified benchmark for energy efficiency. Regardless of where a transformer is manufactured, once it is certified according to a specific IEC 60076-12 efficiency class, purchasers can understand its efficiency performance without conducting actual operation tests.

The standard also clearly specifies how losses should be measured.

• No-load loss is measured under rated voltage and rated frequency conditions.

• Load loss is measured at rated current and converted to the reference temperature:

  • 75°C for oil-immersed transformers;

  • 120°C for dry-type transformers.

Both values are expressed in watts or kilowatts, and the measurement results are traceable.

Regarding temperature rise, IEC 60076-2 specifies the maximum allowable winding temperature rise limits for different insulation classes.

IEC 60076-7 recommends a design service life of no less than 25 years.

In actual operation, there is a well-known relationship between temperature rise and insulation aging: for every 8°C to 10°C increase in winding temperature above the rated limit, the insulation life is approximately reduced by half.

III. Main Technical Approaches for Energy Saving and Loss Reduction in Distribution Transformers

The losses of distribution transformers can be divided into two categories: no-load losses and load losses.

No-load losses originate from the transformer core. When the iron core is repeatedly magnetized under an alternating magnetic field, hysteresis losses occur. At the same time, the alternating magnetic field induces circulating currents inside the core, resulting in eddy current losses. This type of loss exists as long as the transformer is energized, regardless of whether it is carrying a load.

Load losses originate from the windings. When current flows through the conductors, the resistance of the conductors generates heat. Load losses are proportional to the square of the current, meaning that the higher the load, the greater the losses.

Since the mechanisms behind these two types of losses are different, the solutions are also different.

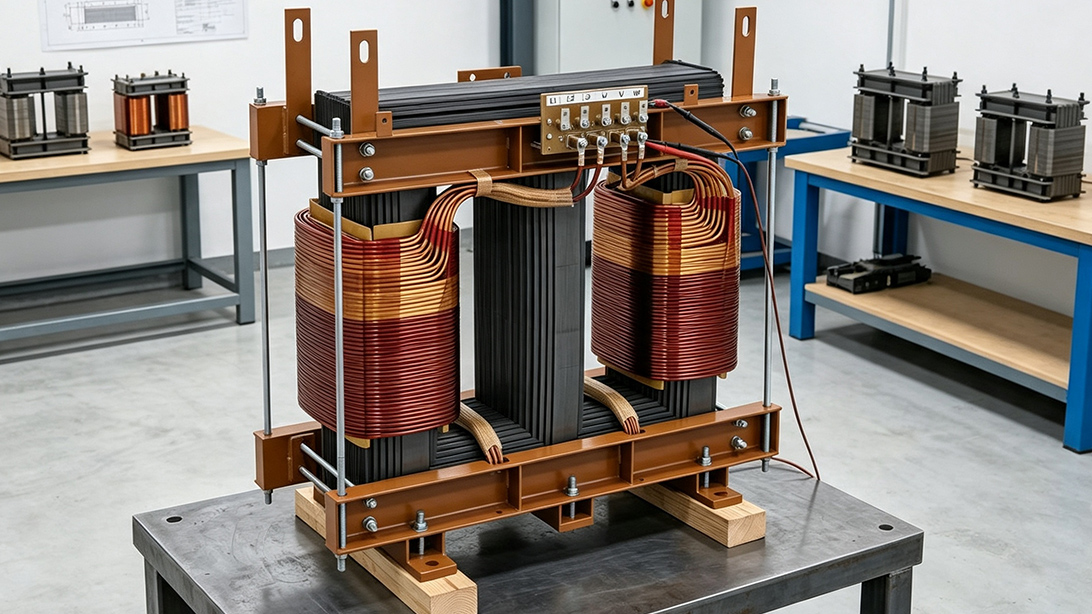

3.1 Three-Dimensional Wound Core Technology

Three-dimensional wound core technology is different from traditional laminated core technology.

Traditional laminated cores are manufactured by stacking silicon steel sheets layer by layer. There are joints and gaps between the laminations. When magnetic flux passes through these joints, it must cross air gaps, creating additional magnetic resistance and extra losses. In addition, the magnetic circuits of traditional three-phase laminated cores are not completely symmetrical. The magnetic path length of the middle phase differs from those of the two side phases, resulting in an imbalance in three-phase excitation currents.

A three-dimensional wound core is made by continuously winding silicon steel strips. The three core columns form a completely symmetrical three-dimensional magnetic circuit without joints. Magnetic flux flows smoothly along the rolling direction of the silicon steel strip without crossing air gaps. The magnetic path lengths of all three phases are identical, resulting in equal magnetic resistance and naturally balanced excitation currents.

According to performance data, three-dimensional wound cores can achieve the following improvements:

• No-load current reduction: approximately 80%

• No-load loss reduction: 30%–40%

• Noise reduction: 8–13 dB

• Material utilization rate: up to 100%

• Silicon steel consumption reduction: 25%–30%

• Copper consumption reduction: 5%–8%

Three-dimensional wound core transformers are especially suitable for applications where:

• The purchaser has strict requirements for no-load losses;

• No-load current or excitation current limits are specified;

• The project focuses on lifecycle operating costs;

• Noise requirements exist at the installation site, such as residential areas or locations near hospitals.

3.2 Amorphous Alloy Core Technology

Amorphous alloy is a special metallic material produced through a unique manufacturing process. Molten metal is cooled at an extremely rapid rate (approximately 1 million °C per second). Because the metal atoms do not have enough time to arrange into a regular crystal lattice, they become “frozen” into an amorphous structure similar to glass.

During magnetization, the resistance to magnetic domain movement in this structure is much lower than that of crystalline silicon steel, resulting in significantly reduced hysteresis losses. Meanwhile, amorphous alloys have higher electrical resistivity than silicon steel, which reduces eddy current losses.

In terms of performance:

• The no-load loss of amorphous alloy core transformers is approximately 70% lower than that of traditional cold-rolled grain-oriented silicon steel (CRGO) transformers.

• The no-load current is reduced by approximately 85%.

• Compared with S9 series transformers (traditional laminated core transformers corresponding to IEC A0 efficiency level):

  • No-load loss decreases by 70%–80%;

  • No-load current decreases by 40%–60%;

  • Load loss decreases by 20%–30%.

The main advantage of amorphous alloy transformers lies in their extremely low no-load losses. Therefore, they are most suitable for applications with relatively low load rates, including:

• Rural power grids;

• Renewable energy stations (wind and solar power stations typically operate at 20%–40% load rates);

• Industrial parks (where loads are low at night and during weekends);

• Urban distribution networks (where average load rates are generally below 50%).

If a transformer operates under high load conditions throughout the year, the advantage of amorphous alloy technology in reducing no-load losses becomes less significant because load losses dominate. Therefore, economic evaluation is necessary before selection.

There are two limitations of amorphous alloy materials that should be considered:

First, brittleness. The thin alloy strips are easy to break, requiring careful handling during manufacturing and transportation.

Second, extremely thin material thickness. The strip thickness is approximately 0.025–0.030 mm, only about one-quarter to one-third of the thickness of conventional silicon steel sheets.

Through material composition optimization, such as adding copper, niobium, and boron elements, combined with structural innovations such as three-dimensional winding technology, these limitations have been significantly improved.

3.3 Combination Technology of Amorphous Alloy and Three-Dimensional Wound Core

Combining amorphous alloy materials with three-dimensional wound core technology has become an important development direction in the field of energy-efficient distribution transformers.

Amorphous alloys reduce hysteresis losses at the material level, while three-dimensional wound cores optimize the magnetic circuit structure and eliminate joint losses. The combination of both technologies produces a stronger energy-saving effect.

According to public reports, the world's first 110kV amorphous alloy three-dimensional wound core transformer was put into operation in 2025.

Compared with traditional transformers:

• No-load losses were reduced by more than 60%;

• Load losses were reduced by more than 5%;

• Annual electricity savings reached approximately 120,000 kWh;

• Annual carbon reduction reached approximately 72 tons.

During the development process, the project applied for 24 patents.

This technology route has expanded from 10kV–35kV distribution voltage levels to 110kV, covering application scenarios such as:

• Renewable energy grid connection;

• Urban power grid renovation;

• Centralized power supply for high-energy-consuming industrial parks.

3.4 Horizontal Comparison of Three Energy-Saving Technologies

IV. Capability Foundation of China's Distribution Transformer Manufacturing Industry

From the perspective of actual industrial conditions, China's distribution transformer manufacturing capability can be discussed from several aspects.

Complete Industrial Supply Chain

China has a complete transformer industry chain. From upstream materials such as:

• Silicon steel sheets;

• Magnet wires;

• Insulation paper and boards;

• Transformer oil;

to midstream components including:

• Bushings;

• Tap changers;

• Cooling systems;

• Relays;

and downstream complete manufacturing and testing equipment, the entire supply chain can be provided domestically.

For standard distribution transformer models, production from order confirmation to factory delivery can typically be completed within 30–45 working days.

For products with the same specifications and standards, prices are generally 20%–35% lower than European manufacturers, mainly due to economies of scale and complete industrial supporting systems.

Mature Manufacturing Technology

In core processing:

• Automatic slitting and cutting lines are widely adopted, with penetration rates exceeding 90%;

• Burr levels are generally controlled within 0.02 mm.

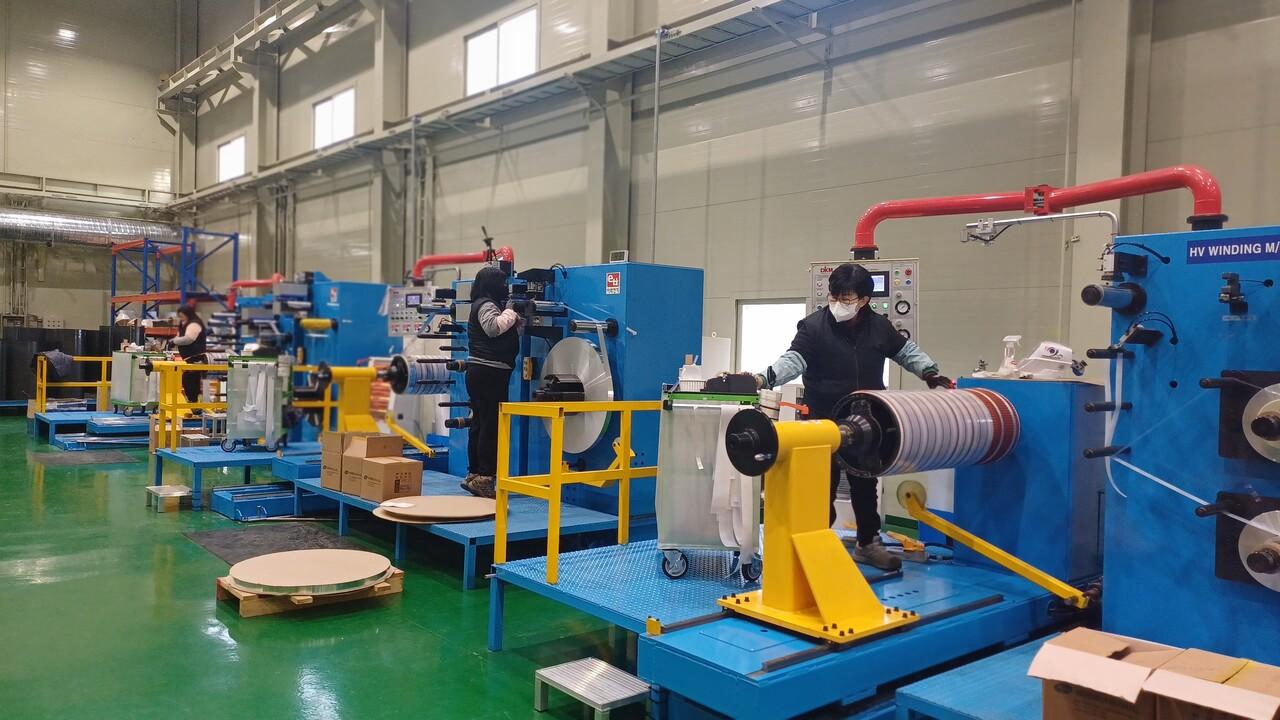

In winding manufacturing:

• Automatic foil winding machines and CNC vertical winding machines have become standard equipment.

In insulation drying:

• Vapor-phase drying and kerosene vapor-phase drying technologies are widely used;

• Insulation moisture content can meet IEC requirements.

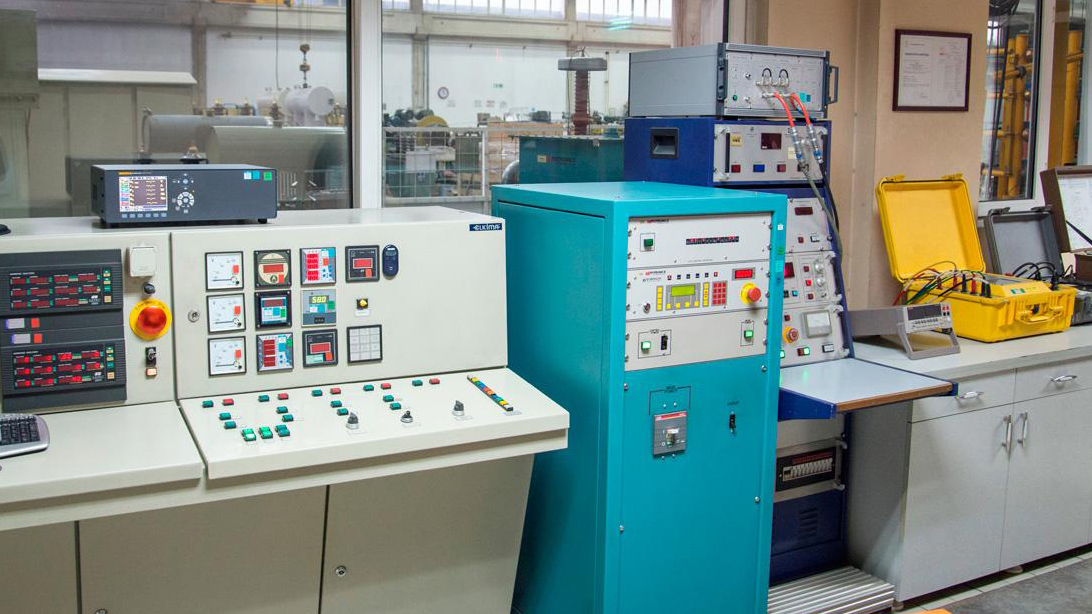

In factory testing:

• Fully automated testing systems can perform complete testing programs, including lightning impulse tests.

Multi-Standard Adaptability

Chinese transformer manufacturers with extensive export experience usually have the capability to design and manufacture products according to multiple standards, including IEC, GOST, and other international standards.

A production line may manufacture an IEC-standard transformer for a Middle East project today and switch to a GOST-standard transformer for a Russian project tomorrow by adjusting design parameters.

Risks That Buyers Need to Consider

There are hundreds of transformer manufacturers in China, and their technical levels and quality control capabilities vary significantly.

Purchasers should not focus only on price. It is recommended to:

• Visit factories in person;

• Review test reports;

• Conduct third-party factory inspections.

Some manufacturers compete through extremely low prices, significantly below market averages. In many cases, this may indicate the use of non-standard materials or the omission of necessary manufacturing processes.

After-sales service capabilities also vary considerably among suppliers. Before purchasing, buyers should confirm:

• On-site installation guidance;

• Fault response capability;

• Spare parts supply arrangements.

Zisheng Electric allows customers to conduct factory supervision or witness testing either personally or through third-party organizations before shipment.

Each shipment is provided with complete bilingual (Chinese-English) factory test reports and product manuals.

If required by the project, technical engineers can be dispatched to the site for installation guidance and commissioning support.

During daily operation and maintenance, technical issues can be diagnosed remotely, and spare parts can be delivered quickly.

V. Energy Efficiency Requirements and Operating Conditions in Target Regional Markets

Middle East Market

The Middle East region is characterized by high temperatures and frequent dust and sand exposure. Most countries adopt the IEC standard system.

• The United Arab Emirates (UAE) requires distribution transformers to meet at least IEC 60076-12 A2 efficiency level, while large-scale projects usually require A3 efficiency level.

• In Saudi Arabia, ambient temperatures often exceed 50°C. Coastal areas face severe salt mist corrosion, while inland regions frequently experience sandstorms.

• The Kuwait Ministry of Electricity requires imported transformers to provide third-party type test reports.

• Iran applies the ISIRI 13368 standard.

• Israel uses SI 5484 as a mandatory standard.

Transformer designs for Middle Eastern projects are typically based on ambient temperatures of 55°C to 60°C.

South American Market

The construction of energy efficiency standards in South America has developed rapidly.

• Chile has implemented mandatory energy efficiency regulations based on IEC 60076-12 since 2025. Transformers are required to obtain the highest Class A energy efficiency certification, and test reports must be issued by laboratories accredited according to ISO 17025.

• Brazil adopts the INMETRO certification system. The national standard ABNT NBR 5356 is based on IEC standards. However, Brazil uses 60Hz frequency, which differs from the 50Hz frequency commonly used in IEC applications.

• Ecuador requires compliance certification and labeling according to the technical regulation PRTE INEN No.141.

African Market

Energy efficiency standards in Africa vary significantly between countries.

• South Africa adopts SANS 60076, which references IEC 60076. SANS 780:2021 specifies performance testing requirements and minimum energy efficiency standards.

• Botswana is expected to implement minimum energy efficiency standards in 2027.

• Ghana issued energy efficiency standards and labeling regulations in 2022.

• Nigeria and Kenya are developing national standards based on IEC 60076-12. Before official implementation, large projects typically require transformers no lower than A2 efficiency level.

The Sahara region may experience ambient temperatures up to 55°C. Large voltage fluctuations in local grids require transformers to have sufficient overload capability.

Russia and Eurasian Economic Union Market

Russia and the Eurasian Economic Union (EAEU) adopt the GOST standard system, which is different from IEC standards.

Exported transformers must obtain EAC certification.

• Russian Government Resolution No.600 specifies requirements for high-efficiency equipment.

• The S11 series represents the entry-level efficiency requirement.

• Government projects and large state-owned enterprises tend to prefer S13 series and above, corresponding approximately to IEC A2–A3 efficiency levels.

Operating conditions in Russia require special design considerations:

• Minimum winter temperatures can reach -45°C to -60°C;

• Transformer oil low-temperature fluidity must be considered;

• Sealing materials must maintain elasticity;

• Breathers must be protected against freezing.

Common distribution voltage combinations include:

• 6/0.4kV;

• 10/0.4kV.

VI. Full Lifecycle Cost Evaluation Method for Distribution Transformers

High-efficiency transformers usually have a higher purchase price but provide significant electricity savings during operation.

Therefore, purchasers should evaluate the Total Cost of Ownership (TCO) instead of considering only the initial purchase price.

TCO Calculation Formula:

Total Lifecycle Cost = Initial Purchase Cost + Electricity Cost of No-Load Losses (25 years) + Electricity Cost of Load Losses (25 years) + Maintenance Cost

Annual Electricity Cost of No-Load Losses:

No-load loss electricity cost = P₀ (kW) × 8760 (hours) × Electricity price (USD/kWh)

Annual Electricity Cost of Load Losses:

Load loss electricity cost = Pₖ (kW) × Equivalent load rate⊃2; × Operating hours × Electricity price (USD/kWh)

The equivalent load rate is generally between 30% and 50%, depending on the user's electricity consumption pattern.

Example: TCO Comparison of Two 1000kVA Transformers

Although the high-efficiency transformer costs USD 6,000 more initially, it saves approximately USD 27,425 in electricity costs over 25 years.

The net TCO saving reaches approximately USD 21,425, with an investment payback period of about 2.5 years.

Payback Period Under Different Regional Electricity Prices

VII. Zisheng Electric Product Range and Service Capability

Zisheng Electric has been specializing in distribution transformers for many years.

The company mainly manufactures 10kV–35kV distribution transformers, with single-unit capacities ranging from 50kVA to 20MVA.

Products include three major series:

• Oil-immersed distribution transformers;

• Dry-type distribution transformers;

• Amorphous alloy distribution transformers.

The factory is equipped with:

• Automatic foil winding machines;

• Vertical winding machines;

• Vapor-phase drying systems;

• Vacuum pressure impregnation equipment.

The entire manufacturing process, including:

• Core processing;

• Winding production;

• Assembly;

• Factory testing;

is completed in-house.

Product Series

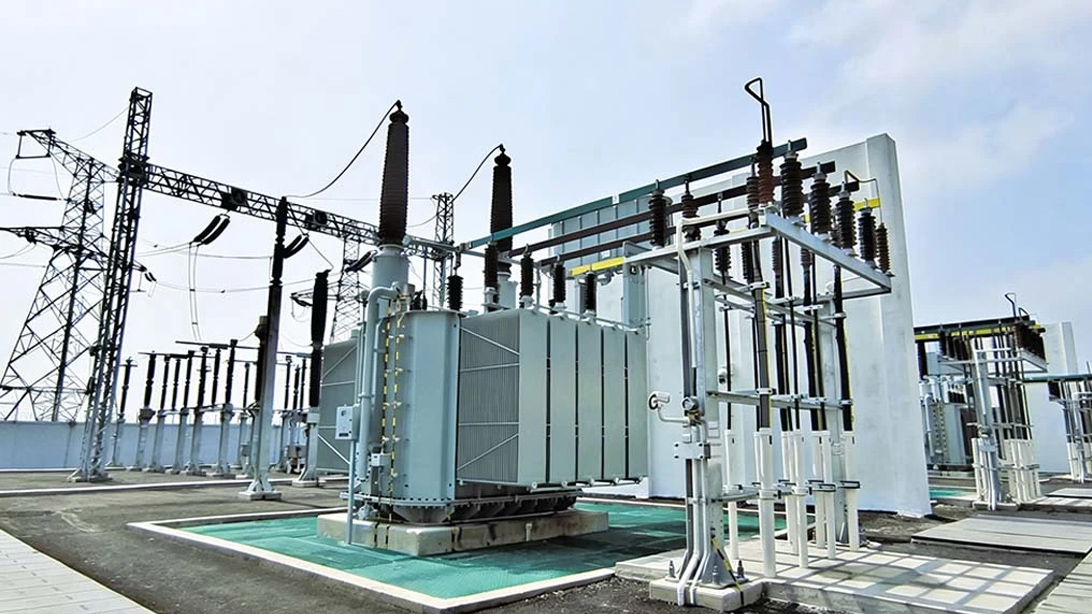

Oil-Immersed Distribution Transformers

• Voltage levels:

  • 10kV;

  • 11kV;

  • 13.2kV;

  • 13.8kV;

  • 20kV;

  • 22kV;

  • 33kV;

  • 35kV.

• Capacity range:

  • 50kVA–20,000kVA.

• Vector groups:

  • Dyn11;

  • Yyn0;

  • Or customized according to customer requirements.

• Cooling:

  • ONAN;

  • ONAF.

Designed according to IEC 60076, with energy efficiency capability reaching A2 or A3 level.

Dry-Type Distribution Transformers

• Voltage levels:

  • 10kV;

  • 11kV;

  • 20kV;

  • 35kV.

• Capacity range:

  • 100kVA–15,000kVA.

• Insulation class:

  • Class F;

  • Class H.

• Cooling:

  • AN;

  • AF.

Designed according to IEC 60076-11.

Features:

• Partial discharge controlled below 5pC;

• Low noise;

• Flame retardant performance.

Amorphous Alloy Distribution Transformers

• Voltage levels:

  • 10kV;

  • 11kV;

  • 20kV;

  • 35kV.

• Capacity range:

  • 50kVA–2500kVA.

Core options:

• Laminated amorphous alloy core;

• Amorphous alloy three-dimensional wound core.

Designed according to IEC 60076-12.

Performance:

• Efficiency can reach A3 level or above;

• No-load losses are approximately 70% lower than traditional silicon steel transformers.

Standard Adaptability for Target Markets

Technical Design Services

Customers provide system parameters, and Zisheng Electric provides:

• Technical solutions;

• Product selection recommendations.

Customized requirements can also be provided, including:

• Special voltage combinations;

• Customized vector groups;

• Different protection levels.

When customers are uncertain between conventional silicon steel transformers and amorphous alloy transformers, Zisheng Electric can provide TCO comparison analysis.

Before order confirmation, standard requirements and efficiency levels are repeatedly verified with customers to ensure compliance.

Quality Assurance and Factory Testing

Before shipment, every transformer undergoes complete factory testing according to IEC 60076.

Customers receive complete bilingual Chinese-English test reports.

Testing items include:

• Ratio measurement and vector group verification;

• Winding resistance measurement;

• Short-circuit impedance and load loss measurement;

• No-load current and no-load loss measurement;

• Power frequency withstand voltage test;

• Lightning impulse test (when required);

• Partial discharge test (mandatory for dry-type transformers);

• Temperature rise test (when required).

Customers may:

• Visit the factory for inspection;

• Appoint third-party organizations such as BV, SGS, or TÜV for factory inspection and supervision.

Packaging and Transportation

Oil-Immersed Transformers

Before shipment:

• Vacuum treatment;

• Nitrogen filling;

• Anti-corrosion coating on the tank;

• Reinforced base structure according to international marine transportation standards.

Dry-Type Transformers

Packaging includes:

• Protective covers or fully enclosed wooden cases;

• Internal desiccant placement;

• Waterproof canvas wrapping.

Shipping documents include:

• Commercial invoice;

• Packing list;

• Certificate of origin;

• Factory test report;

• Operation manual.

After-Sales Service

Remote Support

Support is available through:

• Email;

• Instant messaging platforms.

Services include:

• Installation guidance;

• Fault diagnosis;

• Operation training.

Response time:

• Within 24 working hours.

On-Site Service

According to contract requirements, technical engineers can be dispatched to project sites for:

• Installation guidance;

• Commissioning;

• Trial operation support.

Spare Parts Supply

Individual spare parts can be ordered, including:

• Bushings;

• Tap changers;

• Relays;

• Breathers;

• Other consumable components.

VIII. Distribution Transformer Selection Recommendations

Select the Appropriate Efficiency Level Based on Load Conditions

The selection of transformer efficiency level should be based on actual operating conditions.

Low annual load rate — rural power grids and renewable energy stations

For applications where transformers operate under relatively low loads for most of the year, amorphous alloy core transformers or amorphous alloy three-dimensional wound core transformers are more suitable due to their excellent no-load loss performance.

Moderate and stable load rate — urban distribution networks and commercial complexes

For medium-load applications with relatively stable operating conditions, three-dimensional wound silicon steel core transformers offer a good balance between efficiency improvement and cost performance.

High continuous load rate — heavy industrial parks and data centers

For applications with continuous high loads, load losses account for a larger proportion of total losses. Therefore, greater attention should be paid to:

• Winding design;

• Copper conductor quality;

• Thermal performance.

Confirm Standard Compliance According to Target Markets

Additional Design Considerations for Special Operatig Conditions

High Temperature Environments (Middle East, Sahara Region)

Required design adjustments include:

• Correcting temperature rise limits;

• Using higher insulation classes;

• Increasing radiator capacity;

• Adding forced-air cooling when necessary.

High Humidity and Salt Mist Environments (Coastal Areas)

Recommended measures:

• Enclosure protection level not lower than IP45;

• Use corrosion-resistant coating systems;

• Strengthen anti-corrosion protection for metal components.

High Altitude Applications (Andes Mountains, East African Plateau)

Design considerations:

• Adjust insulation levels according to altitude;

• Correct temperature rise limits;

• Consider reduced cooling capability.

Generally, heat dissipation capability decreases by approximately 3% for every 1,000 meters increase in altitude, and transformer capacity should be adjusted accordingly.

Extremely Cold Environments (Russia)

Requirements include:

• Transformer oil with a pour point below -45°C;

• Silicone rubber or fluororubber sealing materials;

• Anti-freezing breathers.

IX. Inquiry and Business Cooperation

Zisheng Electric has been manufacturing distribution transformers for many years and has established cooperation experience with:

• Power utilities;

• EPC contractors;

• Industrial customers;

in markets including:

• The Middle East;

• South America;

• Africa;

• Russia.

Information Required for Transformer Inquiries

To provide an accurate technical solution and quotation, customers should provide:

• Project name and location;

• End-user type;

• Transformer capacity;

• Primary and secondary voltage;

• Frequency;

• Vector group requirements;

• Applicable standards and efficiency level requirements;

• Ambient temperature range;

• Altitude;

• Indoor or outdoor installation conditions;

• Special environmental requirements;

• Required quantity and delivery schedule;

• Specified component brands;

• Third-party inspection requirements;

• On-site installation guidance requirements.

Cooperation Models

Recommended Verification Before Ordering

Customers may request:

• Previous export records of similar products;

• Factory visits or video factory inspections;

• Scanned copies of factory test reports for specific products;

• Online technical discussions with engineering managers;

• Independent factory audits or inspections by third-party organizations such as BV, SGS, or TÜV.

X. Conclusion

Improving distribution transformer energy efficiency involves multiple aspects, including:

• Materials;

• Structural design;

• Manufacturing processes.

From traditional laminated silicon steel cores to three-dimensional wound cores, from amorphous alloy technology to the combination of amorphous alloy and three-dimensional wound cores, every technological advancement focuses on the same goal:

Reducing electricity consumption throughout the entire lifecycle of the transformer.

For purchasers in the Middle East, South America, Africa, and Russia markets, understanding regional standards, efficiency requirements, and operating conditions is the foundation for making effective procurement decisions.

With years of manufacturing experience and international standards such as IEC and GOST as design references, Zisheng Electric provides distribution transformer manufacturing and technical solution services for customers worldwide.

Its product range includes:

• Oil-immersed distribution transformers;

• Dry-type distribution transformers;

• Amorphous alloy distribution transformers.

Products can be customized according to international standards including:

• IEC 60076;

• GOST;

• Other regional technical requirements.

Zisheng Electric serves customers in:

• The Middle East;

• South America;

• Africa;

• Russia.

For project-specific distribution transformer energy efficiency solutions, standards compliance consulting, or technical selection support, customers are welcome to submit project parameters through Zisheng Electric’s official channels to receive professional technical feedback.
