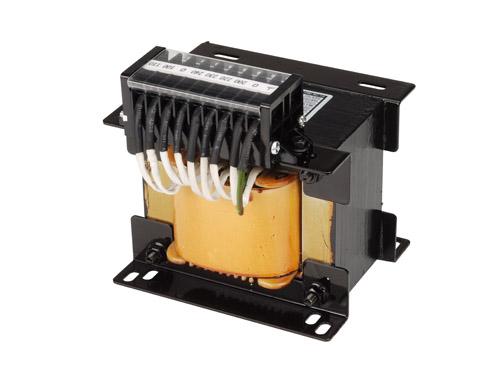

Choosing a transformer by price alone can become an expensive mistake. An undersized unit overheats, while an oversized unit wastes capital. The right single phase transformer must match your load, voltage, site, and protection needs. This guide explains a practical selection process for reliable purchasing decisions.
● Build a complete load list, including continuous demand, motor starting current, temporary peaks, and realistic future expansion.
● Calculate capacity using kVA = volts × amperes ÷ 1,000, then choose a suitable standard rating above the verified requirement.
● Match primary voltage, secondary voltage, frequency, grounding, polarity, taps, and impedance to the actual power system.
● Choose pole-mounted equipment for overhead distribution. Choose pad-mounted equipment for underground networks and accessible public areas.
● Compare conventional protection against completely self-protected designs. Consider installed fuses, arresters, breakers, maintenance practices, and utility rules.
● Review windings, insulating fluid, temperature rise, altitude, corrosion resistance, and enclosure construction together.
● Compare guaranteed losses, test records, standards, delivery scope, technical support, and lifecycle cost.
● Send every supplier the same single phase transformer specification. Clear input reduces quotation errors, delays, and site changes.
List each supplied device, including lighting, heating, controls, pumps, compressors, and production equipment. Record voltage, current, operating hours, and starting method. Separate steady loads from high-inrush equipment, then identify which loads may run together.
For a single-phase load, use kVA = voltage × current ÷ 1,000. A 240-volt load drawing 80 amperes requires 19.2 kVA before allowances. Choose the next suitable rating after checking demand, inrush, and continuous duty. Schneider Electric uses this same basic relationship.
Do not treat kW and kVA as equal when power factor is below one. Use verified equipment data for motors, power electronics, and other reactive loads.
Match the primary rating to the utility supply and the secondary rating to the connected equipment. Common outputs include split-phase and single-voltage arrangements, but requirements vary by market. The reviewed range supports multiple voltage ratios, customized outputs, and 50 Hz or 60 Hz operation.
The transformer must suit the system frequency. Never use a 60 Hz design at 50 Hz without manufacturer approval. Also define line-to-line or line-to-neutral supply, secondary neutral, grounding method, polarity, and terminal markings.
Record whether the unit will sit on a pole, concrete pad, or protected platform. Check space, lifting access, cable approach, clearances, foundation or pole strength, and service access. Public areas may also require secure, tamper-resistant construction.
State temperature, altitude, humidity, dust, salt exposure, flooding risk, and corrosive chemicals. Severe sites may need stainless-steel parts, enhanced coatings, stronger weather protection, gauges, or remote monitoring. These options appear across the reviewed product range.
Add capacity for approved or likely expansion, not an undefined future. Too little margin increases overload risk, while excessive margin raises cost. Compare present demand against a realistic future-demand scenario before selecting the final rating.
Tip：Create a one-page load schedule before requesting quotations, so every supplier prices the same duty.

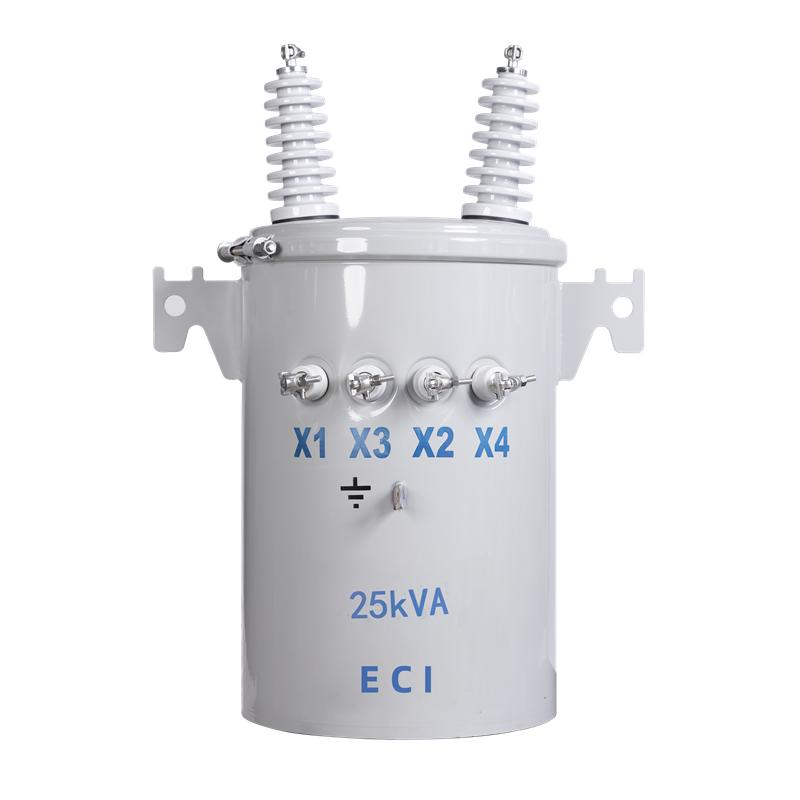

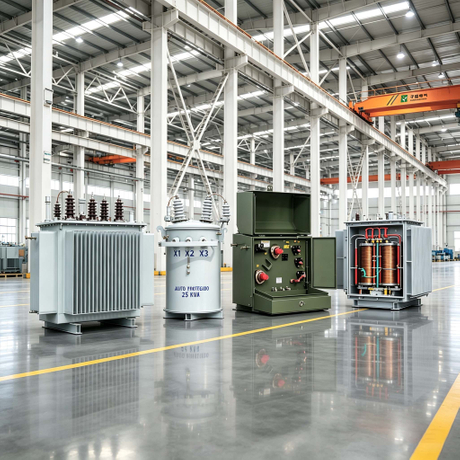

A pole-mounted transformer suits overhead networks, rural electrification, farms, scattered properties, lighting, and remote facilities. It saves ground space and can mount on wood or concrete poles. A unit may serve one single-phase load or form part of a transformer bank.
A pad-mounted transformer fits underground distribution, residential developments, commercial sites, and public spaces. Its locked cabinet provides ground-level cable access. Specify the feed arrangement, terminations, compartment layout, enclosure security, and required clearances.
A distribution transformer changes voltage; it does not automatically create true three-phase power. When loads include three-phase motors, confirm whether the project needs another service, a phase-conversion system, or a properly engineered transformer bank.
Application condition | Starting choice | Main reason |
Overhead rural network | Pole-mounted | Saves ground space |
Underground development | Pad-mounted | Enclosed cable access |
Existing external protection | Conventional | Avoids duplicated devices |
Integrated protection preferred | Self-protected | Simplifies field equipment |
Corrosive environment | Customized construction | Improves durability |
Use the highest expected sustained load, not a brief meter reading. Long operating periods create heat throughout the windings and insulation. Check the manufacturer’s loading guidance and temperature-rise limits because loading and temperature affect expected service life.
Motors, compressors, pumps, welders, and some power supplies create short peaks. These can cause voltage drop or nuisance trips even when average kVA looks acceptable. Record starting method, sequence, and simultaneous operation.
An undersized transformer may overheat, regulate voltage poorly, and age faster. An oversized unit costs more and may deliver weak lifecycle value. Select the smallest standard rating that safely covers sustained demand, transient duty, derating, and planned growth.
Actual site voltage may differ from its nominal value. Off-circuit taps provide limited ratio adjustment during de-energized service. Available single-phase designs may include several standard or customized tap arrangements, including externally operated selectors.
Impedance affects voltage drop and available fault current. Lower impedance can improve regulation but permit higher fault current. Higher impedance can limit fault current yet worsen motor-starting voltage. Request a guaranteed value, then use it in coordination and short-circuit studies.
Copper supports compact, highly conductive windings. Aluminum can reduce cost and weight when correctly engineered. Compare losses, temperature rise, mechanical strength, dimensions, connections, and warranty terms instead of judging material alone. The reviewed range offers both options.
Define insulation level, lightning impulse withstand, temperature rise, and cooling method. Oil-immersed natural-air cooling is common for outdoor distribution duty. Harsh locations may require alternative fluid, stronger surge protection, enhanced cooling, or monitoring.
A conventional transformer normally uses external fuses and surge arresters. It works well where the network already has a proven protection scheme. A completely self-protected design integrates primary fusing, surge protection, and a secondary breaker, which can simplify installation.
Protection must tolerate normal energizing inrush while clearing overloads and faults. Review fuse curves, breaker settings, grounding, arrester rating, and available fault current. A qualified study should confirm final coordination.
Mineral oil remains common for outdoor liquid-filled units. Natural ester fluids may offer higher fire points and improved biodegradability. Confirm fire rules, maintenance procedures, temperature limits, disposal needs, and material compatibility. The reviewed options include both fluid categories.
Note：Integrated protection reduces external hardware, but it never replaces system-level coordination.
No-load losses occur whenever the transformer stays energized. Load losses increase as current rises. Ask for both guaranteed values, then compare them against the expected loading profile and operating hours.
Include energy losses, installation, foundations or poles, protection devices, inspections, fluid service, spare parts, and expected operating years. For United States projects, covered distribution transformers must meet federal efficiency rules; other markets apply their own requirements.
Check safe access to bushings, switches, fuses, gauges, valves, grounding points, and nameplates. Also review spare-part availability, document language, training, warranty response, and technical support.
State the required IEC, IEEE, ANSI, CSA, DOE, utility, or local rules. Use the exact requirements named in the contract. They may cover efficiency, bushings, tank construction, markings, tests, accessories, and documentation.
Request capacity, voltages, frequency, taps, impedance, losses, temperature rise, insulation level, fluid, winding material, dimensions, mass, sound level, and accessories. Check drawings for terminals, mounting points, lifting lugs, cable space, and clearances.
Routine testing may cover winding resistance, ratio, polarity, no-load loss, load loss, impedance, and dielectric performance. IEEE transformer test codes include these major categories. Ask for unit-linked reports and define any witness testing or factory acceptance requirements.
Include kVA, load profile, voltages, frequency, grounding, installation type, protection, taps, impedance, insulation, windings, fluid, environment, standards, tests, accessories, quantity, destination, and delivery terms. State every required document and approval stage.
Tip：Compare offers through a compliance matrix, then resolve every technical exception before approval.
Choosing correctly starts with load, voltage, site, protection, efficiency, and standards. ZISHENG supplies customizable single-phase solutions for pole-mounted and pad-mounted applications. Options include integrated protection, oil cooling, flexible windings, durable tanks, monitoring features, and tailored voltages. Its engineering support helps buyers reduce specification risk and gain reliable long-term value.
