Zisheng Electric has been dedicated to the research, development, and manufacturing of power equipment for many years. Its product portfolio covers oil-immersed transformers, dry-type transformers, amorphous alloy transformers, and switchgear. The company provides customized production in compliance with international standards such as IEC 60076, IEC 62271, and GOST.
For EPC projects in coastal regions of West Africa, where equipment is exposed to challenging conditions including salt spray corrosion, high temperatures, and power grid fluctuations, Zisheng Electric has developed strong technical capabilities in corrosion protection, high-temperature resistance, and voltage fluctuation tolerance. Its products have been successfully exported to the Middle East, South America, Africa, Russia, and other international markets.

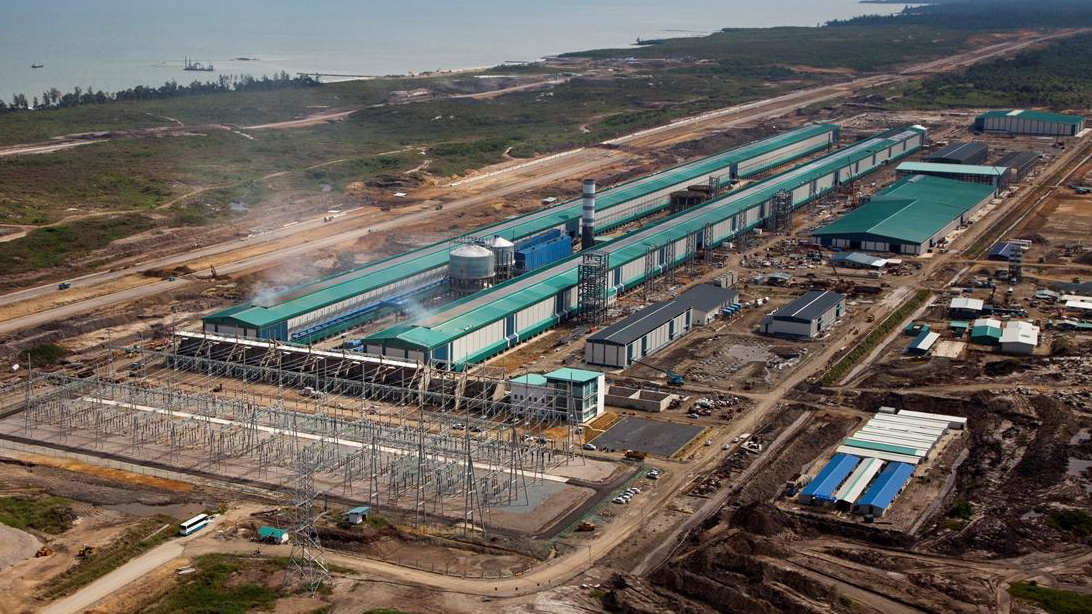

Lagos, Nigeria, is the largest industrial city and economic center in West Africa, accounting for more than 60% of Nigeria’s manufacturing capacity. In recent years, new industrial parks, processing plants, and photovoltaic-related EPC projects have continued to expand in the region.
Lagos features a typical tropical coastal climate. Many industrial zones are located in coastal and port areas, where the annual relative humidity remains between 80% and 95%. Salt spray corrosion has a significant impact on transformer components including enclosures, terminals, radiators, and other metal structures.
Under such conditions, conventional transformers with standard paint coatings and exposed metal components may experience coating peeling, rusting, and oxidation within three to six months. Long-term operation may result in poor electrical contact, sealing failure, moisture ingress, reduced service life, leakage current risks, and short-circuit failures.
The daytime ambient temperature in Lagos typically reaches 32°C to 38°C, with summer peak temperatures exceeding 40°C. Due to high equipment density and limited heat dissipation conditions in industrial areas, the actual operating temperature can be even higher. Conventional transformers operating under high-temperature and continuous full-load conditions may suffer from excessive oil temperature, accelerated insulation aging, and overload tripping.

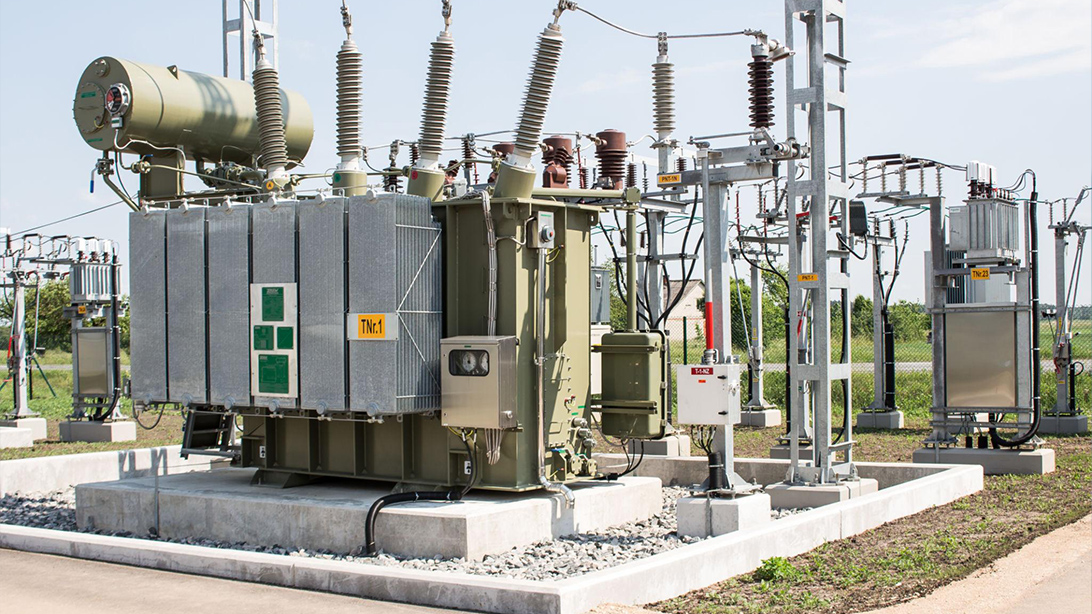

Nigeria’s power grid infrastructure is relatively aging. In Lagos industrial distribution networks, voltage fluctuations may reach ±35%, accompanied by momentary interruptions, transient overvoltage surges, scheduled outages, and unexpected power failures. Conventional transformers often have insufficient capability against voltage fluctuation impacts and overload shocks, which may lead to winding damage, insulation breakdown, and transformer burnout during long-term operation.
To address these challenges, Zisheng Electric provides a customized solution based on fully sealed, corrosion-resistant, energy-saving distribution transformers. Built on Class 1 energy efficiency standards, the product is specially designed for three critical operating conditions: salt spray corrosion, high-temperature environments, and unstable power grids. It has passed type testing according to IEC 60076 standards and is suitable for the full life cycle requirements of EPC projects.
The fully sealed, corrosion-resistant energy-saving distribution transformer represents a new generation of high-efficiency transformers under modern energy efficiency standards. According to relevant regulations, its no-load losses and load losses comply with Class 1 energy efficiency requirements.
Within the energy efficiency classification system:
Class 3 efficiency: Standard transformer products
Class 2 efficiency: Improved efficiency transformer products
Class 1 efficiency: Energy-saving transformer products
The difference in losses between different efficiency levels becomes more significant with increasing transformer capacity.
Taking a 1000 kVA transformer as an example:
No-load loss of a Class 1 energy-efficient transformer is approximately 20% lower than Class 3 products and 12% lower than Class 2 products.
Load loss is approximately 18% lower than Class 3 products and 8% lower than Class 2 products.
For long-term continuous operation distribution transformers, these energy savings can generate significant electricity cost reductions throughout the 25-year design service life.

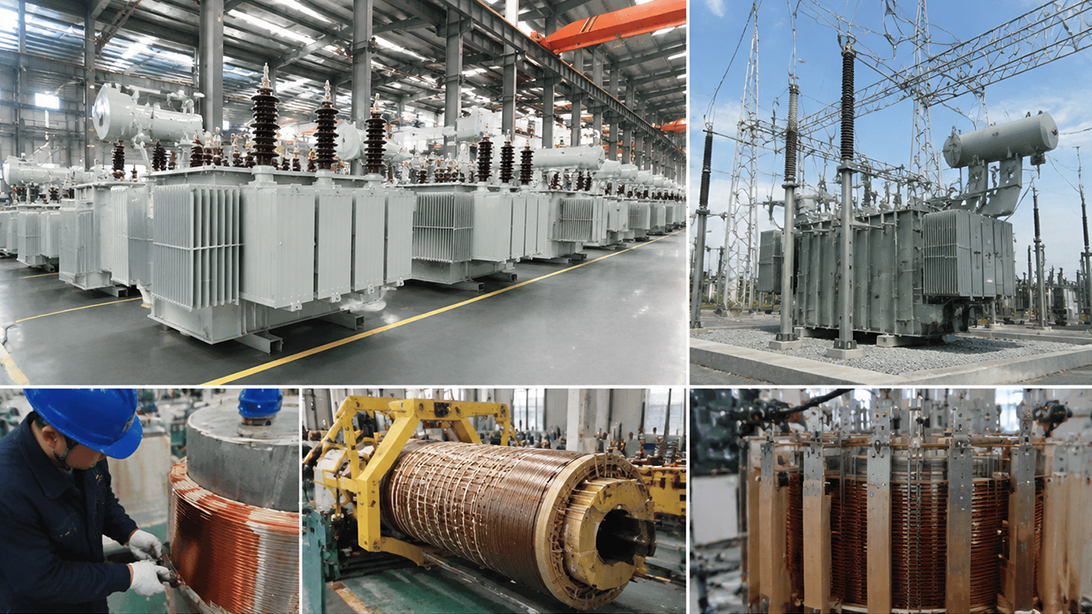

The energy-saving transformer adopts high magnetic permeability silicon steel sheets and an optimized core lamination process, reducing no-load losses by approximately 20% compared with conventional transformers.
The transformer core uses 27Q120 or higher-grade cold-rolled grain-oriented silicon steel. Through automatic longitudinal and transverse cutting processes, the core burr size is controlled within 0.02 mm, effectively reducing additional losses at core joints.
The transformer adopts a full copper winding design to reduce winding resistance losses. The winding conductor uses enameled flat copper wire manufactured from oxygen-free copper rods, with copper purity ≥99.95%. The electrical resistivity complies with IEC 60076 requirements, significantly reducing the overall loss level compared with conventional models.

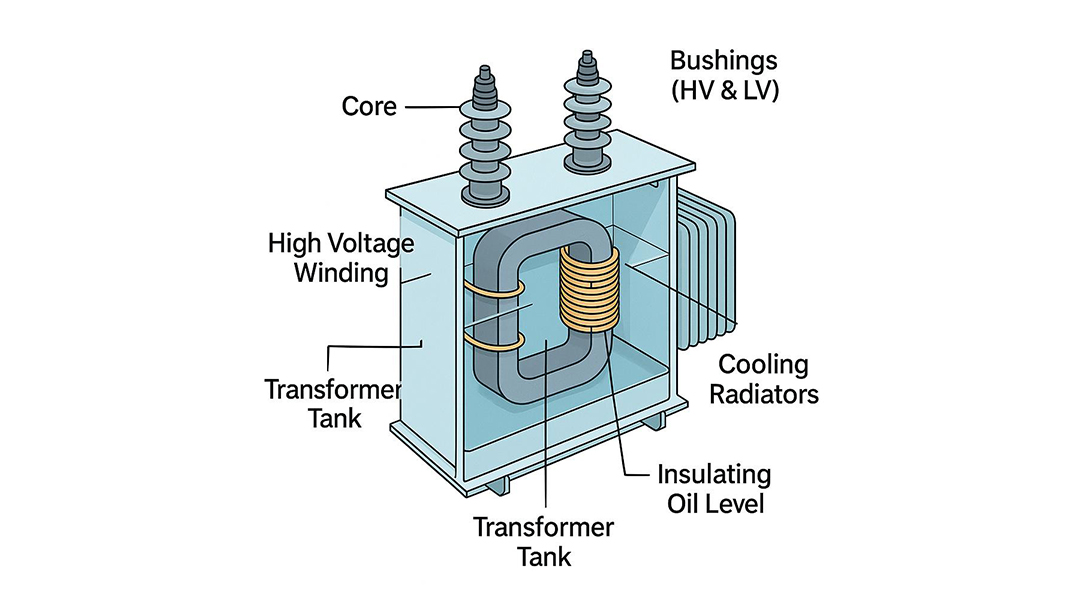

In structural design, the transformer adopts a fully sealed corrugated oil tank structure. Through the vacuum filtration and oil filling process, the insulating oil is completely isolated from external air, effectively preventing moisture ingress and oxygen corrosion.
The corrugated oil tank integrates heat dissipation and pressure regulation functions. During oil temperature variations, the corrugated fins automatically expand and contract to regulate internal pressure. This eliminates the need for an external breather system, reducing maintenance requirements.
The corrugated tank is manufactured through CNC bending technology. The number and spacing of corrugated fins are optimized according to heat dissipation requirements, achieving high cooling efficiency with a compact structure.
The design and testing of the energy-saving transformer comply with the IEC 60076 series standards. For projects exported to Nigeria and other international markets, Zisheng Electric can perform IEC 60076 type testing and provide official test reports and certification documents to meet international EPC procurement requirements.
Zisheng Electric can further provide customized transformer solutions according to the specific standards, technical specifications, and project requirements of different countries, together with relevant test reports, certifications, and technical support documents.
Zisheng Electric’s fully sealed, corrosion-resistant energy-saving distribution transformer adopts a specialized corrosion protection treatment solution for coastal port environments, which is significantly different from the simple painting process used for conventional transformers. The transformer enclosure, radiating fins, and fasteners undergo sandblasting and rust removal, multi-layer anti-corrosion primer coating, and salt spray-resistant topcoat treatment, greatly improving the overall corrosion protection level.
The sandblasting and rust removal process is carried out according to the Sa2.5 standard, achieving industrial-grade surface cleanliness. The primer adopts zinc-rich epoxy coating, while the topcoat uses polyurethane or fluorocarbon coating. The total coating thickness is not less than 120 μm.
Some products adopt a combined electrophoretic coating and powder coating corrosion protection process, making them suitable for various harsh outdoor environments. The electrophoretic coating provides uniform coverage, strong adhesion, and excellent salt spray resistance, while the powder coating further enhances surface hardness and weather resistance. This combined process can withstand more than 720 hours of salt spray testing without red rust formation, making it suitable for long-term outdoor operation in the Lagos coastal industrial area.
The fully sealed structure effectively prevents the ingress of external salt spray, high-humidity moisture, and rainwater into the transformer, fundamentally addressing corrosion and moisture-related failures under coastal operating conditions.
All oil tank weld seams undergo sealing performance inspection. Flange connection surfaces use oil-resistant and weather-resistant sealing gaskets, and all interfaces are equipped with waterproof and dustproof protective covers. The equipment does not require frequent rust removal or repainting, reducing operation and maintenance difficulties and labor costs for overseas remote projects.
Zisheng Electric can adjust the corrosion protection process level according to specific project environmental conditions to meet the requirements of different corrosion zones.
For projects located within 1 km from the coastline, the highest-level corrosion protection solution is recommended. For projects located 1–5 km from the coastline, a standard upgraded corrosion protection solution can be adopted.
The specific corrosion protection level can be clearly specified in the technical specification document, and the factory test report can include corresponding corrosion coating inspection records.
The energy-saving transformer adopts high magnetic permeability premium silicon steel sheets for the transformer core, combined with an optimized lamination process and magnetic circuit design, resulting in a significantly lower operating temperature rise compared with conventional models.
The core magnetic flux density design value is controlled below 1.65T, providing sufficient temperature rise margin while maintaining economic performance and reducing operating losses.
The fully sealed corrugated oil tank structure increases the heat dissipation area and optimizes oil circulation performance. Compared with a conventional flat oil tank of the same capacity, the heat dissipation area of the corrugated oil tank is increased by approximately 30%, significantly improving cooling efficiency.
The oil circulation system adopts a natural circulation path with upper oil inlet and lower oil outlet design. Heated oil generated around the windings rises naturally and flows through the corrugated fins for cooling before returning to the bottom of the oil tank, forming an efficient convection-based heat dissipation cycle.
This optimized thermal design enables the transformer to maintain stable operation under extreme high-temperature environments and continuous full-load conditions, making it highly suitable for industrial applications in Lagos and other tropical coastal regions.
The application of low-resistance, high-thermal-conductivity insulating oil further enhances the heat dissipation efficiency of the transformer. The equipment can maintain long-term stable full-load operation under extreme high-temperature environments above 40°C, effectively avoiding issues such as overheating trips and accelerated insulation aging.
According to the IEC 60076-2 temperature rise test standard, the energy-saving transformer maintains at least a 5°C temperature rise margin for the average winding temperature rise limit under rated operating conditions compared with standard requirements. This additional design margin is converted into higher overload capability and a longer insulation service life during actual operation.
According to the Arrhenius thermal aging principle, the rate of thermal aging increases exponentially with temperature. For every 10°C increase in operating temperature, the insulation life is approximately reduced by half. The low-temperature-rise design of the energy-saving transformer effectively slows down this aging process.
Taking Class A insulation materials as an example, the theoretical service life is approximately 20,000 hours at a hotspot temperature of 98°C. When the hotspot temperature is reduced to 88°C, the theoretical service life can be extended to approximately 40,000 hours. For the year-round high-temperature operating conditions in Lagos, the life extension benefits provided by the low temperature rise design are particularly significant.
Zisheng Electric can perform temperature rise correction design according to the actual ambient temperature conditions of each project, ensuring sufficient operating margin under specific application environments. For projects where the ambient temperature exceeds 40°C, higher insulation grades such as Class F or Class H insulation materials can be selected, or the radiator surface area can be increased to compensate for reduced heat dissipation efficiency under high-temperature conditions.
Considering the characteristics of the Lagos power grid, including significant voltage fluctuations and frequent instantaneous impact events, the energy-saving transformer adopts an optimized winding structure design to improve its overload resistance and instantaneous high-voltage surge withstand capability.
The windings adopt a graded insulation structure, with reasonable insulation margin distribution at the beginning and end sections of the high-voltage winding. The low-voltage winding adopts foil winding or spiral winding technology, significantly improving short-circuit mechanical strength.
The adoption of a high impedance design effectively improves resistance against grid harmonic pollution. The impedance voltage value is optimized according to the system short-circuit capacity and load characteristics. The typical value is controlled between 6% and 8%. For distribution systems with higher harmonic content, the impedance voltage can be appropriately increased to 8%–10%.
The fully sealed structure ensures that the insulation system remains stable during sudden voltage rises and drops, reducing the risk of winding damage. The insulation system adopts Class F (155°C) or Class H (180°C) heat-resistant materials. The insulation coordination design complies with the dielectric test requirements of IEC 60076-3, with sufficient safety margins reserved for both lightning impulse withstand voltage and power frequency withstand voltage.
The equipment provides enhanced operational stability and a lower failure rate, effectively preventing equipment burnout and project shutdowns caused by unstable power grids.
Zisheng Electric can make targeted adjustments to the impedance voltage and insulation level based on actual grid measurement data from the project location. For power systems with high harmonic content, the winding arrangement can be optimized to reduce stray losses and harmonic heating. For areas with frequent voltage drops, the tap changer configuration can be adjusted to achieve a wider voltage regulation range.
All these customized adjustments are performed within the framework of IEC 60076 standards, ensuring that product compliance and certification requirements remain unaffected.
For EPC projects, the focus is not only on the initial equipment procurement cost but also on the full life-cycle economic benefits. Class 1 energy-efficient transformers significantly reduce both no-load losses and load losses compared with conventional models.
Taking a 1000 kVA distribution transformer as an example, based on 8,760 operating hours per year, a 50% load factor, and an industrial electricity price of USD 0.12/kWh, a Class 1 energy-efficient transformer can save approximately USD 2,100 in annual electricity costs compared with a traditional Class 3 efficiency transformer. Over a 25-year service life, the cumulative electricity cost savings can reach approximately USD 52,500. After deducting the initial procurement price difference, the net savings can still reach approximately USD 35,000.
Long-term operation can effectively reduce hidden costs associated with electricity losses, equipment maintenance, and downtime repairs. For industrial projects in Lagos, where self-generated power is often relied upon and electricity costs are relatively high, energy-saving transformers can significantly reduce long-term energy expenditure and improve the overall project return on investment (ROI).
Taking the typical diesel self-generation cost in Lagos industrial areas of USD 0.25/kWh as a reference, the energy-saving advantage of Class 1 energy-efficient transformers becomes even more significant. Annual electricity savings can reach approximately 1.5 to 2 times those achieved by traditional Class 3 efficiency products.
During the equipment selection stage, Zisheng Electric can provide customers with a TCO (Total Cost of Ownership) comparison analysis report. Based on actual project parameters such as electricity price, load factor, and expected operating years, the company calculates the full life-cycle cost differences among transformers of different energy efficiency levels, helping customers make more economically optimized selection decisions.
Comparison Item | Class 3 Efficiency (Standard Type) | Class 3 Efficiency (Improved Type) | Class 2 Efficiency | Class 1 Efficiency |
|---|---|---|---|---|
Energy Efficiency Level | Class 3 | Class 3 | Class 2 | Class 1 |
No-load Loss (Relative Value) | Baseline value | Approximately 10% lower than baseline | Further reduced compared with Class 3 | Approximately 20% lower than traditional models |
Load Loss (Relative Value) | Baseline value | Approximately 5%–8% lower than baseline | Approximately 8%–10% lower than Class 3 | Approximately 10%–15% lower than Class 3 |
Fully Sealed Structure | Optional | Optional | Standard | Standard |
Salt Spray Corrosion Protection | Conventional painting | Conventional painting | Optional upgrade | Dedicated anti-corrosion coating + electrophoretic coating |
High-Temperature Adaptability | Average | Average | Good | Excellent (optimized heat dissipation structure) |
Power Grid Fluctuation Resistance | Average | Average | Good | Strong (optimized winding design) |
Insulation Material Heat Resistance Class | Class A or Class F | Class A or Class F | Class F | Class F or Class H |
Designed Service Life | 20 years | 20 years | 25 years | 25+ years |
Full Life-Cycle Cost | Higher | Medium | Lower | Lowest |
Note: The above data represents relative comparisons among products of the same capacity class. Specific values may vary depending on transformer capacity and specifications.
The comparison data demonstrates that Class 1 energy-efficient transformers outperform traditional models in four key areas: energy efficiency level, corrosion protection, high-temperature adaptability, and power grid fluctuation resistance.
Although the initial procurement cost of Class 1 energy-efficient transformers is approximately 15%–25% higher than Class 3 efficiency products, the additional investment can typically be recovered within 3–5 years through electricity cost savings and reduced maintenance expenses. During the following 20+ years of operation, the energy-saving benefits become a direct net economic benefit for the project.
Based on the local operating conditions in Lagos and the implementation standards of overseas EPC projects, Zisheng Electric provides comprehensive technical support during the equipment selection stage to ensure successful first-time acceptance and long-term stable operation of the transformer system.
Zisheng Electric can assist EPC contractors in preparing transformer technical specifications according to project requirements. Key parameters including voltage level, capacity, short-circuit impedance, energy efficiency class, corrosion protection requirements, and protection rating are clearly defined to ensure that technical documents are complete, accurate, and compliant with international standards.
During the preparation of technical specifications, Zisheng Electric provides services including standard clause interpretation, parameter selection recommendations, and deviation analysis, helping EPC contractors reduce repeated technical communication with owners and consulting engineers during project coordination.
For the salt spray environment in coastal West Africa, conventional inland transformer corrosion protection levels are often insufficient. Zisheng Electric provides customized designs with different corrosion protection grades according to project requirements.
During the project selection stage, it is recommended to specify upgraded coastal corrosion protection treatment, including:
Sandblasting and rust removal
Multi-layer anti-corrosion primer coating
Salt spray-resistant topcoat application
Fully sealed transformer structure
The protection rating should be not lower than IP54. The enclosure material adopts cold-rolled steel sheets treated with electrophoretic coating and powder coating corrosion protection technology.
The specific corrosion protection process level can be adjusted according to the project’s distance from the coastline and environmental corrosion category. The design can refer to the ISO 12944 standard to classify the corrosion environment (C3 to C5 levels) and determine the corresponding coating system design life.
Considering the project’s load characteristics and future expansion requirements, Zisheng Electric assists customers in confirming transformer capacity and key technical parameters.
Industrial enterprises in the Lagos industrial area generally have significant expansion potential and increasing power demand. In addition, unstable grid conditions may cause instantaneous load surges. Therefore, transformer capacity selection is recommended to include 15%–20% operating margin to effectively prevent future overload shutdowns and capacity expansion modifications.
Selecting insufficient capacity may result in frequent overload tripping and accelerated aging, while excessive capacity increases initial investment costs and no-load losses. Zisheng Electric can analyze customer load forecasting curves and help determine the optimal capacity balance.
The typical industrial low-voltage system standard in Nigeria is:
Voltage: 415V/240V
Frequency: 50Hz
High-voltage side: 33kV or 11kV
Low-voltage side: 415V
Zisheng Electric provides voltage matching confirmation services and can equip exported transformers with voltage conversion solutions according to project requirements.
To meet EPC project requirements, Zisheng Electric can coordinate customer representatives or designated third-party inspection organizations such as BV, SGS, and TÜV to conduct supplier audits and product inspections at the factory.
All test data is available to customers, and witness testing can be arranged according to agreed schedules.
Before shipment, products undergo complete factory acceptance tests according to IEC 60076 standards, including:
Voltage ratio measurement and vector group verification
Winding resistance measurement (converted to reference temperature)
Short-circuit impedance and load loss measurement
No-load current and no-load loss measurement
Insulation dielectric test (power frequency withstand test)
Lightning impulse test (according to customer requirements)
Partial discharge measurement
Temperature rise test (according to customer requirements)
Zisheng Electric provides complete Chinese-English bilingual test reports.
Considering the West African sea transportation routes and local road conditions, Zisheng Electric provides export-standard vacuum and nitrogen-filled transportation packaging together with reinforced wooden crate solutions.
Before shipment, oil-immersed transformers are vacuum-treated to below 133Pa and filled with high-purity nitrogen gas to maintain a positive pressure of 0.02MPa–0.03MPa, ensuring that the insulation system remains moisture-free during transportation.
Each shipment includes:
Commercial invoice
Packing list
Certificate of origin
Factory test report
Product operation manual
Inspection reports

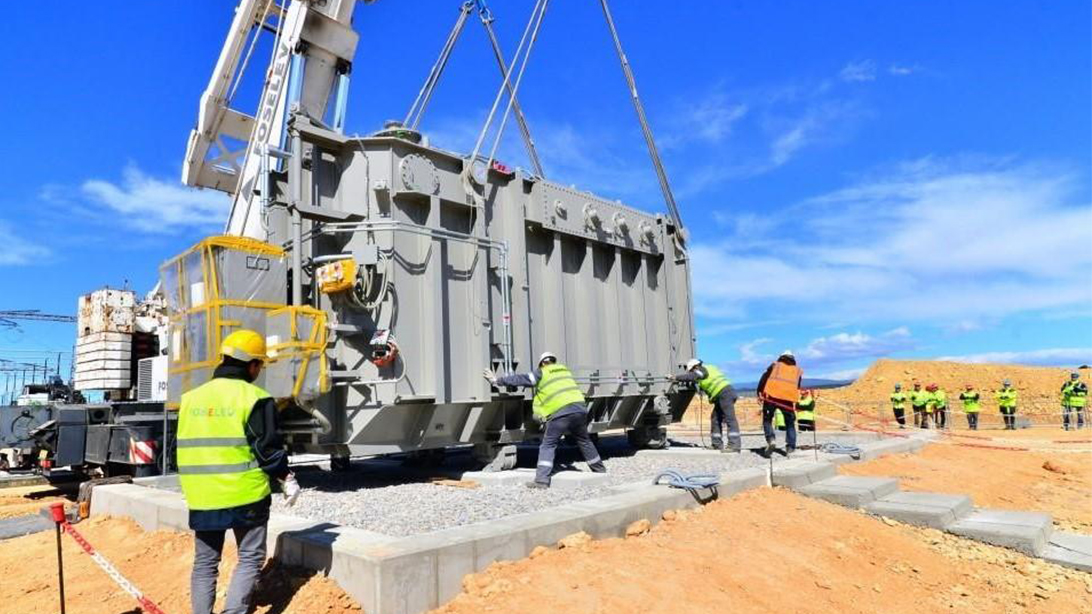

According to contract requirements, Zisheng Electric can dispatch experienced technical personnel to project sites for installation guidance, commissioning, and operation support.
The technical service team has extensive overseas project experience and has completed field services in countries including Nigeria, Ghana, Kenya, Saudi Arabia, and Indonesia.
Considering the frequent thunderstorms during the Lagos rainy season and high-temperature exposure conditions, optional configurations can include:
Rain protection covers
Lightning protection devices
High-temperature warning and monitoring systems
It is recommended to equip transformers with oil temperature monitoring and winding temperature monitoring devices to achieve real-time monitoring of operating conditions.
The four major operating challenges in the Lagos coastal industrial area of Nigeria — including high temperature, high humidity, salt spray corrosion, and unstable power grids — place higher requirements on the weather resistance, reliability, and energy efficiency of distribution transformers compared with conventional projects.
Traditional Class 3 efficiency transformers have limitations in adapting to complex local operating conditions, including higher failure rates, increased maintenance costs, and shorter service life, making them less suitable for the long-term stable operation requirements of EPC projects.
The fully sealed, corrosion-resistant Class 1 energy-efficient transformer provides a comprehensive solution for Lagos industrial EPC projects through its advantages in:
Customized salt spray corrosion protection technology
Ultra-low temperature rise and optimized heat dissipation design
Strong power grid adaptability
Class 1 energy efficiency performance
It represents one of the most practical and cost-effective transformer solutions for coastal industrial projects in West Africa.
For overseas EPC contractors and international engineering investors, professional equipment selection based on local operating conditions is a key factor in reducing project risks, lowering full life-cycle costs, and improving overall engineering benefits.
Zisheng Electric has been engaged in power equipment research, development, and manufacturing for many years. Its product portfolio includes oil-immersed transformers, dry-type transformers, amorphous alloy transformers, and switchgear. Products can be customized according to international standards including IEC 60076 and GOST, serving markets across the Middle East, South America, Africa, and Russia.
For special operating conditions in West African coastal projects, including salt spray corrosion, high temperatures, and unstable power grids, Zisheng Electric has accumulated extensive technical experience in corrosion-resistant design, high-temperature operation, and voltage fluctuation resistance, providing complete services covering:
Transformer selection support
Customized engineering design
Factory testing
On-site installation and commissioning
Zisheng Electric — Years of Experience in Power Equipment Research and Manufacturing.
With products covering oil-immersed transformers, dry-type transformers, amorphous alloy transformers, and switchgear, Zisheng Electric provides customized solutions according to IEC 60076, GOST, and other international standards, serving customers across global markets.
For energy-saving transformer selection solutions, technical parameters, and project quotation support for Lagos or other West African coastal projects, customers are welcome to provide project details through Zisheng Electric’s official channels to obtain a dedicated customized power distribution solution.
