S13 Series Three-Phase Oil-Immersed Transformers: A Selection Guide for Next-Generation Low-Loss Distribution Transformers

In 10kV distribution systems, three-phase oil-immersed distribution transformers have long been among the most widely used types of equipment. Whether for urban residential complexes, rural grid upgrades, or power supply to industrial sites and commercial buildings, 10kV oil-immersed transformers play a crucial role in voltage transformation and power distribution.

As energy-efficiency standards for distribution equipment continue to rise, traditional S9 and S11 series transformers—due to their relatively higher losses—are increasingly unable to meet the energy-saving requirements of certain projects. In contrast, the S13 series offers improved operational efficiency and equipment reliability through optimized core structures, advanced material application, and fully sealed designs; consequently, it has become a preferred model for the replacement and upgrading of 10kV distribution transformers.

This article outlines the model designations, structural features, key performance parameters, and practical application scenarios of the S13 series three-phase oil-immersed transformers, serving as a reference for selection, procurement, and operation and maintenance.

I. Model Designation: Deciphering the S13 "Identity Code"

Distribution transformer model designations typically consist of a combination of letters and numbers, with specific symbols representing product structure, performance class, and rated parameters. Taking the common model S13-M.RL-500/10 as an example, the breakdown is as follows:

Thus, S13-M.RL-500/10 designates a three-phase oil-immersed distribution transformer with a rated capacity of 500 kVA and a voltage class of 10 kV, featuring a fully sealed, three-dimensional wound core structure.

Notably, the "M" signifies a fully sealed structure, which is a key design feature of the S13 series.

Traditional oil-immersed transformers are typically equipped with an oil conservator; the transformer oil interacts with the air to accommodate volume changes caused by temperature fluctuations. However, during long-term operation, moisture and oxygen from the air can cause the transformer oil to age gradually, thereby compromising insulation performance.

The fully sealed structure eliminates the oil conservator, instead utilizing the expansion and contraction of the corrugated tank itself to compensate for oil volume changes. This isolates the transformer oil from the external atmosphere, reducing the risks of oil degradation and moisture absorption, and enhancing the stability of the equipment during long-term operation.

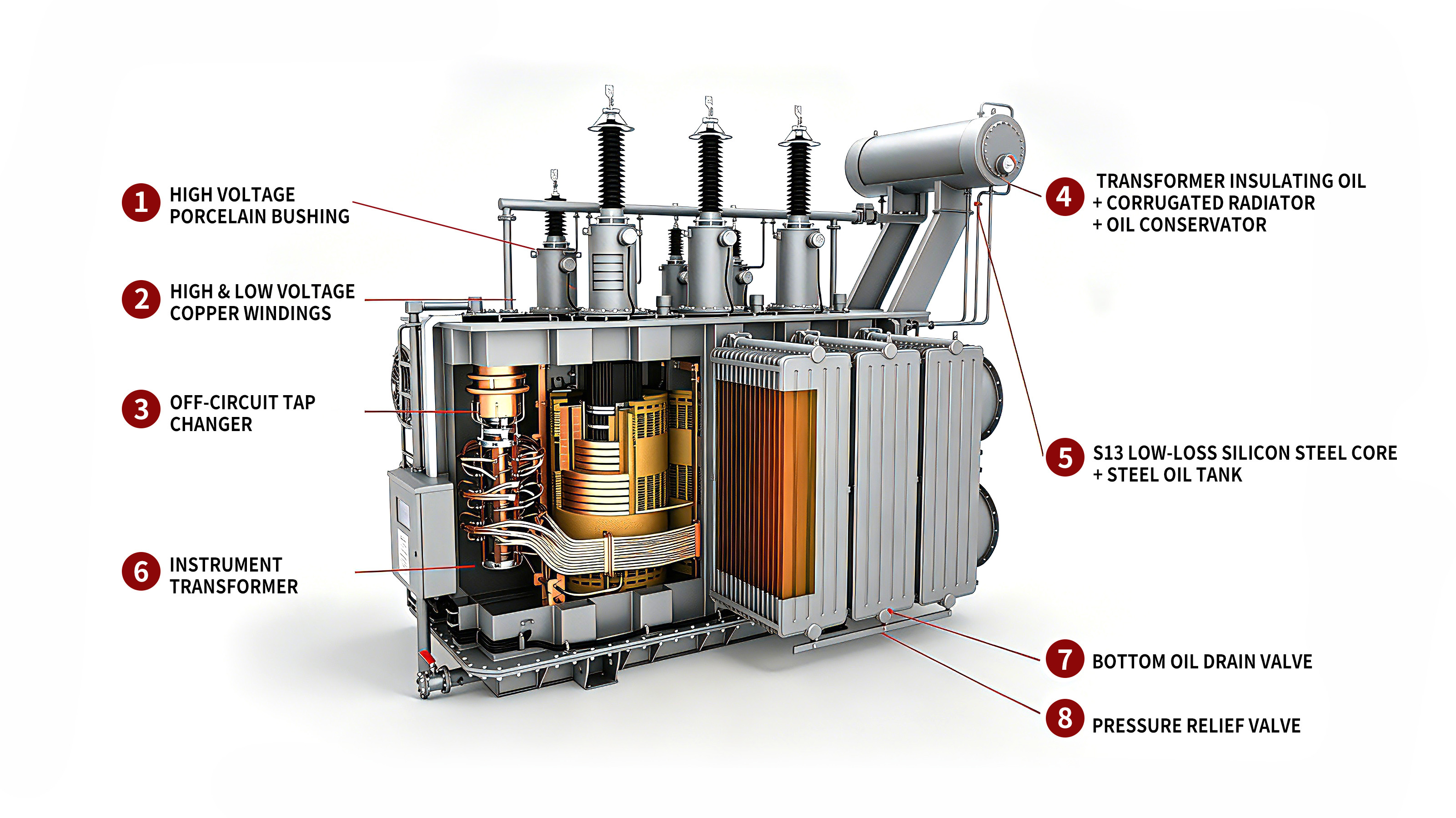

II. Key Technical Features of the S13 Series

Notably, the "M" signifies a fully sealed structure, which is a key design feature of the S13 series. Traditional oil-immersed transformers are typically equipped with an oil conservator; the transformer oil interacts with the air to accommodate volume changes caused by temperature fluctuations. However, during long-term operation, moisture and oxygen from the air can cause the transformer oil to age gradually, thereby compromising insulation performance.

The fully sealed structure eliminates the oil conservator, instead utilizing the expansion and contraction of the corrugated tank itself to compensate for oil volume changes. This isolates the transformer oil from the external atmosphere, reducing the risks of oil degradation and moisture absorption, and enhancing the stability of the equipment during long-term operation.

1. Reduced No-Load Loss and Improved Operational Economy

During transformer operation, the iron core generates a certain amount of loss even when there is no load; this is known as no-load loss. Since distribution transformers typically remain energized for extended periods, reducing no-load loss is crucial for minimizing annual energy consumption.

The S13 series achieves lower no-load losses compared to the S11 series through optimized core materials and manufacturing processes.

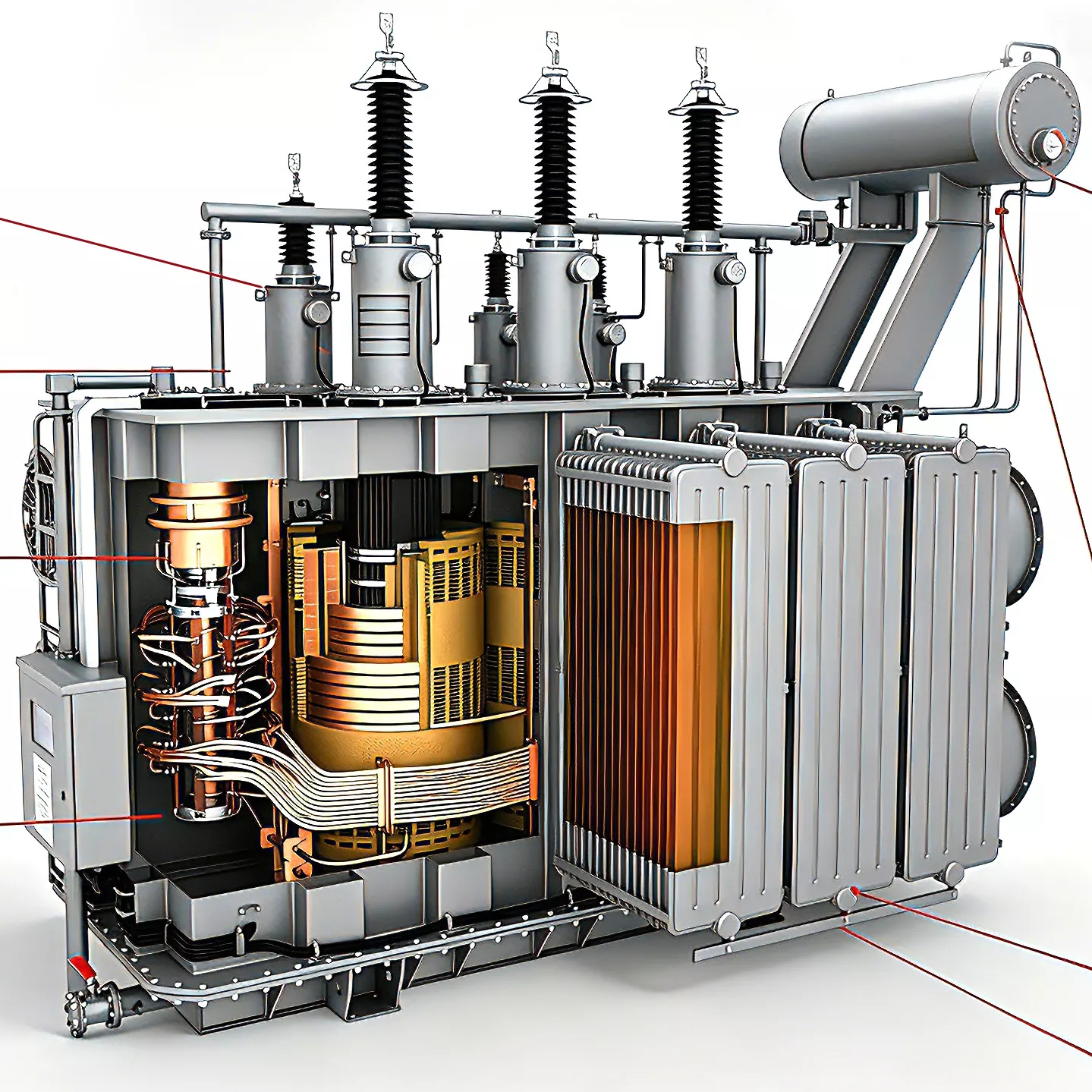

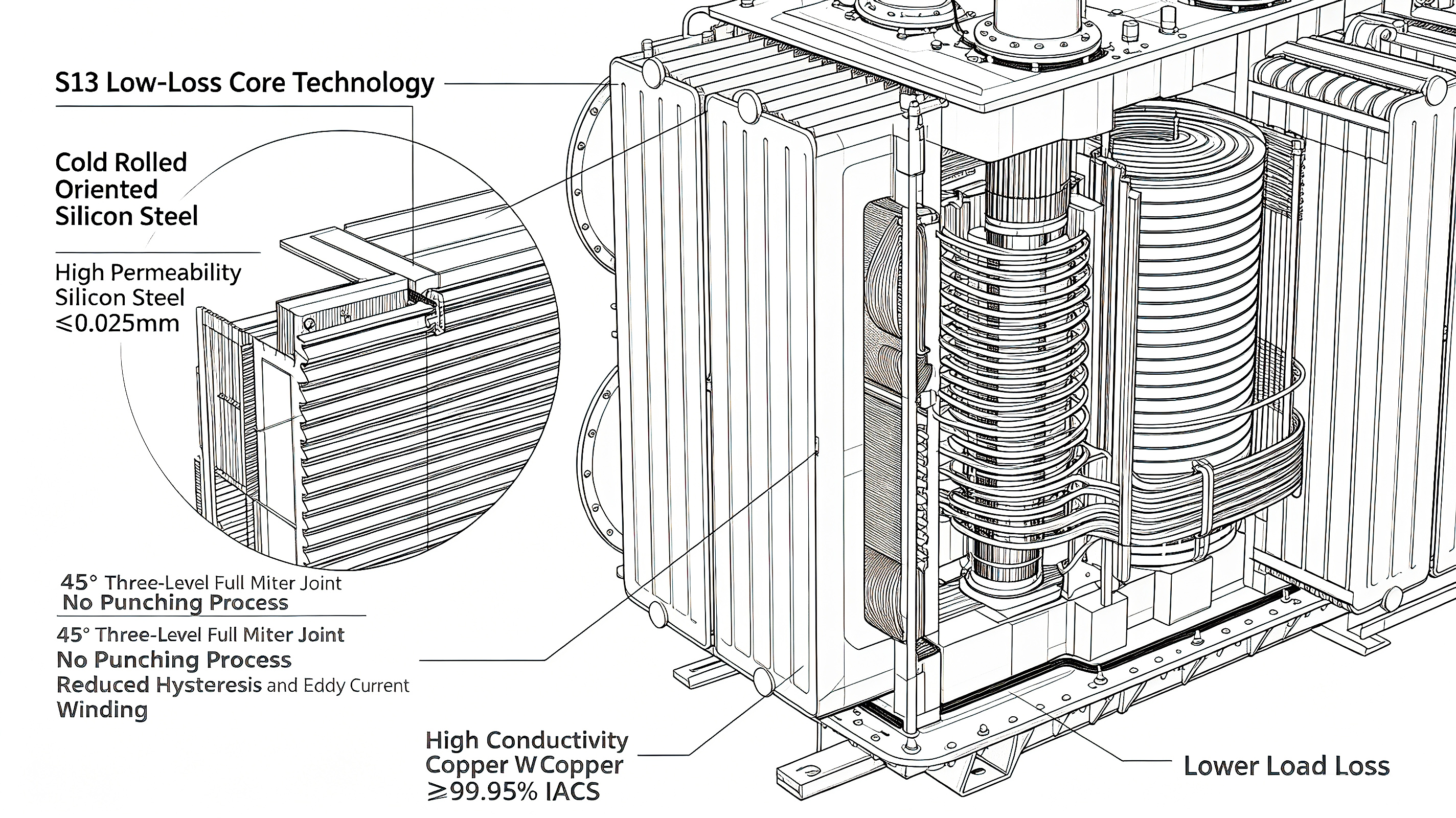

These products typically utilize high-quality cold-rolled grain-oriented silicon steel sheets for the core and employ optimized joint configurations to minimize magnetic flux loss. Some high-performance models utilize high-permeability silicon steel to further enhance magnetic properties.

Additionally, the core manufacturing process employs a 45° fully mitered joint structure, which minimizes magnetic reluctance variations in the magnetic circuit and reduces iron losses during operation.

Regarding conductor materials, the S13 series generally uses high-conductivity copper wire for windings to reduce resistive losses under load and improve overall operational efficiency.

Taking a 10kV, 500kVA unit as an example, the S13 series exhibits lower no-load losses than traditional S11 models, thereby reducing energy waste during long-term operation.

2. Application of the Three-Dimensional Wound Core Structure

Certain S13 series models feature a three-dimensional wound core structure (RL type), representing a significant trend in the structural optimization of distribution transformers in recent years.

Unlike traditional stacked cores, the three-dimensional wound core is formed through a continuous winding process to create a closed three-phase magnetic circuit. The three core limbs are arranged in a three-dimensional configuration, resulting in a more balanced three-phase magnetic circuit. This structure offers the following key features:

·Enhanced magnetic circuit symmetry: The magnetic reluctance across the three phases is essentially uniform, helping to reduce excitation current;

·Reduced no-load losses: Magnetic flux losses are minimized, improving core utilization efficiency;

·Lower operating noise: Reduced magnetostriction effects result in quieter, smoother operation;

·High structural strength: The integrated core structure enhances mechanical stability.

Products featuring the three-dimensional wound core design offer distinct advantages for locations with strict noise control requirements, such as residential areas and commercial buildings.

3. Fully sealed structure for enhanced operational reliability

The fully sealed design is a key feature distinguishing the S13-M series transformers from traditional oil-immersed models.

Conventional oil-immersed transformers typically utilize an oil conservator (expansion tank) structure, where the oil level fluctuates to accommodate temperature-induced volume changes. However, during long-term operation, moisture, oxygen, and impurities from the air can enter the oil, accelerating the aging of the insulating oil and compromising the transformer's insulation performance.

The S13-M series employs a fully sealed structure with a corrugated tank, eliminating the need for a traditional oil conservator. As the operating temperature changes, the corrugated tank walls expand and contract to compensate for variations in oil volume, ensuring the internal oil remains completely sealed off from the outside environment.

This structure offers several key advantages:

·Minimizes contact between the transformer oil and air, slowing the rate of oil oxidation;

·Reduces the risk of moisture ingress, which could otherwise degrade insulation performance;

·Reduces the need for routine maintenance tasks such as oil replenishment or replacement;

·Suitable for outdoor environments and scenarios requiring long-term, continuous operation.

For distribution equipment installed in dispersed locations or areas with limited maintenance access—such as rural power grids, outdoor box-type substations, and industrial park distribution systems—the fully sealed structure helps alleviate the burden of ongoing operation and maintenance.

4. High short-circuit withstand capability

During actual operation, distribution transformers may be subjected to abnormal conditions such as line faults or external short circuits. When a short circuit occurs, the windings are subjected to significant electromagnetic forces; therefore, the transformer's structural design must possess sufficient mechanical strength.

The S13-M.RL series utilizes a three-dimensional wound core structure, providing high overall rigidity for the transformer assembly. The windings typically feature a cylindrical structure with concentric high- and low-voltage coils, allowing for a more uniform distribution of the axial and radial electromagnetic forces generated by short-circuit currents.

Meanwhile, the internal assembly is secured using clamps, tie rods, and insulating support structures to enhance overall mechanical stability, thereby improving the transformer's ability to withstand the impact of sudden short circuits.

It should be noted that a transformer's short-circuit withstand capability depends not only on the core structure but also on winding design, manufacturing processes, insulation materials, and assembly quality; therefore, comprehensive assessments based on manufacturer type-test data should be conducted during actual project selection

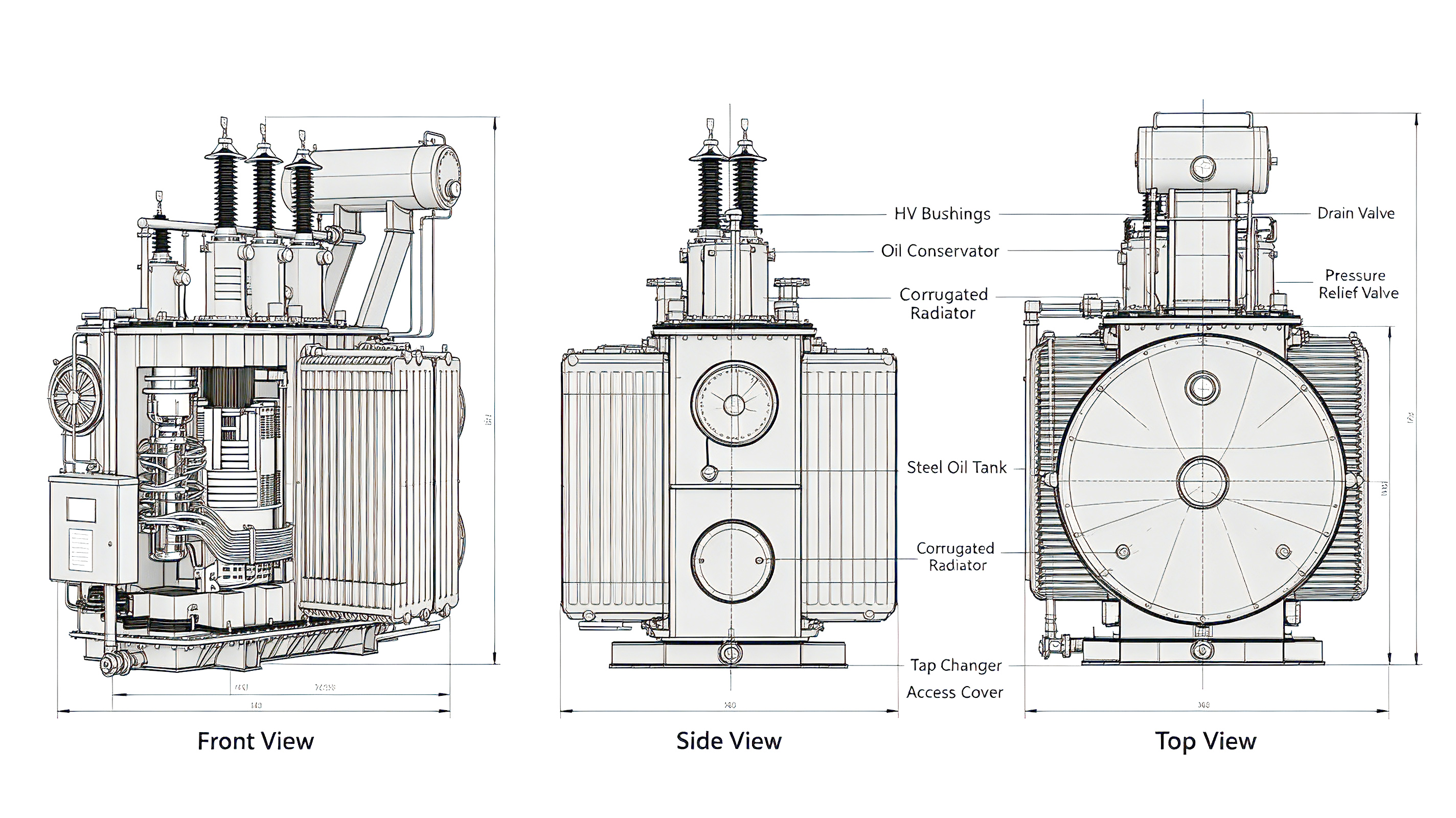

III. Technical Performance Parameters

The S13 series of 10 kV three-phase oil-immersed transformers offers a wide capacity range, covering the standard capacity ratings commonly used in general power distribution systems. The following are some typical parameters for the S13-M.RL series:

General Technical Specifications

The S13 series 10kV distribution transformers generally meet the following basic technical requirements:

*Rated frequency:50Hz

*Rated voltage class: 10kV / 0.4kV

*Cooling method: ONAN (Oil-immersed natural cooling)

*Insulation class: Class A insulation

*HV tapping range: ±5% or ±2×2.5%

*Vector group: Dyn11 or Yyn0

Among these, the Dyn11 vector group is widely used in urban power distribution and industrial load applications because the delta-connected winding allows third-harmonic currents to circulate internally, thereby helping to mitigate the impact of harmonics on the power supply system.

IV. Energy Efficiency Grade Requirements

Distribution transformers are equipment designed for long-term operation, and their loss levels directly affect grid operating costs. Therefore, national standards have established clear requirements for transformer energy efficiency indicators. According to the standard Minimum Allowable Values ​​of Energy Efficiency and Energy Efficiency Grades for Power Transformers (GB 20052-2020), the loss metrics of the S13 series meet the relevant energy efficiency requirements, making them widely used energy-saving distribution transformers in the current market.

It should be noted that the GB 20052 standard has been updated. GB 20052-2024 will come into effect on February 1, 2025; building upon the previous version, it further refines energy efficiency requirements for transformers in new energy application scenarios, including equipment for photovoltaic (PV) power, wind power, and energy storage systems.

For standard 10kV distribution projects, the S13 series meets conventional energy-saving needs. However, for projects with stricter energy consumption requirements—such as green buildings, large-scale data centers, and new energy power stations—products with higher energy efficiency grades (e.g., the S20 or S22 series) may be considered, depending on investment budgets and operational lifecycles.

V. Application Scenarios

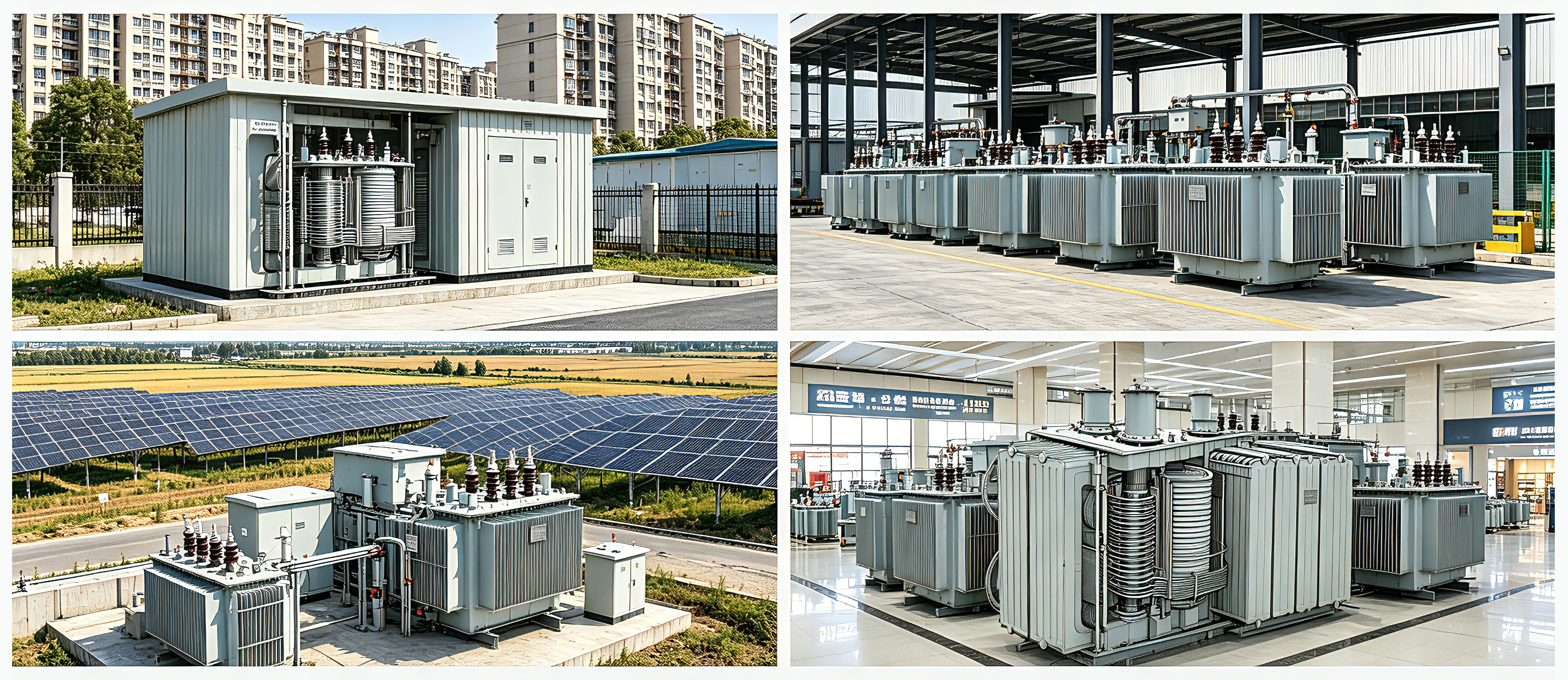

The S13 series three-phase oil-immersed transformers are primarily used in 50Hz AC distribution systems rated at 10kV or below. They are suitable for applications requiring high operational reliability, low loss levels, and ease of maintenance.

It should be noted that new energy projects often involve more complex operating conditions for transformers. In addition to capacity and loss metrics, factors such as harmonic levels, load fluctuations, and grid-connection requirements must be considered. Therefore, for applications like PV and energy storage, suitable products should be selected based on the project's specific technical requirements. VI. Comparative Economic Analysis: S13 Series vs. S11 Series

When selecting distribution transformers, the choice between the S13 and S11 series depends not only on the initial purchase price but also on a comprehensive assessment of long-term energy losses and maintenance costs.

Compared to the S11 series, the S13 series achieves further reductions in both no-load and load losses through optimized core materials and manufacturing processes. Since distribution transformers typically operate continuously over long periods, no-load losses persist even during low-load conditions; therefore, minimizing these losses is practically significant for enhancing the equipment's lifecycle economic efficiency.

Taking a 10kV, 500kVA transformer as an example, the following table compares the operating costs of the two products based on an assumption of 8,000 annual operating hours and an electricity price of 0.8 RMB/kWh:

The calculations above demonstrate that, under long-term operating conditions, the S13 series reduces electricity costs by minimizing energy losses. For projects involving extended operating times and stable loads, the savings from energy efficiency can typically offset the higher initial investment over time.

It should be noted that the actual payback period depends on factors such as equipment purchase price, local electricity rates, load factor, and operating duration; therefore, a comprehensive evaluation based on specific operating conditions is recommended during the selection process.

Frequently Asked Questions (FAQ)

Q1: What are the main differences between the S13 series and the S11 series?

The primary improvement of the S13 series over the S11 series lies in loss control. By optimizing core materials and manufacturing processes, the S13 series further reduces no-load losses, thereby improving economic efficiency during long-term operation. The specific rate of loss reduction depends on the product's capacity, structural design, and the manufacturer's technical specifications.

Q2: What is the difference between the S13-M and the S13-M.RL?

The S13-M features a fully sealed structure; its primary characteristic is the elimination of the oil conservator, thereby isolating the transformer oil from the outside air.

Building upon this, the S13-M.RL incorporates a 3D wound core structure. This design optimizes the magnetic circuit to further reduce losses and operating noise while enhancing structural stability.

Q3: Which energy efficiency standards does the S13 series meet?

The S13 series complies with the requirements set forth in the "Minimum Allowable Values ​​of Energy Efficiency and Energy Efficiency Grades for Power Transformers." With the implementation of the GB 20052-2024 standard, energy efficiency requirements for distribution transformers have been raised; therefore, products with the appropriate energy efficiency grade must be selected based on specific project requirements.

Q4: In which applications is the S13 series primarily used?

The S13 series is mainly used in distribution systems rated at 10 kV and below, including urban and rural power grids, residential complexes, commercial buildings, industrial enterprises, and certain supporting projects for new energy.

Q5: Is a fully sealed transformer completely maintenance-free?

The fully sealed structure minimizes contact between the transformer oil and the air, thereby reducing the risks of oil degradation and moisture absorption, which in turn lowers the workload for routine maintenance. However, the equipment still requires regular inspections and periodic testing in accordance with relevant standards to ensure safe, long-term operation.
