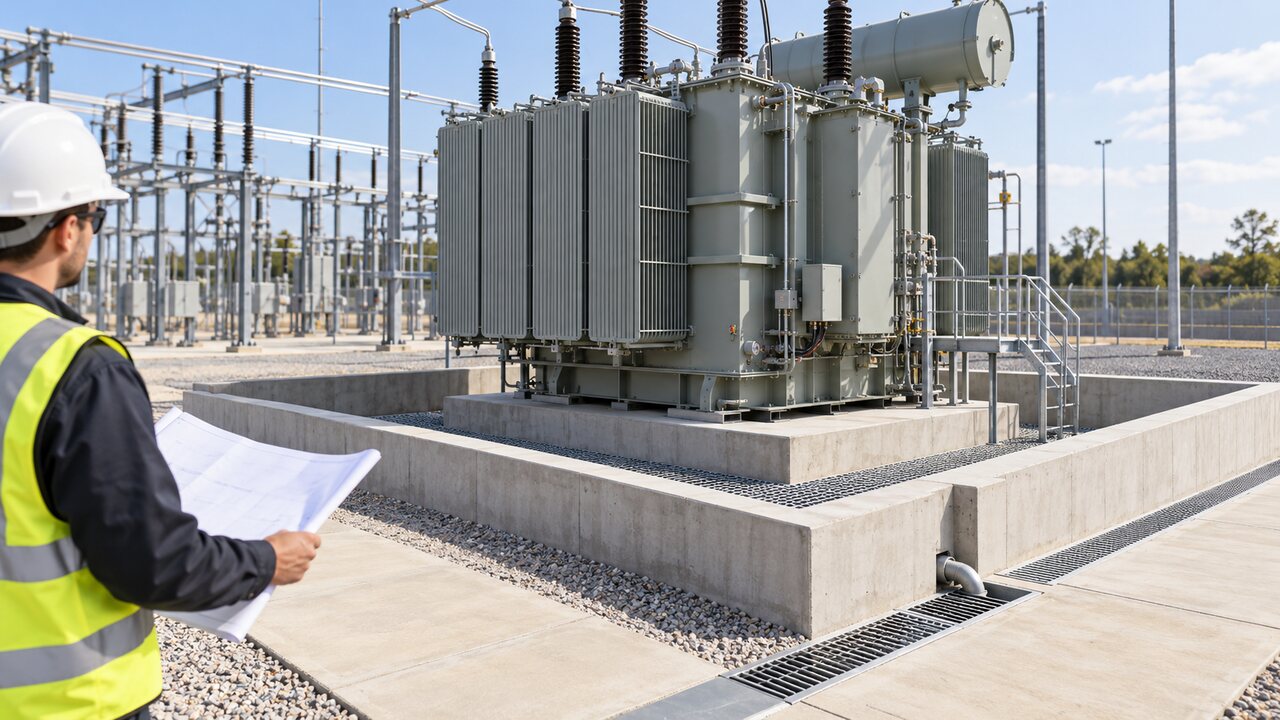

Zisheng Electric can deliver an oil-immersed transformer with the approved tank, valves and accessories while the receiving substation remains unready for its oil inventory. A transformer oil containment interface belongs at the boundary between transformer supply, civil design, environmental management, fire strategy and site operations. If that boundary is left for installation, the project may discover that a drain exits the protected area, a radiator overhangs the collection zone, or a maintenance valve cannot be accessed without opening the containment system.
This article is a coordination guide for EPC contractors and owners. It does not prescribe a universal bund volume or local legal approval. The design must follow the actual jurisdiction, permit, owner and utility requirements, with the responsible civil and environmental engineers confirming the final arrangement. The manufacturer's contribution is to provide reliable equipment data and a drawing that makes the interfaces visible.
The starting point is the complete installation arrangement, not just the main tank footprint. A liquid-immersed power transformer may include radiators, conservator, pipework, valves, oil-processing connections and an on-site storage or filling operation. Some items can extend beyond the tank perimeter. The containment designer needs to know which oil-bearing components could release liquid, where the low points and drain points are, and whether oil is shipped inside the unit or filled after arrival.
The EPC team should issue an interface drawing with three boundaries: the equipment supply boundary, the collection or containment boundary, and the site drainage boundary. Each has a named owner. A supply drawing showing only outline dimensions does not settle whether an accessory is inside the bund or how contaminated water will be isolated. Conversely, the transformer supplier should not claim to approve a civil environmental design for a site it has not surveyed.
The EPC power-solutions page describes wider equipment coordination. Oil containment requires a dedicated register because a late change in the transformer oil volume, radiator arrangement or orientation can affect both the civil works and the incident response plan. Put its review in the same design-freeze programme as foundation loads and cable connections.
Small routine drips at a valve, a maintenance spill, a major tank loss, rainwater accumulation and firewater are different events. They may enter the same physical area but require different control and disposal decisions. Do not design solely around the nominal tank oil quantity without asking what other liquid can enter the enclosure during the governing case. Nor should the supplier invent a firewater volume on behalf of the project fire engineer.
The UK Environment Agency's published guidance on oil storage describes secondary containment and associated equipment, while HSE guidance highlights the problem of a drain valve left open. These are useful examples of design questions, not automatic legal rules for an overseas substation. The project team must identify the applicable local rules and permits. The UK oil-storage guidance and HSE secondary-containment discussion show why valve position and drainage control merit explicit attention.
Request the total insulating-liquid quantity for the supplied unit and a breakdown where practical: main tank, radiators, conservator and other oil-bearing accessories. Distinguish design estimate from final as-built quantity. The mass or volume basis and reference temperature should be clear enough for the civil engineer's calculation. If the liquid type changes from the bid, update the environmental and fire review; do not simply replace the label in the equipment list.
Ask for plan and elevation drawings showing the main tank, radiator banks, conservator supports, drain and sampling valves, pressure-relief discharge direction, oil-filling and filtration connections, jacking points, lifting envelope and maintenance clearances. The drawing should show the transport split and the assembled configuration. A radiator detached for shipment can be easy to miss in an early civil layout. The installed maximum envelope controls the final collection area.
Record the actual loading and service condition. A transformer installed near a building or beneath a canopy has a different access and drainage interface from an open yard. A coastal or dusty environment may affect the maintenance schedule and the choice of covers or corrosion protection, but it does not supply a default containment volume. Site-specific rain intensity, groundwater conditions, slope and flood level come from the civil and environmental design basis.
The following table assigns the evidence and decision owner. It helps a procurement team find missing information before foundations and drains are cast.
Interface | Supplier input | EPC/owner input | Release decision |
|---|---|---|---|
Oil inventory | Liquid type and estimated/final quantity for installed equipment | Applicable containment criterion and incident cases | Does the calculated usable capacity cover the agreed case? |
Equipment envelope | Tank, radiators, conservator, valves, piping and assembled outline | Bund footprint, clearances and wall locations | Are all relevant oil-bearing parts inside the collection boundary? |
Drainage | Low points, service drains and likely discharge locations | Sump, isolation, separation, monitoring and disposal design | Can contaminated liquid be retained and managed? |
Fire strategy | Pressure-relief orientation and equipment layout | Firewater, separation, suppression and emergency access assumptions | Is the incident path compatible with the approved strategy? |
Civil loading | Operating/transport mass, supports and anchor locations | Slab, plinth, slope and construction tolerances | Will installation and maintenance preserve the containment integrity? |
Handover | As-built oil quantity, drawings, valve schedule | Inspection, permit and operating procedures | Is the site ready to receive and energize the unit? |
Do not use this table as a calculation sheet. The capacity calculation must account for actual geometry and deductions, including plinths or other displaced volume where relevant. It also needs the project's rainwater and firewater assumptions where applicable. A headline bund dimension without a usable-capacity calculation is not a defensible acceptance record.

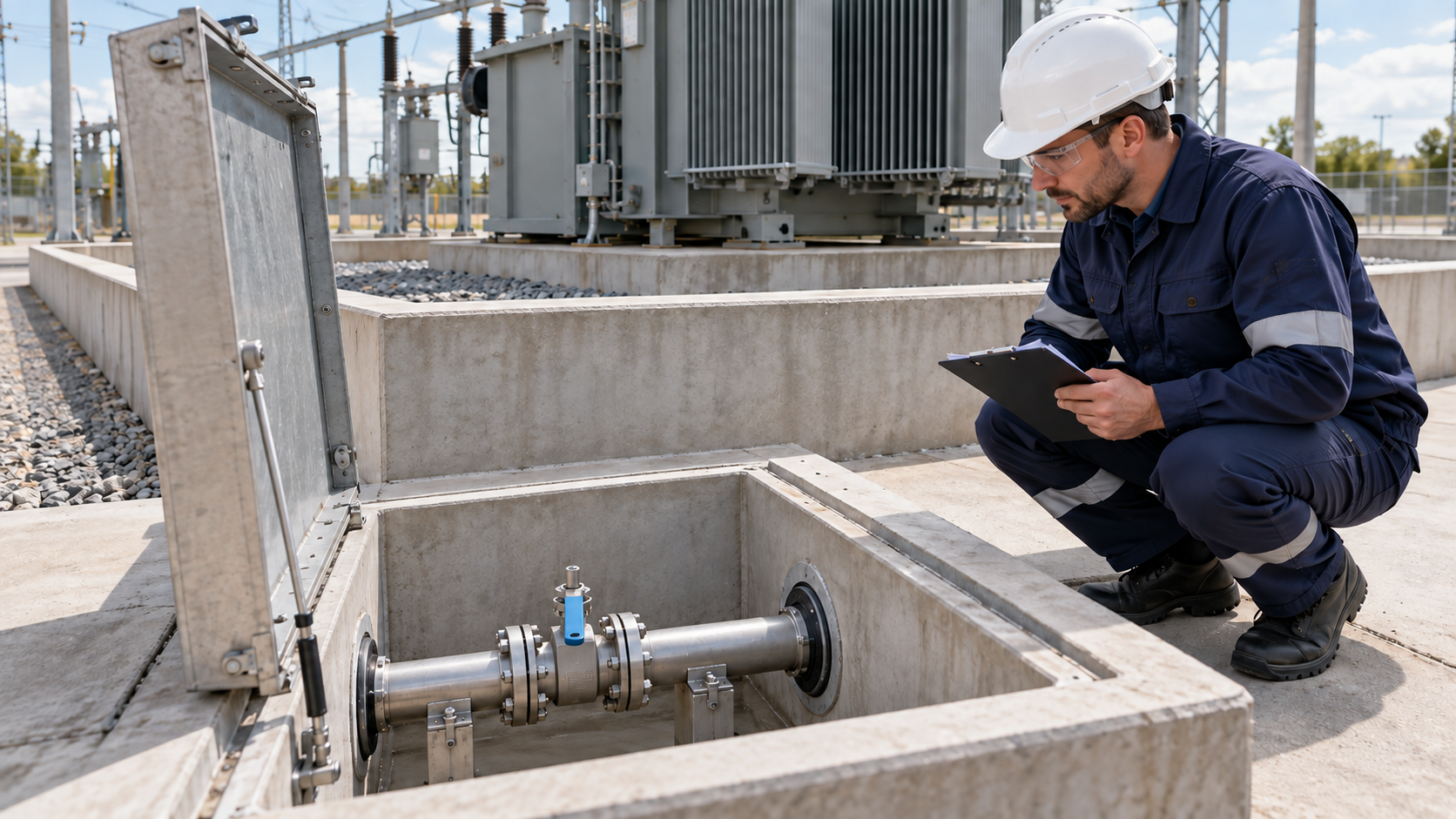

Rainwater management is often the awkward interface. A bund left permanently full of rainwater has reduced incident capacity. An uncontrolled open drain can defeat containment. The civil design should state how water is inspected, tested or separated, who operates the drain, how a valve is secured, and where liquid is sent. The operating procedure must fit the staffing and maintenance reality of the site. A sophisticated separator without access for inspection or sludge removal may create a new failure mode.
The location of cable trenches, earthing conductors and utility ducts also matters. A penetration through a containment wall requires a sealed detail. A trench connected to another pit could carry liquid out of the collection area if the interface is not designed. Drawings should identify every opening and its sealing or isolation method, with inspection access retained after installation. The transformer supplier can confirm where cable boxes and earthing pads sit; the civil designer must detail the containment penetration.
Use the substation transformer range as an equipment starting point for space and cable-entry coordination, but keep the civil seal and drainage acceptance in the project interface register. The aim is one coherent installed arrangement, not two individually approved drawings that conflict at the wall.
Identify oil drain, filling, filter, sampling and radiator isolation valves by tag and location. Mark their normal service positions, lock or seal arrangements where specified, and the access needed to connect a hose or sampling tool. A valve that faces a narrow bund wall may be shown on the supplier drawing but cannot be operated safely. If the drawing is revised, update the site valve map and emergency procedure as well as the transformer assembly instructions.
An accessory change can affect discharge direction. Pressure-relief discharge routing should not spray toward a pedestrian access path, a cable opening or an unprotected service area without project review. The oil-immersed transformer range is an equipment starting point; the final containment and fire response still belong to the approved site design.
A containment wall is useful only if the transformer can be installed and maintained without routinely damaging it. The erection plan should show crane and jacking access, roller or rail paths, oil-processing hoses, radiator assembly space and the route for future replacement of a bushing, fan or pump. The civil designer should confirm that removable barriers, if proposed, have a controlled sealing and reinstatement procedure. A temporary opening left unsealed after erection is an obvious weak point.
Review the transport condition separately from the final condition. If the transformer arrives oil-filled, receiving teams need a spill response and a hardstanding arrangement before the unit enters the permanent bund. If it arrives under dry gas or partial oil, the filling and filtration operation introduces temporary hoses, drums and connection points. The contract should state who supplies containment for temporary works, who inspects the hose route, and when the permanent collection system becomes operational.
The factory traceability records guide provides the document discipline needed to reconcile the supplied valve and accessory arrangement with the approved drawings. At site, compare the as-built nameplate and final oil quantity with the civil design basis. A later accessory substitution or changed radiator bank should trigger a documented check of the installed envelope.
Before delivery, close the civil drawing, usable-capacity calculation, drainage scheme, permit conditions and emergency access. Check that the transformer outline and supports use the same revision as the foundation and containment drawings. The buyer should see a short list of open items with owners and dates, not a generic “site ready” signature.

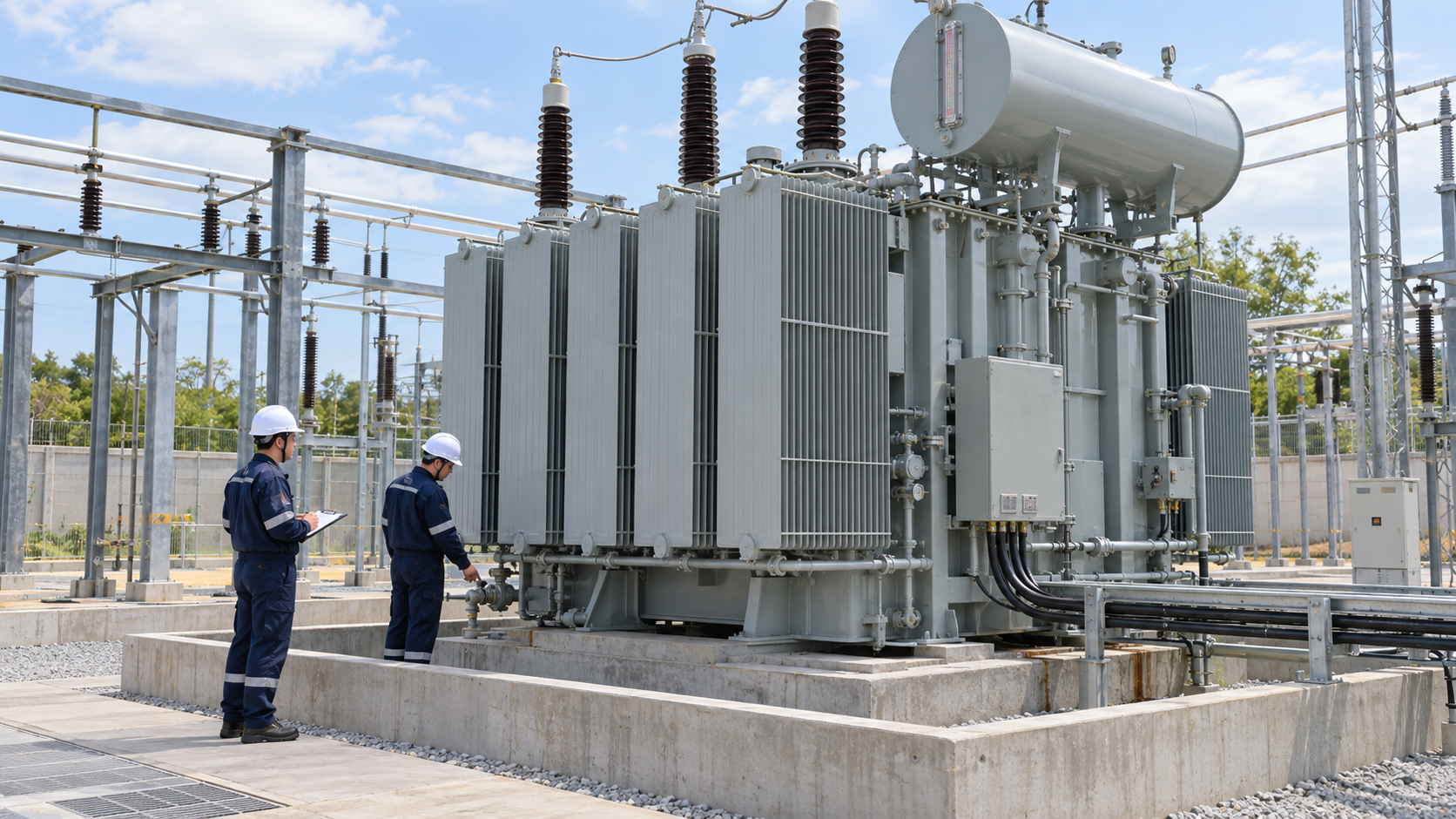

Before oil filling or energization, inspect the constructed walls, floor, penetrations, sump and isolation devices against the approved arrangement. Verify that the collection area is clear, that the intended valve positions can be reached, and that rainwater is managed under the approved operating procedure. Record deviations and decide whether they block filling, energization or only final handover. A photograph may support the inspection, but should identify the location and date.
After commissioning, give operations the final as-built drawing, oil inventory, drain and separator instructions, inspection schedule, spill-response contact chain and records of any temporary opening that was restored. Keep spare gaskets, valve information and the liquid specification accessible. A future maintenance team should not have to reconstruct the containment logic from separate civil and transformer folders.
Country or utility requirements can differ, and environmental permits may impose site-specific conditions. This article therefore does not prescribe a percentage of oil volume, a separation distance or a firewater allowance. Those values require confirmation from the governing documents and responsible authority. Even within one country, groundwater sensitivity, building proximity, rainfall, topography and owner policy can change the design.
The procurement specification can be precise without guessing: require the transformer supplier to provide the oil inventory and assembled drawing by an agreed date; require the EPC designer to calculate and document the capacity and drainage approach against the applicable project criteria; require the owner to accept the interface before construction release. That allocation makes the outstanding facts visible and keeps the equipment order from silently deciding civil engineering.
Zisheng Electric's oil-immersed transformer range and 110 kV/115 kV power transformer offer starting points for an equipment inquiry, subject to the project-specific installed arrangement. The substation transformer range is also relevant where the enclosure and adjacent equipment influence site space. Product selection and containment design should be reviewed together at the interface stage.
Send the drawings, data sheets, load list, technical specification, single-line diagram, grid parameters, environmental conditions and installation-site conditions. Include the civil layout, drainage philosophy, local permit requirements, proposed liquid type and fire strategy if available. A controlled transformer oil containment interface review will show what the manufacturer can confirm and what the EPC team must still resolve. Our engineering team will review the requirements and respond to project inquiries within 24 hours.
