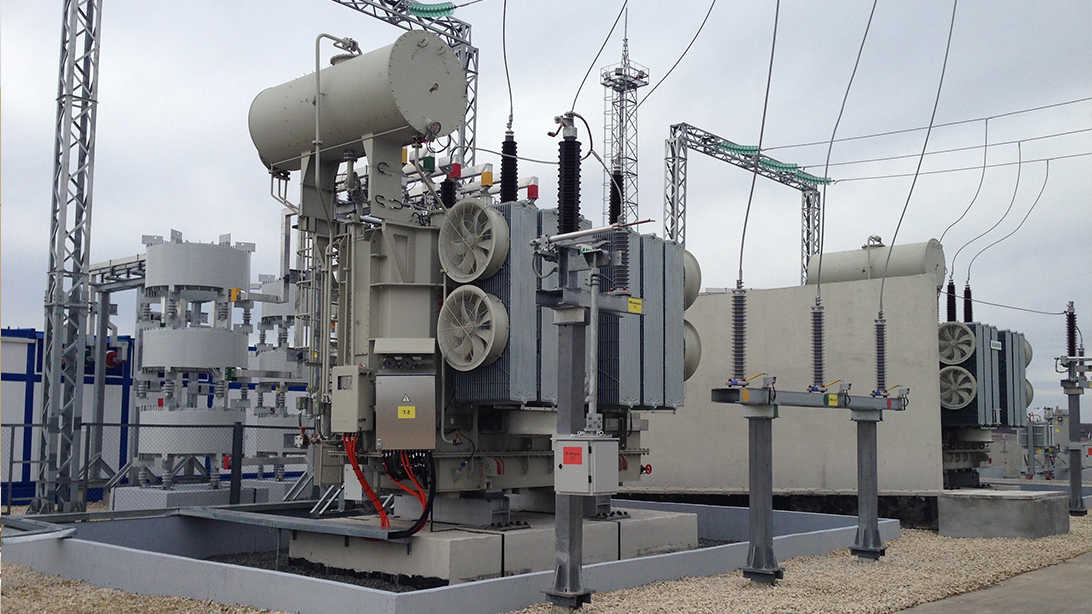

In industrial projects, the type selection and design of distribution transformers involve far more than simply calculating capacity based on load schedules. Site conditions, load characteristics, system protection, room for future expansion, and even transportation and installation constraints directly determine whether the transformer will operate reliably and trouble-free for the next decade or become a persistent source of issues. Today, from a field application perspective, I will elaborate on the critical factors that truly drive design decisions.

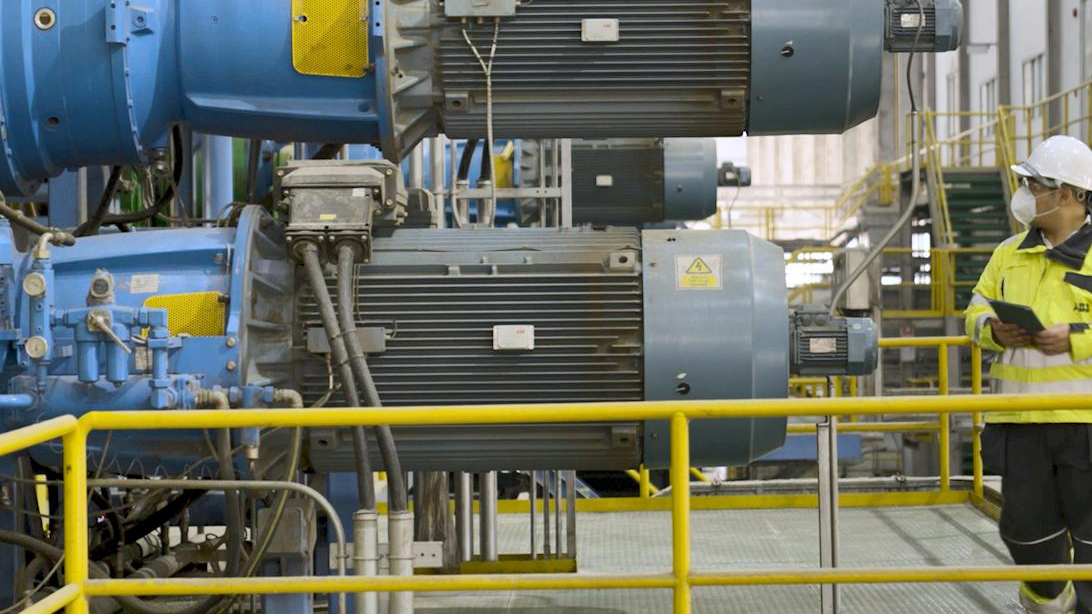

Industrial loads are typically characterized by a high volume of impact loads and harmonic sources. Voltage drops caused by the startup of motor groups and drastic current fluctuations from electric furnaces or welding machines must be accounted for by adequate capacity margins during the design phase.
My recommendation is to maintain a normal load factor between 65%~75%. For production lines with frequent startup cycles, verification should be performed based on "Capacity of the largest single motor × Direct-on-line starting multiplier + Remaining operating load". Many on-site incidents have occurred where the calculated transformer capacity appeared sufficient, yet the main low-voltage circuit breaker tripped whenever large equipment was energized. The root cause was failure to account for voltage drop during motor startup.

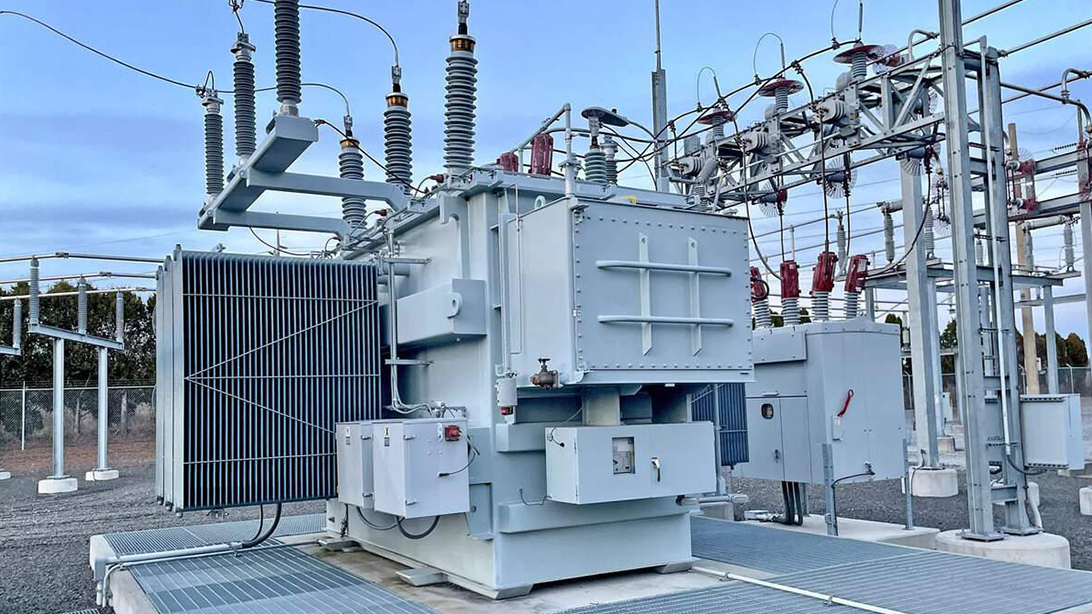

This section is most likely to be overlooked during the drawing design phase. I have seen more than one project where the transformer specification sheet stated "altitude below 1000 m", only to find after equipment delivery that the plant site is at an altitude exceeding 1500 meters.
Annual average temperature and extreme maximum temperature — directly affect heat dissipation design and fan configuration
Ventilation conditions at the installation site — whether natural ventilation is permissible or forced air cooling is mandatory
Altitude — insulation level and heat dissipation capacity shall be revised by correction factors when the altitude exceeds 1000 meters
Air pollution severity — dust or corrosive gas in cement plants, chemical plants and metallurgical workshops can cause significant erosion to insulating materials
Installation space dimensions — including transportation passages, maintenance access and hoisting openings, which often impose constraints earlier than the overall dimensions of the transformer itself
Short-circuit impedance is a key parameter that determines the short-circuit current level on the low-voltage side. Selecting a higher impedance value (e.g., 6%~8%) can effectively limit short-circuit current and reduce the breaking capacity requirement for downstream switchgear, at the cost of a larger voltage regulation rate and lower output voltage under full load.
Clear parameter alignment must be carried out with the upstream power supply authority at this stage: What is the short-circuit capacity under the maximum system operating mode? Does the sensitivity under the minimum operating mode meet protection requirements? Without confirming these two sets of data, the impedance selection for the distribution transformer is merely a guesswork.
The actual operating curve at industrial sites is generally not flat — full load during daytime, light load at night, and sustained heavy load during high-temperature periods in summer. Therefore, the normal overload multiple and emergency overload duration of the transformer shall be defined at the design stage.
In terms of cooling modes:
AN (Natural Air Cooling) : Simple structure with no auxiliary energy consumption, yet limited overload capacity
AF (Forced Air Cooling) : Significantly boosts output capacity (typically by 20%~30%), but increases operation and maintenance costs for fans
For industrial consumers with 24-hour continuous production, I tend to recommend forced air cooling equipped with fan condition monitoring. The extra heat dissipation margin during hot summer months often makes the difference between uninterrupted production and shutdown due to tripping.
In industrial power distribution projects participated by Zisheng Electric, we usually ask customers to supplement the load list, maximum motor capacity, system short-circuit capacity, ambient temperature, altitude and installation dimensions at the technical confirmation stage before finalizing the capacity, impedance and cooling scheme.
We once supported a cement production project on distribution transformer selection. The initial scheme adopted a 2500kVA transformer based on conventional load calculation. However, further verification revealed concentrated startup of high-power motors on the production line. After recalculating startup voltage drop, short-circuit impedance and load curve, the capacity and startup scheme were adjusted accordingly. An extra round of calculation at the equipment selection stage avoided modifications to the low-voltage system after commissioning.
Voltage fluctuation in industrial power grids is often greater than that in public power grids. The high-voltage side of distribution transformers is generally equipped with off-circuit tap changers (±2×2.5% or ±3×2.5%), yet such adjustment requires manual operation under power-off conditions.
If any of the following conditions exist on site, the upgrade to an on-load tap changer shall be carefully evaluated:
Long power supply lines with inherently unstable incoming voltage
Production lines sensitive to voltage, where voltage deviation beyond allowable limits will affect product yield
Extremely wide load variation that cannot be fully mitigated by reactive power compensation
For industrial scenarios with a large number of single-phase loads or non-linear loads, the Dyn11 vector group offers prominent advantages. Third-harmonic currents form circulating currents within the delta winding instead of entering the neutral line. Meanwhile, its low zero-sequence impedance facilitates rapid isolation of single-phase earth faults.
In contrast, the Yyn0 connection suffers obvious neutral point shift under three-phase unbalance conditions. From my experience, unless the customer puts forward explicit special requirements, Dyn11 has become a widely preferred choice for industrial projects. The final vector group shall still be determined in combination with the system earthing mode, zero-sequence protection, parallel operation conditions and the owner’s technical specifications.
For industrial projects with long-term continuous operation, the purchase price is only part of the life-cycle cost. Load factor, electricity price, no-load loss, load loss and service life often greatly affect the economy of different solutions. Electricity charges generated by no-load loss (iron loss) and load loss (copper loss) account for the major expenditure.
For economic type selection, I recommend estimating the annual operating cost as follows:
Annual electricity cost for losses = (No-load loss × 8760 h + Load loss × Equivalent full-load hours) × Electricity price
Multiplying this value by the expected service life often makes higher-efficiency transformers with slightly higher procurement cost but lower losses financially viable. At present, China implements the energy efficiency standard GB 20052-2020. The payback period for Class 1 and Class 2 energy efficiency is generally 2~4 years, and the subsequent service years bring pure economic benefits.
IP20: Suitable for installation in independent power distribution rooms with dry and clean environments
IP30 and above: Applicable to areas with minor dust or potential intrusion of small animals
Outdoor type: Minimum IP54 rating, together with accessories such as top/bottom cable entry, rain hood and anti-condensation heater
In addition, the choice between dry-type transformers and oil-immersed transformers directly affects protection design. Dry-type transformers feature outstanding fire safety performance and are suitable for basements or densely occupied areas. Oil-immersed transformers require supporting fire-fighting facilities such as oil collection pits and oil drainage pipelines.
Design Factor | Key Evaluation Indicators | Common Project Reference | Impact on Selection |
|---|---|---|---|
Load Characteristics | Load factor, impact load, harmonics | Determined according to actual load curves | Determines capacity and thermal design margin |
Ambient Temperature | Maximum, minimum and average temperature | IEC standard conditions or project-specified values | Affects temperature rise and cooling system |
Altitude | Altitude of installation site | Key verification required when altitude >1000m | Affects external insulation and heat dissipation capacity |
Short-Circuit Impedance | Uk% | Calculated based on capacity and system parameters | Affects short-circuit current and voltage regulation rate |
Cooling Mode | AN/AF/ONAN/ONAF | Determined by dry-type/oil-immersed transformer and load conditions | Affects continuous output and overload capacity |
Voltage Regulation Mode | DETC/OLTC | Determined by system voltage fluctuation | Affects voltage regulation performance |
Vector Group | Dyn11 / Yyn0, etc. | Defined by system design requirements | Affects earthing, zero-sequence and harmonic characteristics |
Loss | No-load loss / Load loss | In accordance with project energy efficiency requirements | Affects long-term operating costs |
Ingress Protection Grade | IP Rating | Selected according to installation environment | Affects dustproof, waterproof performance and equipment service life |
Transportation Conditions | Weight, dimension, passage space | Subject to actual site conditions of the project | Affects equipment structure and delivery scheme |
There is a regular pattern in industrial production: the actual power load three years after commissioning often exceeds the long-term load forecast shown in design drawings. Where conditions permit, we recommend reserving the transformer foundation and high-voltage incoming cabinet for the next higher rating, and oversizing the low-voltage busbar appropriately. Even if the currently purchased transformer has a moderate capacity, no modification to civil works or main busbars will be needed when upgrading to a larger-capacity unit in the future. This forward preparation is well worth implementing in advance.
This reminder is especially for engineers working on renovation projects. Many industrial plants built in the 1980s and 1990s have transformer rooms with narrow doorways, limited floor load capacity and outdoor roads with small turning radii, which may prevent new distribution transformers from being delivered and positioned. During the design phase, the overall weight, external dimensions of the transformer and the minimum turning radius of the transportation route must be fully verified. A solution of split transportation plus on-site assembly can be adopted if necessary.

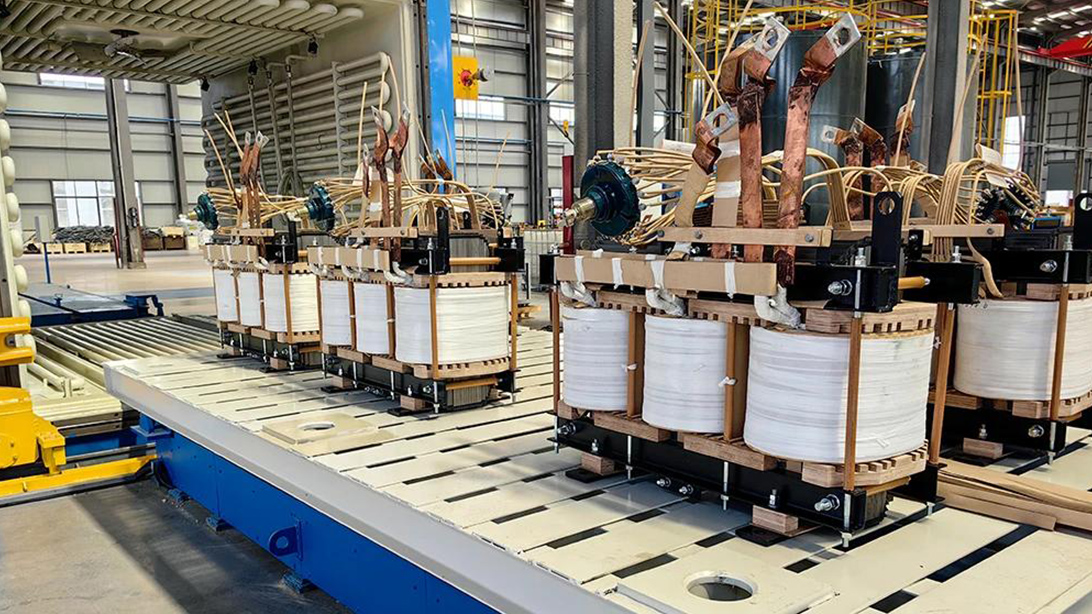

In industrial power distribution projects undertaken by Zisheng Electric, we usually request customers to provide supplementary documents including load lists, maximum motor capacity, system short-circuit capacity, ambient temperature, altitude and installation dimensions at the technical confirmation stage, before finalizing the capacity, impedance and cooling scheme. Our product portfolio covers oil-immersed transformers, substation transformers, pad-mounted transformers, pole-mounted transformers, dry-type transformers, and other power distribution equipment.We support IEC-standard design, FAT (Factory Acceptance Test) and third-party supervision and inspection.
The selection of a distribution transformer is essentially a comprehensive trade-off among site conditions, load patterns, system parameters, investment budget and operation & maintenance capacity. There is no "best" model, only the most suitable solution.
