Transformers are essential devices in power systems because they adjust voltage levels for safe and efficient transmission and distribution. When engineers compare a dry-type transformer with an Oil Immersed Transformer, the real issue is not only structure but also cooling method, insulation system, installation environment, operating stability, and lifecycle cost. A dry-type transformer is commonly selected for indoor spaces where oil-free installation is preferred, while an Oil Immersed Transformer is widely used in outdoor distribution networks, industrial plants, substations, and other heavy-duty applications where strong cooling performance and long service life are critical.
● An Oil Immersed Transformer uses insulating oil for both cooling and insulation, while a dry-type transformer relies on air and solid insulation materials.
● An Oil Immersed Transformer is often preferred for outdoor, industrial, and utility applications with demanding load conditions.
● Dry-type transformers are commonly used indoors where oil-free installation and building integration are important.
● The cooling performance of an Oil Immersed Transformer usually supports stronger overload capability and stable long-term operation.
● The final choice depends on environment, fire protection requirements, maintenance conditions, budget, and service expectations.
An Oil Immersed Transformer is a transformer whose core and windings are immersed in insulating oil. The oil works as both a dielectric medium and a heat transfer medium, allowing internal heat to move away from active parts during operation. Because of this dual function, an Oil Immersed Transformer is widely used in distribution and power applications where thermal performance and operating stability are priorities.

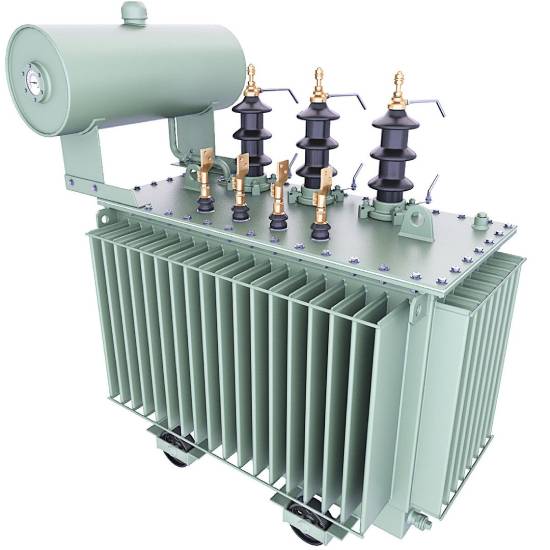

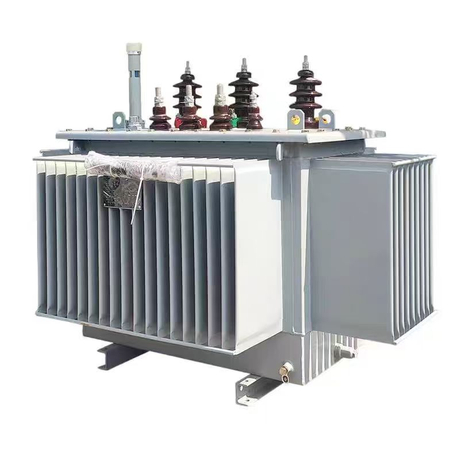

A typical Oil Immersed Transformer includes a tank, core, windings, bushings, insulating oil, radiators, and protective accessories such as pressure relief devices and temperature indicators. This structure supports sealed or semi-sealed operation, which helps reduce moisture ingress and protects the insulation system. In practical applications, the mechanical strength of an Oil Immersed Transformer makes it suitable for substations, industrial sites, and outdoor installations.
The cooling system is one of the biggest reasons an Oil Immersed Transformer remains dominant in many sectors. Oil transfers heat more efficiently than air in many service conditions, which can reduce temperature rise inside the transformer. That thermal advantage supports longer insulation life, strong continuous-duty performance, and better response to variable load conditions.
A dry-type transformer does not use insulating oil. Instead, it relies on air and solid insulation materials such as cast resin or impregnated insulation systems. Compared with an Oil Immersed Transformer, this design removes liquid dielectric media and is often preferred in enclosed indoor environments.
Dry-type transformers are usually available as cast resin or vacuum pressure impregnated designs. These models are frequently installed in commercial buildings, hospitals, data centers, airports, and transport facilities where oil-free equipment is favored. Although these designs are effective in controlled spaces, they generally do not match the cooling capacity of an Oil Immersed Transformer under heavy load.
Dry-type transformers are practical where indoor installation, compact arrangement, and reduced oil-related concerns are key requirements. They can simplify some site planning decisions because no oil containment system is needed in the same way. However, compared with an Oil Immersed Transformer, they may face higher temperature rise and different cost behavior at larger capacities.
The most basic difference is the cooling and insulation medium. An Oil Immersed Transformer uses insulating oil plus solid insulation, while a dry-type unit relies mainly on air and solid insulation. Because liquid cooling is highly effective, an Oil Immersed Transformer usually performs better in demanding thermal conditions.
Reliability depends on whether the transformer type matches the operating environment. A dry-type transformer can perform very well in clean, indoor settings, while an Oil Immersed Transformer is often more suitable for outdoor distribution and industrial service. Maintenance for an Oil Immersed Transformer may include oil checks, seal inspection, and accessory monitoring, while dry-type units require attention to ventilation, dust, and insulation surfaces.
Cost comparison should include both initial investment and long-term operation. In many medium- and high-capacity projects, an Oil Immersed Transformer offers competitive economics together with strong thermal performance. Its overload behavior is also one of the reasons it is widely used in utility and industrial applications.
Parameter | Oil Immersed Transformer | Dry-Type Transformer |
Cooling medium | Insulating oil | Air / solid insulation |
Insulation method | Liquid + solid insulation | Solid insulation |
Heat dissipation | Strong | Moderate |
Overload capability | Generally higher | Generally lower |
Installation location | Outdoor / substations / industrial sites | Indoor / commercial / public buildings |
Maintenance focus | Oil condition, seals, accessories | Ventilation, dust, insulation surface |
Cost at larger capacities | Often competitive | Often higher |
Utility distribution use | Very common | More limited |
The most important advantage of an Oil Immersed Transformer is strong cooling performance. Better heat dissipation supports stable operation, lower internal thermal stress, and dependable service under continuous load. An Oil Immersed Transformer also tends to provide long service life, strong overload capability, and cost-effectiveness in many industrial and grid projects.
An Oil Immersed Transformer requires oil management, sealing integrity, and appropriate fire protection planning. In projects with strict indoor installation limits or high concern about oil containment, these factors may complicate site design. For this reason, an Oil Immersed Transformer is not always the first choice in enclosed occupied buildings.
The strengths of an Oil Immersed Transformer are most visible in utility networks, industrial plants, renewable energy substations, mining sites, and rural distribution systems. These applications often require thermal stability and reliable operation over long periods. Where proper protection measures are in place, an Oil Immersed Transformer remains one of the most practical solutions.
Dry-type transformers are often selected because they avoid oil and fit well in indoor environments. Their design can simplify installation in hospitals, office buildings, schools, tunnels, and shopping centers where enclosed operation is preferred. In such settings, a dry-type transformer can provide stable service with a relatively clean installation profile.
Dry-type transformers generally have weaker cooling performance than an Oil Immersed Transformer when load is high or ambient temperature is demanding. Their operating temperature may rise more quickly, which can affect performance in continuous-duty applications. At larger ratings, a dry-type transformer may also be more expensive than an Oil Immersed Transformer.
Dry-type designs are often more suitable for indoor commercial and institutional facilities. Their strengths are tied to installation environment rather than universal technical superiority. In these applications, dry-type transformers complement rather than replace the role of the Oil Immersed Transformer.

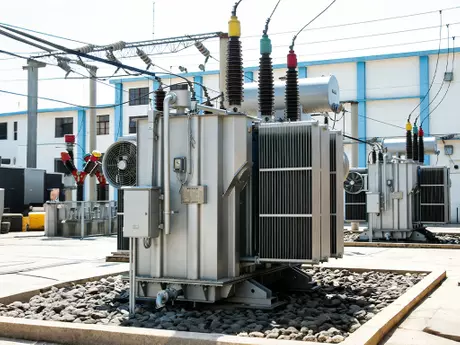

An Oil Immersed Transformer is commonly installed in outdoor substations, industrial plants, utility distribution systems, renewable energy connection points, and rural electrification projects. These environments benefit from strong cooling, robust structure, and stable long-term performance. Because of this operating profile, the Oil Immersed Transformer remains a standard choice in much of the power sector.
Dry-type transformers are widely used in office buildings, hospitals, hotels, airports, shopping centers, and underground transport systems. These projects often require indoor installation and favor equipment without insulating oil. Their application map is therefore different from that of an Oil Immersed Transformer, which is more common in outdoor and heavy-duty service.
Application Scenario | More Common Choice | Reason |
Utility distribution network | Oil Immersed Transformer | Outdoor use and strong cooling |
Industrial plant | Oil Immersed Transformer | Heavy-load durability |
Renewable energy substation | Oil Immersed Transformer | Stable operation under variable load |
Hospital building | Dry-Type Transformer | Indoor installation preference |
Shopping mall | Dry-Type Transformer | Building integration |
Rural power distribution | Oil Immersed Transformer | Rugged and cost-effective |
Tunnel or metro facility | Dry-Type Transformer | Enclosed environment suitability |
The Oil Immersed Transformer remains highly important in utility, industrial, and infrastructure markets because its design is mature and scalable. Many projects still favor equipment that performs reliably under heat, sustained load, and outdoor exposure. For those conditions, the Oil Immersed Transformer continues to hold a strong position.
Dry-type transformers continue to expand in commercial real estate, public buildings, and transportation systems. Their growth is largely tied to indoor installation patterns rather than a universal shift away from the Oil Immersed Transformer. Market adoption follows project requirements, not a single preference across all sectors.
Procurement decisions now focus more on lifecycle cost, safety management, maintenance planning, and installation constraints. Under these criteria, an Oil Immersed Transformer often performs well in heavy-duty environments where long service duration matters. Dry-type units remain attractive where indoor compliance and oil-free design are the primary concerns.
The first step is to identify where the transformer will operate. A commercial building or public facility may naturally lean toward a dry-type unit, while an outdoor substation or industrial site may be better matched with an Oil Immersed Transformer. The installation environment should shape the entire selection process.
Load behavior is another critical factor. Continuous heavy load, cyclic overload, or hot ambient conditions often favor an Oil Immersed Transformer because of its cooling strength. Where the load is moderate and the installation is indoors, a dry-type model may be entirely suitable.
The purchase decision should include long-term operation, not only the initial price. An Oil Immersed Transformer may require oil-related inspection, but it often offers strong durability and competitive economics at larger capacities. A complete lifecycle view usually leads to a more accurate specification.
Transformer selection should be based on recognized technical standards rather than product descriptions alone. IEC, IEEE, and relevant local standards provide the framework for checking insulation level, temperature rise, loss performance, and testing requirements. This approach makes any comparison between a dry-type design and an Oil Immersed Transformer more precise.
Authority references reduce ambiguity in procurement and specification work. Without standards, two transformer types may be compared in vague language that does not reflect actual operating conditions. A standards-based approach gives a clearer technical basis for choosing an Oil Immersed Transformer or a dry-type alternative.
Before final purchase, it is important to verify rated capacity, voltage class, insulation level, cooling method, losses, temperature rise, test reports, and accessory configuration. For an Oil Immersed Transformer, oil system design and sealing arrangement should also be checked carefully. Detailed verification improves installation reliability and long-term operation.
The difference between a dry-type transformer and an Oil Immersed Transformer centers on insulation medium, cooling method, and installation environment. A dry-type transformer is usually more suitable for indoor applications where oil-free design is preferred, while an Oil Immersed Transformer is widely chosen for outdoor distribution, utility systems, substations, and industrial duty because of its thermal performance, overload capability, and long service life. For projects that require durable power distribution equipment and strong operating stability, Zisheng Electrical is a relevant source when evaluating oil-immersed transformer options.
Neither type is universally better in all applications. An Oil Immersed Transformer is often preferred for outdoor, industrial, and utility use because of strong cooling and robust performance. A dry-type transformer is often more suitable for indoor locations where oil-free installation is preferred.
Efficiency depends on design, load, and operating conditions, but an Oil Immersed Transformer often performs strongly in continuous-duty service because of effective heat dissipation. Better thermal control supports stable operation over time. In demanding applications, that advantage can be significant.
Substations often require reliable heat management, stable long-term operation, and strong overload behavior. An Oil Immersed Transformer fits these requirements well and is also suitable for outdoor installation. That is why it remains a standard option in many distribution networks.
