Choosing the wrong transformer can raise costs and limit future loads. A single phase transformer suits many homes, farms, and small distribution networks. Three-phase units serve larger, steadier, and motor-heavy demands. This guide compares their design, performance, installation, cost, and best applications.
● A single phase transformer handles one alternating voltage waveform. It usually serves residential, rural, agricultural, and light commercial loads.
● A three-phase transformer handles three waveforms separated by 120 electrical degrees. It suits factories, large buildings, pumps, compressors, and industrial motors.
● Three-phase systems deliver smoother total power. They also move more power efficiently through conductors at larger capacities.
● Single-phase equipment often costs less for small installations. Three-phase equipment can offer better value per kVA for large, balanced loads.
● Pole-mounted units fit overhead networks and remote locations. Pad-mounted units fit underground networks, public areas, and planned developments.
● Conventional units use external protection. Self-protected designs can combine overload, fault, and surge protection in one compact system.
● Phase choice must match both the incoming supply and connected load. A standard transformer cannot create true three-phase power from one phase.
The main difference is how each unit receives and delivers alternating current. That difference affects wiring, load behavior, installation cost, and expansion.
Comparison point | Single-phase transformer | Three-phase transformer |
AC supply | One voltage waveform | Three waveforms, 120 degrees apart |
Windings | One primary and secondary set | Three coordinated winding sets |
Typical loads | Homes, farms, lighting, small facilities | Factories, large buildings, motors |
Power delivery | Varies during each cycle | Combined power stays more constant |
Installation | Simpler for modest loads | Stronger value at larger capacities |
Common mounting | Pole-mounted or pad-mounted | Pad-mounted or substation systems |
A single phase transformer works from one AC phase. Its voltage rises, falls, and reverses direction during every cycle.
A three-phase transformer uses three AC phases. Their 120-degree spacing produces steadier combined power.
A single-phase unit usually has one primary and one secondary winding set. Its simpler structure suits smaller distribution duties.
A three-phase unit contains three coordinated winding sets. Three separate single-phase units can also form a three-phase bank.
Single-phase power reaches zero twice during each cycle. Lighting, heating, and household appliances still operate normally.
Three-phase power overlaps across all phases. It supports smoother motor torque and stable power delivery.
Uneven three-phase loading may cause voltage imbalance and extra heating. Load planning remains important.
A single phase transformer commonly serves homes, farms, street lighting, workshops, and small commercial buildings.
Three-phase transformers support production lines, elevators, large HVAC systems, pumps, and compressors.
Capacity alone cannot decide the phase. The supply and connected equipment control the choice.
Three-phase systems often need less conductor material per delivered power unit. This benefit grows across larger installations.
Single-phase systems remain economical for short runs and modest loads. Efficiency still depends on core design, windings, loading, and temperature.
Single-phase secondaries may provide one voltage or split-phase service. Three-phase systems commonly use delta or wye connections.
A wye secondary can provide line-to-line and line-to-neutral voltages. Always match voltage and grounding to actual equipment needs.
Tip: Provide primary voltage, secondary voltage, frequency, grounding, and load details before requesting a quotation.
0
A distribution transformer receives higher network voltage at its primary winding. Magnetic induction transfers energy to the secondary winding.
The winding ratio sets the output voltage. The transformer changes voltage but does not change frequency.
A center-tapped secondary can provide split-phase service. Smaller loads connect from either line to neutral.
Larger loads connect across both lines. This arrangement can serve lighting, receptacles, heating, and pumps.
Utilities may connect three single-phase transformers as one three-phase bank. Each unit handles one system phase.
This design supports modular transport and replacement. However, it still requires a true three-phase source.
Three-phase transformers handle concentrated demand efficiently. They supply industrial processes, large panels, and central building systems.
One unit can serve three-phase equipment and selected single-phase branch loads.
Three-phase supplies naturally create rotating magnetic fields in motors. This delivers smoother torque and easier starting.
Large pumps, fans, compressors, and production machines often require this power.
An integrated three-phase unit can provide strong power density. It often becomes economical as project capacity rises.
It also supports future motor additions. Planners must still consider switchgear, fault levels, protection, and access.
Note: Choose three-phase infrastructure early when confirmed expansion includes large motors or substantial continuous loads.

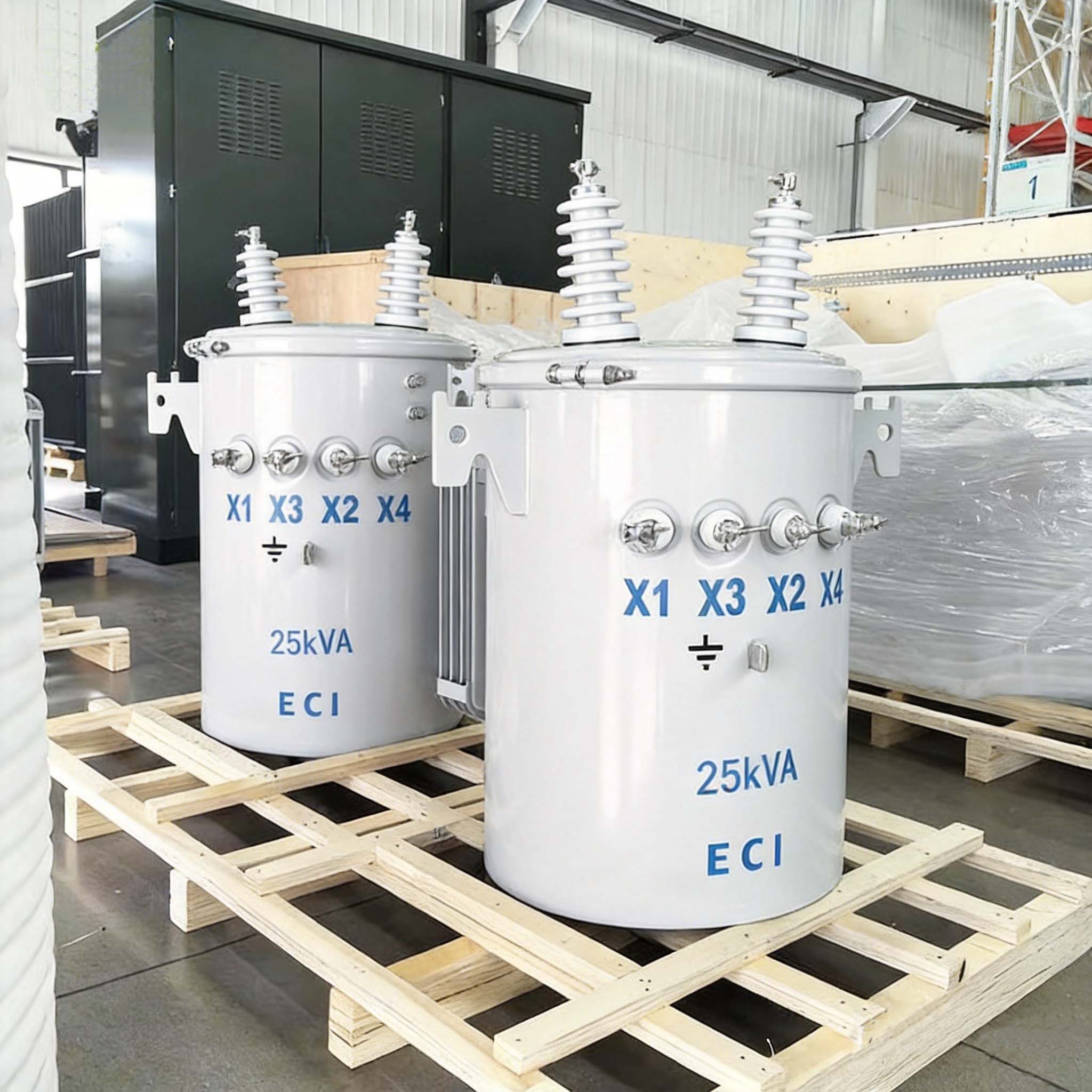

Pole-mounted units serve overhead networks in rural areas, farms, remote sites, and scattered housing.
Their elevated position saves ground space. The pole, hardware, clearances, and lifting plan require proper engineering.

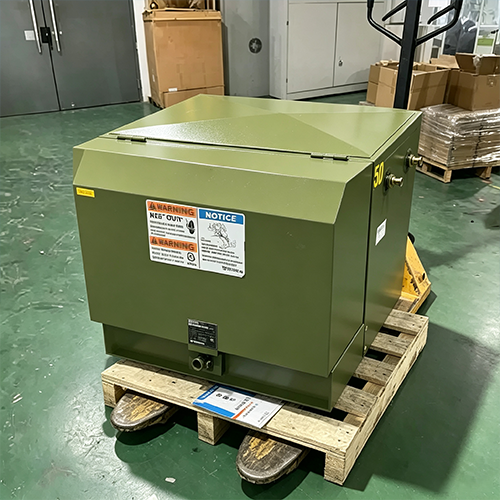

Pad-mounted units serve underground networks in residential developments, public areas, and commercial properties.
Their enclosed design supports ground-level access. Projects still need foundations, drainage, security, cable space, and vehicle protection.
Conventional units rely more on external fuses, arresters, or switching equipment. This approach supports flexible utility protection schemes.
Self-protected designs place several protective functions near or inside the transformer. They can simplify field installation and reduce separate components.
Many outdoor units use oil-immersed, self-cooled construction. The fluid provides insulation and carries heat toward the tank.
Available project choices may include copper or aluminum windings, taps, fluid types, monitoring, corrosion protection, and insulation levels.
A single-phase unit often costs less for smaller applications. Its wiring and protection may also be simpler.
A three-phase unit may deliver a lower cost per kVA at larger capacities. Compare cables, switchgear, foundations, labor, and commissioning.
Pole-mounted systems need suitable poles, lifting access, and overhead clearances. Pad-mounted systems need foundations, trenches, drainage, and working space.
Three-phase systems usually involve more terminations and protection coordination. Local utility rules may control both designs.
Routine checks may cover bushings, connections, fluid condition, leaks, gauges, protection, corrosion, and unusual noise.
Repeated overheating can shorten insulation life. Factory testing and clear acceptance documents support safer commissioning.
Tip: Compare guaranteed losses, testing scope, spare strategy, and shipping protection before comparing final prices.
Record the available phase, voltage, frequency, grounding, and expected fault level.
A rated single-phase transformer may connect line-to-neutral or across two three-phase lines. A three-phase unit normally needs all three phases.
List each load’s voltage, phase, running current, starting current, and duty cycle.
A mostly single-phase site may need one single phase transformer. A motor-heavy plant usually needs three-phase service.
For a single-phase load:
kVA = Volts × Amps ÷ 1,000
For a balanced three-phase load:
kVA = √3 × Line Voltage × Line Current ÷ 1,000
Allow for motor starting, continuous duty, harmonics, diversity, and realistic growth. Excessive oversizing raises capital cost and fixed losses.
Specify mounting, temperature, altitude, humidity, pollution, seismic needs, and enclosure requirements.
Then define windings, fluid, taps, accessories, noise, and protection. Applicable utility and technical standards belong in the purchase specification.
Equal kVA ratings do not make transformers interchangeable. Phase, voltage, frequency, impedance, connections, insulation, and protection may differ.
Review the complete nameplate and technical schedule.
Three-phase power benefits large loads. It may add unnecessary switchgear, cabling, and maintenance for a small service.
Use it when the load profile supports the added system complexity.
A transformer changes voltage through electromagnetic induction. It cannot create true three-phase power from one incoming phase.
Phase converters or electronic drives require separate technical evaluation.
Future expansion can overload a carefully sized transformer. Excessive oversizing can waste capital and increase fixed losses.
Consider realistic growth, heat, altitude, salt, humidity, flooding, and site access.
A single phase transformer fits smaller, distributed, and mostly single-phase loads. Three-phase units better serve large, balanced, and motor-heavy systems. ZISHENG provides customizable pole-mounted and pad-mounted solutions, flexible windings, protection options, factory testing, and project support. These features help buyers improve reliability, simplify installation, and control lifecycle costs.
A: A single phase transformer changes voltage using one AC phase.
A: It usually costs less for small, simple distribution loads.
A: No. A single phase transformer cannot create true three-phase power.
A: It supports larger loads, smoother power, and industrial motors.
A: Efficiency depends on design, loading, materials, and operating conditions.
A: Measure each phase, rebalance loads, and inspect connections.
