At Zisheng Electric, a transformer oil sampling point is an engineering interface that must work after the transformer reaches its final position. A laboratory can measure a sample accurately and still provide little useful information if the oil came from an unidentified compartment, an unsuitable connection or a contaminated container. Procurement teams should therefore review sampling access alongside the tank arrangement, maintenance strategy and inspection plan.
This guide helps EPC engineers and industrial buyers turn a general request for an oil sampling valve into reviewable design requirements. It addresses access, identification, laboratory coordination and handover evidence. It does not prescribe a universal valve size, flushing quantity or live-work procedure: those details depend on the equipment, test method and approved operating instructions.
Start with the question the sample must answer. Routine oil condition testing, dissolved gas analysis and investigation of suspected contamination may require different containers, handling methods and records. A connection intended for draining the tank is not automatically suitable for every analytical task. Equally, a separate sampling valve is not automatically representative simply because it has that name.
Mark the source compartment on the general arrangement drawing and accessory schedule. Where a transformer has separate oil compartments, such as certain on-load tap changer arrangements, distinguish them explicitly. A sample identifier should tell the laboratory which oil volume is being assessed. Do not combine results from different compartments into one historical trend without an engineering justification.
Ask the manufacturer to confirm why the selected connection suits the intended sampling procedure. Consider whether the connection includes stagnant pipework, whether deposits can affect the sample and how the approved method addresses these conditions. The design review should establish this relationship without attempting to diagnose the transformer from valve location alone.
Describe each connection by function, tag and approved operating method. A large drain valve may be useful during servicing but awkward for controlled sample collection. A small dedicated connection may offer better handling while still requiring a suitable adaptor and documented preparation. The purchase specification should require an identifiable, maintainable arrangement rather than an arbitrary fitting chosen before the tank design is available.

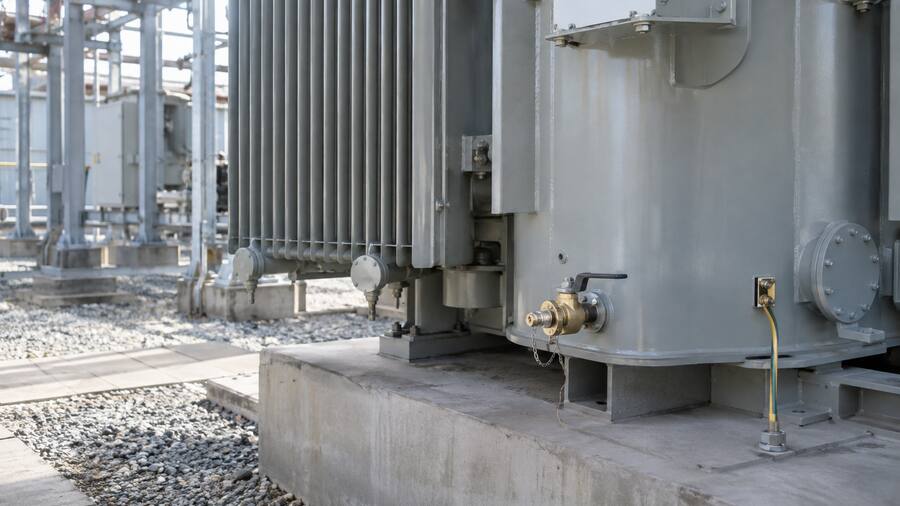

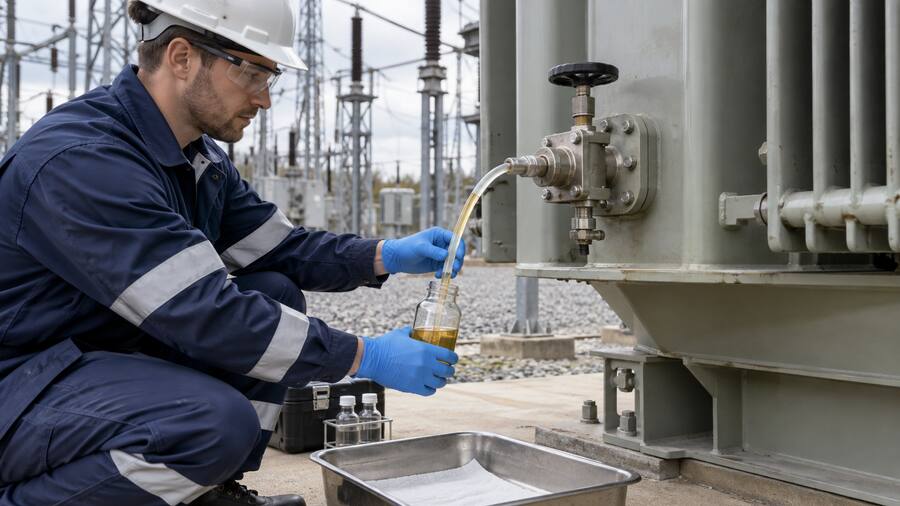

A valve that is accessible on a factory floor may become difficult to reach once cable trenches, bund walls, fencing and radiator banks are installed. Review the final civil and electrical arrangement together. Show the standing position, container space, waste collection area and the route used to bring equipment to the valve.
For enclosed installations, assess door opening, enclosure access and separation from electrical compartments. For outdoor installations, account for rain, airborne dust and the condition of the working surface. These are design inputs, not reasons to invent one universal clearance dimension. The manufacturer and site operator should agree the necessary access envelope for their actual equipment and procedures.
The same review belongs in the selection of substation transformers. The transformer package, civil layout and maintenance access must describe a compatible installation. Otherwise the owner may receive a technically acceptable transformer with an impractical sampling arrangement.
The following table is a procurement review aid. Its acceptance evidence should be adapted to the contract, manufacturer instructions and laboratory requirements. None of the entries replaces a site safety assessment or a specified test procedure.
Review item | Why it matters | Evidence to request | Decision before release |
|---|---|---|---|
Source compartment | Incorrect identification can make results misleading. | Tagged oil compartment and connection on approved drawing. | Confirm a unique identifier for every sampled source. |
Valve and adaptor | An incompatible fitting encourages improvised connections. | Connection detail, materials and approved adaptor specification. | Include the required adaptor in the supply scope. |
Installed access | Civil works or cables can obstruct safe handling. | Combined layout showing working position and container space. | Resolve clashes before fabrication and installation. |
Fluid compatibility | Seals and sampling equipment must suit the specified liquid. | Manufacturer confirmation for the actual insulating liquid. | Reassess compatibility if the fluid specification changes. |
Protection and identification | Exposure and unclear labels can undermine repeatable sampling. | Cap arrangement, tag details and inspection instructions. | Specify replaceable protection and durable identification. |
Sample handling | Container or handling errors can compromise analysis. | Laboratory instructions and approved sampling procedure. | Agree the kit and records before commissioning. |
Handover | Missing records make later trends difficult to interpret. | Baseline report, source tag and operation history. | Assign responsibility for the first service comparison. |
IEC 60475:2022 addresses sampling procedures for insulating liquids in containers and electrical equipment. Its published scope includes mineral and non-mineral liquids. Reference the edition required by the contract and confirm that the selected procedure applies to the equipment and liquid being supplied.
IEC 60567:2023 covers free-gas sampling and analysis of free and dissolved gases. Its official description explicitly directs oil sampling techniques to IEC 60475:2022. This distinction matters when reviewing a specification copied from an older project: a reference to gas analysis alone does not fully define the liquid sampling procedure.
For interpretation, IEC 60599:2022 describes guidance for mineral-oil equipment with cellulosic solid insulation. Do not automatically apply its diagnostic framework to a different insulating system. Agree the interpretation method with the equipment supplier and laboratory. These links establish document scope; detailed operating requirements must come from the applicable documents and approved project instructions.
Obtain the laboratory's requirements for each requested analysis before purchasing bottles, syringes, tubing or adaptors. Record the required container type, quantity, closure arrangement, packaging and delivery conditions. A container appropriate for one test should not be assumed acceptable for another. Keep the sampling kit identifiable and protected from contamination between uses.
The sample label should connect the physical container to a unique equipment record. Include the transformer identifier, source compartment, valve tag, collection date and time, requested analyses and sampler identification. The laboratory request should use the same identifiers. A handwritten note that says only “transformer oil” leaves too much uncertainty when several units are commissioned together.
Record available load and oil temperature information, recent oil processing, topping-up, repairs and unusual operating events. Note any deviation from the approved sampling method. This context helps the reviewing engineer decide whether a change reflects equipment condition, a changed sampling arrangement or an intervening maintenance activity.
Where monitoring instruments are included, align their tags and time records with the laboratory history. Our transformer digital monitoring specification guidance addresses the associated signal and FAT interfaces. A laboratory result and an online indication should be compared through a defined engineering review, not assumed interchangeable because both relate to oil condition.
Specify who is permitted to sample, what equipment state is required and which operating instructions govern the task. The presence of an accessible valve does not establish that sampling an energized transformer is permitted. Electrical clearances, tank conditions, oil temperature, site access and containment need assessment by the responsible personnel.
The procedure should address control of releases and protection against unintended operation. It should identify the appropriate protective equipment, collection arrangements and response to an abnormal condition. The project team should avoid generic instructions to open a valve, relieve pressure or retighten fittings without reference to the actual transformer design.
Provide a way to report a missing cap, damaged fitting, inaccessible connection or unexpected leakage before sampling begins. Such observations are maintenance findings. They should not be hidden by improvised adaptors or undocumented changes to the sampling route. For site readiness, a clear stop-and-escalate instruction is often more useful than an elaborate checklist without an accountable owner.
At the factory, compare the installed sampling connection with the approved drawing and accessory list. Check the tag, intended compartment, supplied adaptor and protective closure. Review the relevant inspection and leakage-test records required by the contract. Record any deviation and its disposition so that the site team knows exactly which arrangement has been supplied.
Where a sampling demonstration is part of the agreed inspection plan, define its scope in advance with the manufacturer. The demonstration should use the approved procedure and suitable conditions. It should show that the specified kit fits and can be handled as intended; it should not become an improvised operating test simply because an inspector requests a sample.
Repeat the access review after cables, barriers and civil works are complete. Compare the valve tag with the handover drawing, confirm that the agreed kit is available and check whether transport or installation has changed the connection's condition. Close outstanding access clashes before the owner accepts responsibility for routine sampling.
The baseline report should state when the sample was taken relative to filling, processing and commissioning. Later results should be interpreted with that history available. For transformers with variable industrial duty, retain the operating profile alongside the sample record. The cyclic-load specification guide explains why the duty profile belongs in the wider engineering review.
If a sample cannot be collected as specified, record the limitation and obtain an agreed disposition. Examples include an obstructed valve, a different source compartment, a missing approved adaptor or uncertainty over container suitability. Repeating an unsuitable method does not create a reliable baseline.
When a laboratory result is unexpected, the responsible engineer should review sample integrity, operating history and other available evidence. Sampling uncertainty must not be used to dismiss an alarm or delay an urgent response required by the owner's procedures. Conversely, an isolated result should not be converted into a diagnosis without the applicable interpretation method and equipment context.
A useful deviation record identifies the observation, affected equipment, immediate control, responsible reviewer and closure evidence. It should distinguish a hardware correction from a documentation correction. That distinction helps procurement teams avoid accepting an inaccessible installation merely because the drawing has been revised to match it.
Possibly, if the manufacturer confirms its suitability for the intended sampling method and the laboratory requirements can be met. Request that confirmation for the actual design. A dedicated connection may improve access or handling, but its presence alone does not prove sample quality.
No universal quantity is proposed here. The approved method must account for the connection, equipment and analysis. Ask the supplier and laboratory to define the procedure rather than copying a number from an unrelated installation.
The owner should receive an accessible identified connection, the agreed kit, applicable instructions, relevant inspection evidence and a traceable baseline record. Assign responsibility for maintaining the history and reviewing subsequent results. A valve photograph is useful evidence of location, but it cannot replace this information.
Zisheng Electric can review the transformer oil sampling point as part of an oil-immersed transformer enquiry. Provide drawings, data sheets, the load list, technical specifications, a single-line diagram, grid parameters, environmental conditions and installation site conditions. Include the insulating liquid, sampling purpose, laboratory requirements and any access restrictions so the engineering review can address the actual installation.
