Zisheng Electric treats a transformer digital monitoring specification as an engineering interface document, not a shopping list of sensors. A transformer may be supplied with oil temperature indicators, winding temperature simulation, gas detection, pressure devices, fan controls and communication gateways, yet still deliver poor operating information if signal definitions, alarm ownership, protocols, time synchronization and site acceptance are left open.
This procurement update explains what an EPC contractor or asset owner should define before releasing an RFQ. The objective is not to maximize the number of measurements. It is to select information that supports protection, loading decisions, maintenance and fault investigation, while keeping the system testable and maintainable. Every final requirement must be coordinated with the approved single-line diagram, protection philosophy, SCADA architecture, auxiliary supply and owner cybersecurity rules.
Monitoring devices sit between several packages. The transformer supplier defines sensor locations and equipment limits. The protection vendor provides relay inputs and trip logic. The control-system integrator maps alarms and measurements. The EPC electrical team supplies auxiliary power, communication media and cable schedules. Operations personnel decide which signals require immediate action. When these responsibilities are not separated, the same condition may be measured twice while a critical alarm never reaches the control room.
A vague requirement such as “provide online monitoring” creates commercial and technical uncertainty. One bidder may include only a local display, another may include a gateway, and a third may assume a complete server and analytics package. The offers are then impossible to normalize. A clear specification identifies the monitored condition, measurement principle, local function, remote signal, protocol, power supply, test method, documentation and responsibility boundary.

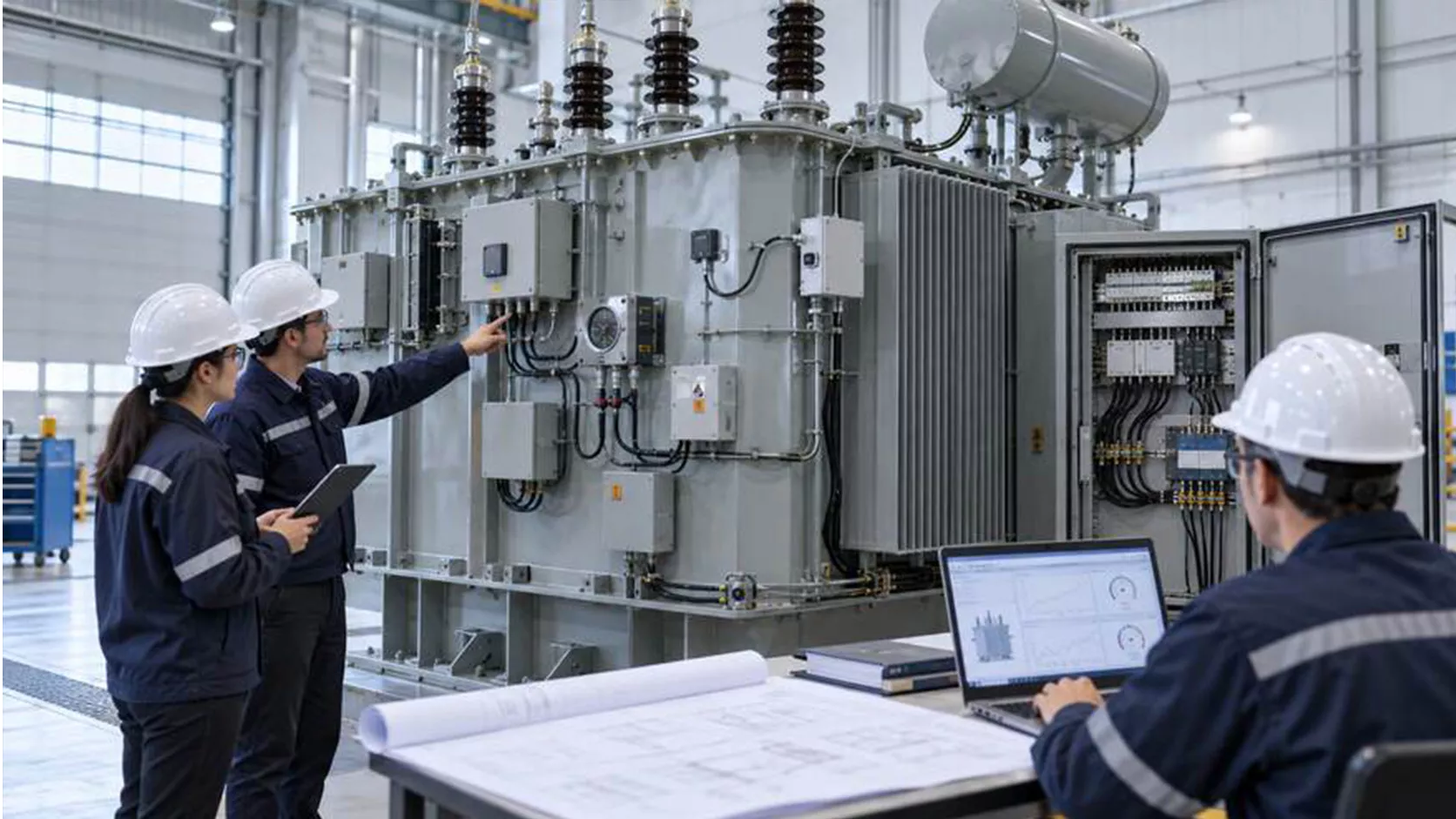

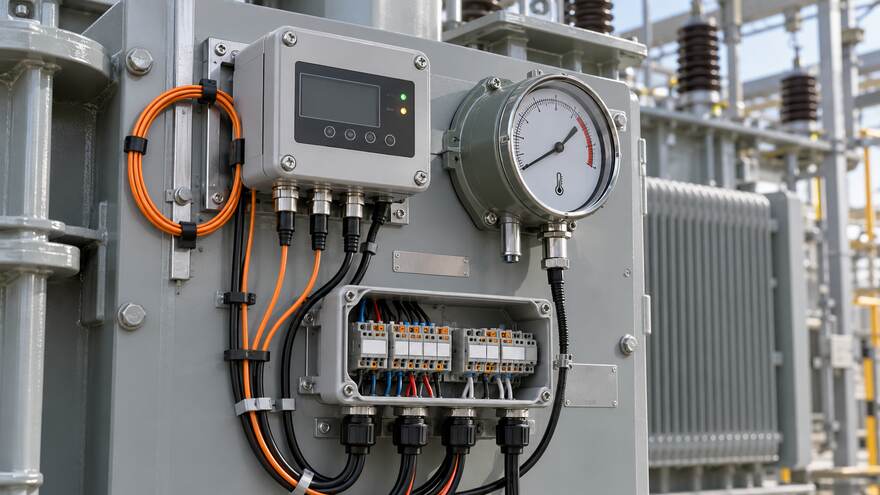

Ask what decision each measurement will support. Top-oil and winding-temperature information can support loading supervision and cooling control. Dissolved-gas or moisture monitoring may support condition assessment where the project risk and maintenance strategy justify it. Bushing monitoring can be relevant for critical high-voltage units, but it requires careful reference design, data interpretation and alarm governance. A sensor that produces data without an agreed response is an installed cost and maintenance obligation, not automatically a useful asset.
The owner should rank functions as required, optional or future-ready. Future-ready provisions might include spare CT cores, cabinet space, communication ports, cable entries and mounting points. This can preserve an upgrade path without purchasing an immature or unsupported subsystem at the initial stage.
The monitoring schedule should be a controlled attachment to the data sheet. It prevents important details from disappearing inside general clauses and lets bidders identify deviations line by line.
Function | Define before tender | Interface to confirm | Risk if omitted |
|---|---|---|---|
Oil temperature | Sensor type, local indication, alarm and trip stages | Cooling controller, relay and SCADA points | Inconsistent alarm settings or duplicate control |
Winding temperature | Calculation or measurement method, CT input and stages | CT ratio, thermal model and fan logic | Misleading loading indication |
Oil level and pressure | Contact arrangement, fail-safe state and device location | Trip circuit, annunciation and maintenance access | Alarm not transmitted or unsafe testing |
Condition monitor | Measured variables, sampling interval and local storage | Gateway, server, time source and data ownership | Data cannot be compared or retrieved |
Cooling system | Automatic/manual modes, lead-lag sequence and failure alarms | Fan or pump starters, auxiliary supply and SCADA | Cooling capacity unavailable when required |
Communication | Protocol, point list, addressing, media and redundancy | Station LAN, fiber converters and cybersecurity boundary | Late integration changes and failed site tests |
Numerical alarm values should not be copied from another project. They depend on the transformer design, accessory characteristics, protection philosophy and owner practices. The supplier should propose device ranges and preliminary settings, while final values are reviewed through the approved data sheet and cause-and-effect documents.
Not every signal should use the same path. Critical trips may require hardwired, fail-safe contacts. Operational measurements can be transmitted through a digital protocol. Local mechanical indication remains valuable for commissioning and maintenance when communication is unavailable. The specification should state which path is mandatory for every function and whether a communication loss must create an alarm.
Separate protection from monitoring. A condition-monitoring gateway should not silently become the only route for a required transformer trip unless the complete protection architecture has been engineered and approved for that duty. Likewise, duplicating all signals as both hardwired and networked can increase cabinet size, testing effort and failure points without adding meaningful resilience.

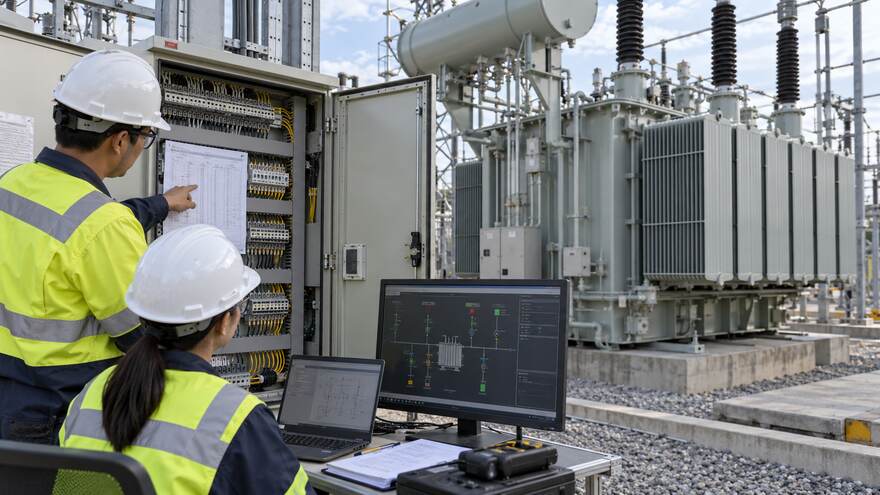

The marshalling cabinet must accommodate terminal blocks, relays, transducers, gateways, fiber equipment, heaters, lighting and spare space while maintaining segregation and access. Define incoming and outgoing cable directions, gland-plate material, terminal type, wire numbering, ferrules, internal power distribution and earthing. Confirm whether the cabinet is part of the transformer supply or the station control package.
A signal list should identify tag, description, source device, normal state, contact rating, analog range, protocol address, alarm priority and destination. Use consistent names across the transformer schematic, cable schedule, relay configuration, SCADA database and test sheets. Small naming differences can produce duplicate tags or force manual remapping during commissioning.
Monitoring cannot be reviewed independently from auxiliary supplies. List AC and DC voltages, permissible variations, source redundancy, load estimates and changeover philosophy. State which functions must remain available after loss of station AC. Confirm heater, fan, pump, gateway and annunciation loads rather than assuming that a standard cabinet supply is adequate.
Define who owns raw data, processed results, alarm history and configuration files. Specify local retention expectations, export formats and access roles. If remote access is proposed, it must follow the owner’s approved network and cybersecurity procedures. The transformer supplier should not assume an unrestricted internet connection, cloud service or permanent vendor tunnel.
Time synchronization affects event reconstruction. Protection records, transformer alarms and SCADA events are difficult to compare when devices use different clocks. The interface schedule should identify the time source, protocol and behavior after synchronization is lost. Time accuracy requirements should follow the project event-analysis needs rather than an arbitrary value.

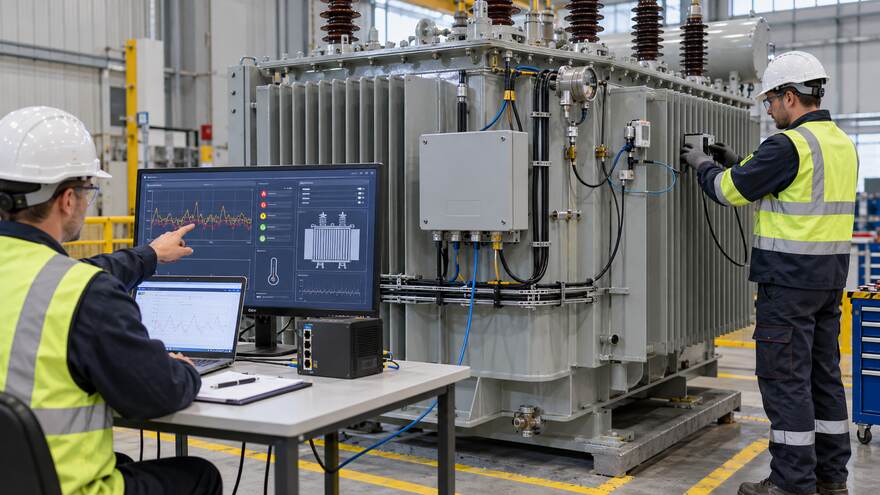

A monitoring FAT should demonstrate more than device power-up. Simulate each contact and analog input, confirm local indication, verify alarm and trip outputs, check cooling sequence, review loss-of-supply behavior and prove the communication map where the contractual test setup permits it. Record test equipment, injected value, expected result, actual result and acceptance status.
If the station SCADA is unavailable during FAT, agree a simulator and a later site integration test. The factory record should show what was proven and what remains outstanding. This distinction prevents a successful standalone gateway test from being treated as proof of end-to-end communication.
A cause-and-effect matrix gives the test team one shared reference. For each simulated condition, state the local indication, alarm contact, trip contact, cooling response, gateway point and SCADA message expected. Include restoration behavior: some alarms should reset automatically, while others may require acknowledgement or a local device reset. Unclear reset logic often produces nuisance alarms during energization or conceals a device that has not returned to service.
Witness records should identify temporary test links and overrides. Every link installed to simulate a device must be removed and independently checked before shipment. Retain a marked terminal plan showing the points tested, together with photographs that are clearly identified as factory test evidence. Where a function cannot be tested at the factory, place it on the commissioning outstanding-items list with a responsible party and prerequisite.
Transformer monitoring packages often combine devices from several manufacturers. The purchase specification should identify who is responsible for mechanical mounting, oil-system connections, CT inputs, internal wiring, software configuration, licenses, gateway engineering and end-to-end support. A statement that equipment is “by others” is incomplete unless the terminal boundary, installation sequence and verification responsibility are also defined.
Changes require formal control because one revised device can affect drawings, power consumption, cabinet heat, signal lists, communication files and spare parts. Use a deviation register that records the reason, affected documents, technical consequence, cost or schedule impact and approval status. Do not allow an equivalent-model substitution to proceed on electrical rating alone; communication compatibility, contact arrangement, environmental rating, mounting and maintenance support also need review.
Site testing should begin with point-to-point checks from the transformer device to the final operator display. Verify polarity and scaling for analog values, normal and alarm states for contacts, message quality, timestamps and loss-of-communication alarms. Operate cooling groups in manual and automatic modes, then confirm that the displayed status follows the actual equipment. Protection trips must follow the approved commissioning procedure and switching authority.
After energization, establish a baseline under known load and ambient conditions. Record oil and winding temperature indications, cooling stages, supply voltage and any condition-monitor outputs. Baseline data helps distinguish a sensor problem from a real operating change. Alarm thresholds should not be relaxed merely to clear nuisance indications; first confirm wiring, scaling, settings and the transformer operating condition, then process any change through the owner’s approved setting procedure.
The supplier document register should include instrument data sheets, calibration certificates where contractually required, wiring diagrams, terminal plans, communication files, point lists, alarm settings, cooling logic, user manuals, software versions, configuration backups and FAT records. File formats and editable-source requirements should be stated before order placement.
Operations also need a maintenance plan. Identify calibration or functional-check intervals, consumables, replaceable sensors, expected service support and configuration-control responsibilities. A sophisticated monitor that cannot be maintained locally may reduce availability rather than improve it.
Link every requested measurement to an operating or maintenance decision.
Identify required, optional and future-ready functions.
Define local, hardwired and networked signal paths.
Issue an approved point list and responsibility matrix.
Coordinate cabinet layout, auxiliary supplies and cable entries.
Define protocol, addressing, time synchronization and data retention.
Apply the owner’s cybersecurity and remote-access rules.
Specify FAT simulations and remaining site integration tests.
Require configuration files, manuals and maintenance information.
Record deviations separately from the base technical offer.
A useful transformer digital monitoring specification aligns transformer accessories, protection, SCADA, auxiliary power and maintenance requirements before manufacturing begins. Zisheng Electric can review monitoring requirements together with the transformer data sheet, temperature-rise FAT planning and distribution-system transformer selection.
Suitable equipment may include oil-immersed transformers and 132kV–138kV power transformers configured to the approved project interfaces. Send the drawings, data sheet, load list, technical specification, single-line diagram, grid parameters, environmental conditions, monitoring point list and installation-site requirements through the engineering inquiry page. Our engineering team will review the requirements and respond to project inquiries within 24 hours.
