A transformer can pass insulation tests and still be impossible to place in service if its ratio, polarity, or phase displacement is wrong. That is why Zisheng Electric treats the transformer ratio and vector group test as a design-verification activity, not a routine box to tick at the end of production. The readings connect the approved datasheet, winding arrangement, tap schedule, nameplate, and actual terminals. A mismatch at any point can cause unacceptable secondary voltage, circulating current during parallel operation, incorrect protection references, or a phase sequence problem that only appears when the site team is ready to energize.
This guide explains how EPC engineers, consultants, and procurement teams should review ratio and vector-group checks during factory acceptance testing. IEC 60076-1 is the general power-transformer standard, while IEC 60076-8 gives application guidance on transformer connections, parallel operation, voltage drop, and measuring techniques. The project specification and approved test procedure remain the controlling documents; acceptance limits should never be copied from an unrelated FAT report.
The ratio test compares the measured voltage relationship between windings with the relationship defined by rated voltages and the selected tap position. The vector-group check confirms the winding connection, neutral arrangement, polarity, and angular displacement between high-voltage and low-voltage phasors. These are related checks, but they answer different questions.
Engineering Check | What It Confirms | Failure Risk | FAT Review Point |
|---|---|---|---|
Ratio on every phase | Turns relationship and phase-to-phase consistency | Wrong secondary voltage or winding error | Compare all phases with the approved ratio schedule |
Ratio on every tap | Tap winding connections and tap-changer sequence | Incorrect regulation range or reversed tap direction | Record the physical position, indicated position, and measured ratio together |
Polarity | Relative instantaneous terminal polarity | Incorrect connections and protection references | Verify terminal markings against the approved drawings |
Phase displacement | Clock number and winding connection | Parallel-operation circulating current or system phase error | Compare measured vector group with datasheet, SLD, and nameplate |
Neutral continuity | Availability and connection of the specified star point | Earthing and zero-sequence path not as designed | Check the neutral bushing, link, and terminal designation |

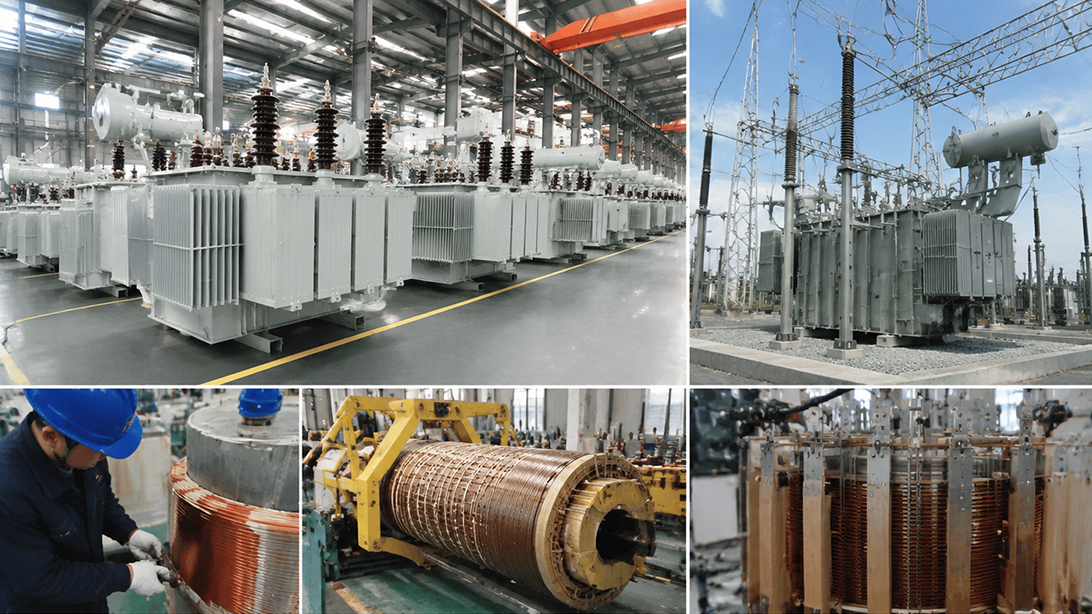

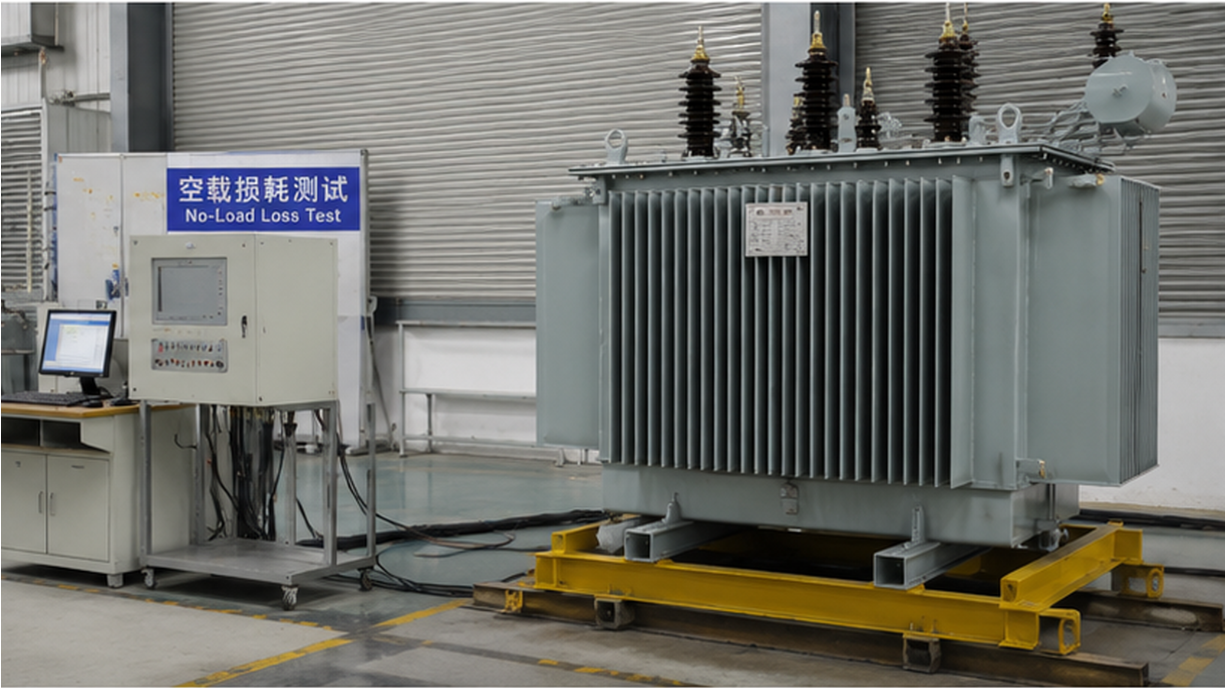

Factory test equipment should be matched to the transformer voltage class, ratio range, and connection.
Before we connect the turns-ratio tester, we first establish one approved reference set: the final datasheet, single-line diagram, winding connection diagram, tap schedule, terminal arrangement, nameplate drawing and test procedure. If one document says Dyn11 and another says Dyn1, the problem is already an engineering hold point. Testing cannot decide which design the project intended.
At Zisheng Electric, we normally place the datasheet ratio, tap percentages, vector symbol, and terminal names on the FAT worksheet before the unit enters the test bay. This simple discipline removes a common source of confusion: an operator reading a correct measurement against an obsolete drawing. Revision numbers matter as much as measured values.
Three-phase transformer ratios can be expressed using line-to-line or phase quantities. The conversion depends on whether each winding is star, delta, or zigzag connected. The test instrument may ask for vector group, phase relationship, and nominal line voltages, then calculate the expected phase ratio internally. The operator must understand what the instrument displays. Comparing a measured phase ratio directly with a line-voltage ratio without accounting for the connection introduces a square-root-of-three error that can look dramatic even when the transformer is correct.
A usable FAT procedure defines the voltage basis, test connection, instrument mode and calculation method before testing starts. Procurement teams do not need to redo the mathematics at the witness desk, but every expected value displayed by the tester needs to remain traceable to the approved rated data.
The physical chain is straightforward: test source → selected HV terminals → energized winding turns → magnetic flux in the core → induced voltage in the other winding → measured LV terminals. The tap changer modifies the number of effective turns on the tapped winding. This changes the ratio, but it does not change the specified vector group.
A complete FAT record therefore includes every declared tap position unless the contract explicitly defines another scope. Recording only the principal tap can miss a miswired tap lead, one incorrect bridge, a selector contact problem, or a nameplate sequence that does not match the mechanism. The readings should progress logically across the tap range. A single discontinuity is a reason to stop and investigate.

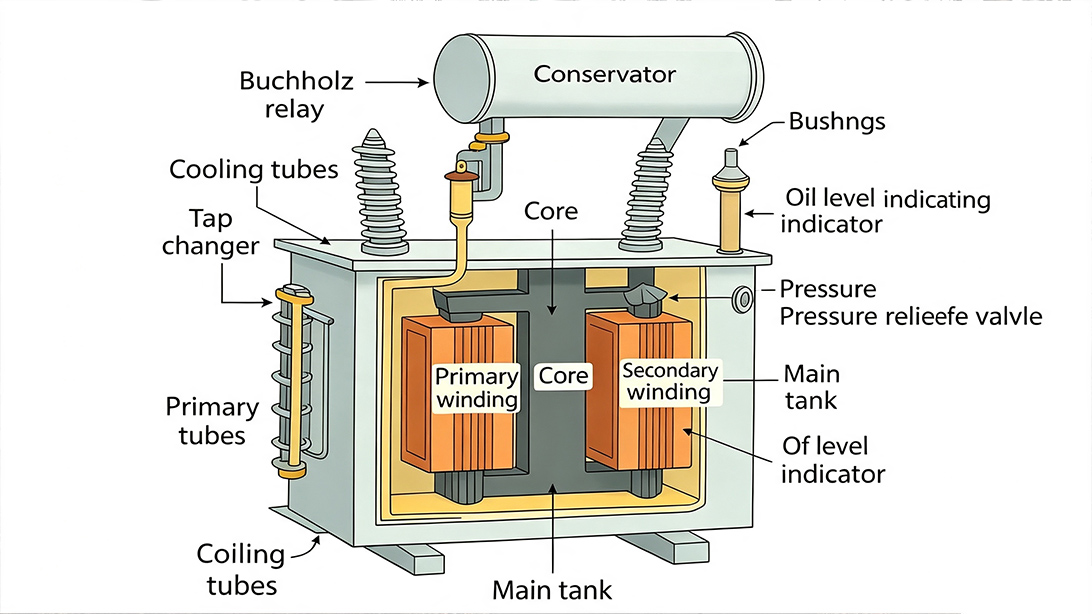

Ratio results reflect the actual winding turns, tap leads, and internal connections.
An off-circuit tap changer must be operated only under the conditions defined by the manufacturer, normally with the transformer de-energized. FAT should confirm mechanical position, electrical position, and nameplate indication. An on-load tap changer adds drive mechanism, local and remote indication, electrical interlocks, limit switches, and sometimes automatic voltage-regulation interfaces. The ratio measurement verifies the electrical outcome at each selected position; it does not replace functional checks on the operating mechanism.
For an OLTC unit, we review the complete chain: command → drive operation → position feedback → contact selection → measured ratio. A correct ratio with incorrect remote indication is still an EPC interface defect because the control room may command or display the wrong tap.
A symbol such as Dyn11 communicates more than a drawing shorthand. It identifies the HV winding connection, LV winding connection, accessible neutral, and clock-hour displacement. That decision affects earthing, zero-sequence behavior, harmonic paths, protection philosophy, phase references, and whether another transformer can operate in parallel.
The distribution-transformer design review guide explains why vector group must be selected with the load and network arrangement. During FAT, the objective is narrower but critical: prove that the manufactured unit matches the approved system decision.
If the measured displacement differs from the approved clock number, changing the FAT report or nameplate is not an acceptable shortcut. The site cables, busduct, switchgear phase identification, differential protection, and parallel transformer may already be designed around the specified displacement. The engineering team must identify whether the cause is a test setup error, external terminal marking, internal lead connection, or an approved-design error. Corrective action and repeat testing must be documented before release.
Phase sequence should also be kept separate from phase displacement. The test team must use consistent terminal orientation and a known reference sequence. Swapping two test leads can imitate a transformer connection problem; swapping two transformer terminals to make a result appear correct can create a real site problem.
A practical procedure begins with isolation, earthing control, and instrument verification. Confirm that the transformer is de-energized, other windings are in the required open or connected condition, bushings are clean, and temporary links are documented. Record instrument identification and calibration status. Enter the vector group and rated data from the approved documents, not from memory.
Measure phase by phase at the principal tap, confirm stable and plausible readings, then continue through the complete tap range. Compare phase spread and direction of change. Investigate unstable excitation current, inconsistent phase results, a reversed tap trend, or a deviation that exceeds the contractual criterion. After ratio checks, confirm the vector relationship and terminal designations with the method defined in the procedure.
FAT Stage | Main Risk | Engineer Should Check | Release Evidence |
|---|---|---|---|
Document review | Testing against obsolete data | Revision, rated voltages, taps, vector group, terminal names | Approved reference list on test sheet |
Instrument setup | Wrong ratio basis or connection mode | Tester mode, lead identification, calibration, expected values | Instrument ID and setup recorded |
Principal tap | Phase inconsistency | Three-phase results and stable excitation | Measured and calculated values |
Full tap sweep | Miswired lead or reversed sequence | Logical ratio progression and indicated tap position | Complete tap-by-tap table |
Vector verification | Wrong connection or phase displacement | Clock number, polarity, neutral, terminal marks | Pass statement tied to approved drawing |
Closeout | Uncontrolled correction | Nonconformities, corrective action, repeat-test results | Signed final report with serial number |

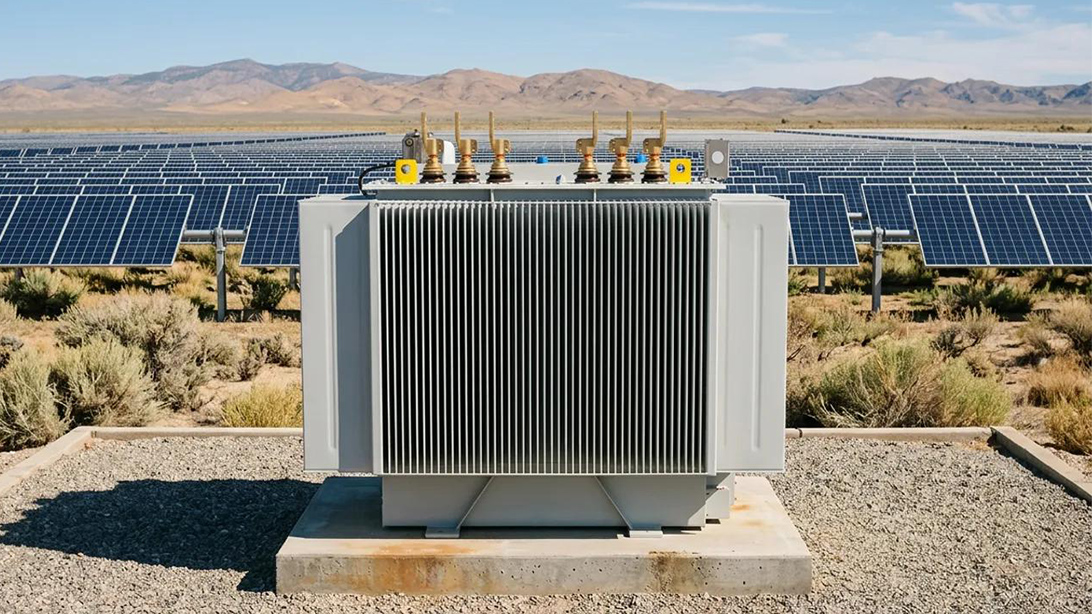

Terminal marking and physical phase arrangement must agree with drawings and test records.
A nearly identical error on all three phases often points to wrong reference data, the wrong tap position, or an incorrect tester configuration. One phase departing from the other two points more strongly toward a winding, connection, contact, or test-lead issue. A ratio that changes in the wrong direction across tap positions suggests a reversed tap schedule, mislabelled position indicator, or an internal lead-sequence problem.
Unstable readings deserve attention. Loose test clamps, contaminated bushing surfaces, insufficient instrument excitation, magnetic remanence, or an intermittent tap contact can all influence a reading. The correct response is to control variables and repeat the measurement, not average unstable values until they look acceptable.
Vector-group disagreement requires a deliberate diagnosis. We first verify the test-lead sequence and software settings, then check external bridges, neutral links and terminal markings against the internal connection drawing. Trace terminal markings to the internal connection drawing. If the result remains wrong, stop FAT release. The defect can affect the complete power-system interface.
Transformers intended for parallel service need compatible ratio across operating taps, phase sequence, polarity, and phase displacement, along with suitable impedance and rating relationships. Even a modest ratio difference can drive circulating current before the load is shared. A vector-group mismatch is more serious and can create a phase-to-phase conflict. The application guidance in IEC 60076-8 covers relevant connection and parallel-operation considerations; the project engineer should also compare the transformer impedance design and FAT checks because ratio compatibility alone does not guarantee acceptable load sharing.
A useful report identifies the transformer serial number, drawing revisions, instrument, test date, ambient conditions where required by the procedure, winding pair, terminal pair, tap position, expected ratio, measured ratio, calculated deviation, and vector-group result. All required phases and tap positions need to appear in the record. Generic statements such as “ratio test passed” are not enough for a unit that will enter an audited EPC document package.
The report must also align with the approved nameplate. Rated voltages, tapping range, tap steps, vector symbol, frequency, and terminal designations should be cross-checked before the witness signs. For broader sequencing, see the oil-immersed transformer manufacturing and FAT workflow.

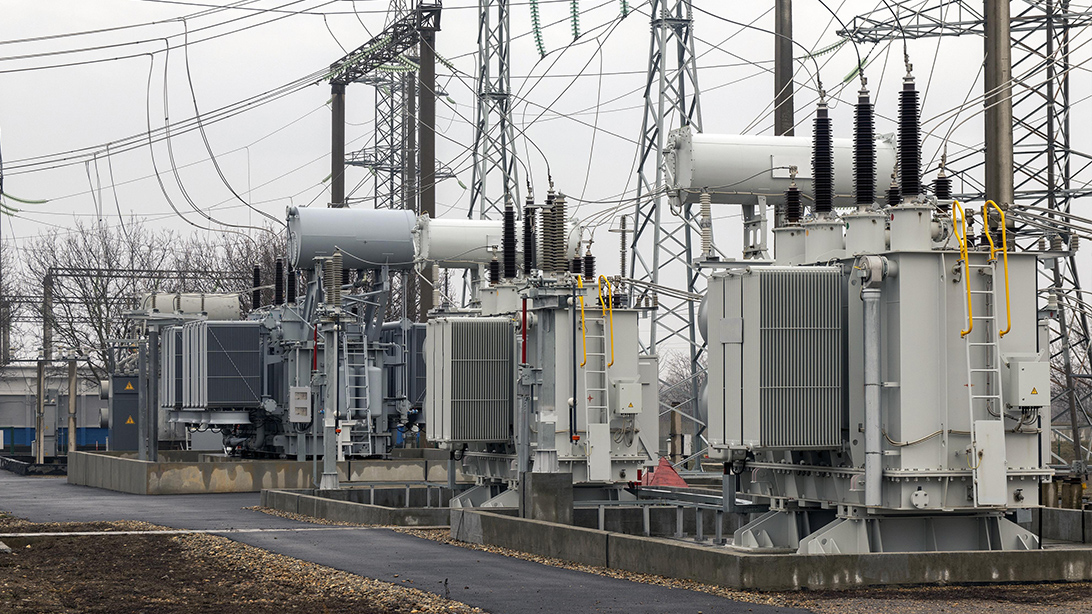

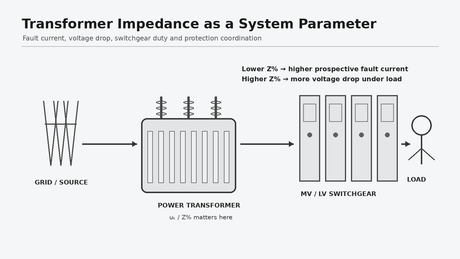

Correct ratio and phase displacement are prerequisites for integration with switchgear, protection, and loads.
The best time to resolve ratio and vector-group questions is before the purchase order. The enquiry should state system nominal and highest voltages, frequency, required secondary voltage at the load, tap range and operating philosophy, earthing method, neutral current duty, load characteristics, protection arrangement, and any parallel-operation requirement. A generic voltage pair without system context is not a complete transformer specification.
For smaller substation duties, an oil-immersed substation transformer can be configured around the project ratio, vector group, and tapping requirements. The same verification logic applies to larger power transformers, dry-type units, single-phase CSP pole-mounted transformers, and pad-mounted transformers: approved system data must remain traceable through design, manufacturing, nameplate preparation, FAT, and site commissioning.
For a review of the transformer ratio and vector group test, send the single-line diagram, transformer datasheet, rated-voltage schedule, tap requirements, earthing philosophy, protection diagram, parallel-operation data, and FAT specification. Zisheng Electric can supply oil-immersed transformers, power transformers, dry-type transformers, compact substations, and related distribution equipment with project-specific electrical interfaces and documented factory testing.
Zisheng Electric can provide technical matching based on project capacity, voltage level, environmental conditions, and technical specifications. Our engineering team will review the requirements and respond to project inquiries within 24 hours.
