Zisheng Electric treats transformer tank stray-flux heating as a design and manufacturing question that deserves its own review. A transformer can satisfy a headline loss guarantee and still require attention at a tank wall, clamp, tie plate or lead-support region. Those locations do not all follow the same temperature pattern as top oil or the average winding. A purchaser should ask how the proposed construction manages leakage flux, what evidence supports that decision, and which changes would require the assessment to be reopened.
This guide is for EPC engineers, industrial buyers and substation procurement teams comparing liquid-immersed power transformer offers. It does not assign a universal surface-temperature limit or promise that a particular shielding detail is necessary for every unit. The agreed transformer design, duty and acceptance basis govern the answer.
Current in the windings produces leakage magnetic flux in addition to the main core flux. Some leakage flux reaches metallic parts outside the intended magnetic path. Depending on geometry, material, electrical continuity and load, induced currents can create additional losses and localized heating. A tank wall close to a high-current lead or a structural member near the end of a winding can have a different thermal duty from the surrounding steel.
The relevant question is not whether stray flux exists; it does. The question is whether the offered design controls the resulting loss and temperature under the specified operating cases. A catalogue photograph will not answer it. Neither will a single total-load-loss number identify where the loss is dissipated. The measured load loss includes a resistance component and additional stray losses, so the electrical result is useful, but the local thermal distribution still needs engineering judgment.
The load-loss FAT guide explains the measurement and correction basis. For a buyer concerned about local tank heating, its value is in connecting the measured loss to the approved design rather than treating the loss number as a map of temperature.
A winding hot spot concerns the most stressed conductor and its insulation. Tank and structural heating concerns metal outside the winding and its nearby oil or accessories. The two can interact through the overall heat balance, but they are not interchangeable measurements. The temperature-rise FAT guide covers the liquid and winding assessment. A tank hot spot review may need additional locations or a documented design assessment where the contract calls for it.
IEC 60076-2:2011 identifies cooling methods and specifies temperature-rise limits and test methods for liquid-immersed transformers. Its public description does not establish a universal acceptance number for every local tank feature; the purchaser should agree the applicable edition and project criteria in the specification. The official IEC publication description is the starting reference, followed by the full contractually adopted text.
Start with rated power, voltages, frequency, tapping arrangement and the load-current cases to be assessed. Identify sustained duty, credible overload duty and any unusually high-current configuration. A tertiary winding, converter load or parallel operation can change where current flows and which parts are exposed. The manufacturer needs the actual arrangement, not only a nameplate MVA. If the load is nonlinear, request the relevant current spectrum and a separate loss review; do not assume that a single total harmonic distortion figure describes every local heating effect.
Then freeze the geometry. Winding height and position, core window, lead routing, tank clearances, stiffeners, clamps, tie plates, shielding and accessory penetrations all influence a local assessment. Some details are proprietary. The buyer can still require controlled drawing numbers, a design review summary and an explanation of the critical areas without demanding disclosure of every calculation model.
Record which information is guaranteed and which is still provisional. If the owner changes voltage ratio, rating, tap range or cooling arrangement after the offer, ask whether the stray-flux and thermal assessment remains valid. A change in nameplate rating alone does not tell the whole story; the internal geometry and current paths may also change.
The table is a decision aid for an inquiry or design review. It deliberately asks for traceable evidence instead of specifying one universal shielding solution.
Review item | Input to freeze | Supplier evidence | Decision supported |
|---|---|---|---|
Current paths | Winding and lead currents at agreed taps and duty | Approved electrical layout and lead-routing reference | Are the critical cases represented? |
Leakage-flux exposure | Winding position, tank distance, structural geometry | Design assessment identifying potentially exposed regions | Has local heating been considered where geometry warrants it? |
Mitigation | Material, magnetic shunt or nonmagnetic detail where proposed | Controlled shielding/structural drawings and design rationale | Can the specified construction be manufactured and inspected? |
Loss basis | Guaranteed and measured load loss, reference conditions | Loss calculation summary and FAT report | Is the thermal assessment consistent with actual loss evidence? |
Local temperature | Agreed operating case and measurement locations | Design prediction and any contractually required thermal survey | Are acceptance points and uncertainties understood? |
Change control | Approved drawing revision and substitutions | Deviation log and reapproval record | Does the delivered unit remain within the assessed design? |
Do not turn this matrix into a demand for one test that has not been specified or for a CFD plot that cannot be audited. A clear engineering note, controlled drawings and suitable measurements can be more useful than a colourful model with undocumented inputs. Conversely, a statement that “shielding is standard” is not adequate when the unit has a specific high-current configuration that the buyer has asked to evaluate.

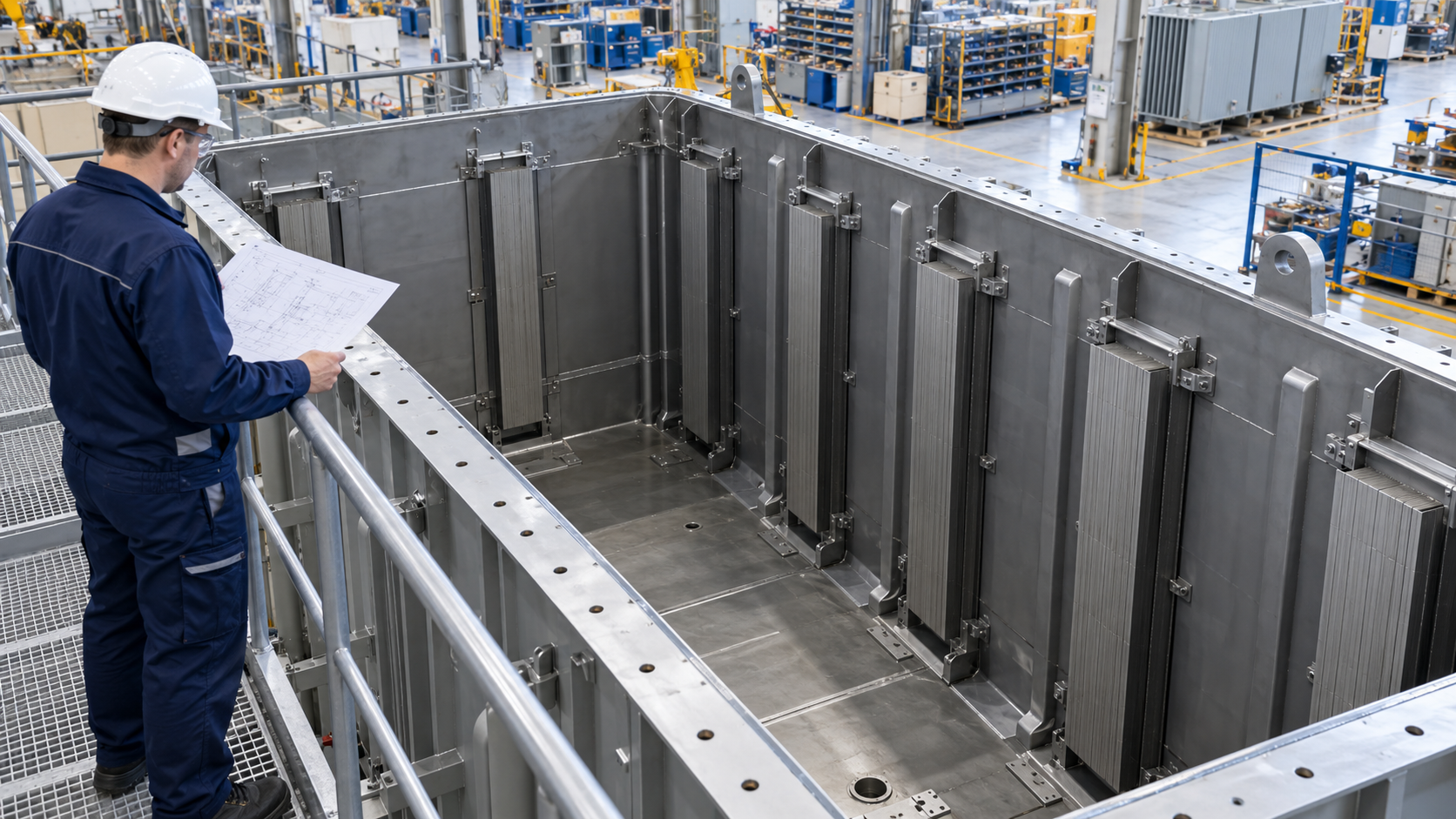

Designers can address local heating by changing clearances, lead routing, structural geometry, material selection or flux-control components. The best choice depends on the transformer arrangement and the mechanical work the part must still perform. A structural bracket cannot be removed solely because it is near a leakage field; it may carry transport or short-circuit forces. A shielding piece must be compatible with insulation clearances, oil flow, attachment method and manufacturing inspection.
The purchaser should ask what the measure is intended to achieve. Is it reducing flux through a tank panel, interrupting a current loop, moving a current-carrying lead, or improving heat removal? Each mechanism has different verification needs. A supplier that changes a steel grade should explain whether the change affects mechanical properties or welding. A supplier adding a shunt should show its location and attachment control. A supplier rerouting a lead should review electrical clearances and support. These are design-interface decisions, not cosmetic adjustments.
Shielding and supports occupy space. Check access for internal inspection, oil circulation paths, lifting clearances and the position of tank-mounted instruments or cable boxes. If a cooling radiator is moved to clear a structural feature, update the thermal configuration and dimensional drawing. If a lead is moved, revisit dielectric clearances and the effect on factory test connections. One disciplined change review can prevent a series of apparently unrelated late-stage nonconformities.
The factory traceability guide provides a practical way to link controlled drawings, component changes and inspections to the final serial-numbered unit. In this application, it matters because an engineering calculation for revision A is weak evidence for a transformer assembled to revision C without a documented bridge between them.
Before tanking, identify the checks that can no longer be made after the active part is enclosed. They may include the position and attachment of flux-control components, lead-to-wall clearance, clamp details, insulation barriers and the condition of nearby steelwork. Inspection records should identify the transformer, drawing revision, measured or observed feature, inspector and disposition. Photographs help when labelled and linked to the unit; an unlabeled image cannot prove which transformer was inspected.
After tank fabrication, verify relevant dimensions and accessory penetrations against approved drawings. A change to a stiffener, tank wall thickness or weld detail may have mechanical reasons, but it can also alter the local conductive path. Engineering should decide whether the thermal assessment needs review. That decision must be recorded rather than left as an informal shop-floor assumption.
The same discipline applies when a subcontracted component changes. Ask the manufacturer to identify whether a substitution affects the material grade, electrical conductivity, magnetic properties, attachment or geometry that the analysis relied on. The purchaser does not need to run the supplier’s model; it needs a credible change-control boundary and a record showing that the boundary was observed.
The FAT schedule should distinguish routine electrical measurements, any specified temperature-rise test and any extra local-temperature observation. An ordinary load-loss report gives a useful total, but cannot locate every hot area. A thermal test measures the completed cooling arrangement under its approved method. If the project has a specific tank-hotspot concern, agree the positions, instrument type, operating condition, duration, ambient treatment and acceptance basis before test day. The choice of method should be made by the responsible engineer for the particular design.

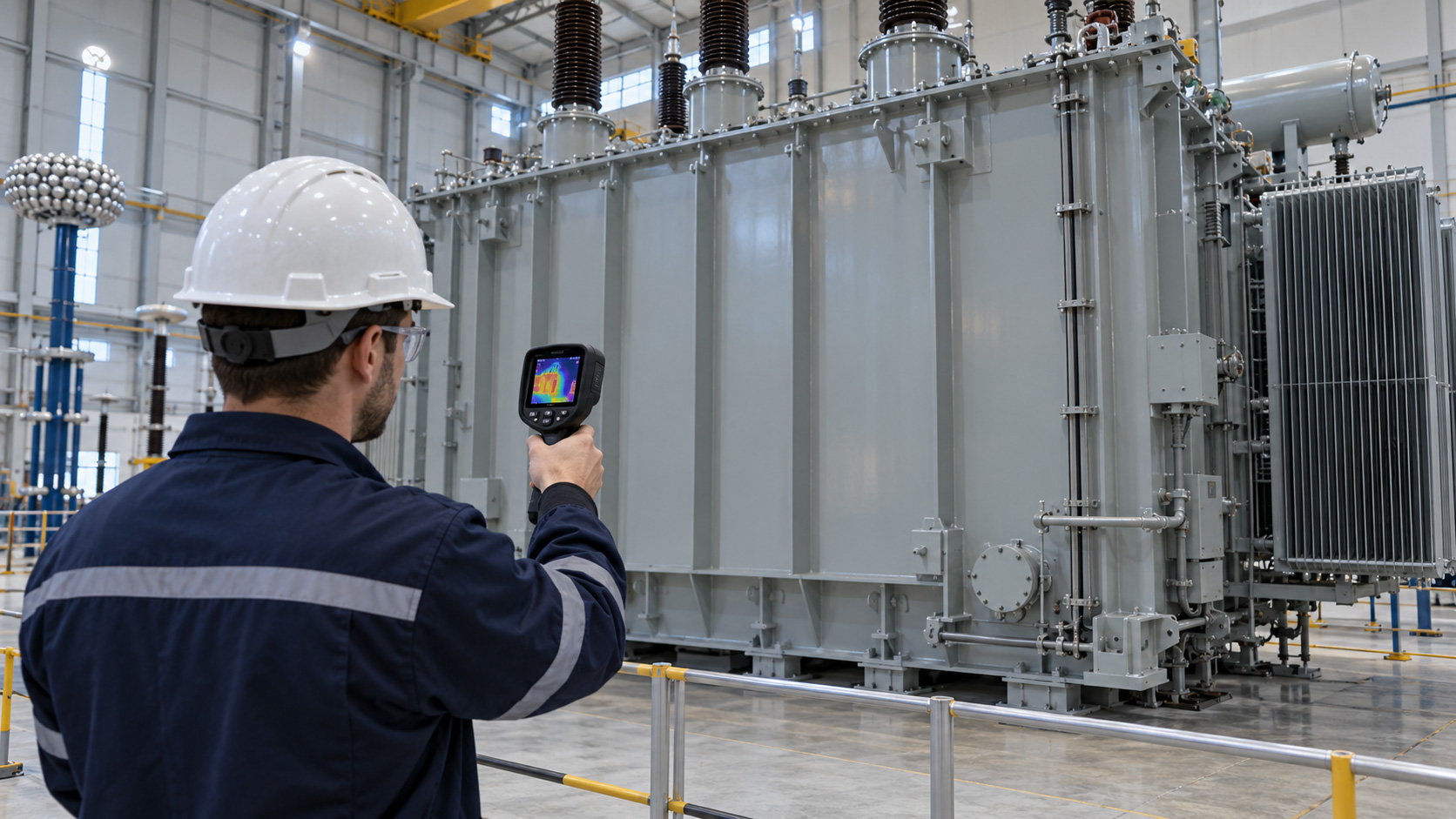

Temperature imaging can help investigate accessible external surfaces, but emissivity, reflections, viewing angle and surface treatment affect the apparent reading. A photograph of a bright region is not a calibrated temperature report. Contact sensors also require suitable attachment and location control. Internal locations may be inaccessible on the finished unit, so design analysis and manufacturing records become more important there. The contract should be clear about what is directly measured and what is inferred.
Ask for raw trends and the state of the cooling equipment, not just a pass/fail signature. A rise observed while a fan bank is stopped means something different from a rise under the guaranteed full-cooling state. Compare measured total loss with the design loss used in the thermal assessment. If the values differ materially, engineering should explain the impact before release. A passed winding temperature-rise criterion alone should not be described as proof that every structural hot spot was measured.
If an unexpected hot area appears, first verify the instrument and operating conditions. Then compare the as-built geometry, lead routing, shield placement and loss result with the reviewed design. A repair can be legitimate, but it should have a defined engineering disposition, inspection and, when necessary, repeat measurement. Moving a sensor or applying paint without investigating the cause does not resolve a thermal concern.
The final manufacturing dossier should contain the assessment reference, approved drawings, critical inspection records, loss and thermal FAT records, deviations and closure. Identify the exact transformer serial number. For a multi-unit order, do not assume that evidence for the first unit automatically covers a later one if the build changes. The purchaser can agree a family or design-similarity basis where justified, but the scope must be explicit.
Zisheng Electric can relate the proposed oil-immersed transformer range and substation transformer options to the actual current path, thermal duty and structural arrangement. For larger project equipment, the 110 kV/115 kV power transformer is another product starting point, subject to the approved design.
Send the drawings, data sheets, load list, technical specification, single-line diagram, grid parameters, environmental conditions and installation-site conditions. Include the proposed rating and tap range, current spectrum where applicable, loss guarantees and any specific hotspot concern. A useful transformer tank stray-flux heating review turns those inputs into a controlled design and evidence plan. Our engineering team will review the requirements and respond to project inquiries within 24 hours.
