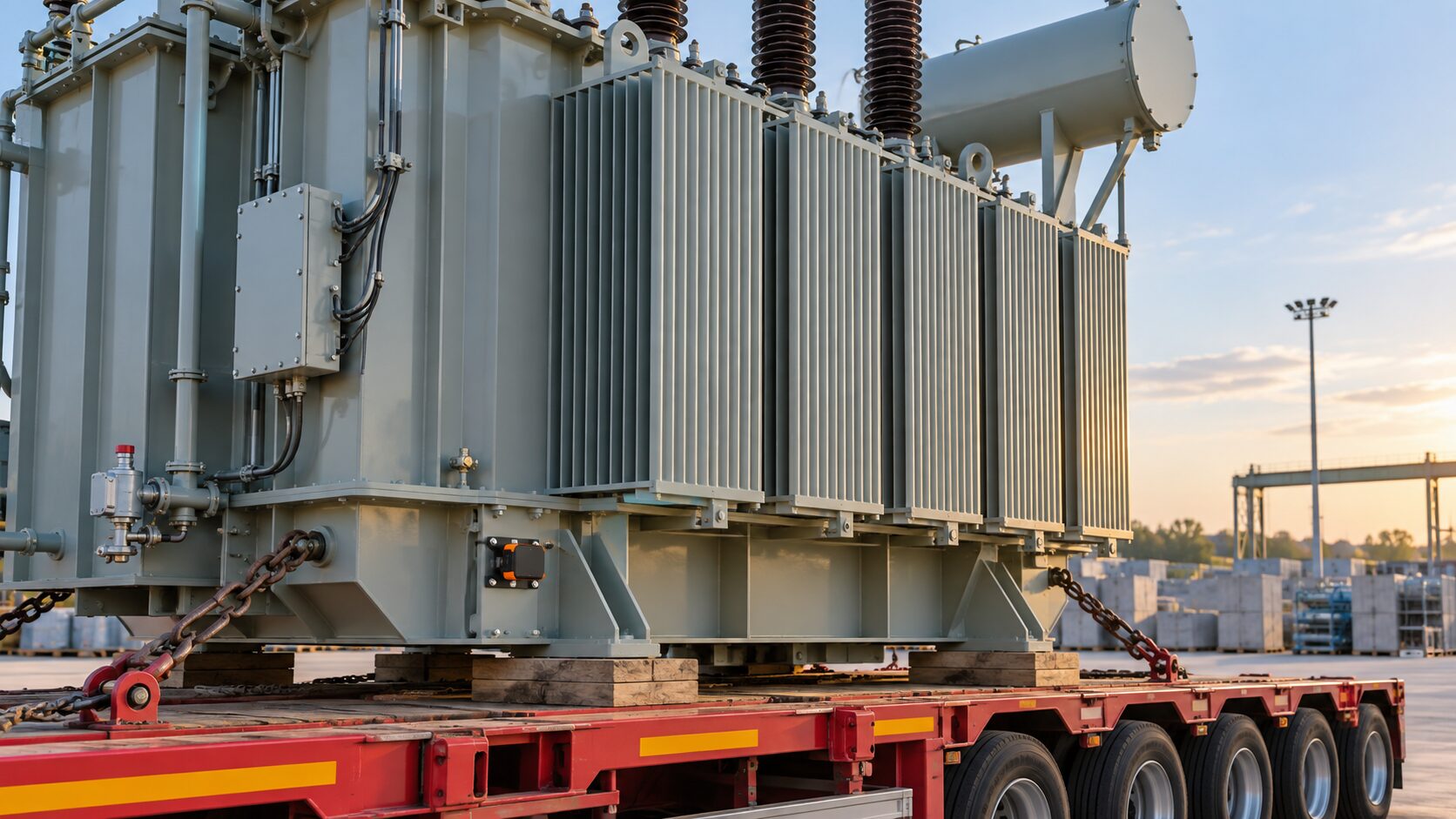

Zisheng Electric treats a transformer transport impact recorder as part of a controlled shipment and receiving decision, not as a device that declares a transformer healthy or damaged on its own. A power transformer can travel by road, port crane, vessel and final site haulage before anyone sees its shipping supports again. The recorder provides a time-stamped account of mechanical events during that chain. Its value depends on where it is mounted, how its axes are defined, what limits were agreed, and what the receiving team does with the data.
For an EPC buyer, the practical question is not simply whether a peak appeared. The question is whether the event was genuine, which direction and duration it had, what the transformer design was qualified to tolerate, and whether other evidence calls for an inspection or test. This guide sets out a defensible specification and arrival-review workflow for large oil-immersed units.
Transport forces can reach the tank, core clamping system, winding supports, bushings, radiators and temporary shipping fixtures through different load paths. An acceleration sensor at one point does not directly measure movement of the active part. Its record is evidence of the motion at its mounting location. Treating an isolated peak as a pass/fail criterion without knowing the mounting and filtering settings can lead either to unnecessary dismantling or to an unjustified release.
The purchase order should connect transport monitoring to the mechanical design review, shipping arrangement, route plan and post-delivery tests. CIGRE's Guide on transformer transportation covers transport design, different modes, incident experience and receiving considerations. IEC 60076-1 includes a transport subclause; a project still needs its own explicit monitoring and response requirements rather than assuming the standard supplies a universal shock threshold.
Define who supplies the recorder, who installs and seals it, who can download data, and who signs the receiving decision. The responsible parties may change at the port or at a local haulier. Every custody transfer is an opportunity for the record, the shipment condition and the paperwork to separate.

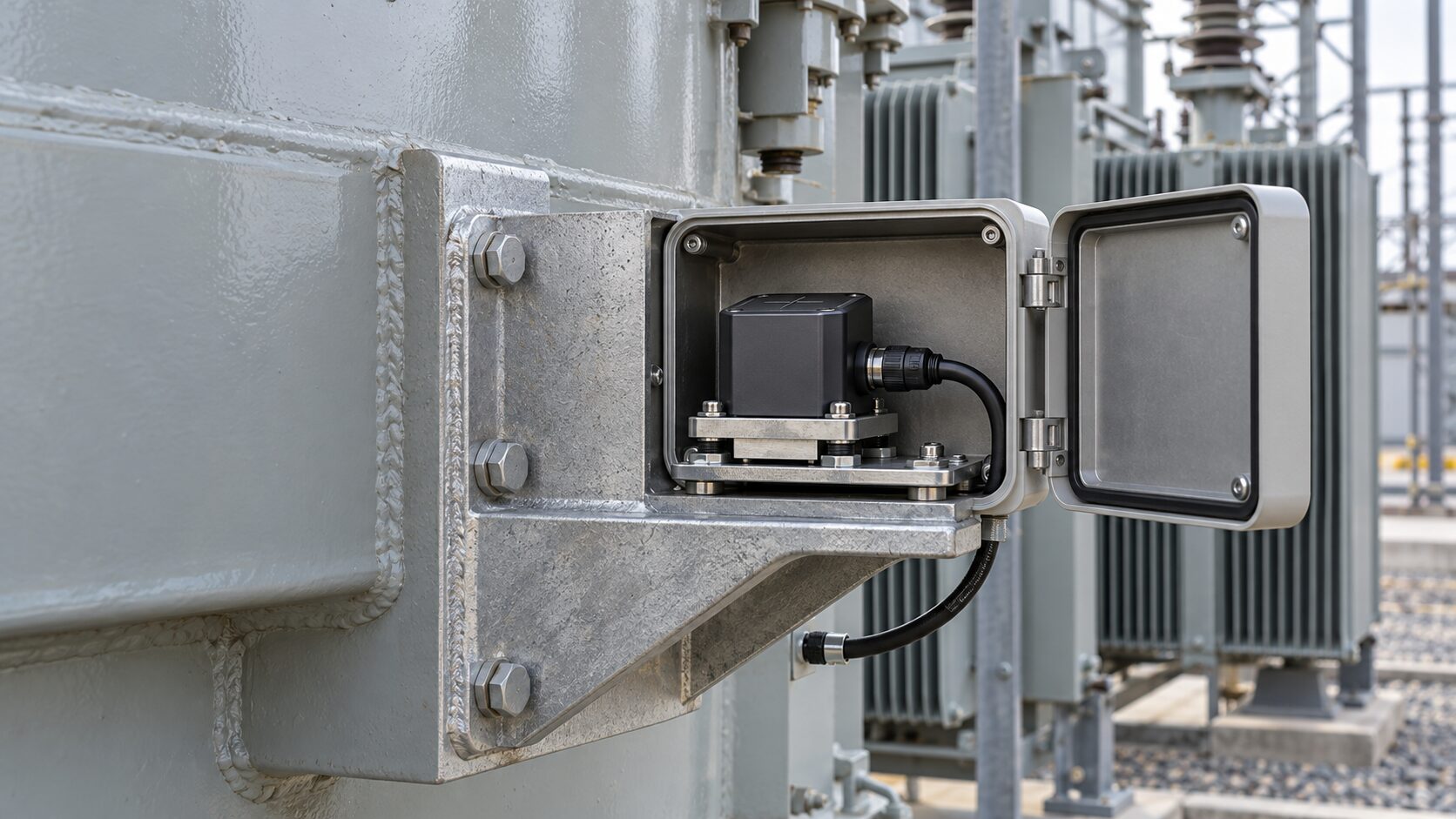

The device should be attached to a rigid, documented location on the tank or its designated transport structure, not to loose packing. The mounting drawing should show the support detail, bolt arrangement, orientation and clearance for access after arrival. Record the longitudinal, transverse and vertical axis definitions in words and on a diagram. A positive value has little meaning if the receiving team cannot tell which way the transformer moved.
Consider whether one device is enough for a very large or unusual shipment. A second location may distinguish a real tank response from a local handling event, but more devices do not automatically improve the decision if their clocks, mounting methods and settings differ. Where the active part travels separately, its monitoring plan needs its own reference and custody record.
Specify measurement range, sampling and trigger behavior, event duration, time setting, battery endurance, memory capacity, environmental protection and download format. A recorder that stores only the largest peak can hide the sequence of events; an export with a time trace and axis identity is more useful. Ask for an installation photograph and a functional check showing that the device was operating before the shipping release.
Agree clock synchronization and the time zone used in the data export. Link each device identifier to the transformer serial number, shipment reference and mounting location. The factory release dossier should capture the initial counter state, configuration file, seal number if used and the date of installation. This traceability follows the same logic as the site's factory traceability records guide: a document is useful only when it can be tied to the unit and the decision it supports.
Item to agree | Evidence required | Decision supported |
|---|---|---|
Mounting and axes | Drawing, installed photographs, device ID and orientation | Shows whether a recorded direction maps to a real transformer load path |
Recorder configuration | Range, sample/trigger settings, clock and firmware record | Distinguishes an actual event from a setting or data-quality problem |
Transport envelope | Manufacturer design assessment, route and handling plan, agreed response levels | Provides project-specific escalation criteria without inventing a universal limit |
Custody and continuity | Seal log, handover times, battery and memory checks | Identifies data gaps and the party responsible for each leg |
Arrival condition | Visual report, support and restraint inspection, preservation readings | Tests whether the event has corroborating physical evidence |
Disposition | Event review, engineering approval, additional inspection or test record | Creates a traceable hold, release or repair decision |
The response levels in this table must come from the transformer design and contract, not from a generic number copied from another shipment. Direction, pulse duration, frequency content, support geometry and the transformer's state during shipment all matter. If an allowable envelope is absent, mark it for engineering agreement before dispatch; do not reconstruct it after a concerning event appears.

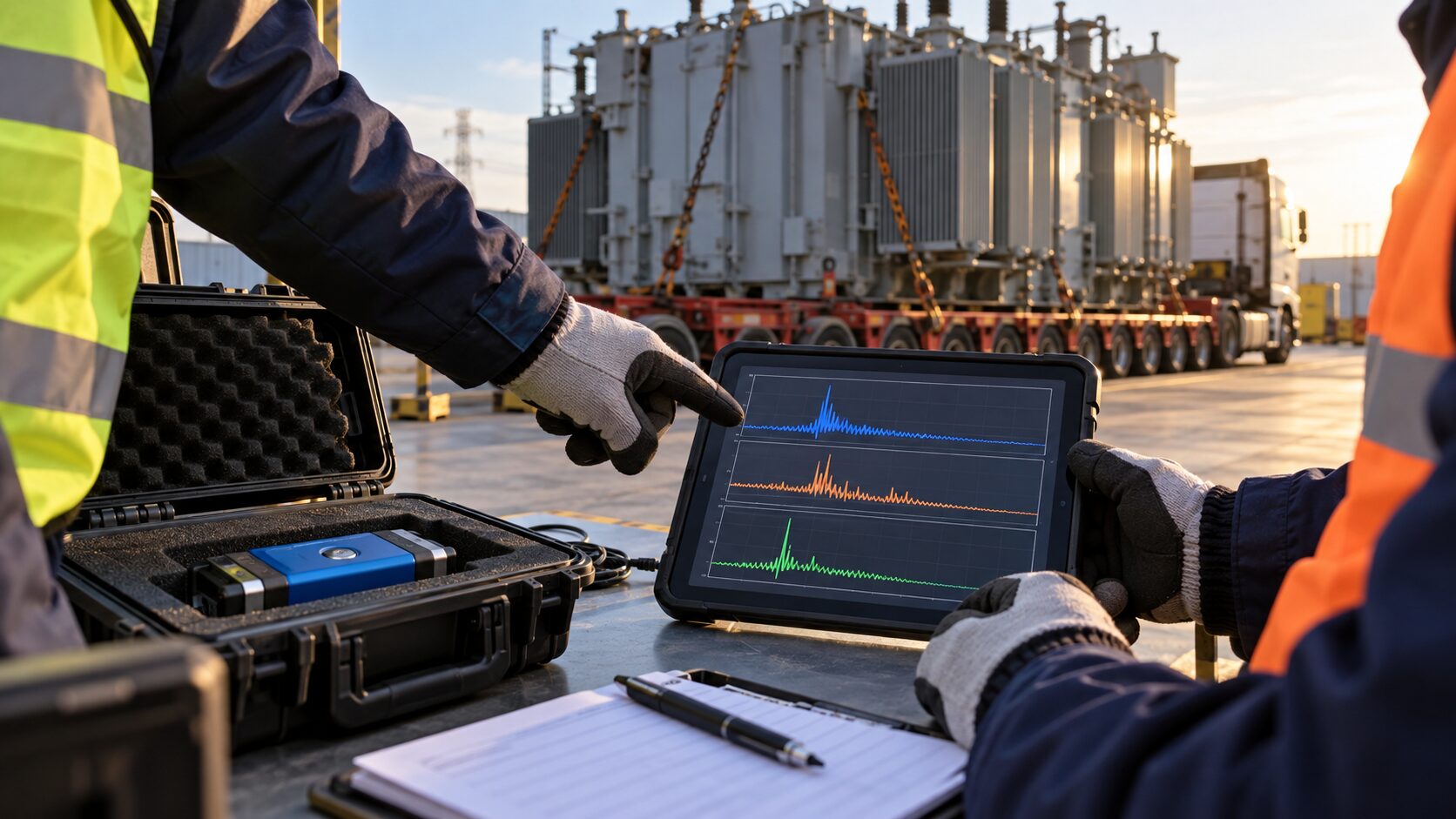

A peak can result from braking, a road joint, lifting, a trailer coupling movement or an actual collision. Review the event waveform, not just the displayed maximum. Check its time against driver logs, port operations, lifting records and known route transitions. Compare the axes: simultaneous, consistent activity across axes may tell a different story from a brief single-channel spike. Look for clipping at the instrument limit, missing samples, a clock reset or movement of the recorder itself.
Then inspect the physical load path. Are transport bolts, saddles, chains, restraints and protective covers intact? Has a radiator crate moved? Is there a dent, coating break, leaking joint, damaged bushing protection or displaced gauge? Compare arrival photographs with factory departure photographs. A clean exterior does not prove the active part has not moved, but physical change raises the priority of an engineering review.
Keep preservation evidence separate. Shipping gas pressure, dew point if specified, oil level and seal condition address the moisture boundary; the impact recorder addresses mechanical events. The two streams may interact after a severe event, but neither substitutes for the other. The receiver should record measurements before disconnecting equipment or removing protective packaging.

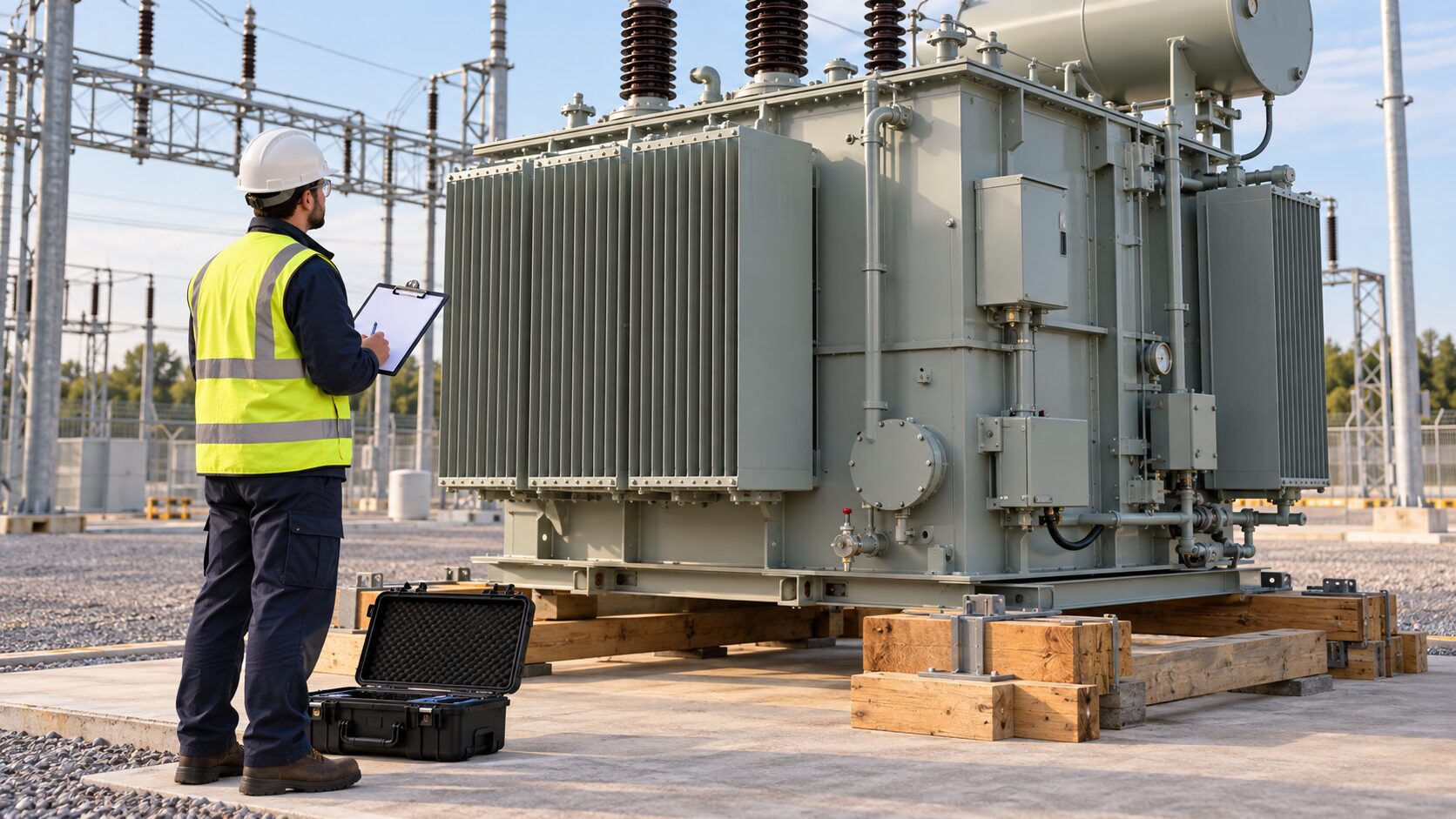

Put an inspection hold point in the delivery procedure. The haulier should not remove restraints, the installer should not discard shipping supports, and the transformer should not be energized until the designated receiver has recorded the as-arrived state. Photograph all sides, support points, lashing, crates, seals and the recorder location. Note whether the unit was upright and whether any leg of the journey lacked monitoring.
Download the original data file and preserve an unmodified copy. Export a readable review report with the device configuration, axis definitions, event times and the reviewer's comments. The raw file and the interpretation should be versioned separately. A screenshot of a single peak is poor evidence if later engineering work needs to revisit filtering, scaling or clock correction.
If the route involved transshipment, align each handover record with the data timeline. A missing battery interval or a device removed at port should be identified as a coverage gap, not described as a zero-impact leg. Where the shipment plan changed, ask whether the restraint and support design remained valid for the revised vehicle or handling method.
When a project-specific response level is crossed, place the unit on technical hold and notify the manufacturer and owner. Do not authorize an internal inspection solely because a recorder alarmed; first confirm that the event is credible and review the machine's design basis. Conversely, do not dismiss a strong recorded event because there is no visible dent.
The first tier is a joint document and visual review. Compare the event with the shipment plan, mounting evidence and arrival condition. The second tier may include electrical and oil tests selected for the transformer and its shipping state: insulation resistance, winding resistance, ratio checks, oil quality, and other agreed checks. A frequency response analysis comparison can be valuable when a reliable pre-transport baseline and consistent test connections exist; the comparison requires engineering interpretation. Test selection and acceptance must be agreed by the responsible engineer rather than treated as a fixed list for every unit.
If evidence suggests movement or damage, the manufacturer and owner may require additional diagnostic work or an internal inspection under a controlled opening and preservation procedure. Record the reason, scope, photographs, findings, repair plan and retest criteria. The end of the ladder is a signed disposition: release as received, release after corrective work, or reject pending a revised plan. Each outcome should state who owns the warranty and transport claim records.
A useful enquiry states the transport route and modes, whether the transformer ships oil-filled or in another approved preservation state, the expected handling and support arrangement, and whether the buyer requires one or more recorders. Ask the bidder to submit a transport monitoring method statement with the general arrangement drawing. The response should identify the proposed recorder, mounting location, axes, settings, data format, clock practice and the approved method for replacing a failed unit.
Specify who witnesses installation and who receives the raw file. Require the shipment release pack to include device identifiers, configuration and a departure baseline. Require a receiving hold point, the time available for preliminary review and an escalation path that includes the OEM. If an impact response level is needed, ask for a project-specific engineering basis and separate levels for notification, hold and further investigation where appropriate. A nominal acceleration alone should not be presented as a damage limit.
Also resolve commercial boundaries. The supply contract, haulage contract and insurance terms may allocate risk differently. The technical review should remain evidence-led even when a party wants a fast release. Define retention of raw data, photographs, maintenance logs and correspondence so a later warranty discussion is not forced to rely on recollection.
The recorder begins a record that should meet the factory and site baselines, not replace them. Prior to transport, the factory should close the relevant mechanical punch list and keep a controlled FAT dossier. If the project requires an SFRA baseline or other special diagnostic test, specify the test connections and record conditions so site results can be compared fairly. A post-arrival result that differs because taps, earthing or lead configuration changed may be misleading.
At site, document the sequence of unloading, positioning, accessory refit, oil processing and tests. If a new event occurs during jacking or sliding after the transport recorder was removed, the site method statement needs its own observation and incident record. The EPC team should treat commissioning release as a separate gate from delivery acceptance.
For measurement disputes, the site's guide to FAT measurement uncertainty explains why calibration status, method and acceptance margin must be read together. The same discipline applies to recorder data: confidence comes from an instrument record and a sound interpretation, not a prominent number on a display.
The final transport dossier should include the approved route and handling method, support and restraint drawings, recorder calibration or verification evidence as agreed, installation photographs, configuration and device identification, raw data, readable event report, custody handovers, arrival inspection and any technical disposition. Include proof that open items were closed before the transformer entered the commissioning sequence. This package helps the owner distinguish a transport incident from later installation or operating issues.
Choose documentation depth to fit the machine. A small standard distribution unit may justify a simpler receiving checklist, while a large high-voltage unit with several handling stages deserves a formal hold point and engineering review. Zisheng Electric can align this package with its oil-immersed substation transformer and 110/115 kV power transformer configurations, subject to the actual project design and transport plan.
A transformer transport impact recorder supports an engineering decision when the mounting, data quality, response criteria and receiving records were agreed before the truck moved. Send Zisheng Electric the drawings, datasheets, load list, technical specification, single-line diagram, grid parameters, environmental conditions and installation-site conditions, together with the route, shipping mass, lifting plan and any owner transport-monitoring clause. Our engineers can review the interface between transformer design, shipment controls and the site acceptance plan.
