Choosing the wrong transformer can increase fire risk, energy loss, and maintenance costs. A single phase transformer may use solid insulation or insulating liquid. Each design serves different sites and loads. In this guide, you will compare safety, performance, cost, maintenance, and applications. You will also learn which option fits your project best.
● A dry type single phase transformer is usually better for indoor, occupied, or fire-sensitive locations.
● An oil filled single phase transformer usually suits outdoor distribution, demanding loads, and utility service.
● Dry type units remove oil leakage concerns and avoid routine fluid testing.
● Oil filled units use insulating liquid to move heat away from the windings effectively.
● Purchase price gives an incomplete answer. Installation, losses, maintenance, and downtime shape total ownership cost.
● Pole-mounted units commonly serve overhead rural networks, farms, remote loads, and scattered residential users.
● Pad-mounted units support underground networks where security, weather resistance, and public access matter.
● Correct sizing remains essential. Neither cooling method can correct poor load estimates or unsuitable voltage choices.
● Project-based single-phase solutions can offer varied ratings, voltage classes, winding choices, and customized configurations.
Dry type construction uses air and solid insulation around the windings. It suits indoor electrical rooms, hospitals, schools, offices, airports, shopping centers, and data centers. Cast-resin insulation can also improve moisture resistance and mechanical strength.
Oil filled construction uses insulating liquid for cooling and electrical insulation. It is common in pole-mounted and pad-mounted distribution for rural networks, farms, renewable projects, and remote sites. Suitable tanks and enclosures protect the active parts outdoors.
An oil filled single phase transformer often manages heat and short load peaks well. This helps when loads include pumps, motors, workshops, or uneven residential demand. However, overload ability should never replace correct sizing.
Dry type equipment removes combustible transformer oil from the installation. It can simplify risk planning near people, valuable equipment, or emergency routes. Oil filled equipment may need separation, containment, or added fire controls.
Dry type maintenance focuses on cleaning, ventilation, connections, temperatures, and insulation condition. Oil filled units also need tank inspections, leak checks, and fluid monitoring. The maintenance plan should match available staff and site access.
Neither design wins every project. Choose dry type for indoor safety and reduced fluid maintenance. Choose oil filled for outdoor networks, strong cooling, and demanding service.
Decision factor | Dry type | Oil filled |
Best location | Indoor or protected areas | Outdoor distribution sites |
Fire planning | Easier without liquid insulation | May need added controls |
Heat removal | Depends on airflow | Strong liquid cooling |
Routine care | Cleaning and inspection | Fluid and tank monitoring |
Typical mounting | Indoor enclosure | Pole or pad mounting |
Best fit | Occupied facilities | Utility and demanding loads |
Tip: Compare the complete installed system, not only the transformer purchase price.

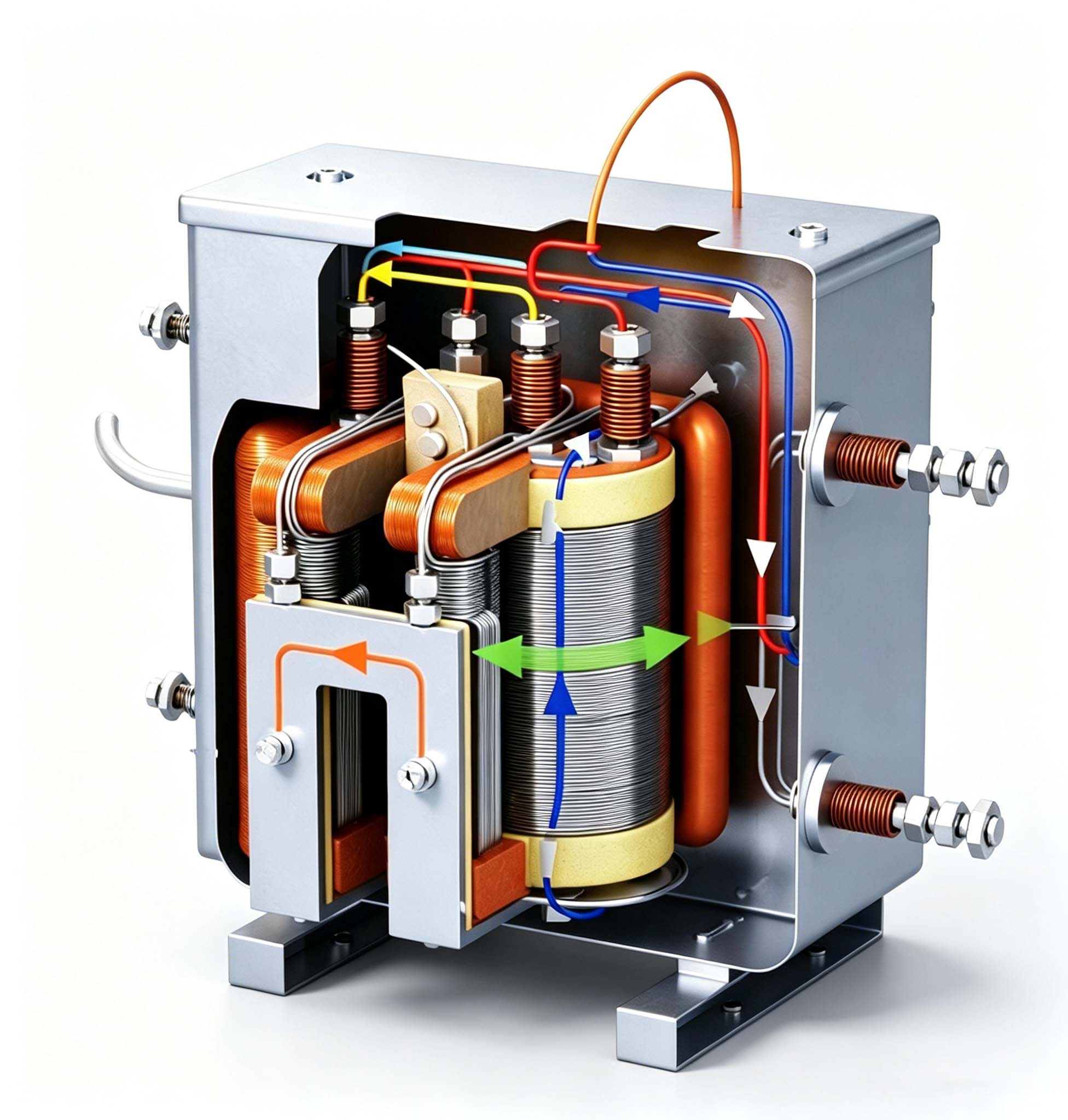

A dry type transformer relies on air circulation and solid insulation. Cast-resin windings are sealed in resin, while VPI windings use pressure-applied insulating varnish. Both designs need clear airflow and suitable room conditions.

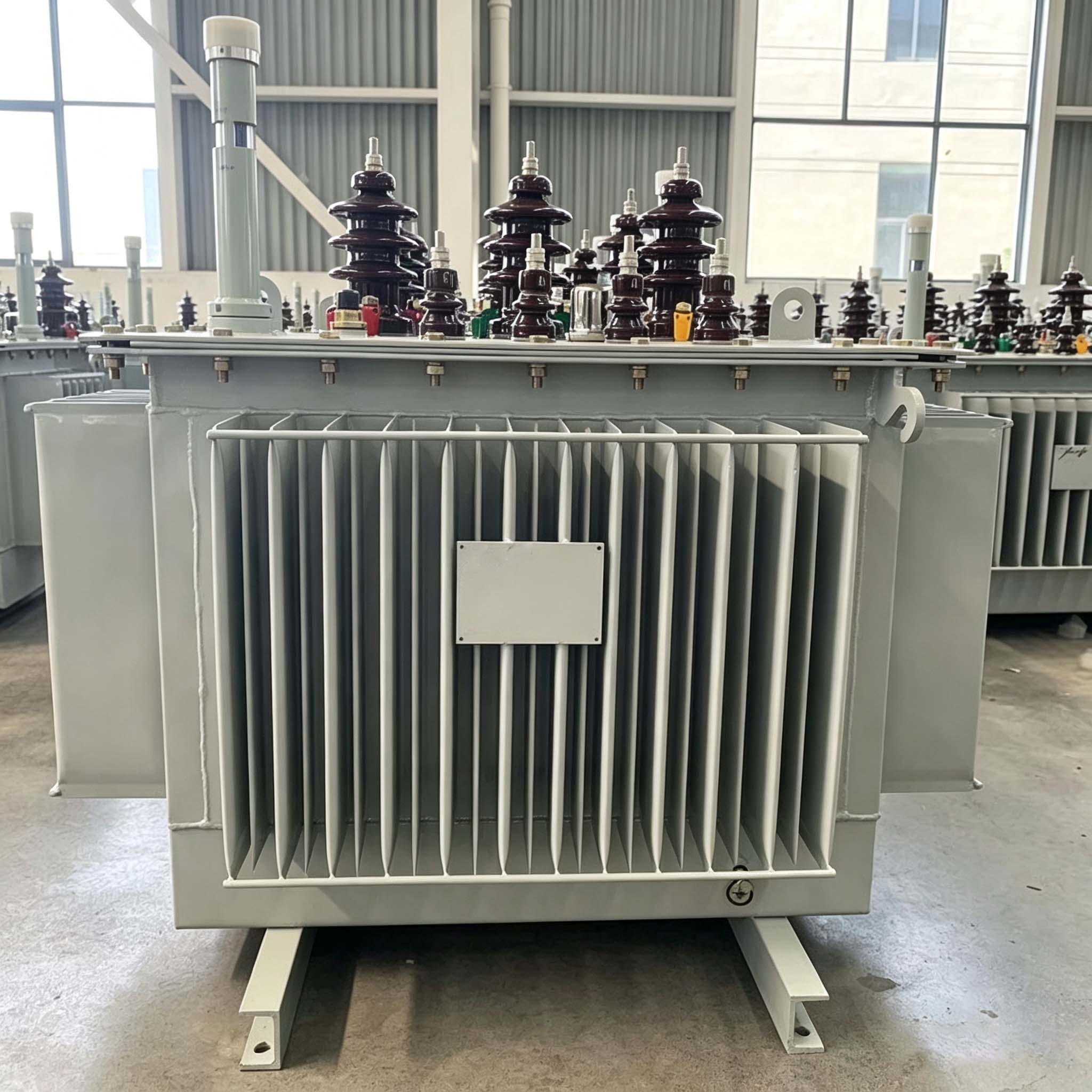

An oil filled transformer places its core and windings inside insulating liquid. Heat moves into the fluid, then through the tank walls to surrounding air. Mineral oil, natural ester, or silicone fluid may be specified for different project needs.
The cooling system affects equipment size, overload behavior, inspection needs, and installation rules. Dry units depend on ventilation and clean air. Oil filled units depend on sound seals, tank integrity, and suitable fluid condition.
Efficiency depends on core material, winding resistance, loading, temperature, and manufacturing quality. Oil filled construction often removes heat effectively during continuous duty. Buyers should compare guaranteed no-load and load losses instead of assuming one type is always more efficient.
Liquid cooling often gives oil filled units an advantage during short load peaks. Dry type units can also serve variable loads when their temperature rise, cooling class, enclosure, and ventilation are correctly selected.
Heat accelerates insulation aging in both designs. High ambient temperature, altitude, blocked airflow, dust, harmonics, and repeated overloads can reduce service life. Monitor winding temperature on dry units and fluid temperature or condition on oil filled units.
A proper specification covers kVA, voltage ratio, frequency, taps, winding material, insulation level, temperature rise, mounting, enclosure, and protection. The reviewed single-phase product range covers 5–500 kVA, voltage classes up to 36 kV, copper or aluminum windings, and project customization.
Note: Ask suppliers to state guaranteed losses and temperature rise on every quotation.
Dry type construction is often preferred indoors because it contains no insulating oil. It still needs correct fault protection, grounding, clearances, ventilation, and temperature monitoring. Local fire rules and building use must guide the final design.
Oil filled equipment can leak after seal damage, corrosion, transport impact, or poor maintenance. Outdoor projects should review drainage, soil protection, water exposure, and containment. Alternative fluids may help, but they still need compatible seals and approved handling.
Dry type units need room for airflow, inspection, and cable access. Pole-mounted transformers fit overhead networks and reduce ground use. Pad-mounted units use locked, weather-resistant cabinets for underground distribution and public areas.
Outdoor equipment faces rain, heat, dust, salt, corrosion, animals, and public contact. Oil filled pole-mounted or pad-mounted designs commonly address these conditions. A dry type unit needs an outdoor-rated enclosure and a cooling plan suited to the site.
Oil filled units often have an attractive equipment price for outdoor distribution. Dry type units may cost more initially. Yet fire separation, containment, ventilation, foundations, cabinets, and cable work can change the installed-cost result.
Dry type units need cleaning, connection checks, insulation inspection, and temperature review. Oil filled units add fluid testing, leak inspection, gauge checks, and seal review. Maintenance frequency should reflect age, load, environment, and operational importance.
No-load losses continue whenever the transformer stays energized. Load losses rise as current increases. Compare annual losses using expected loading hours and energy prices, not nameplate efficiency alone.
A low purchase price can become expensive after an outage. Consider spare availability, transport access, repair skills, testing support, and replacement lead time. Critical sites should also plan monitoring and emergency replacement.
Dry type equipment generally fits hospitals, offices, data centers, schools, and shopping centers. It supports indoor placement where leakage and fire planning carry major weight. The room still needs suitable airflow and maintenance access.

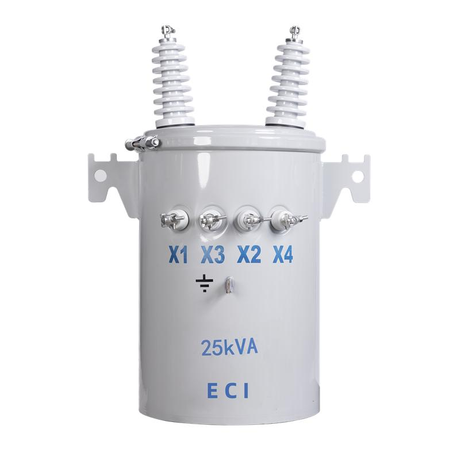

Oil filled pole-mounted transformers commonly supply homes, irrigation systems, telecom sites, and remote communities. They suit overhead distribution and can use conventional or integrated protection, depending on project requirements.

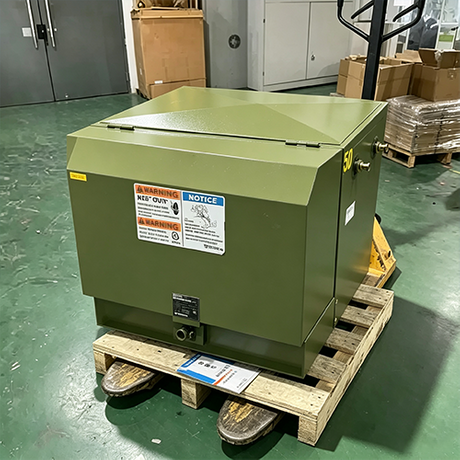

Pad-mounted transformers suit underground residential and commercial networks. Their locked steel cabinets improve public protection and provide a neat ground-level installation. Buyers should confirm feed arrangement, cable entry, switching, corrosion protection, and cabinet security.
Either design may suit renewable or light industrial projects. Outdoor pumps, workshops, or remote loads often favor oil filled units. Indoor rooms near switchgear or occupied spaces may favor dry type units.
Start with measured or calculated demand. Include motor starting, future expansion, load diversity, and operating hours. Confirm primary voltage, secondary voltage, frequency, kVA, taps, impedance, insulation level, and regulation.
Record indoor or outdoor placement, ambient temperature, altitude, humidity, dust, corrosion, flooding risk, and ventilation. Then choose pole, pad, or indoor mounting. Review public access, noise, fire separation, containment, lifting access, and maintenance space.
Estimate equipment, civil work, energy losses, inspections, testing, downtime, and replacement logistics. Use the same assumptions for both designs. A simple cost table can stop a low bid from hiding expensive site work.
Request drawings, loss data, temperature-rise limits, test reports, accessory lists, and applicable standards. Confirm winding material, fluid type, enclosure rating, and protection. Also review shipping, commissioning, spare parts, and after-sales support.
Tip: Send one complete project data sheet to every supplier for comparable quotations.
A dry type unit suits indoor sites and strict fire planning. An oil filled unit suits outdoor networks and demanding loads. The best choice balances safety, cooling, losses, maintenance, and installed cost. ZISHENG provides customizable single-phase solutions, varied ratings, winding choices, protection options, and project support. These features help buyers match reliable equipment to real operating conditions.
