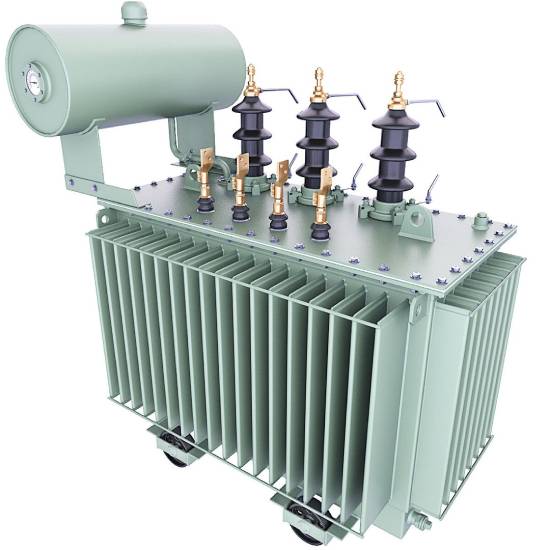

The SZ11 Three-Phase Oil-Immersed Transformer stands as a foundational pillar for medium-voltage power grid voltage regulation, engineered to deliver unwavering stability across demanding electrical infrastructures. Utilizing premium mineral oil as its primary insulation and cooling medium, this equipment ensures rapid heat dissipation while maintaining exceptional dielectric strength. Upon inspection, the precision-welded corrugated oil tank presents a heavy-duty, industrial-grade exterior with a weather-resistant protective coating designed to endure harsh elements.
Unlike conventional units, the SZ11 integrates an advanced on-load tap-changer featuring vacuum arc extinguishing technology. This mechanism allows for precise, uninterrupted voltage adjustments, which is absolutely critical for end grids experiencing significant load fluctuations. The internal architecture boasts an optimized core design that drastically reduces energy loss, emitting only a low, steady hum during operation. Having achieved national energy efficiency class 2 certification, this transformer represents an environmentally conscious and economically sound investment for modern power systems, securing reliable voltage distribution for heavy industrial complexes, commercial facilities, and expansive residential networks.
Constructed with premium-grade cold-rolled silicon steel sheets and an intricately optimized electromagnetic structure, the SZ11 significantly outperforms standard models by reducing no-load loss by 10% below national benchmarks. This superior efficiency directly translates to minimized operational expenditures and supports ambitious green energy initiatives. Furthermore, the upgraded insulation materials and refined internal heat dissipation pathways grant the unit a remarkable overload capacity. Facility managers will appreciate how this structural integrity prevents thermal degradation during peak demand surges, ultimately extending the equipment's overall lifespan and ensuring a continuous, reliable power flow.
At the heart of its performance lies the sophisticated on-load tap-changer, equipped with vacuum arc extinguishing capabilities. This component provides multiple voltage regulation taps, achieving an exceptional accuracy rate of ±0.5%. Such meticulous control guarantees a perfectly stable voltage output, even when the broader grid experiences erratic fluctuations. This precise regulation is indispensable for sensitive loads, protecting highly calibrated medical diagnostic machines, automated manufacturing robotics, and critical data center servers from damaging power spikes or sags.
The distinct corrugated oil tank is engineered to maximize the surface area for heat dissipation, facilitating rapid natural cooling without the need for external, maintenance-heavy fans. The flexible fins expand and contract with the thermal variations of the oil, maintaining optimal internal pressure. This fully sealed, hermetic construction effectively eliminates the risk of oil leakage and prevents moisture ingress. Consequently, the transformer exhibits outstanding environmental adaptability, functioning flawlessly in high-humidity tropical zones, high-altitude regions, and areas with extreme temperature differentials.
The internal windings are meticulously wound and fortified with strengthened insulation, dramatically enhancing the mechanical rigidity of the entire coil assembly. This reinforced physical structure allows the transformer to comfortably withstand massive short-circuit currents, preventing catastrophic internal deformation during unexpected grid faults. To complement this mechanical strength, the system can be integrated with smart temperature monitoring and protection relays. These intelligent safeguards actively track thermal metrics, providing preemptive alerts to prevent overheating and securing the safety of the entire load center.
Recognizing the growing need for unobtrusive infrastructure, the core assembly utilizes advanced stepped seams rather than traditional overlapping joints. Combined with strategically placed shock absorption pads, this design drastically dampens magnetic striction vibrations. The result is a remarkably quiet operation, emitting merely a faint, consistent hum that easily complies with stringent urban noise regulations. This acoustic refinement makes the transformer an ideal installation choice for densely populated residential neighborhoods, hospital grounds, and bustling commercial districts.
The SZ11 Three-Phase Oil-Immersed Transformer is manufactured under a rigorous quality control framework, ensuring it not only meets but exceeds national energy efficiency class 2 standards. Designed specifically for 10-35kV medium-voltage systems, it features a broad voltage regulation range tailored to dynamically adapt to unpredictable grid fluctuations. To guarantee unparalleled precision and consistency across every unit produced, our manufacturing process incorporates several critical protocols:
Manufacturing Excellence: Our facilities utilize advanced CNC machinery and automated winding equipment, followed by a comprehensive, full-inspection testing protocol to verify dielectric strength and mechanical resilience before dispatch.
Global Compliance: The equipment is fully compliant with stringent international standards, including IEC, ISO, and CE directives, ensuring smooth integration into global energy markets.
Customization Capabilities: We offer comprehensive OEM and ODM services. Whether a project requires specific anti-corrosion coatings for coastal environments, enhanced insulation for high-altitude deployments, or specialized dimensional constraints, the transformer can be tailored to exact specifications.
The core relies on premium oil immersion for superior insulation and cooling, housed within a specialized corrugated oil tank that maximizes heat dissipation. The integrated on-load tap-changer, utilizing vacuum arc extinguishing, is rated for a high volume of switch operations, promising decades of reliable service. The windings’ strengthened insulation ensures successful passage of rigorous short-circuit tests, while the core’s stepped seams maintain an ultra-low noise profile. The fully sealed tank boasts a near-zero annual oil leakage rate, drastically reducing routine maintenance requirements.
Hub substations act as the critical nerve centers for regional grid distribution, relying heavily on the SZ11 Transformer for dependable voltage regulation. By stabilizing the power transmission before it reaches downstream networks—such as sprawling urban grids or concentrated industrial zones—this transformer prevents cascading electrical failures. In commercial applications, large-scale shopping malls, towering office buildings, and luxury hotels demand an uninterrupted, clean power supply to maintain complex HVAC systems, extensive lighting arrays, and sensitive electronic infrastructure. The SZ11’s remarkably low noise output and high operational efficiency make it perfectly suited for these environments, preventing any acoustic or electrical disruptions to building occupants.
Heavy industrial facilities, including automotive manufacturing plants, metallurgical processing centers, and high-tech electronics factories, are characterized by severe and rapid fluctuations in power demand. The transformer’s precision voltage regulation capabilities and exceptional short-circuit resistance provide a highly stable electrical foundation for these demanding environments. By ensuring a consistent power feed to heavy-duty motors, automated assembly lines, and delicate CNC machinery, the SZ11 actively prevents costly production downtime, minimizes equipment wear, and maximizes overall manufacturing productivity.
Remote rural networks, mountainous regions, and end-of-line grids frequently suffer from significant voltage swings due to long transmission distances and variable loads. The SZ11 addresses this challenge head-on with its highly responsive on-load tap-changer, which continuously monitors and adjusts the voltage output in real time. This dynamic regulation ensures that agricultural irrigation systems, rural residential communities, and remote processing facilities receive a consistent, safe, and reliable power supply, protecting everyday appliances and essential machinery from voltage-induced damage.
The corrugated oil tank is a highly engineered component that provides a significantly larger heat dissipation area compared to flat-walled designs, vastly improving natural cooling efficiency. Its unique, accordion-like flexible structure naturally accommodates the thermal expansion and contraction of the insulating oil during varying load cycles. This self-compensating design eliminates the need for an external oil conservator, reducing the overall footprint, minimizing the risk of tank rupture, and virtually eliminating oil leakage and moisture contamination.
Yes. The SZ11 Transformer was specifically designed with urban and residential integration in mind. It features an ultra-low-noise profile achieved through the use of stepped core seams and specialized internal shock absorption pads that dampen magnetic vibrations. The resulting acoustic footprint is exceptionally quiet, easily complying with the strictest local municipal noise ordinances and ensuring peaceful coexistence with nearby residents.
The on-load tap-changer utilizes advanced vacuum arc extinguishing technology to safely transition between voltage taps while the transformer remains fully energized. The vacuum interrupter instantly quenches the electrical arc generated during the switching process, preventing any disruption to the power flow. This continuous voltage regulation is absolutely critical for sensitive, always-on loads, such as life-saving hospital equipment or mission-critical data center servers.
We provide a comprehensive, one-stop technical support ecosystem designed to minimize your long-term maintenance costs. Our dedicated engineering team offers detailed installation guidance, remote or on-site commissioning assistance, and extensive operational training. Backed by a dependable, long-term warranty and rapid-response troubleshooting services, we ensure your transformer maintains peak performance throughout its extended operational lifecycle.
We utilize heavy-duty, industrial-grade packaging designed specifically to withstand the rigors of international transit. Each transformer is securely anchored, heavily padded for collision resistance, and sealed against moisture and salt spray. We coordinate efficiently with global freight networks, supporting maritime shipping, air freight, and overland transport, ensuring your equipment arrives safely and on schedule, regardless of your global location.
