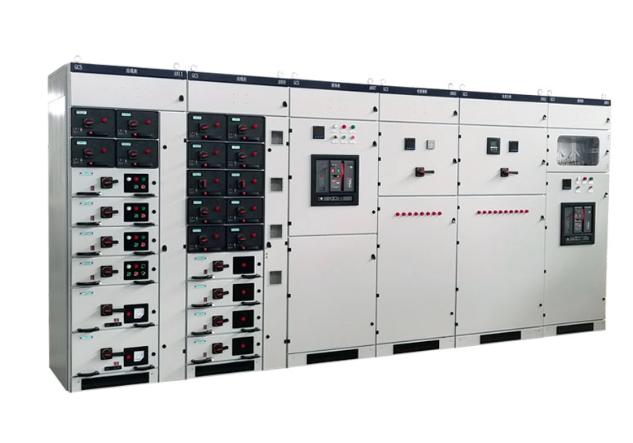

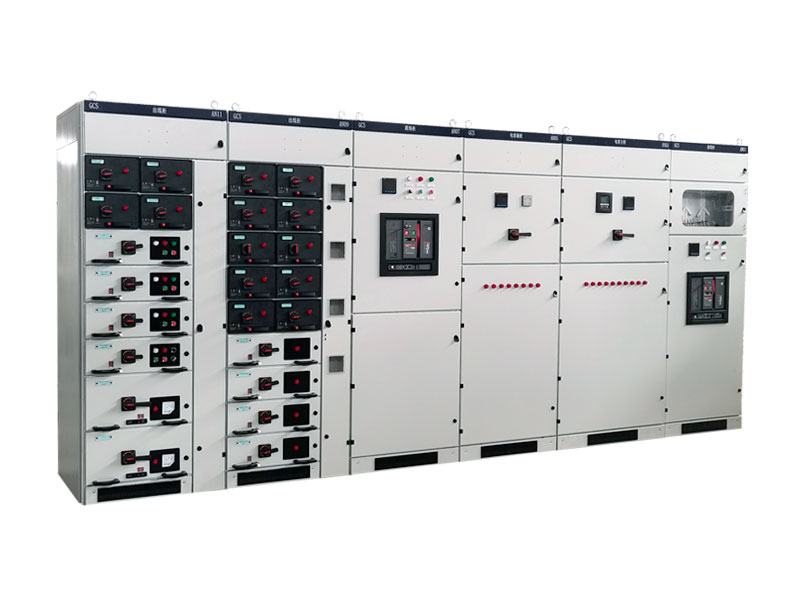

The GCK indoor metal-clad removable industrial switchgear cabinet is a high-performance low-voltage distribution solution specifically engineered for demanding industrial applications. Featuring a robust metal-clad construction and innovative draw-out unit design, this GCK switchgear cabinet delivers exceptional reliability and safety in environments where uninterrupted power is critical. With a main busbar rated current up to 5000A and vertical busbar capacity of 1000A, it provides efficient power distribution for complex industrial systems. Adopting a 25mm modular hole frame and complying with IEC 61439 standards, the GCK series has passed rigorous 50kA/1s breaking capacity verification, making it the preferred choice for industrial automation and process control applications.
The GCK indoor removable switchgear features a sophisticated draw-out unit system available in 8E, 16E, and 24E specifications. Each functional unit operates independently within its own isolated compartment, preventing faults from spreading to other parts of the system. This design allows for quick replacement of individual units without affecting adjacent circuits, ensuring maximum system availability and minimizing production downtime.
Equipped with optional intelligent meters and advanced communication modules, our GCK metal-clad switchgear enables real-time power quality monitoring and remote control functionality. This intelligent feature allows facility managers to optimize energy usage, identify potential issues before they cause failures, and implement predictive maintenance strategies, resulting in significant energy savings and improved operational efficiency.
Constructed from high-quality 2mm cold-rolled steel plate, the GCK industrial switchgear cabinet boasts exceptional structural integrity with a static load capacity of up to 800kg. The rigid frame provides superior protection against mechanical shocks and vibrations, ensuring reliable operation even in the most demanding industrial environments. The metal-clad design also offers excellent electromagnetic shielding, preventing interference with sensitive electronic equipment.
Safety is paramount in industrial settings, and our GCK indoor switchgear incorporates multiple layers of protection. With an IP40 protection class, it effectively prevents the ingress of solid objects and provides protection against accidental contact with live parts. Each drawer unit features mechanical and electrical interlocks that prevent incorrect insertion and removal, ensuring the safety of maintenance personnel at all times.
The modular design of the GCK removable switchgear cabinet supports a wide range of electrical components including circuit breakers, contactors, relays, and meters from leading manufacturers. This flexibility allows for seamless integration with existing systems and ensures compatibility with future upgrades, extending the service life of your power distribution infrastructure.
Parameter | Specification |
Main Busbar Rated Current | Up to 5000A |
Vertical Busbar Rated Current | 1000A |
Rated Short-time Withstand Current | 50kA/1s |
Protection Level | IP40 |
Standard Compliance | IEC 61439 |
Frame Material | 2mm Cold-rolled Steel Plate |
Static Load Capacity | Up to 800kg |
Drawer Unit Sizes | 8E, 16E, 24E |
Installation | Indoor Only |
The GCK indoor metal-clad removable industrial switchgear cabinet is specifically designed for:
Power plants and electrical distribution substations
Metallurgical enterprises and steel mills
Large data centers and server farms
Petrochemical and chemical processing plants
Automated production lines and manufacturing facilities
Mining operations and mineral processing plants
Water treatment and wastewater management facilities
We provide extensive customization capabilities to meet the unique requirements of industrial projects:
Custom busbar configurations for specific current ratings
Integration with various intelligent monitoring and SCADA systems
Specialized compartment designs for hazardous environments
Custom door configurations and access points
Pre-installed and pre-tested electrical components
Custom labeling and identification systems
Specialized grounding and bonding solutions
The GCK indoor metal-clad switchgear has successfully passed 50kA/1s short-time withstand current verification, ensuring it can safely handle high fault currents commonly encountered in industrial environments.
Yes, the drawer units are designed to accommodate a wide range of electrical components including circuit breakers, contactors, relays, and meters from various manufacturers, providing maximum flexibility in system design.
No, the GCK series is specifically designed for indoor installation only. For outdoor applications, we recommend our modular design LV withdrawable switchgear with appropriate outdoor protection ratings.
Each functional unit operates within its own fully isolated compartment, preventing electrical faults from spreading to other parts of the system. This containment design significantly reduces the risk of cascading failures and improves overall system reliability.
Let our dedicated industrial solutions team help you design the perfect power distribution system for your facility. We offer complimentary technical assessments and detailed quotes tailored to your specific requirements. Whether you need a single GCK switchgear cabinet or a complete power distribution solution, our experienced engineers will work with you to deliver a reliable, cost-effective system that meets your operational needs. Contact us today to schedule your no-obligation consultation.
