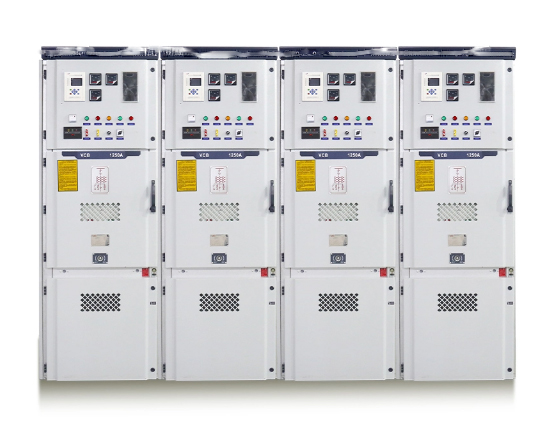

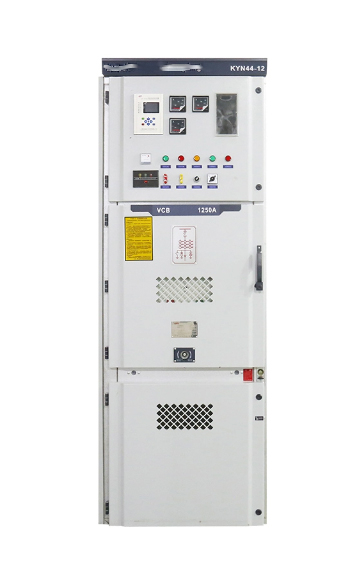

The 24kV AIS MV switchgear represents the next generation of air-insulated power distribution solutions designed for modern industrial and commercial applications. This high-performance air insulated medium voltage switchgear combines advanced air insulation technology with a flexible modular design, delivering reliable power distribution at 24kV with rated currents of 1600A and 2000A. Unlike gas-insulated alternatives, our air-insulated design eliminates the need for environmentally harmful SF6 gases, reducing maintenance complexity and environmental impact. The compact footprint makes it ideal for space-constrained environments, while the comprehensive safety features ensure protection for both personnel and equipment. Trusted by industrial operators and infrastructure developers worldwide, the 2000A industrial switchgear provides a cost-effective and sustainable solution for medium-voltage power distribution needs.
The air insulated medium voltage switchgear uses clean, abundant air as its primary insulation medium. This eliminates the need for specialized gases or liquids, making the system more environmentally friendly and significantly simplifying maintenance procedures. Air insulation also minimizes the risk of leaks or contamination, ensuring long-term reliability in both indoor and semi-outdoor installations.
Our modular air insulated panels feature a fully standardized, interchangeable design that allows for complete customization and easy expansion. Users can select from a wide range of functional modules to create a distribution system that precisely matches their specific requirements. The modular structure also streamlines installation and future upgrades, minimizing downtime during system modifications.
Engineered to handle the demands of modern industrial facilities, the 1600A electrical switchgear delivers exceptional current-carrying capacity and short-circuit breaking performance. Its robust construction ensures reliable fault protection, minimizing equipment damage and ensuring continuous power supply to critical loads. The high breaking capacity allows the switchgear to safely interrupt even the most severe electrical faults.
Despite its high power handling capabilities, the 24kV AIS MV switchgear features an extremely compact footprint. This space-saving design makes it perfect for installation in urban industrial facilities, commercial buildings, and other environments where electrical room space is at a premium. The streamlined layout also simplifies access for maintenance and operation.
Safety is integrated into every aspect of the switchgear design. It includes advanced protection devices for overcurrent, overvoltage, and short-circuit conditions, as well as sophisticated anti-misoperation interlocking mechanisms. The system adheres to the strictest international safety standards, providing peace of mind for facility operators and maintenance personnel.
Parameter | Specification |
Rated Voltage | 24kV |
Rated Frequency | 50Hz/60Hz |
Rated Current | 1250A, 1600A, 2000A |
Rated Short-Circuit Breaking Current | 20kA, 25kA, 31.5kA |
Rated Short-Circuit Withstand Time | 4s |
Insulation Medium | Air |
Enclosure Protection Degree | IP2X (standard), IP3X/IP4X (optional) |
Operating Temperature | -10°C to +45°C |
Storage Temperature | -25°C to +55°C |
Relative Humidity | ≤95% (non-condensing) |
Altitude Limit | ≤2000m (higher altitudes available on request) |
Compliance Standards | IEC 62271-200, IEC 60694 |
The indoor MV distribution switchgear is ideally suited for:
Industrial plant distribution in manufacturing facilities, industrial parks, and heavy machinery plants
Commercial buildings including shopping malls, office towers, and hotels
Public infrastructure projects such as highways, bridges, airports, and railway systems
Data centers and technical facilities requiring precise power distribution
Urban industrial zones with limited electrical room space
Renewable energy projects including solar and wind farm substations
We provide extensive customization capabilities to meet your unique project specifications:
Custom current ratings and short-circuit breaking capacities
Integration of intelligent electronic devices (IEDs) and SCADA systems
Remote monitoring and control capabilities
Enhanced protection features for specific applications
Custom enclosure designs and protection levels
Special paint finishes and corrosion-resistant coatings
Front or rear access configurations based on installation requirements
Air insulation is more environmentally friendly as it does not use SF6 or other greenhouse gases. It is also simpler and less expensive to maintain, easier to inspect and repair, and has lower lifecycle costs. Additionally, air-insulated switchgear has no risk of gas leaks, which can be both dangerous and costly to address.
The 24kV AIS MV switchgear is primarily designed for indoor installation. However, it can be installed in semi-outdoor environments such as covered substations or weatherproof enclosures. Please consult our engineering team for specific outdoor installation requirements and recommendations.
The modular design makes expansion extremely straightforward. Additional feeder modules can be easily added to the existing switchgear lineup as your power requirements grow. This allows you to invest in only the capacity you need today while ensuring scalability for future expansion.
Standard lead times for the 2000A industrial switchgear range from 4-8 weeks depending on configuration and customization requirements. We also offer expedited delivery options for urgent projects. Contact our sales team for specific lead time information for your order.
Request a no-obligation quotation for our premium air insulated medium voltage switchgear today. Our dedicated team of power distribution experts will work with you to develop a customized solution that meets your exact technical requirements and budget constraints. We provide comprehensive support from initial design through installation and commissioning, ensuring a seamless experience and long-term reliability for your power distribution system.
