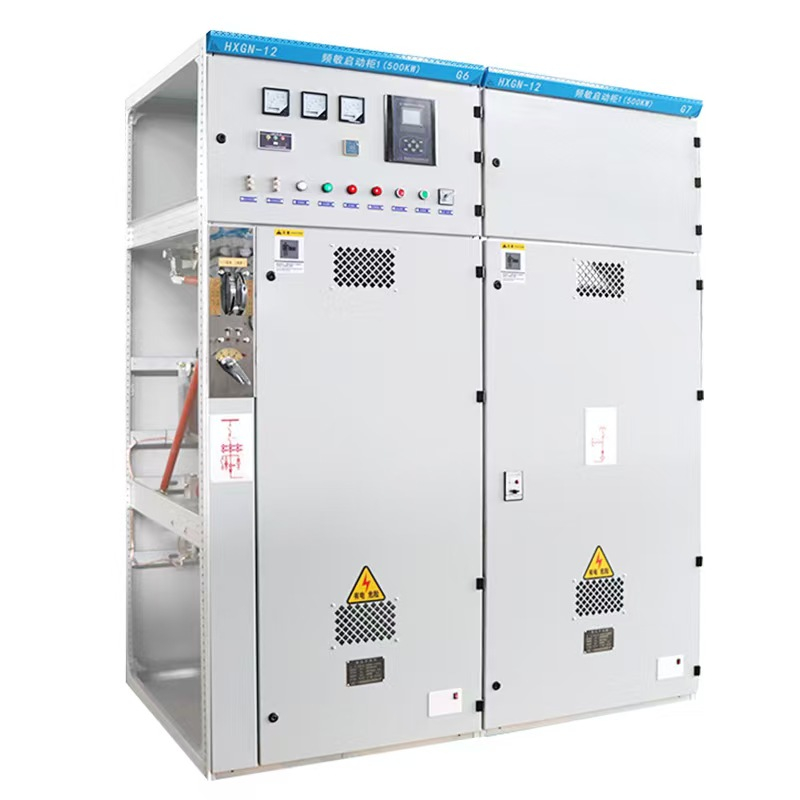

The HXGN-12 type fixed AC metal enclosed ring network switch cabinet serves as a highly economical and dependable power distribution asset engineered specifically for 12kV medium-voltage infrastructure. By utilizing a fixed-structure architecture, this switchgear integrates proven SF6 load switch mechanisms with a rigorous mechanical five-prevention interlock system, delivering secure electrical routing for budget-conscious engineering projects. Compared to complex withdrawable alternatives, the simplified fixed installation methodology drives down overall expenditure by approximately 40%. This makes it a primary selection for stable-load environments prioritizing financial prudence alongside operational safety. Constructed to meet stringent IEC and GB electrical standards, the heavy-gauge steel enclosure provides a tangible sense of physical security, characterized by its solid metallic construction and precise panel alignments. The 12kV fixed ring network switch cabinet acts as a dependable backbone for localized power distribution grids, balancing practical functionality with uncompromising operator protection.
By removing intricate drawer mechanisms in favor of a streamlined fixed installation approach, the HXGN-12 fixed AC switchgear drastically lowers initial capital equipment expenditures. This structural simplification is particularly advantageous for budget-constrained initiatives, including rural grid transformations and localized industrial power distribution. Furthermore, the core components utilize fully sealed SF6 gas insulation technology, which prevents environmental degradation of internal contacts. This specific design grants the equipment an expected operational lifespan of up to 30 years, rendering the live internal components virtually maintenance-free. Consequently, facility managers benefit from significantly reduced long-term upkeep expenses, maximizing the financial efficiency of the installation over its entire lifecycle.
Safety remains the absolute priority, enforced through a heavy-duty mechanical five-prevention interlock system. Operators experience a distinct, tactile mechanical click when engaging the levers, confirming that the standardized sequence for power transmission, outage, and grounding operations is correctly followed. This physical barrier system effectively prevents incorrect switching, improper grounding, unauthorized entry into live compartments, and accidental closing with grounded switches. By strictly adhering to these standard operational guidelines and international IEC compliance standards, the switch cabinet eliminates the risk of human error on-site, safeguarding both maintenance personnel and the surrounding electrical infrastructure from critical faults.
Featuring a standardized modular framework equipped with integrated busbar bridges for direct cabinet-to-cabinet connections, the HXGN-12 medium-voltage switch cabinet facilitates rapid on-site deployment. The pre-assembled nature of these units minimizes the time required for field construction and complex wiring. Engineering teams can align and secure the cabinets swiftly, making this configuration highly suitable for time-sensitive infrastructure upgrades, emergency grid expansions, and community development projects where minimizing downtime is critical to the project's success.
The fully metal-enclosed exterior shields internal components from dust ingress, atmospheric moisture, and accidental physical impacts. Inside, the architecture is scientifically partitioned into independent compartments: the busbar room, switch room, cable room, and low-voltage control room. This physical isolation confines any potential faults to a single area, preventing arc propagation and simplifying diagnostic checks. Engineered to withstand harsh operating conditions, the cabinet maintains stable performance across challenging environments, including high-altitude installations, extreme temperature fluctuations, and areas requiring elevated seismic resistance. The reliable SF6 load switch ensures consistent circuit breaking, minimizing short-circuit risks and guaranteeing uninterrupted power delivery.
Item Name | Unit | Parameter | |
Rated Voltage | KV | 3，6，10 | |
Rated Insulation Level | One minute power frequency withstand voltage | KV | 42/48 |
Lightning impulse withstand voltage | KV | 75/85 | |
Rated frequency | HZ | 50 | |
Main bus rated current | A | 630、1000、1250、1600、2000、2500、3150 | |
Branch bus rated current | A | 630、1000、1250、1600、2000、2500、3150 | |
4S thermal stability current (effective value) | KV | 20、25、31.5、40、50 | |
Rated dynamic stability current (peak value) | KV | 50、63、80、100、125 | |
Protection level | Housing is IP3X | ||
Dimensions | Width | 700、800、1000 | |
Depth | 900、1000 | ||
Height | 2000、2200 | ||
The HXGN-12 fixed ring network switchgear is highly adaptable, finding extensive utilization across a diverse range of medium-voltage distribution scenarios where stability is paramount:
Rural power grid distribution and electrification projects benefit from its straightforward installation and minimal maintenance demands, ensuring stable electricity access in remote geographic locations.
Small-scale factories, heavy machinery workshops, and light industrial facilities rely on its fault-isolation capabilities to protect sensitive manufacturing equipment from unexpected power surges or localized short circuits.
Residential communities and large-scale housing estate distribution stations utilize its compact footprint and quiet operation to safely manage municipal power loads without disturbing local inhabitants.
Government-led rural network transformation initiatives select this model for its exceptional 40% cost reduction compared to withdrawable units, allowing public funds to stretch further across broader infrastructure upgrades.
Small commercial buildings, local retail markets, and community centers depend on its 30-year lifespan and strict adherence to IEC standards to provide continuous, hazard-free electrical service to public spaces.
We provide comprehensive customization services and a structured procurement process to align with your specific engineering requirements. To initiate a precise technical match, our engineering team requires your facility's electrical drawings, exact load power demands, working voltage parameters, and preferred control modes. Available customizations include:
Custom rated current configurations (ranging up to 3150A) to accurately accommodate varying facility load capacities.
Tailored busbar arrangements designed for exact physical and electrical integration with your existing infrastructure.
Specialized anti-corrosive paint finishes and specific color options to match facility aesthetics and withstand environmental challenges.
Integration of additional monitoring devices, smart meters, and thermal sensors for enhanced operational visibility and predictive maintenance.
Customized cabinet dimensions (adjusting width, depth, or height) to fit perfectly within unique or spatially restricted installation rooms.
Beyond physical modifications, we back every unit with a rigorous factory testing protocol, a standardized 15-day rapid delivery cycle for standard configurations, and a 7/24 technical response system to ensure your project remains on schedule and fully supported post-installation.
The standard housing of the HXGN-12 features an IP3X protection level. This specification ensures that tools, wires, and objects larger than 2.5mm cannot penetrate the enclosure, providing excellent defense against solid foreign objects and ensuring personnel safety during routine visual inspections.
Thanks to our standardized modular production lines, standard configurations of this 12kV switchgear can be assembled, factory-tested, and prepared for dispatch within a rapid 15-day delivery window. Highly customized orders requiring specialized dimensions or unique internal layouts will have exact timelines confirmed during the technical drawing approval phase.
Yes, we possess full capabilities for both OEM and ODM partnerships. Whether you require specific exterior branding, customized internal compartment layouts, or integration of proprietary low-voltage control systems, our engineering department will collaborate closely with your team to produce switchgear that meets your exact brand and technical specifications.
