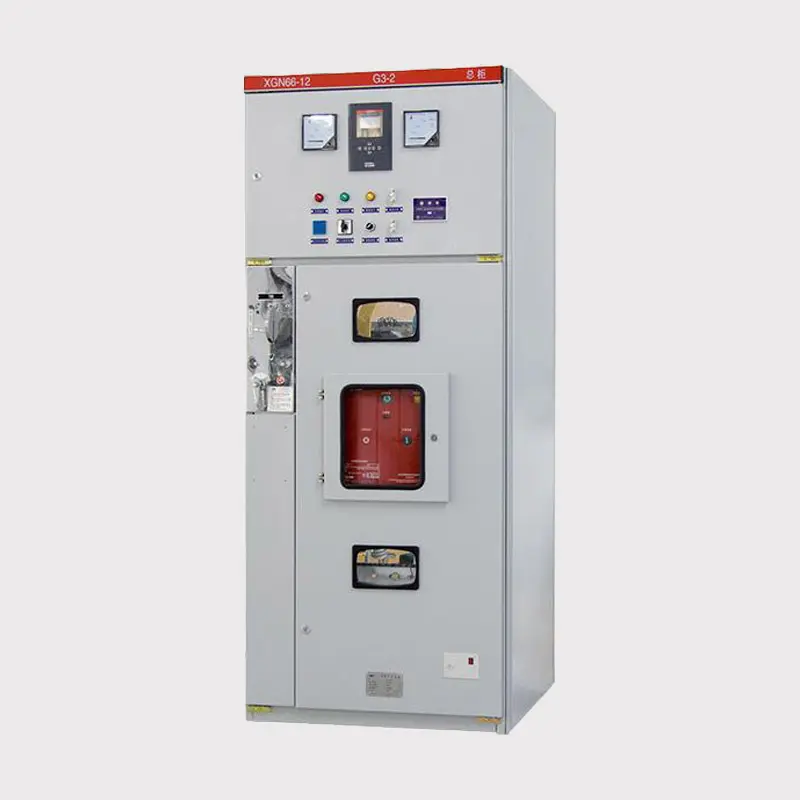

XGN66-12 Indoor High Voltage Switchgear RMU

XGN66-12 Indoor High Voltage Switchgear RMU

The XGN66-12 Indoor High Voltage Switchgear RMU offers a compact and reliable solution for high-voltage power distribution, designed for high performance and safety in various environments It is suitable for power plants, substations, industrial enterprises, and high-rise buildings


Availability:



Inquire Add to Basket

Product Description

Overview

The XGN66-12 Indoor High Voltage Switchgear RMU is a compact, fully metal-enclosed, air-insulated, and fixed-type switchgear designed for high-voltage power distribution applications It is suitable for 3.6-12kV three-phase AC 50Hz systems, providing reliable performance and safety features

Key Features

Compact Design: Small footprint, only 50% of the volume of ordinary switchgear
High Reliability: Equipped with high-performance VS1 vacuum circuit breakers
Safety Features: "Five-prevention" interlocking mechanism, reliable grounding system, and IP2X protection level
Easy Maintenance: Circuit breaker room located in the middle (lower) part of the cabinet for easy access
Adaptable: Suitable for various environments, including power plants, substations, industrial enterprises, and high-rise buildings

Technical Parameters

Rated Voltage: 12kV
Rated Current: 630A, 1000A, 1250A, 2000A, 2500A, 3150A
Rated Short-Circuit Breaking Current: 20kA, 31.5kA
Protection Level: IP2X

Applications

Ideal for power distribution in urban substations, industrial plants, commercial complexes, and public infrastructure projects

Key Benefits

Enhanced safety and reliability with minimal maintenance
Compact and space-efficient design
Suitable for harsh environments and high load conditions
Long service life and reduced operational costs

RMU XGN66-12 high voltage
