The JLSGK-12 (7.2) prepaid high voltage meter box is a state-of-the-art integrated solution for high-voltage metering and load control in three-phase power systems. Exclusively designed for outdoor installation, this robust device combines advanced metering technology with industry-leading safety features to meet the evolving demands of modern power distribution networks. By integrating essential components into a single compact unit, it simplifies installation, reduces wiring complexity, and delivers accurate energy measurement with enhanced load management capabilities. Its durable construction ensures reliable performance in the harshest environmental conditions, making it the ideal choice for power utilities and commercial users seeking efficient, secure, and cost-effective energy management solutions.
Engineered to withstand extreme environmental conditions, the outdoor high voltage metering box operates flawlessly across a wide temperature range and altitude tolerance. Its weather-resistant enclosure provides superior protection against dust, rain, snow, and UV radiation, ensuring consistent performance in both urban and rural locations. This rugged design minimizes maintenance requirements and extends service life, even in the most challenging climates.

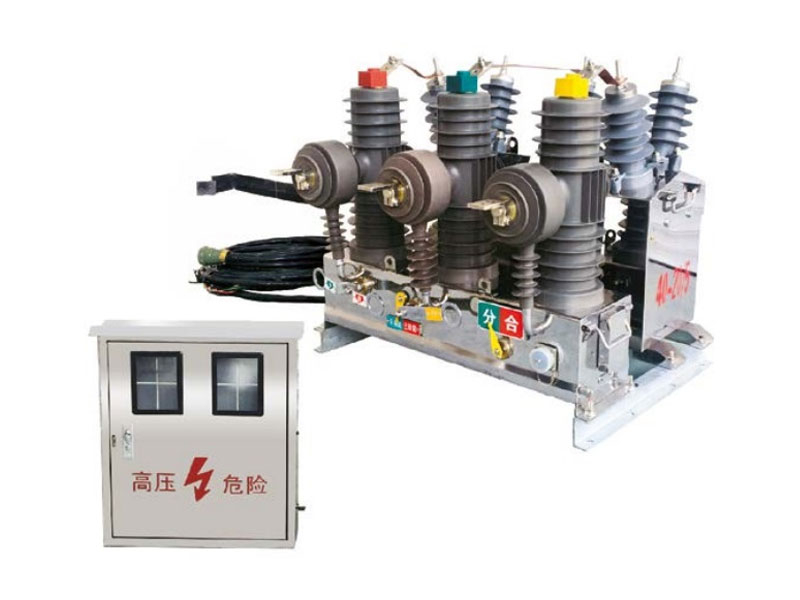

The three-phase high voltage meter box integrates all essential components into a single unit, including a high-voltage vacuum circuit breaker, current transformer, voltage transformer, and control meter box. This innovative integrated design eliminates the need for separate components and complex wiring, significantly reducing installation time and costs. The voltage transformer features a special winding that powers the switch's opening and closing mechanism, eliminating the requirement for external power sources.
Adopting a reliable V-V wiring method for the voltage transformer, the device ensures accurate voltage measurement and stable system performance. The current transformer can be configured with a double ratio structure, allowing it to adapt to different load conditions and enhancing its versatility across various applications. This flexible configuration makes it compatible with most standard three-phase high-voltage power systems.
Addressing critical security concerns, the anti-theft high voltage meter features a unique design that separates the meter control box from the combination switch. All internal wiring uses metal armored cable, which is highly resistant to tampering and theft. This comprehensive security system protects valuable equipment and ensures the integrity of energy measurement data, preventing revenue loss for power utilities.
Parameter | Specification |
Rated Voltage | 7.2kV (12kV maximum) |
Rated Frequency | 50Hz |
Rated Current Range | 630A - 1250A (configuration dependent) |
Enclosure Protection Level | IP4X |
Wiring Method | V-V for Voltage Transformer |
Switch Type | High-Voltage Vacuum Circuit Breaker |
Installation Type | Outdoor |
System Compatibility | Three-Phase High-Voltage Power Systems |
Current Transformer | Double Ratio Configuration Available |
The 7.2kV high voltage prepaid meter is widely used in:
Urban power distribution networks for accurate metering and load balancing
Industrial plants and refineries for precise energy cost management
Large commercial buildings, shopping centers, and hotels
Rural power networks in remote areas with harsh conditions
Residential communities and housing estates
Public infrastructure projects and government facilities
We provide extensive customization services to address unique project requirements:
Custom current transformer ratios to match specific load conditions
Special enclosure materials for highly corrosive environments
Customized communication protocols for integration with existing utility systems
Enhanced security features for high-risk locations
Custom paint finishes and color coding
Special mounting configurations for challenging installation sites
It provides accurate high-voltage energy measurement and comprehensive load control for three-phase systems, enabling efficient prepaid energy management for both utilities and end-users.
Yes, it is specifically engineered for outdoor use and can withstand extreme temperatures, high humidity, heavy rain, and varying altitudes without compromising performance.
The meter control box and combination switch are physically separated, and all wiring uses metal armored cable, making unauthorized access and tampering extremely difficult.
Yes, it is designed to be compatible with most standard three-phase high-voltage power systems within its specified voltage and current ranges.
Our experienced engineering team is ready to provide you with a customized solution that meets your exact energy management needs. We offer competitive pricing, detailed technical support, and comprehensive after-sales service. Contact us today to request your free, no-obligation quote and discover how our JLSGK-12 prepaid high voltage meter boxes can improve the efficiency and security of your power distribution system.
