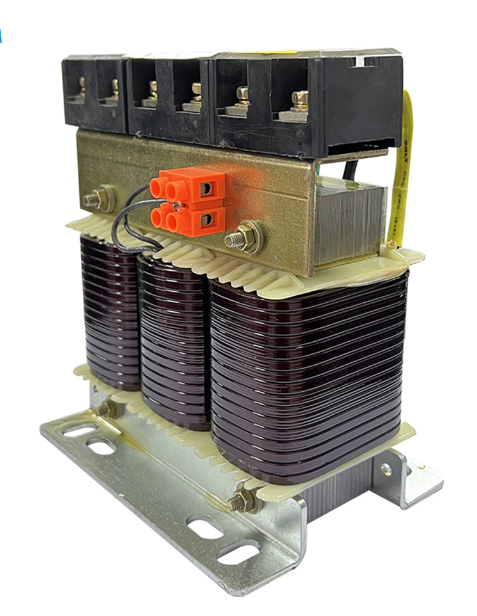

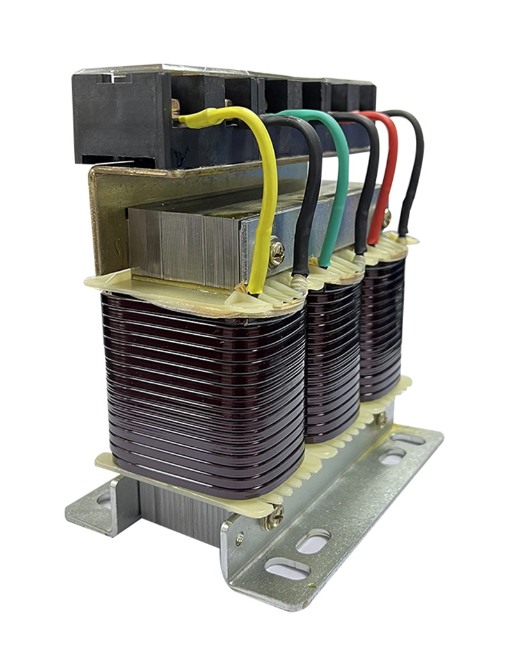

400V 3 Phase Low Voltage Inverter Incoming Line Reactor
This high-performance line reactor enhances power quality and system stability in low-voltage applications by effectively controlling harmonics, improving power factor, and ensuring voltage regulation. Designed for durability in harsh environments, it supports flexible reactance rate selection for diverse industrial needs.
Engineered by a premier manufacturer to deliver unparalleled power quality and system stability in demanding electrical environments.
Functions as a critical safeguard for variable frequency drives, effectively absorbing network harmonics and mitigating transient voltage spikes.
Designed with a comprehensive range of reactance rates to seamlessly integrate with low-voltage capacitor banks for optimized power factor correction.
Constructed by a reliable supplier utilizing robust materials to ensure continuous, reliable operation even in harsh, high-stress industrial settings.
The 400V 3 Phase Low Voltage Inverter Incoming Line Reactor stands as a formidable barrier against electrical instability, meticulously crafted to protect your most sensitive variable frequency drives and automated control systems. Upon inspecting the unit, one immediately notices the substantial weight and the sleek, uniform finish of the tightly wound coils, reflecting a manufacturing process rooted in absolute precision. The smooth, anti-corrosive coating on the exterior framework not only provides a tactile sense of enduring durability but also ensures that the internal magnetic core remains impervious to harsh environmental factors such as high humidity and airborne industrial particulates. When integrated into a heavy-duty electrical cabinet, it operates with a silent, steadfast efficiency, actively taming erratic voltage spikes and smoothing out jagged current waveforms that would otherwise wreak havoc on delicate microprocessors and logic boards.
By systematically absorbing detrimental network harmonics and mitigating transient power surges, this reactor significantly extends the operational lifespan of all connected machinery. Plant managers and electrical engineers will appreciate how it effortlessly transforms chaotic, polluted grid power into a steady, clean electrical flow. This transformation directly reduces the thermal stress on surrounding cables, prevents nuisance tripping of circuit breakers, and mitigates the risk of catastrophic drive failure. Ultimately, the integration of this precision-engineered component translates into minimized production downtime, optimized energy consumption, and a drastically lower total cost of ownership for complex, large-scale electrical infrastructures.
Precise engineering requires precise data. The 400V 3 Phase Low Voltage Inverter Incoming Line Reactor is manufactured to exacting standards, ensuring seamless integration into complex electrical topologies. Below is the comprehensive technical parameter matrix detailing the electrical, mechanical, and operational specifications of the unit. These metrics are crucial for electrical engineers and system integrators when calculating load distributions, harmonic mitigation requirements, and thermal management strategies within low-voltage capacitor compensation cabinets or heavy industrial power systems. By strictly adhering to these rated values—from the diverse reactance rates to the superior insulation classes—facility operators can guarantee optimal performance, maintain strict safety margins, and achieve long-term operational stability. Please consult this table to verify compatibility with your specific motor drive and grid characteristics.
| Parameter | Specification |
|---|---|
| Product Name | 400V 3 Phase Low Voltage Inverter Incoming Line Reactor |
| Rated Voltage | 400V |
| Phase | 3 Phase |
| Reactance Rates | 1%, 4.5%, 5.6%, 6%, 7%, 12%, 13%, 14% |
| Withstand Voltage Level | 3KV/min |
| Insulation Level | Class B, F, H |
| Noise Level | <50dB |
| Overload Capacity | <1.35 times continuous operation |
| Operating Frequency | 50Hz/60Hz |
| Conductor Material | Copper / Aluminum |
| Impedance Drop | 1% - 4% |
| Applications | Low-voltage capacitor compensation cabinets, industrial power systems, commercial buildings, renewable energy projects |
Our engineering team has focused on delivering a component that not only meets but consistently exceeds the rigorous demands of modern electrical networks. The design philosophy centers around maximizing operational uptime while ensuring seamless, hassle-free integration into existing setups.
Harmonic Mitigation: Actively absorbs and neutralizes detrimental network harmonics, preventing premature degradation of sensitive electronic components and extending the lifecycle of your entire electrical system.
Power Factor Optimization: Operates in perfect synergy with low-voltage capacitor banks to dramatically elevate the network's power factor, effectively curbing energy waste and lowering utility costs.
Voltage Stabilization: By carefully adjusting reactor values, the unit smooths out voltage fluctuations, delivering a consistent and reliable power supply even during severe peak load variations.
Exceptional Durability: Housed in a robust, environmentally sealed structure, it withstands extreme temperatures, high humidity, and airborne contaminants, guaranteeing steadfast performance in the most unforgiving environments.
Thermal Efficiency: Engineered with optimized spacing and high-grade conductive materials to ensure rapid heat dissipation, preventing thermal bottlenecks during continuous heavy-duty operation.
Addressing grid pollution is paramount for maintaining the integrity of automated production lines and sensitive instrumentation. This incoming line reactor serves as the primary defense mechanism against a multitude of electrical anomalies that threaten overall system stability.
Surge Suppression: Instantly dampens transient voltage spikes and high-current surges, shielding Variable Frequency Drives (VFDs) from catastrophic electrical shocks that lead to immediate failure.
Current Smoothing: Transforms jagged, irregular current waveforms into smooth, manageable power streams, drastically reducing the thermal load and stress on internal circuitry and motor windings.
Energy Efficiency: By minimizing harmonic distortion and improving the power factor, the reactor significantly lowers the overall energy consumption of the power distribution network, leading to measurable operational savings.
Component Protection: Acts as a robust electrical buffer, isolating delicate control boards, PLCs, and microprocessors from the harsh realities and unpredictable fluctuations of industrial power grids.
The longevity and reliability of any power component are inherently tied to the quality of its internal materials and the precision of its assembly. We source only premium-grade materials to construct a reactor that endures continuous, heavy-duty operation without compromise.
Premium Conductors: Available in high-purity electrolytic copper or aerospace-grade aluminum, ensuring optimal electrical conductivity, minimal resistance, and superior heat dissipation under heavy loads.
Precision Core Assembly: Utilizes high-grade silicon steel sheets, meticulously stacked and compressed to eliminate microscopic air gaps, thereby maximizing magnetic efficiency and significantly reducing core losses.
Deep Vacuum Impregnation: The entire coil assembly undergoes a rigorous Vacuum Pressure Impregnation (VPI) process, deeply penetrating the windings with high-temperature resin to lock out moisture and prevent microscopic vibrations.
Anti-Corrosive Finish: The exterior framework is treated with a specialized, industrial-grade coating that resists chemical exposure and prevents rust, maintaining structural integrity over decades of demanding use.
Recognizing that no two electrical infrastructures are identical, we offer an extensive matrix of configuration options. Proper selection ensures maximum compatibility and optimal harmonic mitigation tailored specifically for your motor and cable setup.
Broad Reactance Range: Choose from an industry-leading spectrum of reactance rates, including 1%, 4.5%, 5.6%, 6%, 7%, 12%, 13%, and 14%, allowing for precise tuning against specific harmonic frequencies present in your grid.
Impedance Matching: Designed with an optimal impedance drop ranging from 1% to 4%, providing the perfect engineering balance between stable voltage regulation and robust short-circuit protection.
Customized Adaptability: Our comprehensive engineering guidelines assist in matching the exact reactor specifications to your motor's cable length and the rated AC current, eliminating the guesswork from system integration.
Scalable Solutions: Whether outfitting a single VFD enclosure or upgrading an entire facility's power distribution board, the flexible specification matrix ensures seamless scalability without compromising performance.
Excessive acoustic noise is a common indicator of mechanical stress and magnetic inefficiency in power components. Our reactors are engineered from the ground up to operate with whisper-quiet precision, ensuring a safe, comfortable, and compliant working environment.
Ultra-Quiet Operation: Rigorously tested and certified to maintain a noise level of strictly less than 50dB, making the unit virtually imperceptible even in quiet commercial building control rooms.
Optimized Clamping Force: The iron core is secured with a precisely calibrated clamping pressure (0.8 to 1.2 MPa), effectively neutralizing the magnetostriction effect that causes the notorious low-frequency humming.
Anti-Vibration Hardware: Assembled using specialized, self-locking fasteners and dampening pads that absorb microscopic mechanical tremors before they can resonate through the cabinet enclosure.
Magnetic Flux Control: The core geometry is carefully calculated to maintain an optimal magnetic flux density, preventing magnetic saturation and the associated acoustic noise spikes during peak operational hours.
In high-stakes industrial environments, unexpected downtime is simply unacceptable. This reactor is fortified with advanced structural enhancements designed to withstand extreme electrical stress and prevent catastrophic, system-wide failures.
Exceptional Overload Capacity: Engineered to sustain up to 1.35 times its continuous operational rating, providing a critical safety buffer during sudden heavy motor startups or unexpected grid surges.
High Withstand Voltage: Capable of enduring a withstand voltage level of 3KV per minute, ensuring the internal insulation remains completely uncompromised even during severe electrical storms or switching transients.
Thermal Management: Features strategically designed ventilation channels between the coil windings, promoting rapid convective cooling to prevent localized hot spots and long-term thermal degradation.
Structural Integrity: Incorporates advanced grading ring designs to evenly distribute electrical stress across the unit, effectively eliminating the risk of surface discharge and brittle insulator fracture.
Versatility is at the core of our engineering philosophy. This reactor has been rigorously field-tested and proven across a diverse array of demanding sectors, consistently delivering unparalleled power stability regardless of the application.
Capacitor Compensation Cabinets: Absolutely essential for protecting low-voltage capacitors from harmonic resonance, thereby extending their lifespan and maintaining optimal, uninterrupted power factor correction.
Heavy Industrial Systems: The ideal solution for steel mills, deep mining operations, and automated automotive manufacturing plants where large motor drives generate significant, disruptive electrical noise.
Commercial Infrastructure: Ensures clean, stable power delivery in large commercial buildings, protecting sensitive HVAC controls, elevator drive systems, and critical data center UPS units from grid fluctuations.
Renewable Energy Integration: Plays a pivotal role in solar photovoltaic arrays and wind power grid-tie inverters, smoothing out variable power generation and ensuring strict compliance with utility grid codes.
Partnering with a dedicated, top-tier manufacturer means gaining direct access to unparalleled technical expertise and a steadfast commitment to long-term reliability. Our production facilities are optimized to deliver uncompromising quality and precise engineering at scale.
Stringent Quality Control: Every single reactor undergoes a comprehensive battery of diagnostic tests, including thermal imaging and harmonic load simulation, before it ever receives approval to leave our facility.
Advanced Manufacturing: Utilizing state-of-the-art automated winding machines and advanced VPI chambers, we guarantee absolute consistency, tight tolerances, and precision across large-scale production runs.
Expert Engineering Support: Our dedicated team of seasoned electrical engineers provides comprehensive technical guidance, ensuring you select the exact specifications required for your unique, complex application.
Reliable Supply Chain: As a primary source supplier, we maintain robust inventory management and highly streamlined logistics, ensuring your critical components arrive on schedule, every single time, to keep your projects on track.
To assist our clients and engineering partners in making informed technical decisions, we have compiled detailed, professional responses to the most common engineering inquiries regarding our incoming line reactors.
How does the 1.35x overload capacity specifically benefit heavy-duty motor applications?
The substantial overload capacity allows the reactor to safely absorb the massive inrush currents typically experienced during the startup phase of heavy industrial motors. This prevents severe voltage sags across the local grid and protects the VFD from triggering immediate, disruptive fault trips.
What is the primary engineering advantage of the Vacuum Pressure Impregnation (VPI) process?
The VPI process forces specialized, high-temperature insulating resin deep into the microscopic voids of the copper or aluminum coil windings. This completely expels trapped air and moisture, significantly enhancing the dielectric strength, improving thermal heat dissipation, and virtually eliminating mechanical vibration noise.
How should an engineer determine the correct reactance rate (ranging from 1% to 14%) for a specific project?
The selection depends heavily on the severity of the harmonic distortion and the specific impedance of the power grid. A 1% to 4% rate is typically sufficient for standard voltage drop and surge protection, while higher rates (up to 14%) are deployed in environments with severe harmonic pollution to prevent dangerous resonance with capacitor banks.
Can this reactor operate efficiently and safely in high-temperature industrial environments?
Yes, the reactor is specifically designed with high-grade insulation materials (rated for Class B, F, or H) and features optimized internal ventilation channels. This design ensures it can maintain continuous operation and structural integrity even in environments with elevated ambient temperatures, such as steel mills or enclosed outdoor substations.
Why is strictly controlling the core clamping force critical to the reactor's acoustic and mechanical performance?
Precise calibration of the core clamping force (maintained between 0.8 and 1.2 MPa) is essential to minimize magnetostriction—the microscopic expansion and contraction of the silicon steel during magnetic flux cycles. Proper clamping eliminates the low-frequency acoustic hum and prevents long-term mechanical fatigue of the core structure, ensuring a quiet and durable lifespan.
