Selection of 1000kVA Transformers: Things Only Those Who Have Learned The Hard Way in Africa Know.

——Not every 1000kVA transformer can actually deliver 1000kVA of usable capacity.

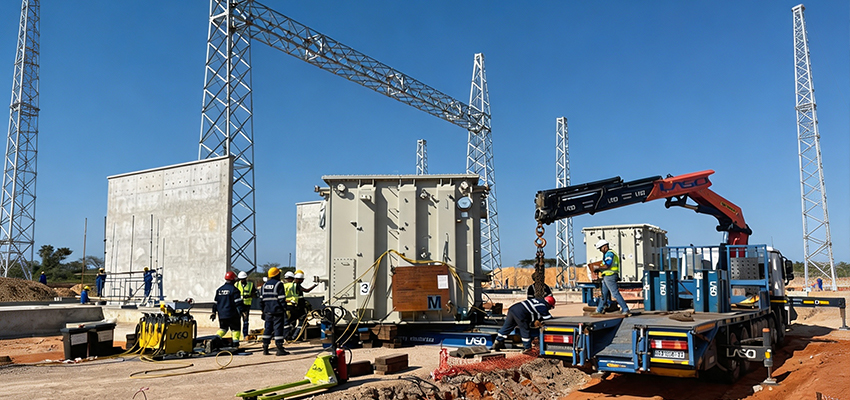

In African industrial projects, 1000kVA transformers are a very common capacity rating, widely used in mining sites, processing plants, industrial parks, and renewable energy projects.

But many projects only focus on the nameplate capacity during the procurement stage, while ignoring local conditions such as high temperatures, grid fluctuations, impact loads, and environmental factors. As a result, after commissioning, problems such as excessive temperature rise, frequent tripping, or even capacity expansion and replacement may occur.

I am a distribution engineer responsible for the African market at Zisheng Electric. Over the years, I have visited many projects, including East African stone crushing plants, West African palm oil processing factories, mining areas in Southern Africa, and small power stations.

Our company has been deeply involved in the African power distribution market for more than ten years. Our products cover oil-immersed transformers, dry-type transformers, prefabricated substations, high and low voltage switchgear assemblies, reactive power compensation equipment, and photovoltaic-specific power distribution terminals. The company has 21 utility model patents, 3 software copyrights, and has passed ISO9001 and IEC 60076 certifications.

But today, I am not going to talk about company qualifications. I want to talk about something more practical — the transformer selection lessons we have learned through real projects and actual costs in Africa.

I have seen too many projects where people make decisions during selection without enough analysis, then regret them after commissioning.

The 1000kVA capacity range is the most widely used among small and medium-sized factories, mining sites, and industrial parks in Africa, but it is also where problems occur most frequently.

Let me start with two real cases:

At an East African stone crushing plant, the original design selected a 1000kVA transformer based on conventional industrial load calculations. When the crusher started, the voltage dropped significantly, protection devices frequently tripped, and eventually the plant had to shift production hours — the crusher could not operate during the daytime and had to run at night when the grid load was lower. When our team later reviewed the project, we found that the selection report had completely ignored impact loads and local grid voltage drops. The design simply applied a standard steady-state load calculation and selected a 1000kVA transformer.

At a rice and flour processing plant in West Africa, we participated in the entire transformer selection process. The total installed capacity was 620kW, and the load was relatively stable. At that time, after applying the high-temperature derating factor, we recommended a 1000kVA transformer with an additional 20% capacity margin, together with reactive power compensation equipment. After more than two years of operation, there has been no temperature rise alarm even once. The owner later told us that they initially thought the 1000kVA transformer was oversized, but looking back, they were glad they selected the larger capacity.

Two projects, the same capacity level, but completely different results. The difference was not the equipment brand — it was the selection logic.

1. Why Is 1000kVA Transformer Selection So Easy to Fail in Africa?

The calculation methods used in China must be adjusted when applied to Africa.

When domestic design institutes select transformers, they usually calculate based on an ambient temperature of 30℃ and voltage fluctuations within ±10%, with a safety margin of around 1.1–1.2 being sufficient.

However, African project conditions are completely different:

1.1,grid fluctuations are significant.
Voltage fluctuations of ±20% are not uncommon. When diesel generators are connected to the grid, voltage can fluctuate continuously, and you can clearly see lights flickering. Under these conditions, the transformer's internal magnetic flux changes continuously. Voltage fluctuations increase magnetic flux variation, causing higher core losses and temperature rise, which can reduce equipment service life over long-term operation.

1.2 temperatures are high.
During the dry season, outdoor temperatures of 45℃+ are common. When transformers are installed outdoors, cooling efficiency decreases significantly. Under the same load, a transformer operating with an 80K temperature rise at a 30℃ ambient temperature may approach a 100K temperature rise when operating at 45℃.

1.3 photovoltaic systems make operation more complex.
Inverters generate harmonics, combined with reverse power flow, which can cause localized overheating inside conventional transformers. These hot spots are often hidden internally and may not even be detected by temperature monitoring systems.

1.4 dust and salt mist environments.
Mining dust can enter radiator gaps and reduce cooling efficiency. Coastal salt mist can corrode transformer enclosures and insulation components. The aging rate can be much faster than laboratory test data suggests.

When these factors combine, a 1000kVA transformer designed according to standard environmental conditions, without considering African high-temperature environments, long-term load rates, and cooling conditions, may have a continuous operating capability far below its expected design value.

You think you bought 1000kVA, but in reality, you may only have 850kVA available. Once the production line reaches full load, the transformer trips. It is not necessarily an equipment quality problem — the transformer was simply undersized from the beginning.

2. How to Determine Whether Your Project Should Use a 1000kVA Transformer?

After reviewing hundreds of completed projects in Africa, we have summarized a set of practical evaluation methods that can be directly applied on site.

Step 1: Calculate the Basic Requirement

Transformer capacity (kVA) = Total equipment power (kW) ÷ Power factor × Safety margin

For African project conditions, remember these three values:

Safety margin: at least 1.2, preferably 1.25–1.3. Do not go below 1.2.

If there is no power factor compensation, use 0.8. With compensation, it can be improved to 0.9–0.92.

Two examples will make it clear:

Load of 650kW, power factor 0.85, margin 1.25 → Required capacity: 955kVA.
A 1000kVA transformer is suitable.

Load consistently above 750kW, under the same conditions → Required capacity: ≥1059kVA.
A 1000kVA transformer is undersized. If forced to operate, it may trigger alarms every day during the dry season, and eventually a larger transformer will have to be installed.

Step 2: Load Rate Control for Different Applications

Different applications require different load rate limits. Do not apply the same standard everywhere:

Mining crushers and stone crushing plants (impact loads):
Keep the load rate between 60%–75%. Sufficient margin must be reserved for motor starting peak current. Starting current is usually 5–7 times the rated current.

Food processing and textile industries (stable loads):
The load rate can reach 80%, but only if reactive power compensation is installed and the power factor is improved above 0.9.

Photovoltaic grid-connected projects:
Long-term full-load operation is strictly not recommended, and the windings must be optimized for harmonic resistance. Ordinary transformers may not withstand such operating conditions.

3. Six Key Parameters That Must Be Verified During Transformer Selection

Before confirming an order, these six parameters must be checked one by one. Missing even one item may cause problems later.

1. Voltage Level — The Most Common Mistake

The low-voltage side of many African British-standard power systems is 415V, not the domestic 400V standard.

A difference of only 15V can cause problems. If a 0.4kV transformer is ordered directly and shipped to the project site, motor output may be insufficient, and the entire production line may fail to reach full capacity.

We have encountered several projects that failed because of this detail. In the end, voltage regulators had to be added on site, resulting in additional cost and delays.

All transformers exported by Zisheng Electric to Africa support customized ±2×2.5% and ±5% tap adjustment ranges, allowing adaptation to a wider range of voltage fluctuations. Before order confirmation, we also conduct a mandatory review of the local grid voltage standards to eliminate this risk.

2. Vector Group — Choosing Dyn11 or Yyn0 Incorrectly Creates Problems

Three-phase load imbalance is common in African projects due to grid structures and electricity usage patterns.

For African industrial projects with obvious three-phase imbalance, Dyn11 usually provides better zero-sequence current handling capability, which is why it is more widely used in many industrial distribution applications.

Dyn11 offers stronger adaptability. Therefore, for African projects, Dyn11 is generally the preferred choice.

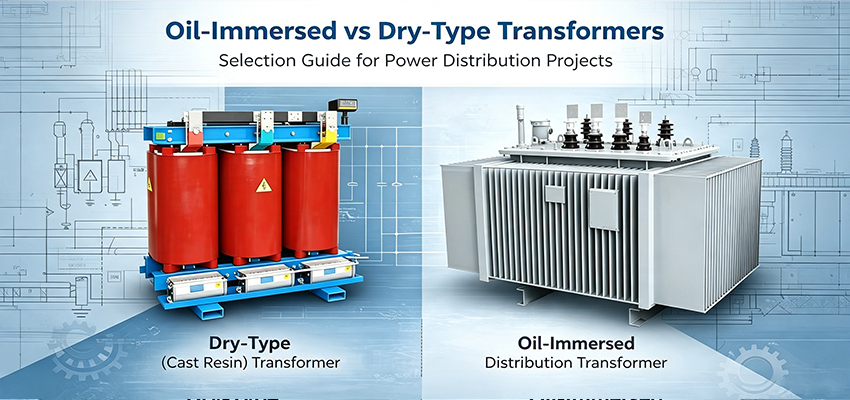

3. Oil-Immersed or Dry-Type Transformer — Depends on Installation Location

Outdoor mining areas and remote industrial parks → Fully sealed oil-immersed transformers. They offer strong overload capability, simple maintenance, and prevent dust and sand from entering.

Indoor factories and densely populated areas → Dry-type transformers. They provide better fire safety and eliminate the risk of oil leakage.

Coastal areas with high salt mist exposure → The oil-immersed transformer enclosure must have C5-M heavy-duty corrosion protection. Ordinary paint coatings can corrode through within just six months in such environments. Once the enclosure is damaged, the entire protection system becomes ineffective.

Zisheng Electric has developed standardized upgrade packages for these three application scenarios: high-temperature inland version, coastal salt mist version, and mining dust-proof version. There is no need for redevelopment; customers can directly select the corresponding configuration.

Speaking of this, it is worth mentioning that Zisheng Electric’s product coverage goes far beyond transformers.

The projects we deliver in Africa are often complete solutions from prefabricated substations to distribution cabinets and reactive power compensation systems. Our product range includes: prefabricated substations (European type / American type / landscape type), high and low voltage switchgear assemblies, cable distribution boxes, switchgear stations, outdoor pole-mounted circuit breakers, high and low voltage reactive power compensation devices, active harmonic filters, JP distribution cabinets, power cabinets, DC panels, signal panels, and integrated automation control systems.

Simply put, for mines or processing plants that need power distribution equipment, we can provide the entire chain. Owners do not need to coordinate with seven or eight different suppliers separately.

4. Insulation Class and Temperature Rise Margin

For inland high-temperature and dry areas, Class H insulation is recommended. In normal environments, Class F insulation is sufficient.

However, regardless of insulation class, enhanced heat dissipation oil tanks and fully sealed structures are essential. Dust and sand protection is also a basic requirement.

5. Loss Level

Low-loss transformers:
Suitable for year-round continuous production or photovoltaic supporting projects. Electricity costs in Africa continue to rise, and the electricity savings over 5–8 years can cover the equipment price difference.

Standard-loss transformers:
Suitable for small factories with intermittent production, helping control initial investment.

For continuously operating projects such as African mines and industrial production facilities, we recommend copper winding solutions to improve short-circuit withstand capability and long-term reliability.

Aluminum windings have significantly lower short-circuit resistance under conditions of frequent grid fluctuations. In Africa, maintenance cycles are often long. If a transformer burns out due to a short circuit and spare parts take two months to arrive, production may also stop for two months. The loss can be dozens of times higher than the original equipment price difference.

All export models from Zisheng Electric are equipped with high-purity electrolytic copper windings as standard. This is not an optional upgrade, but our basic configuration.

6. Anti-Theft Design — An Issue Many People Ignore

Outdoor equipment theft in African suburbs and mining areas is not uncommon. We have lost transformers and cables in several projects in Nigeria and Kenya. After learning from these experiences, we began adding locking anti-theft structures to all outdoor transformers. For new projects, this has become a standard configuration.

Engineer Summary Table 1: Quick Reference Guide for 1000kVA Transformer Selection

This table can be used during project review meetings to align the selection direction within five minutes:

4. Four Real Cases — See How Others Made Their Selection Decisions

Case 1: Palm Oil Processing Plant in West Africa

The total installed capacity was 620kW, with relatively stable loads and no major motor starting impact.

We supplied a Zisheng Electric S13-M-1000 fully sealed oil-immersed transformer with reactive power compensation.

The load rate was controlled at around 78%. After more than two years of operation, there have been zero alarms and zero shutdowns.

Later, the owner expanded one additional production line, and the transformer still had sufficient capacity margin. This is the value of leaving proper margin during selection.

Case 2: Small Mining Processing Plant in Zambia

The load was close to 800kW. At that time, we recommended directly selecting a 1250kVA transformer.

The owner believed that 1000kVA would be sufficient and insisted on the smaller option.

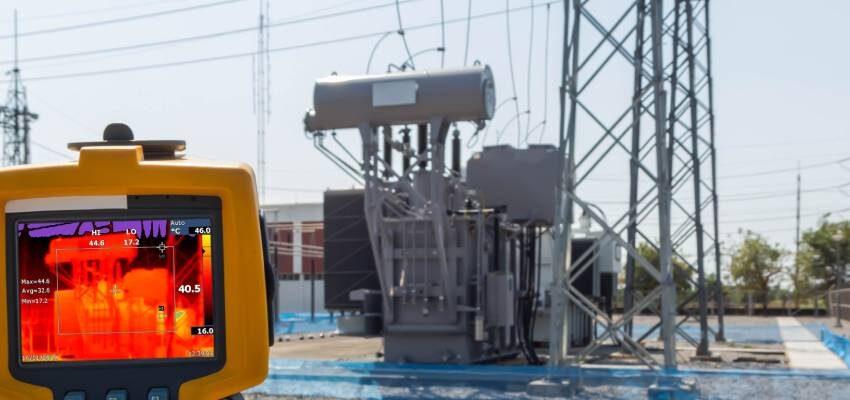

When the dry season arrived, the transformer began showing temperature rise alarms every day, and production had to stop and restart frequently.

Eventually, they were forced to replace it with a 1250kVA transformer, spending extra money on lifting, transportation, and installation. The plant also experienced half a month of production downtime.

We have always remembered the lesson from this project — the money saved during selection can come back as a much higher cost later.

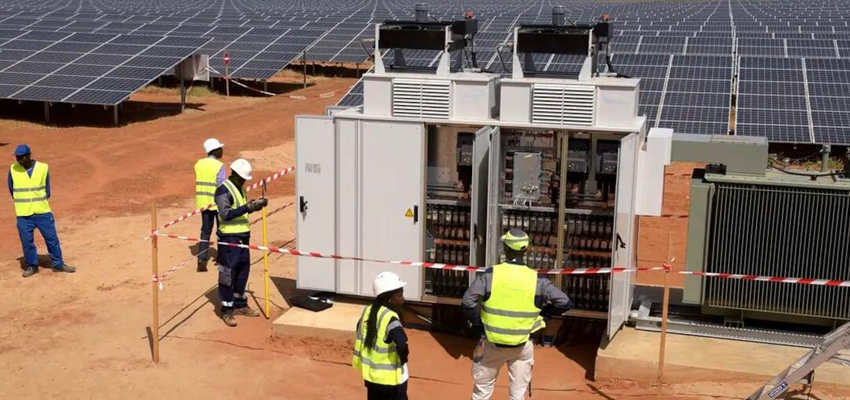

Case 3: South Africa Factory Photovoltaic Project

600kW photovoltaic system paired with a 1000kVA transformer. We specifically developed a harmonic-resistant winding customized version. Why is customization needed? Because a previous project used a standard general-purpose transformer, and inverter harmonics caused abnormal localized winding temperatures. Within six months, the insulation broke down. Photovoltaic projects are completely different from traditional projects. The combination of bidirectional power flow and harmonic accumulation means that winding design must be calculated separately.

Case 4: Industrial Park Standard Factory Building

The owner’s load was not large at that time, but there was a plan to expand production within three years. We recommended installing the Zisheng Electric S13-M-1000 transformer directly. The additional investment was limited, but it avoided the lifting costs, power outage losses, and procurement lead time required for a second replacement two years later. The owner accepted the recommendation, and looking back now, the decision was correct.

One more point: For the African renewable energy market, in addition to photovoltaic harmonic-resistant customized transformers, Zisheng Electric also provides supporting equipment such as wind power dedicated pad-mounted transformers, photovoltaic dedicated pad-mounted transformers, and intelligent landscape pad-mounted transformers. Whether it is solar-diesel hybrid microgrids, factory distributed photovoltaic systems, or remote off-grid power stations, we have corresponding product solutions. All windings are optimized for harmonic resistance.

5. Five Most Common Mistakes in African Transformer Procurement

These five mistakes are all problems we have encountered at actual project sites, not just theoretical summaries.

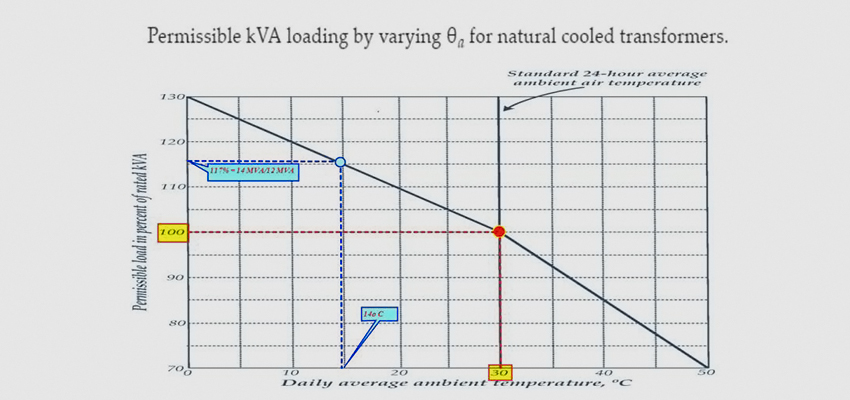

Mistake 1: Only Looking at Nameplate Rated Capacity and Ignoring High-Temperature Derating

The nameplate rating of 1000kVA is based on a 30℃ ambient temperature. During the 45℃ dry season in Africa, the actual available capacity may be reduced by 10–15%, leaving only 850–900kVA. If this reduction is not considered during selection, overload problems will inevitably occur after commissioning.

The approach of Zisheng Electric is to directly adjust the available capacity according to the historical temperature data of the project location during the selection stage, rather than simply applying the nameplate value.

Mistake 2: Choosing Aluminum Windings to Save Money

As mentioned earlier, aluminum windings have weaker short-circuit withstand capability. African power grids experience frequent fluctuations, and short-circuit risks are generally higher than in many domestic projects. Once a transformer burns out, waiting two months for spare parts can result in production losses that are dozens of times higher than the initial price difference.

Zisheng Electric export models are all equipped with high-purity electrolytic copper windings as standard. This is our baseline requirement and something we do not compromise on.

Mistake 3: Using General-Purpose Transformers Directly for Photovoltaic Projects

Standard transformers are not optimized for harmonics and bidirectional power flow. Localized overheating after several months of operation is highly likely. Photovoltaic projects require harmonic-resistant customized models.

Zisheng Electric has a dedicated photovoltaic customized product line, solving the issue through winding structure optimization rather than simply adding a label.

Mistake 4: Not Verifying Local Voltage Standards and Ordering 0.4kV Instead of 0.415kV

This mistake happens every year. Before order confirmation, we strictly verify local grid voltage standards and lock down this step.

Mistake 5: Ignoring Anti-Theft Requirements

In high-theft-risk areas, outdoor equipment theft can happen, and the replacement procurement cycle is often long, leaving production lines waiting. For high-theft-risk projects, Zisheng Electric now provides standard anti-theft locking structures. The cost is low, but the protection effect is significant.

Engineer Summary Table 2: Mandatory Parameter Verification Checklist

This table is used for on-site inspection. Check each item one by one. If any item is missing, the project should not proceed:

6. FAQ: Common Questions About 1000kVA Transformer Selection in Africa

1. What size factory load is a 1000kVA transformer suitable for?

A 1000kVA transformer does not mean it can continuously operate at a 1000kVA load. The actual suitable load depends on power factor, ambient temperature, load type, and future expansion requirements.

Generally:

· Normal industrial loads: recommended long-term operating load rate of 70%–80%;

· Mining, crushers, and other impact loads: recommended 60%–75%;

· Food processing, textile, and other continuous stable loads: can approach 80% when reactive power compensation is properly implemented.

For example, an industrial factory with a load of around 600–700kW and a power factor of approximately 0.85–0.9 may typically be suitable for a 1000kVA transformer under high-temperature conditions.

However, if there are large motor starts, future expansion plans, or photovoltaic integration requirements, the capacity must be recalculated.

2. Why can’t African projects calculate 1000kVA transformer selection directly according to domestic standards?

Because many African regions have significantly different operating conditions compared with conventional design environments.

The main influencing factors include:

· High ambient temperatures, with some areas exceeding 40℃ for long periods during the dry season;

· Significant grid voltage fluctuations;

· Large starting impacts from mining and industrial equipment;

· Dust and salt mist environments affecting cooling and insulation life;

· Harmonics and bidirectional power flow in renewable energy projects.

If these factors are ignored, the equipment may meet nameplate parameters but could experience during long-term operation:

· High temperature rise;

· Frequent protection actions;

· Reduced load capacity;

· Accelerated insulation aging.

3. Should African factories choose oil-immersed transformers or dry-type transformers?

The choice depends on the installation environment.

Recommended Oil-Immersed Transformers:

Suitable for:

· Mining sites;

· Outdoor industrial facilities;

· Remote areas;

· Projects with poor grid conditions.

Advantages:

· Stronger overload capability;

· Better heat dissipation performance;

· Stronger adaptability to outdoor environments.

Recommended Dry-Type Transformers:

Suitable for:

· Indoor factories;

· Commercial buildings;

· Data centers;

· Areas with strict fire protection requirements.

Advantages:

· No oil leakage risk;

· Better fire safety performance;

· More environmentally friendly maintenance conditions.

4. Why do African mining projects often experience insufficient 1000kVA transformer capacity?

Mining loads are different from ordinary industrial loads.

Main reasons:

High Motor Starting Current

Crushers, ball mills, water pumps, and other equipment usually have starting currents several times higher than rated current.

Significant Load Fluctuations

Large instantaneous loads may occur during production.

Limited Grid Support Capability

Remote mining areas often have lower short-circuit capacity and weaker voltage recovery capability.

Therefore, mining projects usually require:

· Lower long-term load rates;

· Reserved starting capacity;

· Optimized starting methods;

· Increased transformer capacity when necessary.

5. Can photovoltaic projects directly use ordinary 1000kVA transformers?

Direct use of ordinary industrial transformers is not recommended.

Photovoltaic projects are different from traditional loads:

· Power may flow bidirectionally;

· Inverters generate harmonics;

· Load changes frequently.

Therefore, attention should be paid to:

· Winding harmonic resistance;

· Temperature rise design;

· Insulation margin;

· Grid connection requirements.

For photovoltaic plants, factory rooftop solar systems, and self-consumption projects, special design should be carried out according to inverter parameters.

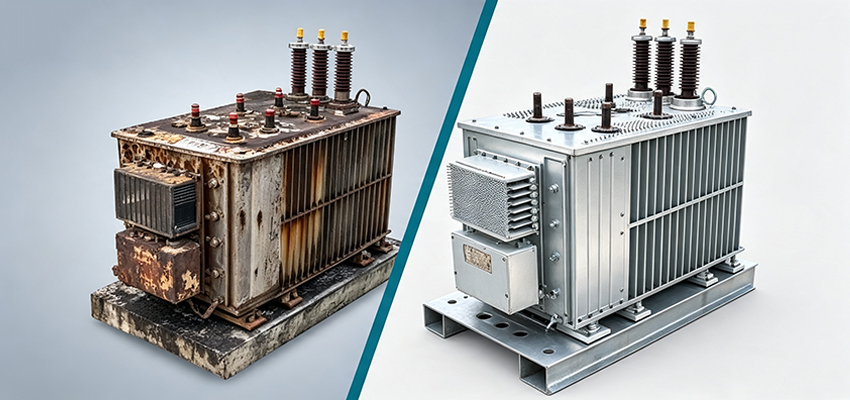

6. What should be considered for 1000kVA transformers in coastal areas of Africa?

The main risks in coastal areas are:

· Salt mist corrosion;

· Oxidation of metal structures;

· Aging of insulation components.

Recommendations:

· Use enhanced anti-corrosion coatings;

· Select enclosures suitable for marine environments;

· Regularly inspect fasteners and external structures.

Standard outdoor coatings may not be suitable for long-term salt mist environments.

7. How does Zisheng Electric help African projects select 1000kVA transformers?

For African industrial, renewable energy, and infrastructure projects, Zisheng Electric evaluates:

· Actual load curves;

· Motor starting conditions;

· Local grid conditions;

· Ambient temperature;

· Installation location;

· Future expansion plans;

and performs capacity verification and solution matching.

Solutions include:

· Oil-immersed transformers;

· Dry-type transformers;

· Photovoltaic dedicated transformers;

· Prefabricated substations;

· High and low voltage switchgear assemblies;

A Final Practical Note

Transformer selection is not simply about purchasing a piece of equipment. It is about purchasing the guarantee of stable operation for the entire production line.

For the 1000kVA capacity range, the right selection can keep a factory running steadily for years. The wrong selection means worrying throughout the high-temperature season, with production lines at risk of unexpected shutdowns.

Africa’s industrial development is accelerating, but transformer selection requires careful load calculation, deep understanding of site conditions, and sufficient design margin. Do not risk millions in production losses just to save tens of thousands on equipment price differences.

Zisheng Electric will continue to focus on the African market, providing oil-immersed transformers, substation transformers, pad-mounted transformers, pole-mounted transformers, dry-type transformers, and other power distribution equipment, while also offering system solutions from selection to operation and maintenance.

Complete the necessary work before the equipment leaves the factory, so that fewer problems occur after arriving at the project site. If you have specific project data, feel free to contact us at any time. We will provide a preliminary technical solution within 24 hours.

Let us help you calculate the actual cost clearly — it is more reliable than making decisions based on assumptions.
