I am a distribution engineer responsible for the African market at Zisheng Electric. Over the years, I have participated in multiple EPC power distribution projects, including mining projects in East Africa, processing plants in West Africa, and renewable energy projects in Southern Africa.
Zisheng Electric has been deeply involved in the African power distribution market for more than ten years. Let me share some practical experience — the problems we have encountered in African EPC projects and how we solved them.

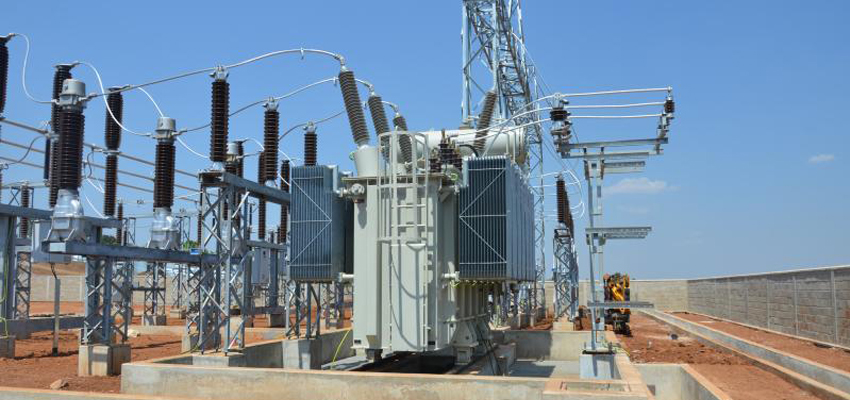

African industrial EPC projects involve long supply chains and numerous risk points.
When it comes to distribution transformer selection, many EPC contractors handle it at the later stage of the project and treat transformers as standardized general-purpose equipment for direct procurement.
Then, after civil construction is completed and the equipment arrives on site, problems are discovered — incorrect parameters, frequent temperature rise alarms, and protective shutdowns. Rectification, replacement, on-site modifications, and owner claims for project delays all become the responsibility of the EPC contractor. The price difference saved on the transformer is nowhere near enough to cover these losses.
After following hundreds of projects in Africa, we have identified a common issue: many teams directly copy domestic power distribution drawings when preparing equipment lists, without considering local African grid characteristics, extreme climate conditions, and limited operation and maintenance support capabilities.
The equipment cost savings achieved during the early stage often turn into unexpected rectification costs later.
In this article, from the perspective of EPC contractors, we will use real project experience to break down transformer selection risks, capacity calculations, equipment configuration, and common tender document pitfalls one by one.
The mature industrial power distribution systems in China are built on three foundations: stable public grids, complete after-sales support, and moderate climate conditions. When this approach is directly applied to Africa, the following four hidden risks often emerge.
In many African countries, public grid voltage fluctuations can reach ±20%. Power outages from the utility grid are common, and projects often rely on diesel generators for backup power. The problem is that during repeated switching between the utility supply and diesel generators, voltage and frequency continue to fluctuate. The voltage regulation range of standard transformers is often too limited to handle these conditions.

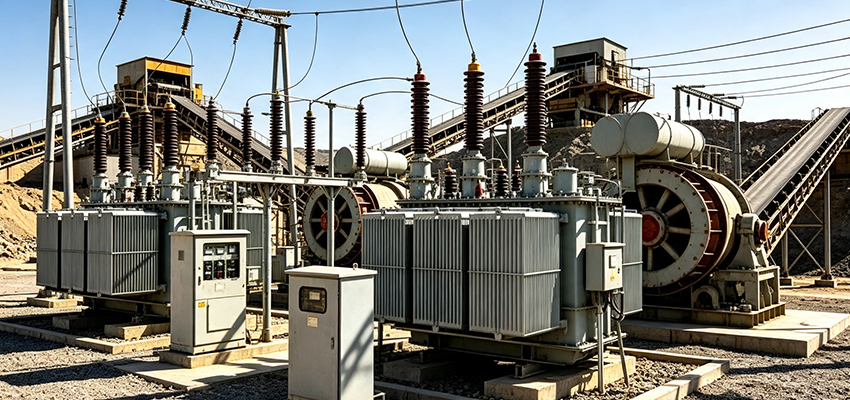

In addition, when large motors such as mining crushers and industrial fans start up, the inrush current can surge instantly, causing overload protection to trip easily.
Real Case: Tanzania Quarry Plant EPC Project
During the EPC bidding stage, the contractor directly copied the power distribution design from a domestic quarry project and purchased a standard 1000kVA transformer. The voltage regulation range was not expanded, and insufficient load margin was reserved.
During the initial operation period, multiple crushers were running simultaneously. Once the utility voltage dropped, the transformer immediately triggered protection and shut down.
This was not an occasional event — it happened frequently.
The owner issued a project delay notice directly according to the EPC contract. The EPC contractor had no choice but to urgently purchase voltage regulation equipment and send engineers to the site for modifications.
After including equipment costs, travel expenses, and production losses, the total cost was far higher than the price difference of the transformer itself.
In inland Africa, the dry season temperature can exceed 45℃. Coastal areas face salt mist corrosion on metal enclosures, while mining areas suffer from dust accumulation that blocks cooling channels.
Most transformers on the market are designed based on a temperate 30℃ reference condition. When installed outdoors in Africa, their effective output capacity can be significantly reduced. Many tender documents only specify the rated capacity and completely ignore the issue of ambient temperature derating factors.
When equipment operates under long-term overload conditions, insulation aging accelerates, and failures may occur even within the warranty period.
Real Case: Kenya Mombasa Coastal Food Processing Plant EPC Project
To control the project budget, the EPC contractor selected a transformer with standard corrosion protection and did not upgrade to a C5-M heavy-duty anti-corrosion coating system.
Only 14 months after commissioning, large areas of rust appeared on the external tank surface. The flange sealing performance deteriorated, resulting in slow transformer oil leakage and oil quality degradation.
Eventually, the transformer had to be shut down for major maintenance. The project completion acceptance was directly delayed, and the final payment collection was also affected.

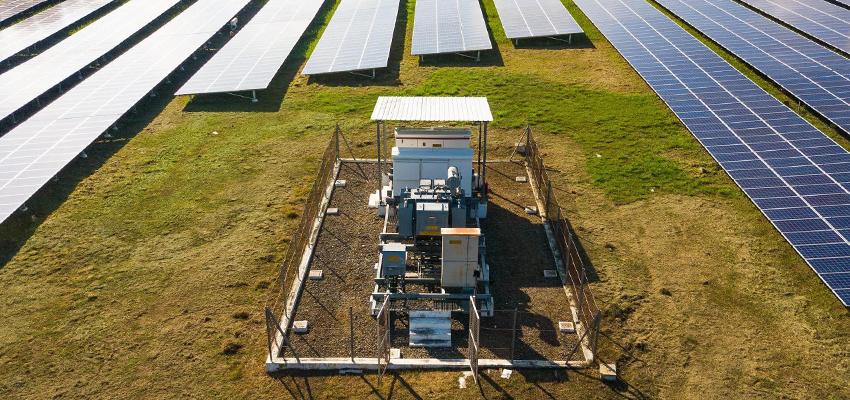

In the past three years, industrial owners in Africa have become increasingly interested in installing solar PV systems within their plants to reduce diesel consumption. However, photovoltaic inverters continuously generate harmonics, and power flow can become bidirectional. Conventional transformers are often unable to withstand these operating conditions.
More importantly, this type of localized overheating is a hidden failure. Even infrared temperature monitoring may not detect it in time. By the time winding damage occurs, the issue is discovered too late, production lines stop, and the EPC contractor faces significant compensation claims.
Real Case: Ghana Accra Food Factory Solar PV EPC Project
The EPC contractor purchased a conventional oil-immersed transformer without selecting an anti-harmonic customized model.
During the peak solar output period at noon, infrared temperature monitoring detected that the winding local temperature rise continuously exceeded the allowable limit. To prevent transformer damage, the site had to artificially limit PV output, meaning the actual power generation could not meet the EPC contract requirements.
The EPC contractor and the owner disputed this issue for several months, and the final payment could not be released.
Most industrial plants in Africa do not have professional electrical maintenance teams, and remote mining areas often have poor transportation access. Once a transformer fails, spare parts shipped from China by sea can take at least 40 days to arrive.
EPC transformer selection should not focus only on the initial purchase price. Priority should be given to long-term operational stability, spare parts compatibility, and whether the manufacturer has complete export certifications.
Otherwise, when equipment fails, the plant stops. And when the plant stops, money is lost.
Real Case: Northern Zambia Mineral Processing EPC Project
The EPC contractor selected a low-cost aluminum winding transformer and saved some money during procurement.
After two years of operation, an inter-turn short circuit occurred, and the transformer was completely damaged. Local repair was impossible. New spare equipment had to be shipped from China, requiring 42 days by sea.
The production line remained shut down during this period, and the owner’s revenue loss far exceeded the initial procurement savings.
In the end, the EPC contractor not only had to replace the equipment but also bear the production downtime losses.
As an EPC contractor, you cannot simply rely on the rough load list provided by the owner to select transformer capacity. You must perform your own calculation and include multiple margins — voltage fluctuations, environmental derating, and future expansion requirements all need to be considered.
Basic Formula
Required apparent power S (kVA) = Total equipment power P (kW) ÷ cosφ × Safety Margin
Remember these three values:
Motor-based impact loads: cosφ should be 0.80–0.85
With reactive power compensation: cosφ can be improved to 0.90–0.92
Safety margin: African projects should use at least 1.2–1.3, and should not be lower than 1.2
Actual Available Capacity of a 1000kVA Transformer:
Standard environment, cosφ = 0.8 → can support approximately 800kW
After applying African high-temperature derating factor 0.85–0.9 → actual available capacity is approximately 850–900kVA
In other words, you think you purchased 1000kVA, but the actual site usable capacity may only be around 850–900kVA.
Site Load Boundary Criteria (Direct Reference):
Continuous load 550–700kW → 1000kVA is the optimal configuration
Continuous load above 750kW for long periods → Do not use 1000kVA, upgrade to 1250kVA
Real Case: Zambia Small-Scale Mining EPC Project
The owner insisted on using a 1000kVA transformer to reduce costs. The EPC contractor did not firmly insist on the recommended solution and compromised.
As a result, during the high-temperature dry season, the equipment operated under continuous overload conditions, and temperature rise exceeded limits.
Eventually, a 1250kVA transformer had to be purchased again. The additional shipping costs, lifting costs, and production losses were far higher than the cost of selecting the larger capacity transformer from the beginning.
Load Rate Control Limits for Different Applications:
Application | Load Rate Limit | Notes |
|---|---|---|
Mining crushers, quarry plants | 60%–75% | Reserve margin for simultaneous motor starting peaks |
Food processing, textile factories | ≤80% | Reactive power compensation cabinet is required |
Solar self-consumption systems | Avoid long-term full load operation | Anti-harmonic customized transformers are required |

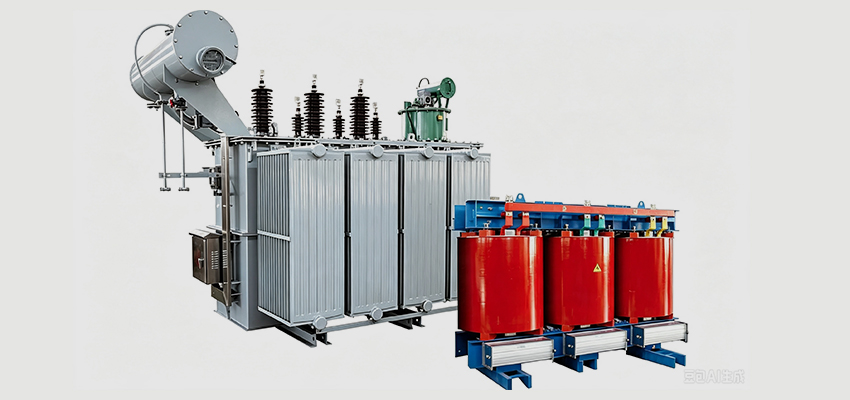

The following table can be used as a technical reference when preparing EPC tender specifications:
Product Type | Suitable EPC Applications | Core EPC Advantages |
|---|---|---|
Fully sealed oil-immersed transformer | Outdoor mining areas, food processing plants, hybrid solar-diesel power stations, new industrial parks | Full copper winding + fully sealed structure, reduced maintenance requirements; supports C5-M heavy-duty anti-corrosion protection; strong overload capability, suitable for unmanned operation sites |
Cast resin dry-type transformer | Indoor substations, free trade zone factories, urban industrial projects, fire-controlled areas | No oil leakage risk, flame-retardant safety; optional dust protection enclosure; low noise, suitable for areas near residential zones |
Anti-harmonic oil-immersed transformer | EPC solar self-consumption projects, industrial energy storage + PV integration projects | Optimized winding electromagnetic structure, withstands bidirectional power flow, reduces harmonic temperature rise, and lowers future claim risks |
Optional Upgrade:
The environmentally friendly ester oil type transformer meets the environmental review requirements of international owners and overseas investment projects. It is highly recommended for international industrial parks in West Africa and East Africa.

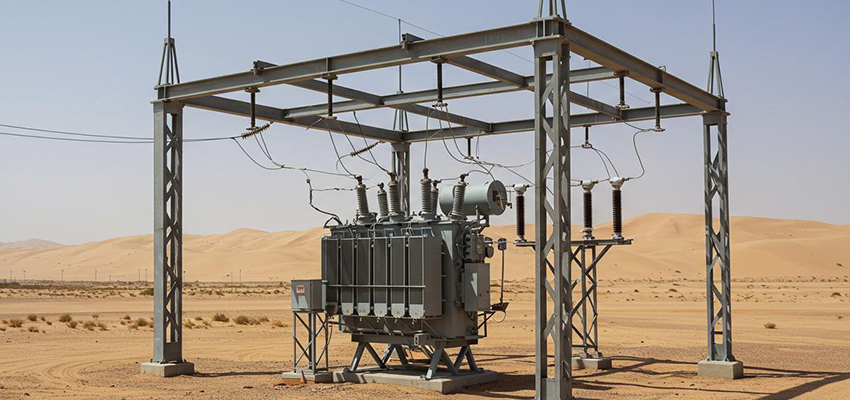

Many EPC tender documents do not even specify corrosion protection or dust protection requirements. Problems are only discovered after delivery when the equipment cannot withstand the site environment.
The following table can be directly copied into technical specifications:
Environmental Conditions | Recommended Configuration | Zisheng Electric Standard Upgrade Solution |
|---|---|---|
Inland tropical grassland and desert areas, high temperature + dust | High-temperature and dust-resistant version | H-class insulation + reinforced cooling oil tank + fully sealed structure to prevent dust and moisture intrusion |
Coastal areas in West/East Africa, high humidity + salt mist corrosion | C5-M heavy-duty anti-corrosion version | Sandblasting treatment of steel plates, complete anti-corrosion coating system including zinc-rich primer + intermediate coating + fluorocarbon topcoat |
Indoor enclosed substations with limited ventilation | Dry-type transformer solution | Add enclosed dust-proof protective enclosure, optimize ventilation channels, and define load limits during the design stage |
The following points are all based on real issues we have encountered on site, not theoretical assumptions.
After equipment arrives on site, the voltage regulation range is found to be insufficient, and voltage fluctuations cause frequent trips. The only solution is on-site modification, which costs both time and money.
✅ Solution: The tender document should clearly state:
“Transformer capacity shall be corrected according to the ambient temperature of the project location, and the voltage regulation range shall not be less than ±5%.”
African operating and maintenance conditions are challenging. Aluminum windings have weaker short-circuit resistance and poorer creep resistance, resulting in a much higher failure risk compared with copper windings.
Once a transformer fails, the EPC contractor takes full warranty responsibility — not the manufacturer.
All Zisheng Electric exported industrial transformers for Africa are standardized with high-purity electrolytic copper windings. This is not an optional upgrade; it is our minimum requirement.
✅ Solution: Specify in the tender document:
“Winding material shall be 100% copper.”
Do not allow substitution.
Hidden failures caused by harmonics are extremely difficult to trace. Once problems occur, the EPC contractor, owner, and manufacturer often enter disputes over responsibility, delaying payments.
✅ Solution:
PV project tender documents should directly specify:
“Anti-harmonic customized transformer required.”
Many African power systems following British standards use 415V on the low-voltage side, not the domestic 400V standard.
If the tender only states 0.4kV and the equipment arrives on site, motors may experience insufficient output power, preventing the entire plant from operating normally.
Real Case: Cameroon Food Processing Plant EPC Project
Due to insufficient technical communication, the low-voltage side was specified as 0.4kV.
During site commissioning, the entire production line suffered from insufficient motor power output.
The manufacturer had to modify the winding structure on site. The project commissioning was delayed by one and a half months, and the EPC contractor faced significant pressure from owner performance assessments.
✅ Solution:
Before order confirmation, mandatory verification of the local grid voltage standard is required. Specify clearly:
“Low-voltage side: 415V.”
Markets such as Kenya and Tanzania require PVOC and COC certificates for customs clearance.
If equipment arrives without the required certificates, containers remain stuck at the port. Demurrage and storage fees continue to accumulate daily, while the project schedule is delayed.
✅ Solution:
The procurement contract must clearly require the supplier to provide complete customs clearance documentation.
In suburban areas and remote mining sites in Africa, outdoor equipment theft is a common issue.
Without anti-theft protection, replacement procurement takes a long time and causes major project delays.
✅ Solution:
For high-theft-risk areas, add a requirement in the tender document:
“Outdoor transformers shall be equipped with lockable anti-theft structures.”
Answer:
Because African projects usually face higher ambient temperatures, more severe voltage fluctuations, more complex load characteristics, and longer maintenance cycles. Transformer capacity and protection levels must be re-evaluated according to actual local operating conditions.
Answer:
It depends on power factor, load type, and environmental conditions.
Generally:
Stable production loads: around 600–700kW is more common;
Large motor impact loads: require a lower loading ratio;
PV projects: must consider harmonics and bidirectional power flow.
Answer:
Dyn11 transformers are widely used in industrial distribution systems. They help suppress third-order and multiple-order harmonics and provide stronger capability to handle three-phase unbalanced loads.
Answer:
Voltage tap changer range, winding material, and anti-harmonic requirements.
Answer:
Because PV inverters generate harmonics and involve bidirectional power flow. Transformers require optimized winding temperature rise control and electromagnetic design to handle these operating conditions.
For African EPC projects, schedule pressure and contractual penalty risks run throughout the entire project cycle.
A transformer may appear to be just one piece of equipment in the power distribution system, but problems in selection, parameters, or protection design can trigger chain reactions, with losses far exceeding the equipment value itself.
Capacity margin, voltage parameters, environmental protection level, harmonic compatibility, and export certification documents — these five points must all be confirmed during the bidding stage.
Do not wait until the equipment arrives on site before trying to fix problems.
Spending more effort on one additional round of operating condition verification during the early stage can save dozens or even hundreds of times the cost of later modifications and downtime losses.
