For large industrial plants, transformers are not merely power distribution equipment, but essential basic equipment that ensures continuous production operation. Once the power supply capacity is insufficient or equipment failure occurs, the production losses caused are usually much higher than the equipment procurement cost. With the continuous improvement of industrial automation levels, the density of production equipment has increased, and the capacity of individual equipment has continued to rise. Traditional small-capacity distribution transformers can no longer meet the load requirements when multiple large-scale devices operate simultaneously. The losses caused by production interruptions due to power outages often exceed the value of the equipment itself, and this factor must be fully considered in industrial project power distribution design.
2500kVA transformers, as a common specification among medium and large-capacity distribution transformers, are widely used in industrial projects. Their advantages include suitable power supply capacity, high operating efficiency, and a certain amount of expansion margin. They can effectively cover the centralized power supply needs of medium-scale industrial plants, while reducing the number of transformer units and optimizing the plant power distribution structure.
In EPC projects, the selection of 2500kVA transformers needs to comprehensively consider local grid conditions, environmental conditions, and load characteristics. Zisheng Electric specializes in the research, development, and manufacturing of oil-immersed transformers, dry-type transformers, amorphous alloy transformers, and related power equipment. Products can be customized and manufactured according to international standards such as IEC 60076 and GOST. The products are exported to markets including the Middle East, South America, Africa, and Russia, providing customized 2500kVA transformer solutions for industrial plants, power grid projects, and renewable energy projects.
2500kVA indicates that the rated capacity of the transformer is 2500 kilovolt-amperes. This capacity level is widely used in the industrial power distribution field.
Item | Example Parameters |
|---|---|
Rated Capacity | 2500kVA |
High Voltage Side Voltage | 6kV / 10kV / 11kV / 13.8kV / 20kV / 33kV / 35kV |
Low Voltage Side Voltage | 0.4kV / 0.415kV / 0.48kV / 0.69kV |
Phase Number | Three-phase |
Frequency | 50Hz or 60Hz |
Cooling Method | ONAN (oil-immersed self-cooling) or AN/AF (dry-type air cooling) |
Design Standard | IEC 60076 |
In actual projects, the voltage level of a 2500kVA transformer needs to be determined according to local grid conditions and the plant power distribution scheme. Different regional markets have different requirements: the Middle East commonly uses 33kV/0.415kV configurations; the African market mainly uses 33kV/0.415kV and 11kV/0.415kV configurations; the South American market commonly uses 13.8kV/0.44kV and 34.5kV/0.48kV combinations; while the Russian market more commonly uses 10kV/0.4kV, 20kV/0.4kV, and 35kV/6kV combinations. Before selection, it is necessary to confirm the target market’s grid frequency (50Hz or 60Hz) and low-voltage side voltage standards to avoid parameter mismatches that may prevent the equipment from being connected to the grid.

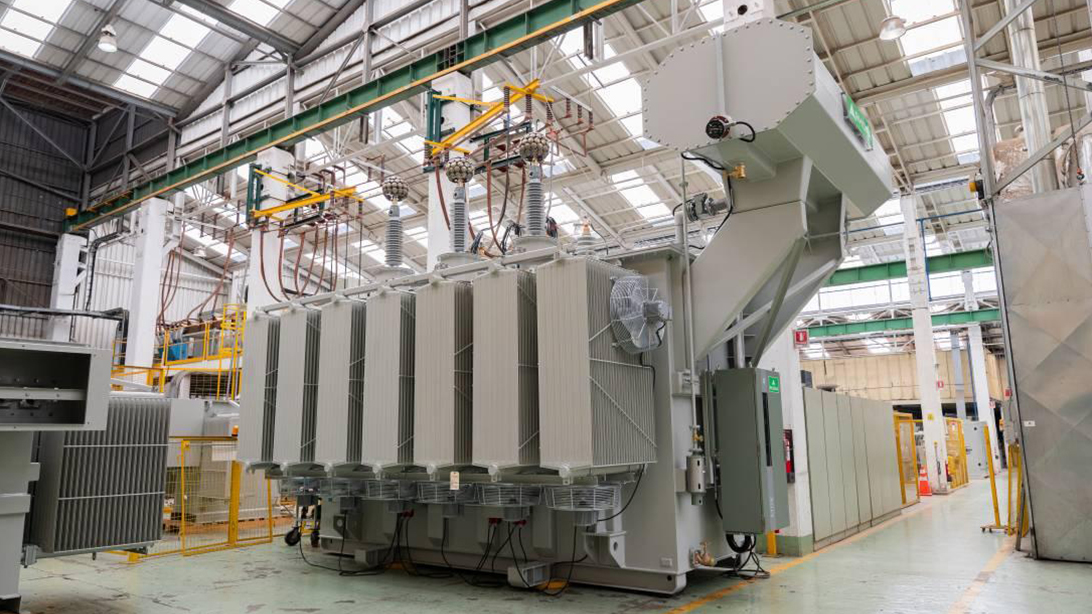

Manufacturing factories. In industries such as automobile manufacturing, mechanical processing, and metal processing, loads such as CNC machines, stamping equipment, welding equipment, automated production lines, and air compressor systems are relatively concentrated. These types of equipment usually feature high starting currents, long continuous operating times, and high requirements for voltage stability. 2500kVA transformers can provide centralized power supply for multiple production workshops and effectively reduce the impact of voltage fluctuations on sensitive equipment.

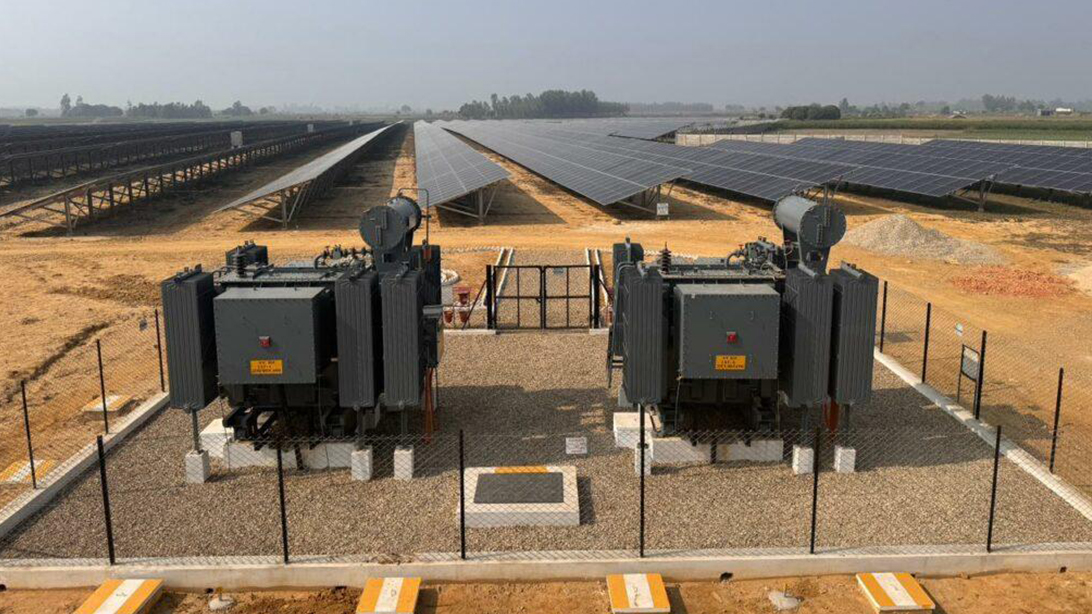

New energy industrial bases. Renewable energy projects such as photovoltaic module factories and energy storage battery production bases have concentrated power loads, high requirements for continuous production, and strict requirements for power quality. 2500kVA transformers can be used for main power supply, production equipment power supply, and auxiliary system power supply in factories. The transformer capacity configuration, harmonic impact control, and temperature rise design need to be optimized according to load characteristics.
Data centers and large-scale IT infrastructure. Data centers are high-reliability power consumption scenarios that typically operate continuously for 24 hours. They have stable loads and are extremely sensitive to power outage risks. 2500kVA transformers are commonly used in the power distribution systems of medium-sized data centers and for front-end power supply of UPS systems. Such projects usually prioritize low-loss design, low-noise operation, high reliability, and redundant power supply solutions.
Mining and energy projects. Mining sites, auxiliary systems of power plants, and energy projects are usually located far from urban power grids, with complex on-site environments. Common operating conditions include high temperatures, dust, high humidity, and grid fluctuations. 2500kVA transformers require special designs according to environmental conditions, including enhanced corrosion protection, higher insulation levels, optimized heat dissipation structures, and improved mechanical strength.
Load capacity calculation. Before selecting a 2500kVA transformer, the following data needs to be calculated: current maximum load, future expansion requirements, equipment starting current, and simultaneous operation coefficient. Capacity selection cannot simply be based on the direct addition of the total equipment power — for example, if the total installed capacity of factory equipment is 3000kW, the actual demand may be lower than the theoretical value because the equipment will not operate at full load simultaneously. A reasonable capacity design can avoid long-term transformer overload operation, unnecessary initial investment, and difficulties in future expansion. At the same time, the overload capability of 2500kVA transformers can generally maintain operation for a certain period within the range of 10% to 30%. During selection, evaluation can be carried out with reference to the IEC 60076-7 loading guide.

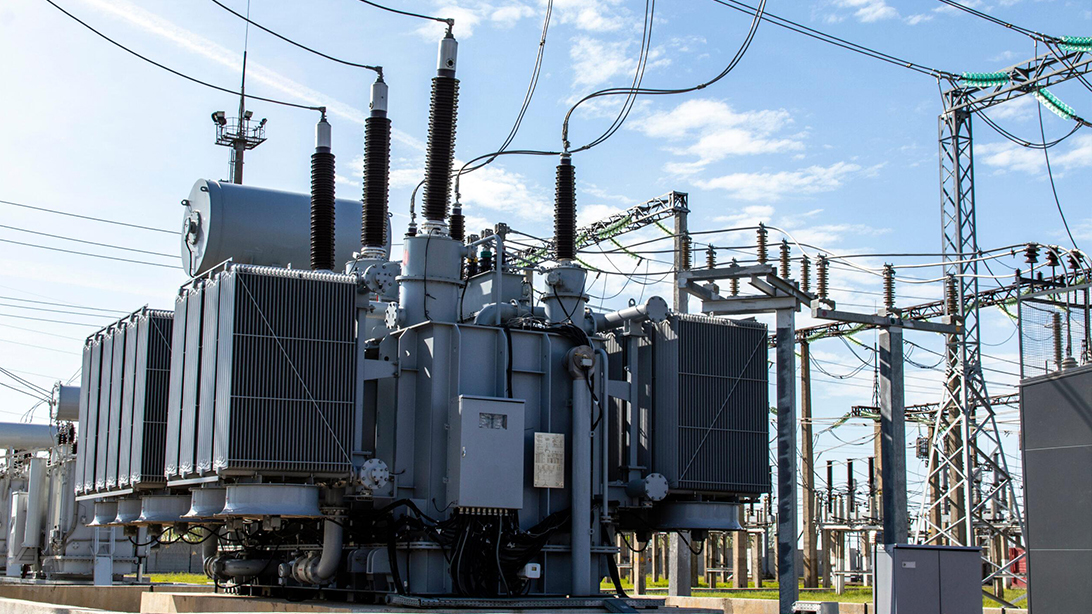

Selection between oil-immersed and dry-type transformers. In industrial plant applications, 2500kVA oil-immersed transformers are commonly used solutions for large workshops, industrial parks, and outdoor substations due to their strong heat dissipation capability and high cost-effectiveness. Oil-immersed transformers have strong cooling performance, are suitable for large-capacity applications, and feature lower operating costs. They are widely used in industrial plants, outdoor substations, and power engineering projects. Dry-type transformers are oil-free and environmentally friendly, with better fire resistance and simple maintenance. They are suitable for indoor distribution rooms, commercial buildings, and locations with higher fire protection requirements. The selection should comprehensively consider installation location, fire protection requirements, environmental conditions, and investment costs.
Energy efficiency level and loss control. Transformers in industrial plants usually operate continuously throughout the year. No-load losses and load losses directly affect long-term electricity costs. The use of low-loss designs, such as high magnetic flux density oriented silicon steel cores, optimized magnetic circuit structures, and high-conductivity windings, can effectively reduce long-term operating costs. The selection of energy efficiency levels should be based on the local electricity price level and the project’s investment payback requirements.
Temperature rise control and cooling design. In industrial environments, transformers may operate under high loads for extended periods. Attention needs to be paid to winding temperature rise, oil temperature changes, and cooling conditions. Common measures include increasing the radiator surface area, optimizing oil circulation, and installing temperature monitoring devices.
Short-circuit withstand capability. Industrial plants contain a large number of motors, variable frequency drives, and high-power starting equipment. Short-circuit impacts may cause mechanical damage to transformers. During selection, attention should be paid to winding structure design, mechanical strength, and short-circuit test capability. Designing and verifying the short-circuit withstand capability according to the requirements of the IEC 60076-5 standard is a key factor in ensuring that the equipment maintains integrity during grid faults.
When installing 2500kVA transformers, the following conditions need to be given priority consideration: whether ventilation conditions are adequate, whether sufficient maintenance space is available, whether transportation routes are unobstructed, and whether the protection level meets environmental requirements. Supporting equipment usually includes high-voltage switchgear, low-voltage distribution cabinets, protection devices, and power monitoring systems. These components need to be coordinated with the transformer to form a complete transformer substation and power distribution system.
The installation of oil-immersed transformers also requires consideration of safety facilities such as fire protection distances, oil collection pits, and fire-resistant partition walls. The installation of dry-type transformers requires attention to indoor ventilation and dust protection measures.
For industrial plants, 2500kVA transformers are usually core power distribution equipment, with an operating life often exceeding 20 years. Once problems occur during the design, manufacturing, or delivery stages, they may not only affect project acceptance but also create risks such as production shutdowns and increased maintenance costs in later operation. Therefore, when purchasing 2500kVA transformers for industrial projects, the supplier’s technical capabilities and project experience are equally important.
(1) Technical Parameter Matching Capability
Industrial projects in different countries and regions have significant differences in voltage levels, frequencies, environmental conditions, and load characteristics.
For example, industrial projects in the Middle East usually need to consider high-temperature and strong ultraviolet environments; projects in Africa may face grid fluctuations, high humidity, and dust issues; while Russia and high-latitude regions need to focus on low-temperature starting performance and the adaptability of insulation materials.
Reliable transformer manufacturers need to provide customized designs according to actual project conditions rather than simply supplying standard products.
(2) International Standards and Testing Capability
Industrial projects usually have higher requirements for equipment standards and technical documentation.

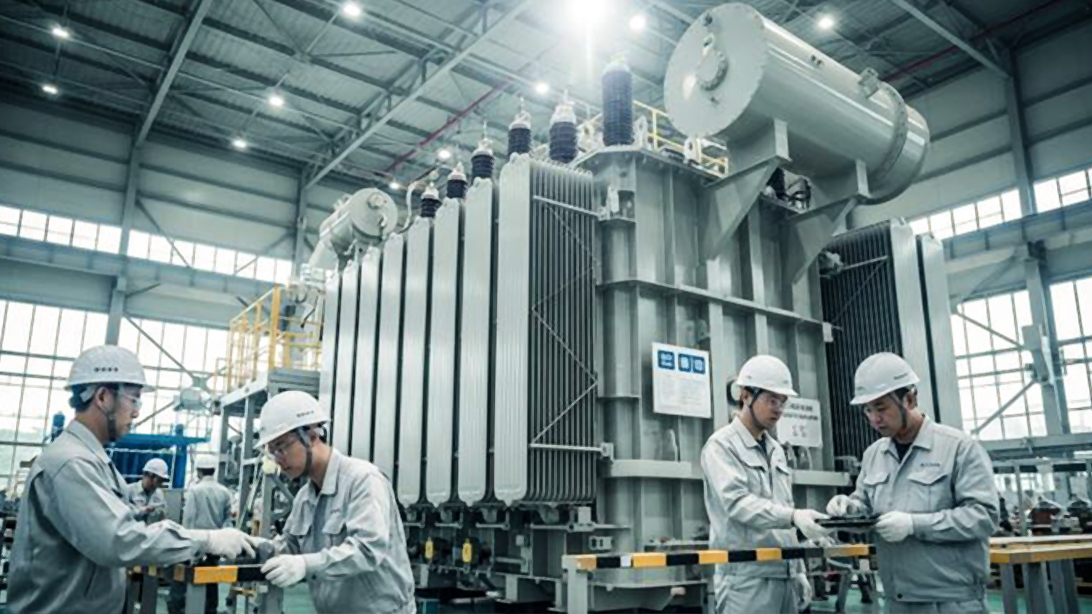

A 2500kVA transformer supplier should have the capability to design and manufacture according to international standards, such as meeting the requirements of the IEC 60076 standard, and be able to provide complete factory test reports, including:
Winding resistance test
Transformation ratio test
No-load loss test
Load loss test
Insulation performance test
Short-circuit withstand capability verification
Complete technical documentation not only facilitates project acceptance but also supports later installation, maintenance, and operation management.
(3) Project Delivery and Technical Support Capability
Industrial projects, especially EPC projects, have high requirements for delivery schedules and technical coordination.
A 2500kVA transformer supplier must not only have sufficient production capacity but also be able to provide the technical documents required for the project, including:
Outline dimension drawings
Foundation installation drawings
Electrical wiring diagrams
Nameplate data
Transportation plans
Installation and maintenance manuals
During project implementation, timely technical response capability can reduce problems in design communication and on-site installation.
(5) Environmental Adaptability Design Capability
The operating environments of industrial projects vary significantly, and standardized products may not be suitable for all applications.
For special environments, transformers may require:
High-temperature derating design
High-altitude insulation correction
Anti-corrosion coating treatment
Low-temperature material selection
Moisture-proof and anti-condensation design
Therefore, transformer manufacturers with engineering experience can optimize equipment according to the conditions of the project location, improving long-term operational reliability.
Zisheng Electric has long been dedicated to the research, development, and manufacturing of oil-immersed transformers, dry-type transformers, and related power equipment. The company can provide customized solutions according to the requirements of industrial plants, power grid projects, renewable energy projects, and EPC projects. For 2500kVA transformers, Zisheng Electric can provide the following technical support:
6kV to 35kV voltage level solutions
Design and manufacturing according to IEC 60076 standards
Environmental adaptability design (high temperature, high humidity, salt mist, high altitude, severe cold conditions)
Complete factory test reports (bilingual in Chinese and English)
Project technical documentation support (outline drawings, foundation drawings, electrical wiring diagrams)
Zisheng Electric has accumulated extensive engineering experience in the application of 2500kVA transformers:

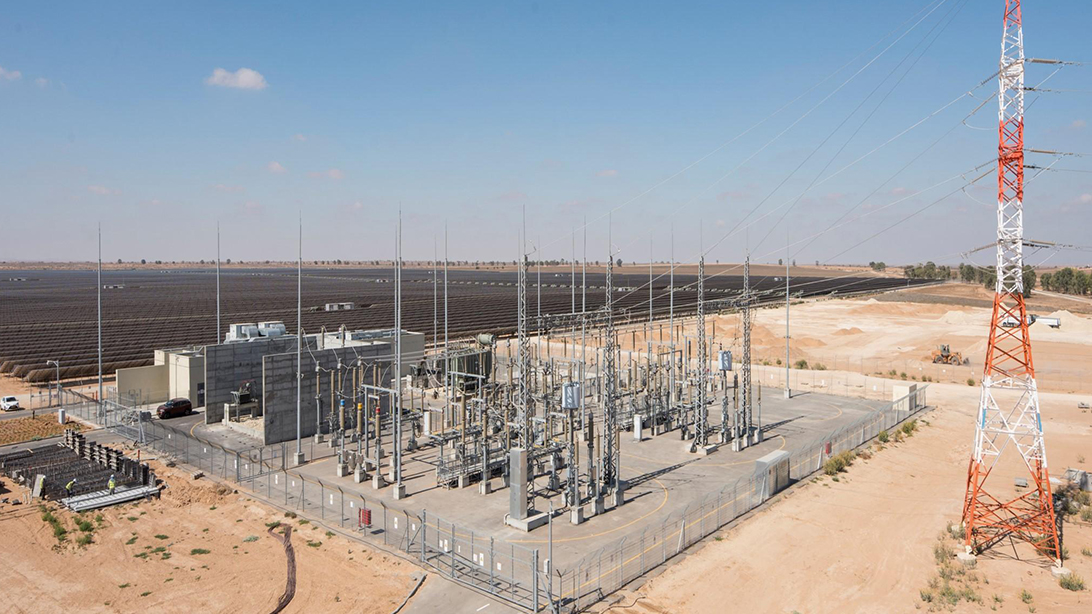

Large-scale photovoltaic power plant project in Saudi Arabia. The project was located in western Saudi Arabia, where the ambient temperature exceeds 45°C throughout the year. The project adopted a 33kV incoming line and 0.415kV low-voltage output solution. The equipment was installed in an outdoor packaged substation area and needed to meet long-term operation requirements under high-temperature and strong ultraviolet conditions. The transformer core used 0.23mm thick high magnetic flux density oriented silicon steel. The magnetic flux density design value was lower than conventional standards to reduce unit losses, ensuring long-term stable operation of the equipment in the desert high-temperature environment.
Industrial park power distribution project in Zambia. The project was located in Zambia’s Copperbelt Province, at an altitude of approximately 1,200 meters. Zisheng Electric provided 11/0.415kV, 2500kVA distribution transformers for the project. The temperature rise design was optimized for tropical plateau climate conditions to ensure reliable operation of the equipment under large day-night temperature variations.
Brazzaville substation project in the Republic of Congo. The project was located in Brazzaville, the capital of the Republic of Congo, where the grid voltage fluctuation range was relatively large. Zisheng Electric provided 33/0.4kV, 2500kVA distribution transformers for the project, with optimized winding structure design to enhance resistance to voltage fluctuations.

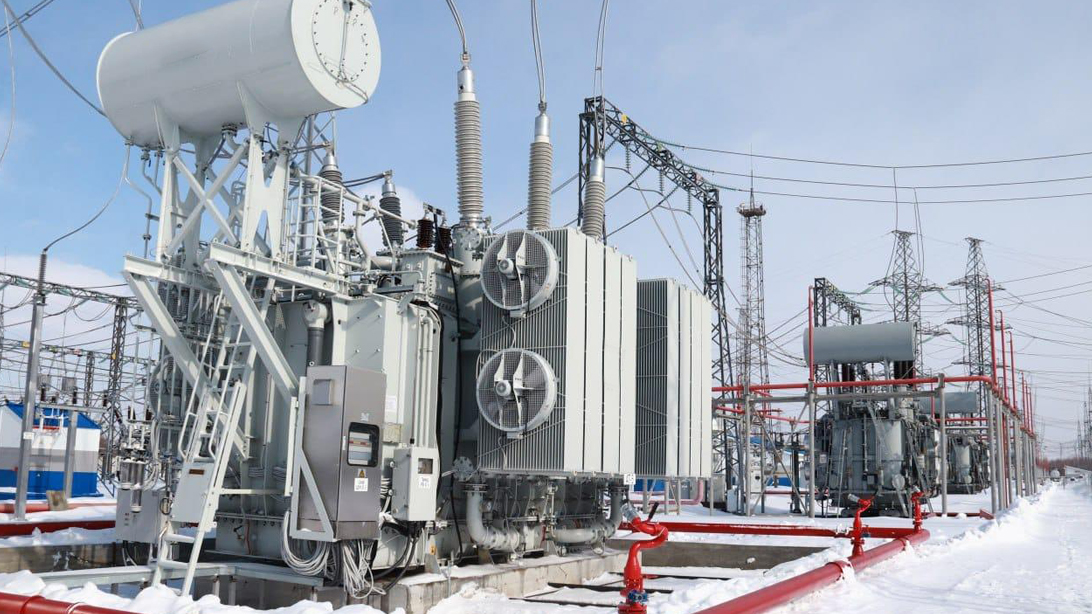

Industrial park power distribution project in Russia. The project was located in the Siberian region of Russia, where the minimum winter temperature can reach -45°C. Zisheng Electric provided 10/0.4kV, 2500kVA oil-immersed transformers for the project. The insulating oil had a pour point below -45°C, and the sealing materials maintained low-temperature elasticity, ensuring normal start-up and operation under extremely cold environmental conditions.
2500kVA transformers are widely used medium and large-capacity power distribution equipment in industrial plants. Their selection requires comprehensive consideration of load characteristics, operating environment, energy efficiency requirements, and long-term reliability. For large industrial projects, selecting a transformer manufacturer with appropriate capacity selection, compliance with international standards, and strong manufacturing capabilities is an important foundation for ensuring continuous production operation.
Zisheng Electric specializes in the research, development, and manufacturing of oil-immersed transformers, dry-type transformers, amorphous alloy transformers, and related power equipment. The company can design and manufacture products according to international standards such as IEC 60076 and GOST, serving markets including the Middle East, South America, Africa, and Russia.
For 2500kVA transformer selection consultation, technical solution confirmation, or procurement support for industrial plants, please send project parameters through Zisheng Electric’s official channels to obtain technical feedback.
