A transformer induced voltage test is not simply another high-voltage check added to the factory acceptance test schedule. It is used to stress insulation between turns, layers, sections and phases while the transformer operates under an induced AC voltage. Zisheng Electric treats the test as a coordinated engineering activity: the winding design, insulation level, test connection, source frequency, voltage measurement, partial-discharge requirements and acceptance evidence must all refer to the same approved specification.
The distinction matters because an induced-voltage test and a separate-source applied-voltage test do not examine the same insulation paths. An applied test primarily stresses insulation from a winding and its connected terminals to earth and to other windings. An induced test raises voltage through transformer action, creating electrical stress within the winding insulation system. A transformer can therefore require both tests under the agreed standard and voltage class.
The test should be linked to the transformer insulation coordination. IEC 60076-3 specifies insulation requirements and the corresponding dielectric tests for power transformers, including induced AC withstand test arrangements and partial-discharge measurement provisions. The purchase order must identify the applicable edition, the winding category, the required test designation and any owner additions. A generic statement such as “test according to IEC” is not enough to define the FAT scope.
During the transformer induced voltage test, voltage is normally supplied to one winding so that a higher voltage is induced in another. The test frequency may need to be higher than rated frequency to prevent excessive core flux when the applied volts-per-turn is increased. The exact frequency, duration, voltage sequence and connection must come from the approved test procedure and applicable standard. They should not be copied from a different transformer without checking the voltage ratio, tapping, core design and insulation system.
Review item | Engineering decision | Why it matters | Risk if incorrect |
|---|---|---|---|
Applicable standard and test designation | Confirm the contractual IEC edition and required induced AC test | Different winding categories and test duties require different procedures | The laboratory performs a test that does not match the purchase specification |
Test connection and energized winding | Define supplied terminals, grounded terminals, open terminals and tap position | The connection determines voltage distribution throughout the transformer | A terminal or winding section receives unintended stress |
Test voltage and frequency | Calculate from approved insulation data and transformer ratio | Voltage establishes dielectric stress; frequency controls core flux | Under-testing, overfluxing or invalid results |
Voltage measurement | Identify measuring transformer, divider, calibration and observation point | The recorded value must represent the intended terminal voltage | Acceptance is based on an unverified measurement chain |
Partial-discharge requirement | Define whether PD is required, measurement band, background limit and acceptance rule | PD data are sensitive to setup, interference and voltage sequence | Noise is mistaken for transformer discharge or a required measurement is omitted |
Test evidence | Agree on waveforms, logs, certificates, event records and witness signatures | A pass statement alone cannot demonstrate how the test was executed | The FAT package is insufficient for owner approval |

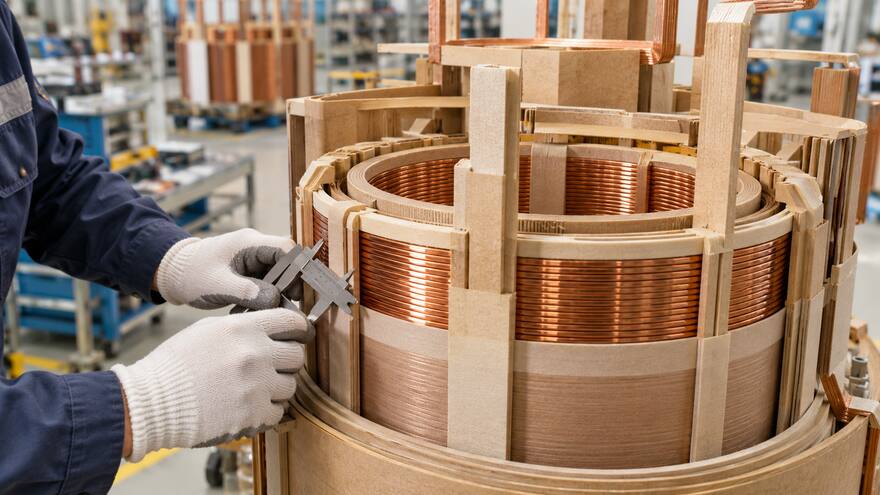

Before the laboratory prepares cables, the engineer should compare the approved data sheet, nameplate drawing and insulation-level schedule. Every winding and terminal must be identified by rated voltage, highest voltage for equipment, insulation level, neutral treatment and connection. The induced-test voltage cannot be reviewed in isolation from this information.
Check whether the neutral is uniformly insulated or graded, whether a tertiary winding is present, and whether any terminal has a special limitation. Confirm the selected tapping. For a transformer with an on-load tap changer or de-energized tap changer, the ratio at the test position affects the voltage induced in the other winding. The procedure should show actual calculated terminal voltages rather than only naming a tap number./
Transformer flux is related to applied voltage, frequency and turns. Raising the voltage without raising frequency can drive the core toward saturation. The result may be excessive exciting current, waveform distortion, heating and unstable source performance. This is why induced tests are commonly carried out above rated frequency when the required volts-per-turn exceeds the normal operating value.
The FAT procedure should state test-source frequency, intended voltage at each winding, ratio basis, permissible frequency variation and how waveform quality will be monitored. The source must have adequate capacity and regulation for the transformer under test. A source that cannot hold the required voltage or produces severe distortion can make the result difficult to interpret.
Test duration is coordinated with frequency and the applicable procedure. The purchaser should not assume that every induced test lasts one minute. Ask the laboratory to show the contractual rule used to establish duration, including any minimum time and voltage sequence. Record actual start and stop times in the report.
If a long-duration induced AC test with partial-discharge measurement is specified, the sequence can include defined pre-stress, measurement and reduction stages. Each stage should be shown graphically in the approved procedure. The operator must be able to relate any recorded PD activity to the voltage level and time at which it occurred.

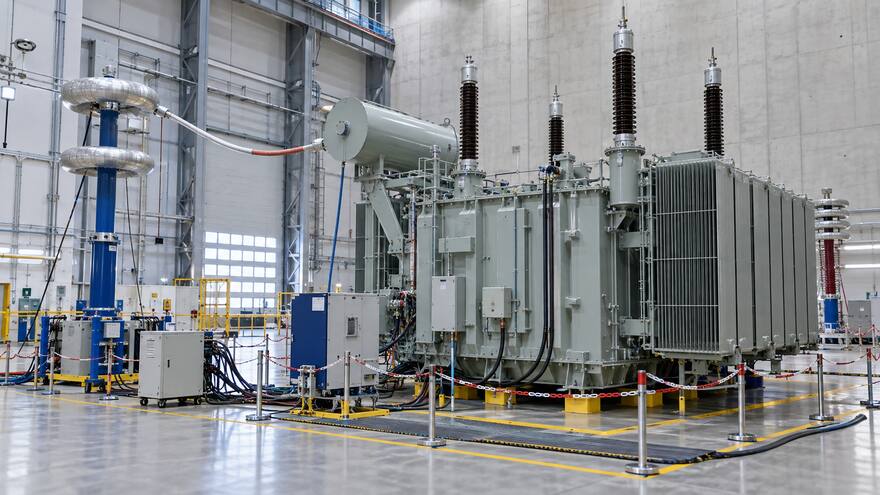

The connection diagram is one of the most valuable FAT documents. It should identify the test source, measuring devices, transformer terminals, earthing points, protective gaps or arresters if applicable, coupling capacitors and PD instruments. Temporary leads need adequate clearances and mechanical support. The laboratory safety zone must be controlled before voltage is applied.
Unused terminals cannot simply be ignored. Their condition—open, connected together, grounded or connected through measuring equipment—affects internal voltage distribution and must follow the approved method. The tank, core-earth terminals and external metalwork also need a defined earthing arrangement. Any temporary disconnection of normal accessories should be recorded and restored after testing.
The available laboratory source and transformer connection determine whether the test is made using a three-phase supply or an approved single-phase arrangement. The procedure must explain how the required phase-to-phase and phase-to-earth stresses are achieved. Witnesses should compare the drawing with the physical cable connections instead of relying only on the test-set display.
Before energization, verify phase designation, bushing identification and tap position. A simple terminal-label mistake can invalidate the voltage calculation. Photographing the final setup can support traceability, but the image should supplement—not replace—the signed connection diagram and instrument list.
The reported voltage is only as reliable as the complete measurement chain. Review the measuring transformer or divider ratio, instrument range, calibration status, connection point and data-acquisition settings. The test report should identify equipment sufficiently for the purchaser to trace the result to the laboratory records.
Peak value, RMS value and the displayed test-set output are not automatically interchangeable. The applicable procedure should define which quantity establishes test voltage and how waveform requirements are assessed. If the waveform is unstable, heavily distorted or interrupted, the laboratory should pause and investigate rather than declaring a pass from the highest displayed value.
Exciting current is useful operating information during the test. A sudden change may indicate source instability, connection problems, core saturation or an insulation event, but it is not a universal acceptance parameter on its own. Record it with voltage, frequency and time so that the engineering team can interpret it in context.

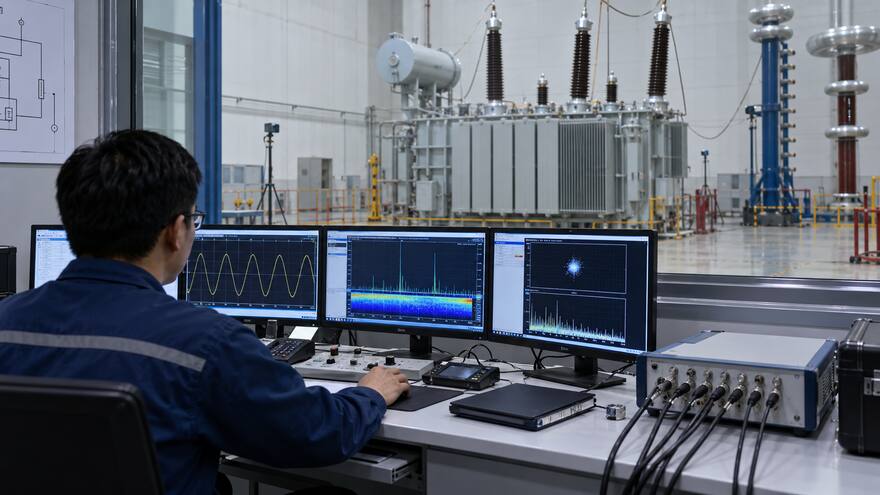

Partial-discharge measurement may be required for specified transformers and test categories. It demands more than connecting a detector. The test circuit, coupling method, measuring impedance, bandwidth, calibration injection points, background-noise assessment and acceptance level must be agreed before the FAT.
Background interference can come from the power source, corona on temporary connections, poor laboratory earthing, switching devices or nearby equipment. A high reading does not automatically prove an internal transformer defect; equally, a quiet screen without a valid sensitivity check does not prove the absence of discharge. Record background before energization and demonstrate the measurement sensitivity according to the agreed procedure.
A useful PD record shows apparent charge against time and test voltage. Note inception, extinction, stability and any sudden change. For multi-channel systems, preserve channel identification and phase association. Phase-resolved patterns or frequency-domain information may help distinguish interference from internal activity, but interpretation should be made by competent test personnel using the complete setup information.
The acceptance decision must follow the contract. If the measured level exceeds the agreed limit, stop and investigate under an approved nonconformance process. Do not repeatedly re-energize the transformer without a reasoned diagnostic plan. Check temporary connections, external corona, instrument configuration and background sources before concluding that the transformer insulation is responsible.
An unexpected source trip, flashover in the external circuit, protective operation, voltage collapse or abnormal sound requires documentation. The laboratory should record the voltage stage, elapsed time, observed location and test-set indications. The engineer then decides whether the event was external, equipment-related or unresolved, and whether a complete repeat is required.
Automatic repetition can hide important evidence. The FAT procedure should define who can authorize a restart, which inspections must be made first and how the first event remains visible in the final report. Purchasers should expect an event log, not a cleaned-up record that only shows the successful run.
The final report should identify the transformer serial number, ratings, vector group, tap position, test designation, applicable standard, connection diagram, test voltage, frequency, duration, measurement equipment and result. Where partial discharge is included, add calibration information, background level, voltage sequence and recorded values at the required stages.

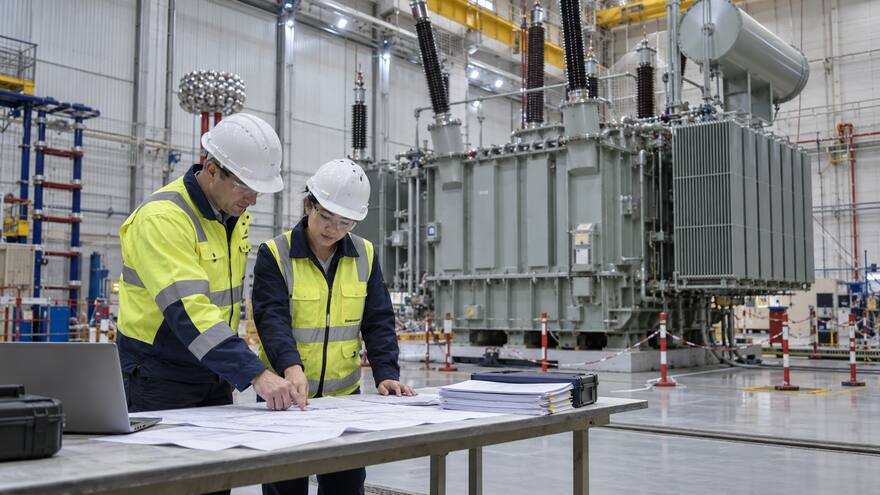

Witness signatures confirm attendance, not necessarily technical acceptance. The owner or EPC reviewer should compare the report with the approved insulation schedule and FAT procedure. Open comments, instrument-calibration questions and unexplained interruptions must be closed before release for shipment.
Also verify restoration after testing. Temporary earths and leads must be removed, accessories returned to their normal configuration, disconnected terminals reconnected, and any protective devices reinstated. A post-test visual inspection and a controlled discharge process complete the activity.
Hypothetical example—not a real project reference: An EPC contractor is reviewing the FAT procedure for a multi-winding power transformer. The draft procedure lists an induced voltage and test frequency but does not show the voltage induced in the tertiary winding, the tap position or whether partial-discharge measurement is required.
The reviewer should request a winding-by-winding voltage table, a connection diagram, tap-ratio calculation, frequency and duration basis, terminal treatment, measurement-chain details, PD requirement, background-noise check, interruption procedure and report template. The actual numerical values must come from the approved transformer design and contractual standard. They should not be taken from this hypothetical example.
State the applicable IEC 60076-3 edition and exact induced-test requirement.
Issue the approved winding and terminal insulation schedule.
Confirm test tap position and calculated voltage at every winding.
Approve the complete test and earthing connection diagram.
Verify source capacity, frequency range and voltage regulation.
Identify the voltage-measurement point and calibrated measurement chain.
Define waveform monitoring and interruption criteria.
Specify partial-discharge scope, background assessment and acceptance level.
Agree the voltage sequence, duration basis and witness points.
Require event logs, raw records and signed final reports.
Close nonconformities before shipment release.
Verify post-test discharge, restoration and visual inspection.
The induced test should be reviewed with the other electrical tests, not as an isolated pass/fail item. Ratio and vector-group results confirm the intended winding connections. Winding-resistance and loss measurements provide additional evidence of winding and core condition. The separate-source applied-voltage test addresses different insulation paths. Lightning-impulse, temperature-rise, sound-level and other type or special tests apply when required by the contract.
Test order can matter. The approved inspection and test plan should show which measurements establish a pre-dielectric baseline, where the induced test occurs, and which checks are repeated afterward. If a result changes unexpectedly, the sequence helps the engineering team identify when the change appeared.
For the broader design basis, review oil-immersed transformer design and manufacturing under IEC 60076. Procurement teams working across voltage classes can also use the Zisheng Electric transformer solutions and technical guidance and the guide to transformer supplier requirements for South American projects. Each resource supports specification review but does not replace the project test procedure.
Relevant equipment families include the 132 kV and 138 kV power transformer, an oil-immersed substation transformer, and the single-phase pad-mounted transformer range. The required dielectric test program depends on the approved rating, insulation level, application and purchase specification.
A dependable transformer induced voltage test begins with a verified insulation schedule and ends with traceable evidence. Test voltage alone is not enough. Frequency, duration, winding voltages, connections, measurement quality, partial-discharge conditions and event handling determine whether the result can support technical acceptance.
Send Zisheng Electric the single-line diagram, transformer data sheet, insulation schedule, winding arrangement, FAT specification and witness requirements. Our engineering team will review the requirements and respond to project inquiries within 24 hours.
