Voltage reaches a building only after careful electrical conversion. A single phase transformer makes this conversion efficient, safe, and practical. It uses magnetic induction to raise, lower, or isolate AC voltage. This guide explains its operation, parts, configurations, benefits, and selection factors.
● A single phase transformer transfers alternating-current power between two circuits through a changing magnetic field.
● Its primary winding receives power, while its secondary winding delivers voltage to the connected load.
● The turns ratio determines whether the transformer raises, lowers, or maintains the input voltage.
● Voltage and current change in opposite directions, while the supply frequency remains unchanged.
● A laminated steel core guides magnetic flux and helps reduce eddy-current losses.
● Pole-mounted units suit overhead networks, while pad-mounted units support secure underground distribution.
● Conventional designs use external protection, while self-protected designs can integrate fault and surge devices.
● Correct selection requires verified voltage, frequency, kVA demand, load behavior, installation conditions, and applicable standards.
● Copper or aluminum windings, cooling fluids, monitoring, taps, and enclosures may be customized.
● Factory testing should confirm ratio, losses, resistance, insulation, impedance, temperature rise, and mechanical integrity.

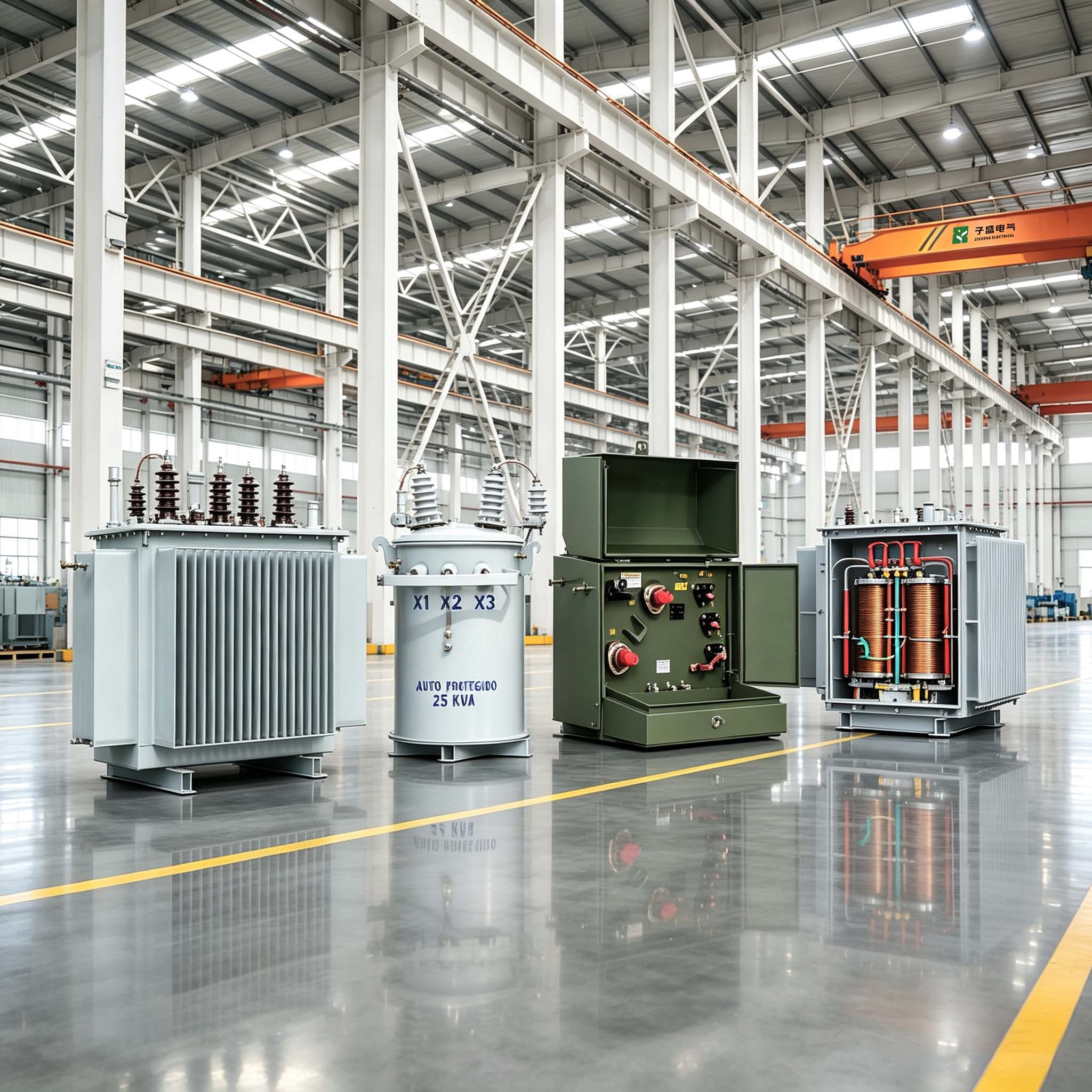

A single phase transformer is a static electrical device for single-phase AC systems. It transfers energy between circuits through electromagnetic induction. Most units change voltage, although some provide electrical isolation at the same voltage.
Unlike a motor or generator, it does not rely on rotating parts. Electrical energy enters one winding, crosses a magnetic field, and leaves through another winding.
The primary winding connects to the incoming AC source. The secondary winding connects to the load or downstream distribution circuit. A magnetic core links them through changing flux.
In an isolation design, the windings remain electrically separate despite this magnetic connection. This separation can improve safety and reduce unwanted electrical noise.
A distribution transformer sits near the point of use. It converts available network voltage into the level required by homes, farms, shops, lighting systems, or smaller industrial loads.
Commercial product families include pole-mounted and pad-mounted designs, broad power ratings, several voltage classes, and copper or aluminum winding options.
Note：A transformer changes voltage and current, but it does not change the supply frequency.
When AC voltage reaches the primary winding, alternating current begins flowing. Its direction and magnitude change during each electrical cycle.
This continuous change is essential. A steady direct current cannot sustain normal transformer induction.
Primary current creates a changing magnetic field around the winding. The steel core gives this field a controlled path called magnetic flux.
The core concentrates the flux where it can link both windings. Some leakage flux still escapes the intended magnetic path.
The alternating flux travels through the core and passes through both windings. This shared flux magnetically couples the input and output circuits.
The windings do not need direct electrical contact to exchange power. Energy moves through the changing magnetic field instead.
As magnetic flux changes, it induces electromotive force in the secondary winding. This process follows Faraday’s law of electromagnetic induction.
A closed secondary circuit lets the induced voltage drive load current. The connected equipment then receives usable electrical power.
The voltage ratio depends mainly on winding turns:
Vp / Vs = Np / Ns
Here, Vp and Vs represent primary and secondary voltage. Np and Ns represent their winding turns.
A secondary winding containing fewer turns produces lower voltage. A secondary winding containing more turns produces higher voltage.
For example, a 10:1 turns ratio can ideally reduce 2,400 volts to 240 volts. Real output varies because losses and load conditions affect voltage regulation.
An ideal transformer preserves apparent power, excluding normal losses. Therefore, lowering voltage increases the available current capacity. Raising voltage reduces the available current capacity.
The ideal current relationship is:
Ip / Is = Ns / Np
A transformer does not create extra power. It exchanges voltage for current while losing some energy through heat and magnetic effects.
Without a connected load, the primary draws a small magnetizing current. Once the secondary supplies equipment, the primary draws additional current from the source.
The complete process is straightforward. AC enters the primary, magnetic flux changes, secondary voltage appears, and current powers the load.
The core guides magnetic flux between the windings. Manufacturers commonly build it from thin silicon-steel laminations.
These layers reduce eddy currents, heat, and no-load loss. Core material and assembly quality also affect efficiency, sound, and operating temperature.
Windings carry the input and output current. Copper offers high conductivity and supports compact construction. Aluminum can reduce equipment weight and material cost.
The correct material depends on thermal design, equipment dimensions, project budget, and required performance. Single-phase product families may support either material.
Insulation separates energized conductors from each other and the grounded tank. Outdoor distribution units often use insulating liquid for dielectric strength and cooling.
Natural oil and air movement remove operating heat without pumps or fans. Mineral oil and higher fire-point fluids may be available for different site requirements.
The tank protects the internal components and contains insulating fluid. Bushings provide insulated connection points for incoming and outgoing conductors.
Off-circuit taps allow limited voltage adjustment before energization. Protection may include fuses, surge arresters, pressure-relief devices, breakers, oil indicators, or temperature monitoring.
A step-down single phase transformer has fewer secondary turns than primary turns. It reduces distribution voltage to a safer utilization level.
It supports residential service, lighting, farms, commercial loads, and local distribution. Most utility distribution transformers near homes perform this function.
A step-up transformer has more turns on the secondary winding. It raises voltage while reducing the available current capacity.
It may support renewable-energy connections or equipment needing a higher supply voltage. The source frequency remains unchanged.
An isolation transformer commonly uses a 1:1 voltage ratio. It does not aim to raise or lower voltage significantly.
Instead, it separates circuits and can reduce certain noise or safety problems. It still relies on the same electromagnetic induction process.
Operating mode | Secondary turns | Voltage effect | Typical purpose |
Step-down | Fewer | Lower output voltage | Distribution and equipment supply |
Step-up | More | Higher output voltage | Voltage matching or grid connection |
Isolation | Similar | Similar output voltage | Circuit separation and noise control |
Pole-mounted units connect to overhead distribution lines. They can be installed on wooden or concrete utility poles.
A unit can supply one single-phase load. Several units may also form a bank for selected three-phase services.
Their compact arrangement suits rural regions, farms, remote communities, lighting, and scattered electrical loads.
Pad-mounted units sit inside enclosed cabinets at ground level. They normally connect to underground distribution cables.
Their low-profile design reduces visual impact. Lockable construction supports residential, commercial, and public sites requiring greater security.
A conventional pole-mounted transformer normally depends on coordinated external protection. The installation may use separate fuses and surge arresters.
A completely self-protected design can integrate primary fault protection, surge protection, and secondary overload protection. Integrated devices may reduce field equipment, but protection still requires proper coordination.
Oil-immersed units combine liquid insulation and efficient natural cooling. They are widely suited to outdoor distribution duties.
Dry-type units use solid insulation and air cooling. They may suit selected indoor or fire-sensitive locations. Site rules, environmental risk, and lifecycle cost should guide the choice.
Tip：Confirm overhead or underground service before comparing pole-mounted and pad-mounted transformer designs.
Single-phase transformers provide simple voltage conversion for smaller distributed loads. Their static design limits mechanical wear and supports dependable operation.
Buyers can match voltage, kVA, winding material, taps, enclosure, cooling fluid, and protection to project conditions. Available platforms emphasize low losses, reliable distribution, customization, and international project supply.
Typical uses include residential distribution, rural electrification, agricultural facilities, lighting, workshops, telecommunications, and small commercial buildings.
They also serve light industrial, renewable-energy, and infrastructure projects. Pole-mounted designs favor overhead networks, while pad-mounted designs integrate into underground systems.
Single-phase equipment works best when loads are modest or naturally single-phase. It offers a practical solution when three-phase capacity is unnecessary.
Large motors, heavy production lines, and high-capacity facilities often benefit from three-phase supply. Engineers should compare the load profile before selecting either system.
Start with the actual source voltage, required load voltage, and system frequency. Confirm grounding, insulation level, and allowable voltage variation.
Consider dual-voltage windings or adjustment taps for future flexibility. Incorrect voltage data can lead to equipment damage or poor system performance.
Use the basic single-phase sizing relationship:
kVA = Volts × Amps ÷ 1,000
Review continuous demand, starting current, duty cycle, future growth, and ambient temperature. Motors and other high-inrush loads may require extra capacity.
Undersizing can cause overheating and poor voltage regulation. Oversizing may increase purchase cost and no-load energy loss.
Tip：Record voltage, load current, duty cycle, and ambient conditions before requesting a quotation.
Choose pole-mounted equipment for suitable overhead networks. Choose pad-mounted equipment for underground service and secure ground-level access.
Also define altitude, temperature, humidity, corrosion, flood risk, and maintenance space. Options may include corrosion-resistant tanks, alternative fluids, monitoring, taps, switches, and protective devices.
The purchase specification should name the required IEC, ANSI/IEEE, utility, or regional rules. It should define losses, impedance, temperature rise, insulation level, and sound limits.
Request routine and acceptance test records. Useful checks include winding resistance, turns ratio, polarity, insulation resistance, dielectric withstand, no-load loss, load loss, impedance, leak testing, and temperature rise.
Documentation helps confirm the delivered transformer matches the approved design.
A single phase transformer transfers AC power through electromagnetic induction. Its turns ratio controls voltage, while design choices shape safety and efficiency. ZISHENG supplies customizable pole-mounted and pad-mounted solutions using reliable cooling, protection, and winding options. Its testing, technical support, and project services help buyers secure dependable long-term value.
A: A single phase transformer transfers AC power through magnetic induction.
A: Winding turns determine the output voltage.
A: A single phase transformer offers simple, efficient local voltage conversion.
A: kVA, voltage, materials, protection, standards, and customization affect cost.
A: A single phase transformer suits smaller loads; three-phase serves larger systems.
A: Check overload, ventilation, voltage, connections, fluid level, and heat.
