When transformer specifications are reviewed for an EPC project, rated power and voltage usually receive the most attention. Short-circuit impedance is often treated as another number to copy into a datasheet.
That is a mistake.
From an engineering perspective at Zisheng Electric, transformer short-circuit impedance sits directly between transformer design and the wider electrical system. It influences prospective fault current, voltage drop, switchgear duty, protection coordination, parallel operation and even the mechanical forces that the transformer windings must withstand during an external fault.
A transformer with the right capacity but the wrong impedance can create problems well beyond the transformer itself. For a broader view of how capacity, voltage, site conditions and load characteristics fit together, see our transformer selection guide for industrial projects.
For an EPC contractor, consultant or industrial project buyer, impedance therefore needs to be reviewed as a system parameter rather than an isolated transformer specification.

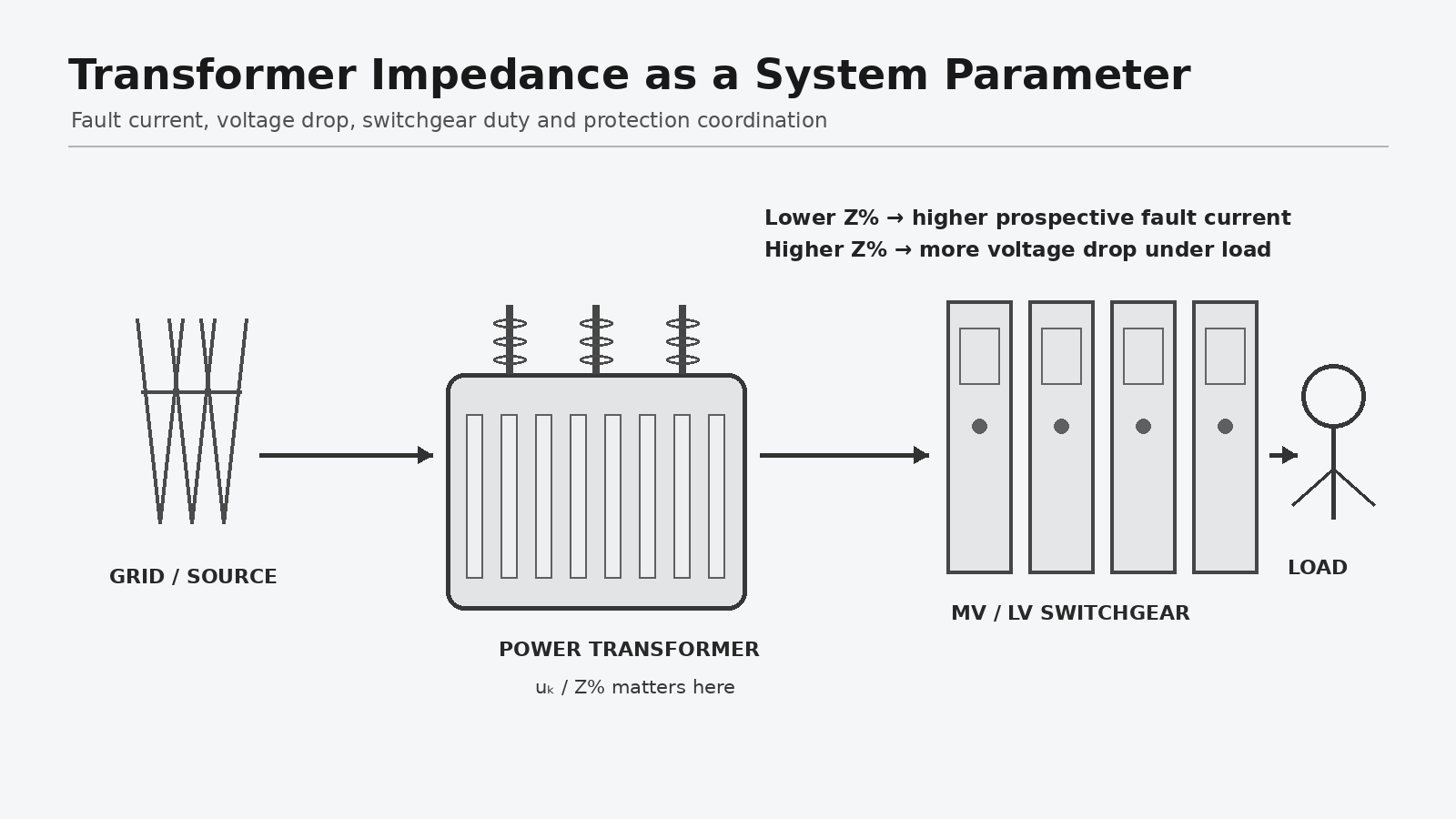

Figure 1. Transformer impedance links the transformer design to fault level, switchgear duty and load performance.
Transformer short-circuit impedance, commonly expressed as a percentage, represents the impedance of the transformer windings referred to rated conditions.
In practical terms, it can be understood as the percentage of rated voltage required to circulate rated current through the transformer when one winding is short-circuited under defined test conditions.
For example, if a transformer has a short-circuit impedance of 6%, approximately 6% of rated voltage applied to one side would produce rated current when the other side is short-circuited, subject to the applicable test arrangement and reference conditions.
This percentage is not simply a catalogue value. It results from transformer geometry, including winding dimensions, radial spacing between HV and LV windings, axial arrangement, leakage magnetic field, conductor dimensions, winding height, insulation clearances and tapping arrangement.
Changing these elements can change impedance. That is why impedance must be considered during electromagnetic and mechanical design rather than added after the transformer design is finished.
Technical Reference: IEC 60076-1 and IEC 60076-5 — International Electrotechnical Commission.
A useful way to look at impedance is through the project chain: Grid / Generator → Transformer → MV or LV Switchgear → Feeder → Load → Protection.
The transformer sits between the source and downstream equipment. Its impedance becomes part of the impedance limiting fault current through that system. As transformer impedance changes, several downstream design conditions change with it.
If transformer impedance is reduced while the source and other system parameters remain unchanged, the prospective fault current on the secondary side generally increases.
A simplified engineering relationship is: Fault current ≈ Rated current × 100 / Impedance (%). This is only a first-stage estimate. A proper short-circuit study must also consider grid source impedance, cables, generators, motors, parallel transformers and other network elements.
Parameter | Transformer A | Transformer B |
|---|---|---|
Short-circuit impedance | 5% | 8% |
Approx. transformer-limited fault multiple | 20 × rated current | 12.5 × rated current |
Downstream fault duty | Higher | Lower |
Voltage-regulation tendency | Lower voltage drop | Higher voltage drop |
The lower-impedance transformer allows substantially more fault current. That can affect medium-voltage switchgear, circuit-breaker interrupting capacity, busbar withstand rating, cable thermal withstand, CT selection, protection settings and arc-flash calculations.
This is why selecting transformer impedance without checking the switchgear design can create an EPC interface problem.
Figure 2. A simplified comparison showing why lower transformer impedance increases transformer-limited fault current.
If lower impedance increases fault current, it may appear logical to specify a higher impedance whenever possible. That creates a different set of problems.
A higher transformer impedance normally produces a larger voltage drop under load, especially where the load has a low power factor or large transient current. This matters in applications such as large motors, mining equipment, crushers and mills, compressors, pumps, data-centre loads, industrial production lines and renewable-energy auxiliary systems.
A transformer can meet its thermal rating and still produce unacceptable system performance if voltage regulation has not been evaluated. For motor starting, excessive impedance may cause the secondary voltage to fall enough to increase starting time or prevent successful acceleration.
Fault current must be controlled without creating unacceptable operating voltage drop. That balance should be decided at the system-design stage.
Short-circuit current is not only a protection issue. It is also a mechanical design issue inside the transformer.
During a severe external short circuit, transformer windings are subjected to electromagnetic forces. These forces can act radially and axially, creating compression, tension, bending and displacement stresses in winding conductors and supporting structures.
The magnitude of these forces increases strongly with fault current. A design that limits fault current therefore affects the mechanical duty imposed on the active part. But specifying impedance alone is not enough. The transformer must still be designed and constructed to withstand the short-circuit stresses associated with the specified system conditions.
Technical Reference: IEC 60076-5 — International Electrotechnical Commission.
For an EPC technical review, this means two different questions must be asked: What is the specified impedance? and Has the transformer design been evaluated for the resulting short-circuit duty? They are related, but they are not the same question.
Short-circuit impedance is closely related to leakage flux. In an ideal transformer, all magnetic flux produced by one winding would link the other winding. Real transformers always have some leakage flux that does not link both windings completely.
The geometry of the active part determines the resulting leakage reactance. A designer may adjust impedance by changing parameters such as winding spacing, winding height or conductor arrangement. But every adjustment has consequences.
Increasing radial spacing can increase leakage reactance and therefore impedance. But greater spacing may also increase the dimensions of the active part, increase conductor length, affect load loss, increase material usage and change mechanical-force distribution.
Winding height influences leakage-field geometry. A modification intended to reach a particular impedance value may also affect axial short-circuit forces, conductor dimensions, winding mechanical stability and tank dimensions.
Disc, layer, helical and other winding configurations are selected according to voltage, current and mechanical requirements. Impedance therefore cannot be considered separately from winding design. The same principle applies across medium-voltage oil-immersed transformer designs and higher-voltage equipment such as a 110kV oil-immersed transformer.
For higher-rated transformers, the specified impedance should be communicated early. Changing it after the electromagnetic design and drawings have been approved may force a significant redesign.
Figure 3. Winding geometry is one of the main design drivers behind transformer leakage reactance and short-circuit impedance.
A transformer RFQ should not contain an arbitrary impedance value copied from a previous project. Before fixing the requirement, the EPC electrical engineer should check the surrounding network.
Engineering Input | Why It Matters | Procurement / Design Check |
|---|---|---|
Grid short-circuit level | Determines source contribution to faults | Confirm maximum and minimum fault levels |
Transformer rated power | Determines rated current | Verify normal and contingency loading |
HV/LV voltage | Defines transformation ratio and system interfaces | Match the single-line diagram |
Required impedance | Influences fault current and voltage drop | Confirm with the short-circuit study |
Switchgear rating | Must withstand prospective fault current | Check kA rating and duration |
Large motor load | High starting current can cause voltage depression | Run motor-starting study where required |
Parallel transformers | Impedance mismatch affects load sharing | Verify ratings, ratios and impedance |
Protection philosophy | Fault current affects relay and breaker coordination | Coordinate transformer and feeder protection |
Utility requirements | May impose impedance or fault-level constraints | Verify the current project specification |
This approach is more useful during procurement than simply specifying “Impedance: 6%” without explaining where the value came from. For medium-size industrial projects, our 2500kVA transformer selection guide provides additional context on matching transformer data to the project environment and documentation package.
Impedance becomes even more important when two or more transformers operate in parallel. Transformers intended for parallel operation should be reviewed for compatible voltage ratio, vector group, tap position, phase displacement, impedance characteristics and rated capacity.
If two parallel transformers have materially different percentage impedances, load sharing will not simply follow their rated kVA values. The lower-impedance transformer tends to take a larger share of the load. That unit may become overloaded while the higher-impedance transformer remains below its rated capacity.
For an expansion project, this issue is common when a new transformer is purchased several years after the original unit. The correct procurement question is not “Can you manufacture another transformer with the same kVA?” It is “Can the new unit operate correctly in parallel with the existing transformer under the required tap and loading conditions?”
The existing transformer nameplate, test report and impedance data should therefore be supplied during technical review.
The design value and the measured value are not always numerically identical. Manufacturing tolerances affect actual impedance because winding dimensions, conductor placement and assembly geometry cannot be infinitely precise.
For this reason, project evaluation should consider both the specified impedance value and the applicable tolerance. This becomes particularly important for parallel transformers, networks close to switchgear short-circuit limits, generator-transformer systems, large industrial systems and projects with strict voltage-drop requirements.
During technical bid comparison, comparing only the nominal impedance can therefore be misleading. Two suppliers may both quote the same nominal percentage but apply different design assumptions or tolerances. The EPC engineer should review the guaranteed technical particulars and applicable standard rather than relying only on the commercial datasheet.
Short-circuit impedance is normally verified as part of transformer electrical testing through impedance voltage / short-circuit impedance and load-loss measurements under the applicable test procedure. The measured result gives the project team several useful checks.
A significant deviation may indicate changes in active-part geometry or manufacturing conditions.
This matters for system fault calculations and parallel operation.
Winding resistance and load-loss interpretation depend on defined temperature references. Test reports need to state the applicable conditions clearly.
This is often overlooked. If the system short-circuit study uses a preliminary impedance value but the final FAT result differs, the EPC team should determine whether the system calculation needs to be updated.
Design requirement → Transformer guaranteed data → Approved calculation → Manufacturing → FAT result → Final system verification
This sequence is preferable to buying the transformer, receiving the FAT report and only then discovering that the switchgear calculation used a different impedance.

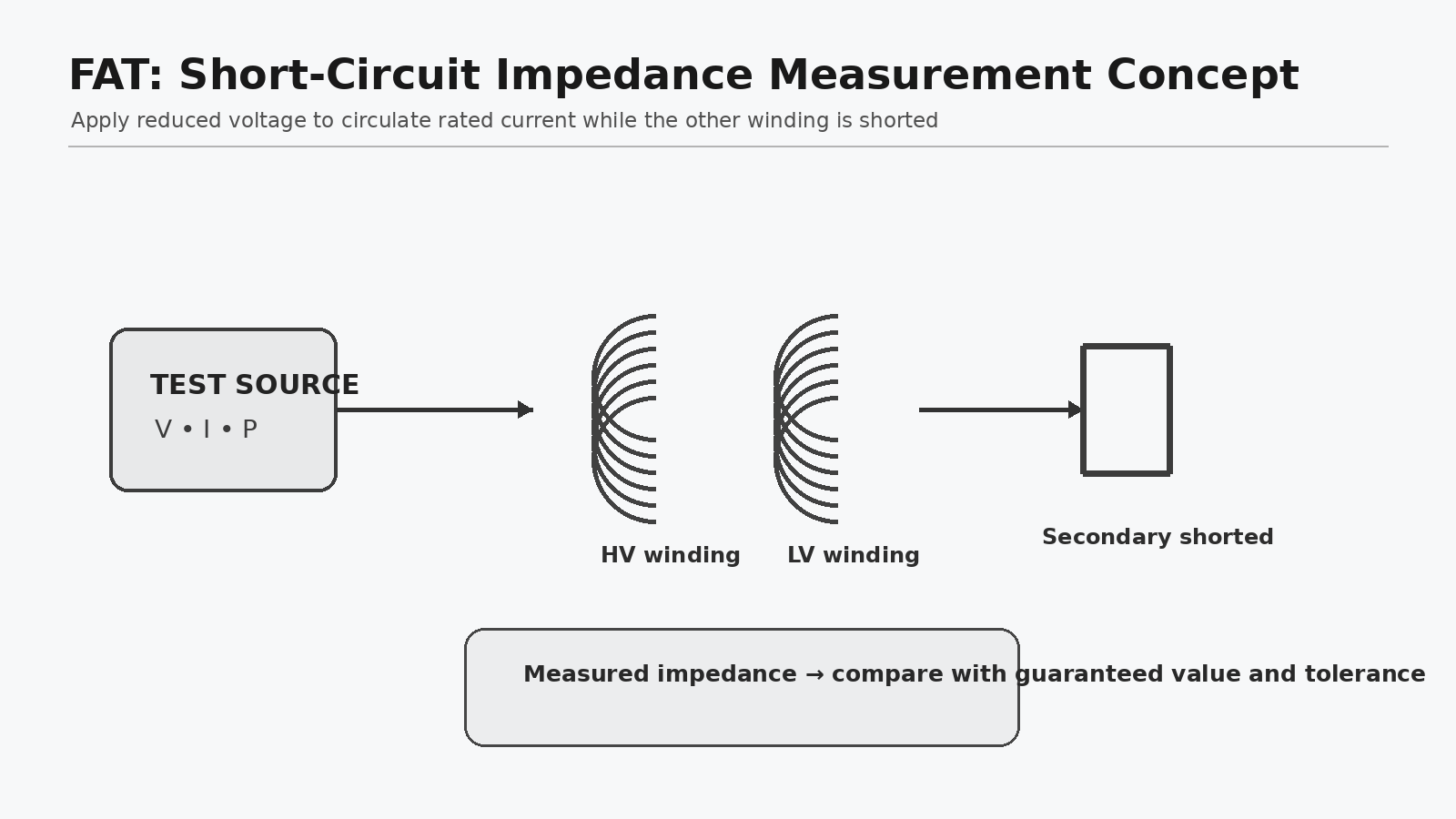

Figure 4. Conceptual FAT arrangement for short-circuit impedance measurement. The actual test method must follow the applicable standard and approved procedure.
A value suitable for one substation may not be suitable for another. Grid strength, transformer rating, switchgear capacity and load behaviour can all be different.
That may improve regulation while pushing prospective fault current beyond downstream equipment ratings.
The project may then experience unacceptable voltage drop or motor-starting performance.
A replacement transformer that meets its own standalone specification may still perform badly when paralleled with an existing unit.
By FAT, major transformer geometry has already been manufactured. Impedance requirements should be confirmed before final electromagnetic design approval.
Determine maximum and minimum grid fault levels at the transformer primary connection point.
Check normal loading, emergency loading, redundancy and future expansion.
Include transformer impedance and the relevant upstream/downstream impedances.
Confirm that circuit breakers, busbars, cables and other equipment meet the required short-circuit ratings.
Evaluate normal loading and critical transient conditions.
For large motors, assess whether the selected impedance creates unacceptable voltage depression.
Where transformers will operate in parallel, evaluate impedance compatibility and expected load sharing.
The approved value should become part of the guaranteed technical particulars.
Compare measured impedance against approved requirements and use the final value where required in project calculations.
A technically strong transformer offer should allow the buyer to understand more than the headline impedance percentage. When reviewing quotations, ask suppliers to clarify the following points.
Design Factor | Main Risk | What Should Be Confirmed |
|---|---|---|
Guaranteed impedance | Incorrect system fault current | Nominal value and tolerance |
Winding arrangement | Mechanical and electrical implications | Design appropriate to rating |
Short-circuit duty | Winding deformation during faults | IEC 60076-5 design basis |
Parallel operation | Unequal load sharing | Compatibility with existing unit |
Load losses | Operating cost and thermal performance | Guaranteed loss values |
FAT impedance result | Difference from design study | Final measured value |
Tap position effect | Different system conditions | Impedance basis and tap reference |
A transformer should not be selected because its impedance value looks normal. It should be selected because that value works with the electrical system around it.
Transformer short-circuit impedance connects transformer electromagnetic design with protection, switchgear, system studies and actual load performance.
Too low, and fault current may become difficult to manage. Too high, and voltage regulation may become unacceptable. For parallel transformers, an unsuitable impedance relationship can create unequal loading. During external faults, short-circuit current also determines the thermal and mechanical stresses that the transformer must withstand.
Technical Reference: IEC 60076-5 and IEC 60076-1 — International Electrotechnical Commission.
For a new transformer project, the most useful information to send at the beginning is not only capacity and voltage. A single-line diagram, grid short-circuit level, transformer datasheet, load schedule, motor list and project technical specification allow impedance to be reviewed as part of the complete power system.
