With the rapid development of global industrial construction, power infrastructure upgrades, and renewable energy projects, the demand for fast-deployment, highly reliable, and modular power distribution equipment continues to grow. Traditional substation construction typically involves a long process, including civil works, equipment procurement, on-site installation, secondary wiring, and commissioning. For large-scale industrial projects, remote energy projects, and projects with tight schedules, conventional approaches often face challenges such as long construction periods, complex site coordination, and difficulties in quality control.

The Articulated Unit Substation has emerged as an advanced integrated power distribution solution in response to these challenges. Through a factory-prefabricated design, the system integrates key electrical components including power transformers, medium voltage switchgear, low voltage distribution systems, protection and control devices, and auxiliary equipment into a complete modular substation unit.

Major assembly, electrical connection, and factory testing are completed before transportation to the project site. Compared with traditional construction methods, this approach significantly reduces on-site installation work, improves equipment reliability and consistency, shortens project commissioning time, and enhances overall power system efficiency.

The Articulated Unit Substation is widely applied in industrial parks, urban power distribution networks, renewable energy projects, solar power plants, wind energy projects, infrastructure developments, and temporary power supply systems.

According to market research data, the global prefabricated substation market continues to experience steady growth. The expansion of industrial manufacturing, rapid construction of data centers, increasing investment in solar PV and wind power projects, and modernization of power grids are driving strong demand for modular substations and integrated electrical solutions.

For utilities, EPC contractors, industrial enterprises, and renewable energy developers, a comprehensive understanding of the structure, technical specifications, and application scenarios of Articulated Unit Substations can improve project planning efficiency, optimize power distribution design, and reduce long-term operation and maintenance risks.

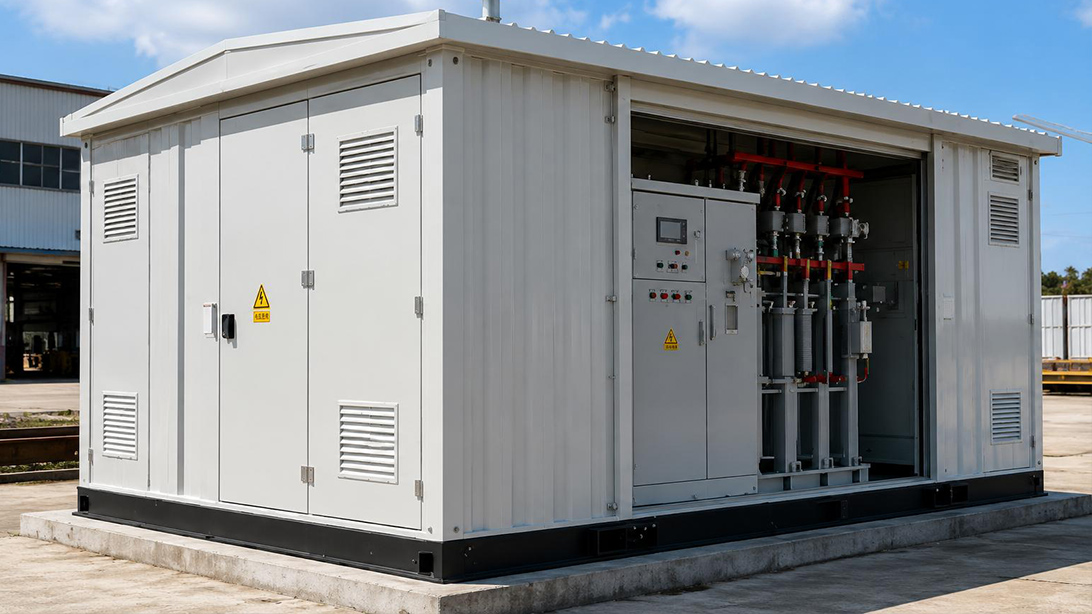

I. What Is an Articulated Unit Substation?

An Articulated Unit Substation is a complete factory-designed and manufactured power distribution system that combines multiple electrical components into a fully integrated power supply unit through a modular design approach.

Traditional substation systems are usually installed on-site through a step-by-step process: medium voltage switchgear → power transformer → low voltage distribution equipment → protection and control system. Each component is transported separately to the project site, followed by mechanical installation, electrical connections, secondary wiring, and system commissioning.

In contrast, an Articulated Unit Substation completes the major design and assembly processes during factory production, including equipment layout design, internal busbar connections, control circuit installation, protection system configuration, and factory acceptance testing (FAT). After transportation to the site, only basic foundation preparation, equipment lifting and positioning, cable connection, and final commissioning are required before the system can be energized and put into operation.

The term “Articulated” reflects the coordinated connection and interaction between multiple functional modules inside the substation. Although the system consists of several independent electrical units, it is designed, operated, and managed as a complete integrated power distribution solution.

According to IEEE C37.121-2020, a unit substation is mainly used for voltage transformation in three-phase power systems and consists of a transformer together with associated primary and secondary electrical equipment. It covers three-phase unit substation applications with primary voltage ratings ranging from 601V to 52kV.

In the Chinese market, similar products are commonly referred to as prefabricated substations, package substations, or compact substations. According to GB/T 17467-2020 High-voltage/Low-voltage Prefabricated Substation Standard, a prefabricated substation is a complete electrical assembly that integrates high-voltage switchgear, power transformers, and low-voltage distribution equipment within the same enclosure structure.

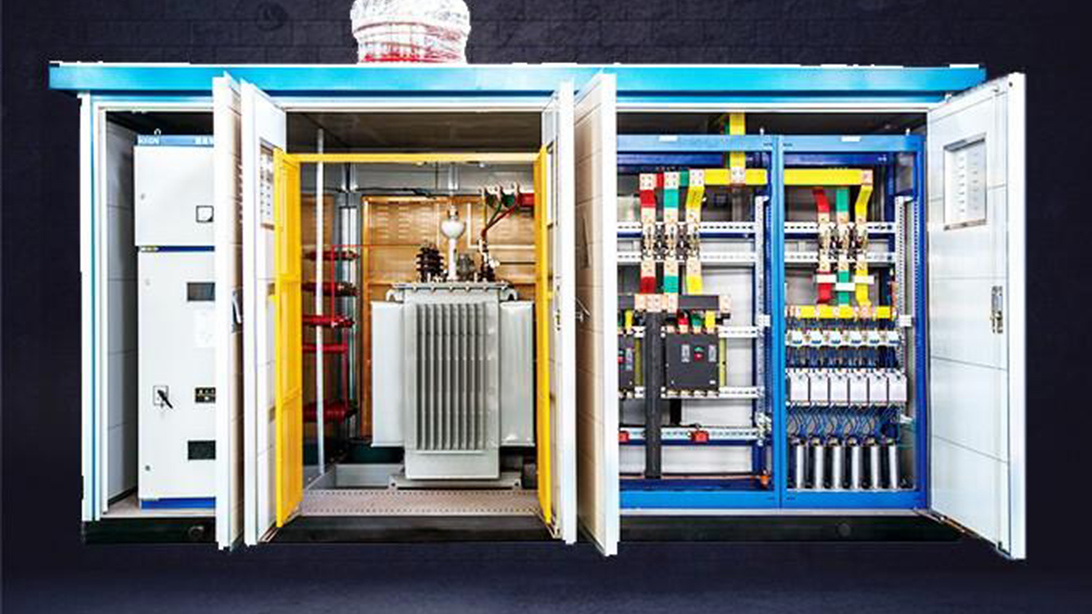

A typical unit substation mainly consists of the following key components:

1. Power Transformer

The power transformer is the core component of an Articulated Unit Substation, responsible for converting electrical energy between different voltage levels. Common voltage combinations include 33kV/11kV, 69kV/13.8kV, 132kV/33kV, and 220kV/33kV.

The system can be equipped with either an oil-immersed transformer or an epoxy resin cast dry-type transformer.

• Oil-immersed transformers feature large capacity, excellent heat dissipation performance, and high operational reliability. They are widely used in power grid projects, large industrial facilities, and renewable energy step-up substations.

• Epoxy resin cast dry-type transformers offer advantages such as no risk of oil leakage, high fire safety performance, and low maintenance requirements. They are commonly applied in commercial buildings, data centers, urban power distribution systems, and other locations with strict safety and environmental requirements.

2. Medium Voltage Switchgear

The medium voltage switchgear is responsible for power distribution, line protection, and equipment isolation within the substation.

It typically includes:

• Vacuum circuit breakers (VCB)

• SF₆ circuit breakers

• Load switches

• Disconnect switches

• Earthing switches

These devices enable rapid fault interruption, safe equipment maintenance, and flexible adjustment of operating modes, ensuring the reliability and safety of the medium voltage power distribution system.

3. Low Voltage Distribution System

The low voltage distribution system delivers electrical power to end users and final loads.

It typically includes:

• Low voltage incoming switchgear

• Outgoing feeder panels

• Power factor correction capacitor cabinets

• Intelligent monitoring modules

The system configuration should be customized according to load characteristics, including the number of outgoing feeders, rated current, short-circuit capacity, and backup circuit requirements, ensuring stable and efficient low voltage power distribution.

4. Protection and Control System

Modern unit substations increasingly adopt digital protection and control solutions to improve operational reliability and automation levels.

Main functions include:

• Overcurrent protection

• Short-circuit protection

• Ground fault protection

• Temperature monitoring

• Remote communication and monitoring

By adopting the IEC 61850 communication protocol, the system can reduce the number of control cables, improve data transmission efficiency, support intelligent operation and maintenance, and enable advanced functions such as remote monitoring, condition assessment, and predictive maintenance.

5. Enclosure Structure

The substation enclosure not only protects internal electrical equipment but also ensures reliable operation under different environmental conditions.

Key design considerations include:

• Waterproof protection

• Dust protection

• Corrosion resistance

• UV resistance

• Mechanical impact protection

Common protection ratings include IP54, IP55, and IP65.

For harsh environments such as coastal areas, high-temperature regions, and desert locations, additional design measures are required, including enhanced anti-corrosion coatings, improved sealing structures, optimized ventilation systems, and advanced thermal management solutions to ensure long-term equipment reliability.

II. Typical Technical Specifications

Technical Specifications of Articulated Unit Substation

The design of an Articulated Unit Substation is highly flexible and can be customized according to different application scenarios, power supply voltage levels, and load requirements. Typical technical specifications are as follows:

The configuration of an Articulated Unit Substation can be adjusted according to specific project requirements.

For large industrial parks, typical configurations include 11kV/0.4kV or 22kV/0.4kV systems with transformer capacities ranging from 2500kVA to 5000kVA.

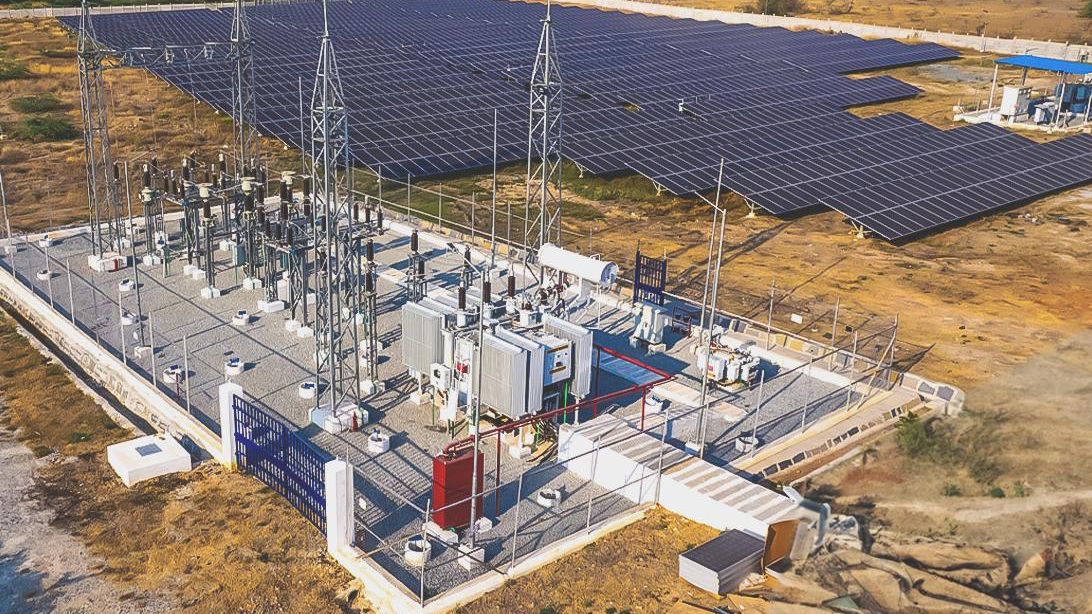

For renewable energy projects, key considerations include 35kV step-up systems, large-capacity power transformers, grid connection protection systems, and remote monitoring functions.

For urban power distribution projects, priority is usually given to compact design, low-noise operation, aesthetic appearance, and intelligent operation and management capabilities.

Common Types of Unit Substations in the Chinese Market

III. Analysis of Core Components

1. Power Transformer

The power transformer is the core component of an Articulated Unit Substation, determining the overall power supply capacity, energy efficiency, and operational reliability of the system.

Transformer selection should consider the following key factors:

Load Requirements

The current load demand and future expansion requirements must be calculated, including:

• Industrial production equipment

• Motor loads

• HVAC systems

• Lighting systems

• IT equipment

• Renewable energy equipment

If the transformer capacity is insufficient, it may result in long-term overload operation, increased temperature rise, accelerated insulation aging, and reduced service life.

On the other hand, excessive transformer capacity increases initial investment costs and no-load losses, reducing overall operating efficiency.

Therefore, engineering design usually reserves an appropriate capacity margin to accommodate future load growth.

Short-Circuit Level

The maximum short-circuit current, circuit breaker interrupting capacity, and busbar withstand capability must be carefully evaluated during transformer selection.

Large industrial projects typically require short-circuit withstand levels of:

• 25kA

• 31.5kA

• 40kA or above

to ensure safe operation under fault conditions.

Voltage Regulation Capability

Industrial loads often experience significant fluctuations, requiring transformers with excellent voltage regulation performance.

Common voltage adjustment methods include:

• Off-circuit tap changer (OCTC)

• On-load tap changer (OLTC)

For critical load applications such as:

• Steel plants

• Chemical factories

• Data centers

• Large manufacturing facilities

On-load tap changer (OLTC) transformers are more widely adopted because they can regulate voltage without interrupting power supply, improving system stability and power quality.

2. Switchgear System

The switchgear system performs functions including power control, protection, and electrical isolation. Vacuum circuit breakers offer excellent arc-extinguishing performance, low maintenance requirements, and long service life, and are widely used in 10kV, 20kV, and 35kV medium-voltage systems.

SF₆ circuit breakers provide higher breaking capacity and are mainly applied in high-voltage transmission systems and large-capacity substations. However, with increasing environmental protection requirements, some markets are gradually adopting more environmentally friendly alternatives.

Load switches are used for normal load switching, ring network power supply, and basic protection functions, and are commonly found in distribution networks and compact substations. Disconnect switches provide a visible isolation point during equipment maintenance, ensuring the safety of operating personnel.

3. Protection and Control System

Modern unit substations widely adopt microprocessor-based protection, intelligent monitoring systems, and communication networks.

The main functions include:

• Real-time monitoring of abnormal current, abnormal voltage, ground faults, and abnormal temperature conditions;

• Rapid fault detection and protection operation;

• Isolation of fault areas through circuit breakers and protection logic, while maintaining power supply to unaffected areas.

The IEC 61850 communication protocol has become an important standard for modern substations. Its advantages include:

• Reducing the number of control cables;

• Improving equipment interoperability;

• Supporting remote operation and maintenance;

• Facilitating data analysis and intelligent operation management.

4. Enclosure and Structural Design

The enclosure structure determines the environmental adaptability and reliability of the equipment.

For waterproof protection, the design typically includes:

• Waterproof sealing strips;

• Rainproof structures;

• Cable sealing devices.

For corrosion protection, common solutions include:

• Galvanized steel plates;

• Stainless steel structures;

• Anti-corrosion coating systems.

For coastal projects, enhanced salt spray corrosion protection is required.

For thermal management, the enclosure design must include:

• Proper ventilation openings;

• Optimized airflow channels;

• Cooling fan systems.

In high-temperature environments, additional forced-air cooling systems and temperature control devices may be required to maintain stable operation.

5. Grounding System

The grounding system ensures personnel safety and reliable equipment operation.

Its main functions include:

• Preventing electric shock;

• Reducing fault voltage;

• Providing a safe discharge path for lightning currents.

Typical design requirements include:

• Grounding resistance ≤ 4Ω;

• Reliable grounding of the transformer;

• Connection of the metal enclosure to the grounding system;

• Lightning protection grounding complying with local standards.

For large industrial projects, additional factors must be considered, including:

• Equipotential bonding;

• Grounding grid design;

• Soil resistivity conditions.

IV. Key Advantages

Compared with traditional civil-built substations, articulated unit substations integrate multiple electrical functional modules into a highly compact system. Through factory prefabrication and modular manufacturing, they improve construction efficiency and operational reliability.

1. Significantly Reduced Space Requirements

Traditional substations usually require:

• Independent switchgear rooms;

• Transformer foundations;

• Low-voltage distribution rooms;

• Control rooms;

• Cable trenches;

• Auxiliary buildings.

This results in high civil construction costs and large land occupation.

With an integrated design, the required installation area can be significantly reduced. In some urban distribution projects, the footprint can be reduced by more than 60% compared with traditional solutions.

This advantage is especially important in:

• Urban areas;

• Commercial buildings;

• Industrial parks;

• Locations with high land costs.

2. Greatly Shortened Installation Period

Traditional substations involve multiple construction stages, including:

• Civil works;

• Equipment procurement;

• On-site installation;

• Cable laying;

• Secondary wiring;

• System commissioning.

The entire process often requires several months.

For articulated unit substations, major processes such as:

• Structural manufacturing;

• Electrical assembly;

• Internal wiring;

• Performance testing

are completed at the factory.

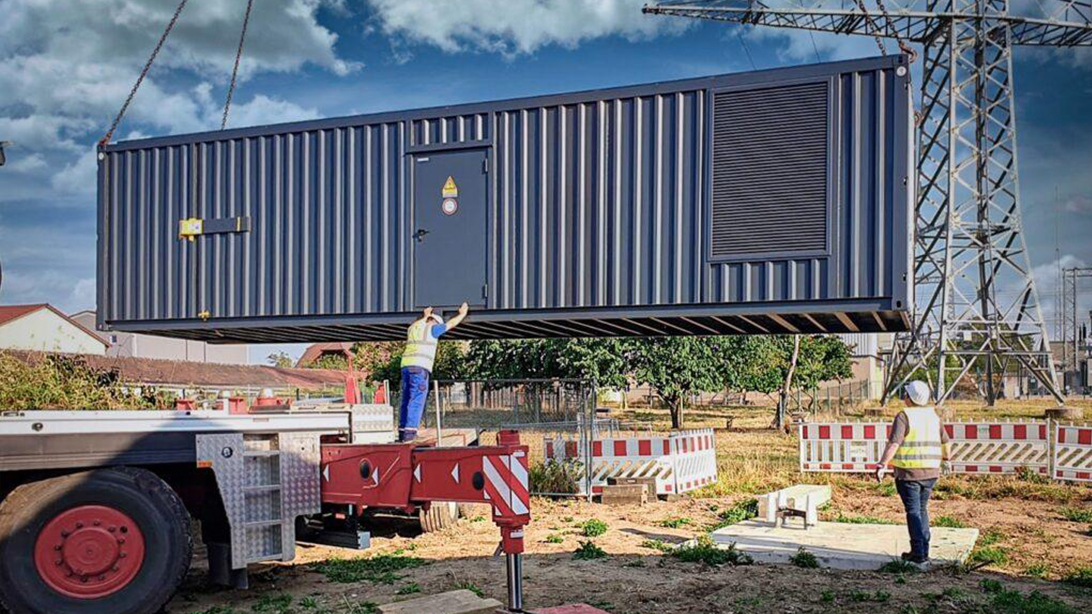

On-site work mainly includes:

• Foundation preparation;

• Equipment lifting and positioning;

• Cable connection;

• Final commissioning and energization.

This significantly shortens the construction period.

The rapid deployment capability provides clear advantages in:

• Renewable energy projects;

• Overseas engineering projects;

• Temporary power supply applications.

3. More Convenient Transportation and Logistics

Traditional installation methods require transporting multiple independent pieces of equipment, including:

• Transformers;

• Switchgear panels;

• Control cabinets;

• Auxiliary equipment.

Extensive assembly work is required after delivery to the site.

With articulated unit substations, the majority of manufacturing and integration work is completed in the factory, which helps to:

• Reduce transportation batches;

• Simplify site equipment management;

• Minimize installation errors;

• Shorten coordination time.

For overseas projects, highly integrated equipment can effectively reduce project delivery risks.

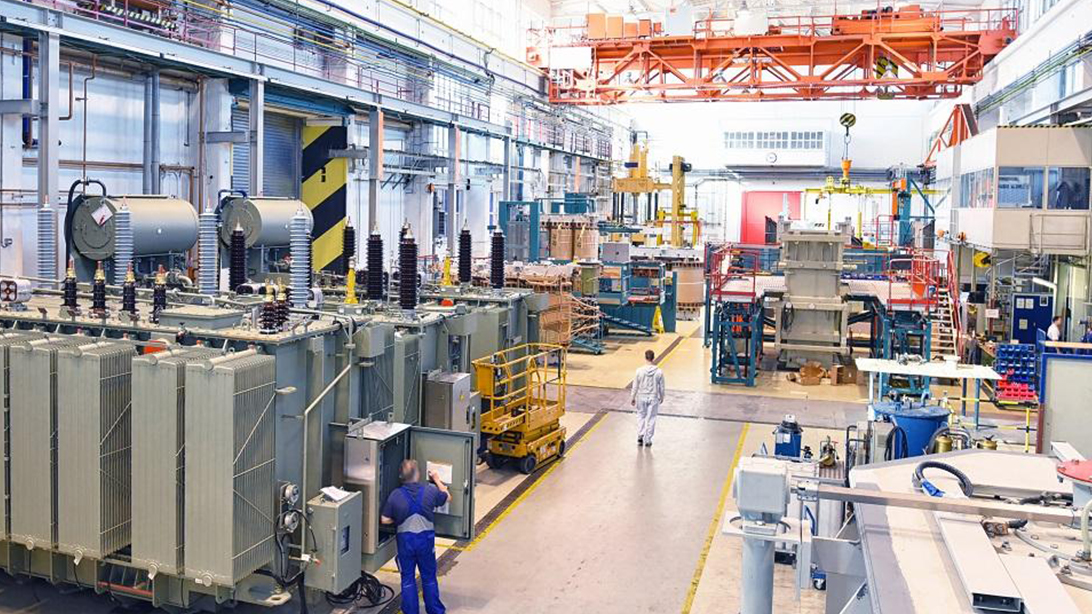

4. More Controllable Product Quality

Traditional substations involve a large amount of on-site work, which can be affected by:

• Construction environment;

• Worker experience;

• Weather conditions;

• Project schedule pressure.

Factory-based production enables:

• Standardized assembly;

• Controlled manufacturing processes;

• Factory acceptance testing;

• Parameter verification.

Typical factory tests include:

• Insulation tests;

• Contact resistance tests;

• Protection function tests;

• Communication tests;

• Temperature rise tests.

This ensures more stable and consistent product quality.

5. Higher Safety and Environmental Adaptability

The enclosed structure reduces the impact of external environmental factors by:

• Preventing accidental contact by personnel;

• Reducing the risk of animal intrusion;

• Minimizing dust contamination;

• Improving weather resistance.

For different environmental conditions:

Coastal areas:

• Enhanced salt spray corrosion protection;

• Moisture-resistant design;

• Anti-condensation measures.

Desert areas:

• Higher dust protection levels;

• Improved heat dissipation;

• UV-resistant protection.

Cold climate areas:

• Low-temperature starting systems;

• Heating systems;

• Thermal insulation designs.

6. Excellent Expansion Capability

Modern industrial power demand continues to change due to:

• Factory expansion;

• New production lines;

• Increased renewable energy capacity;

• Data center expansion.

The modular design of unit substations allows future expansion through:

• Adding additional transformer units;

• Increasing standby capacity;

• Adjusting module configurations.

This makes them especially suitable for:

• Industrial parks;

• Renewable energy bases;

• Large logistics centers.

7. Easier Operation and Maintenance

The standardized modular design simplifies future maintenance.

Operators can monitor equipment status through:

• Online monitoring systems;

• Temperature monitoring devices;

• Electrical parameter acquisition systems.

With intelligent configurations, the system can achieve:

• Remote data monitoring;

• Fault alarms;

• Operation analysis;

• Predictive maintenance.

This provides significant value for:

• Unmanned substations;

• Overseas projects;

• Remote industrial facilities.

V. Typical Application Scenarios

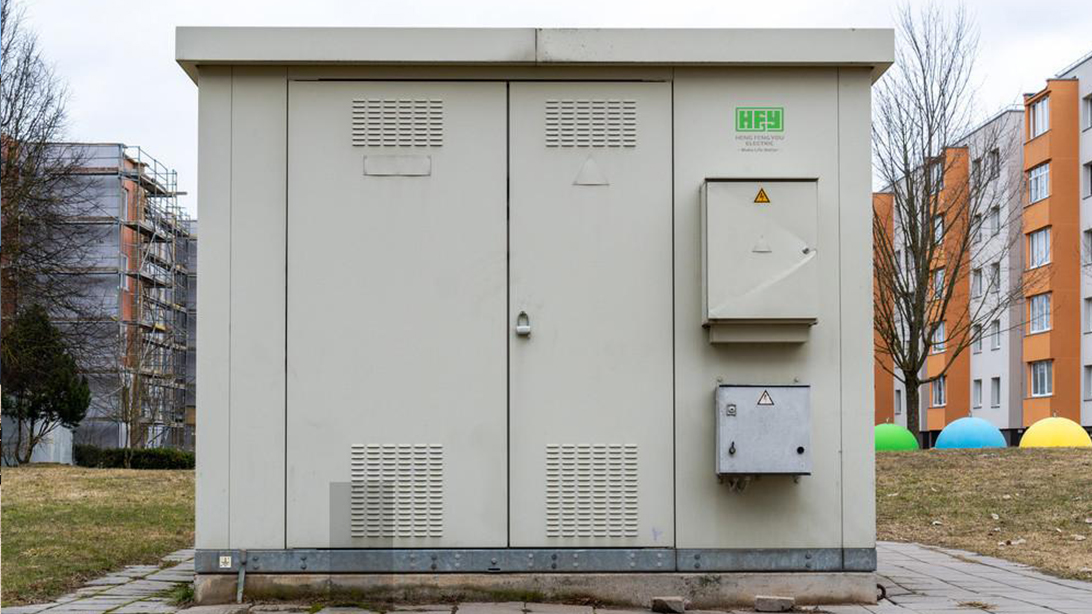

1. Urban Distribution Networks

With the acceleration of urbanization, traditional substations face challenges such as:

• Limited land availability;

• Strict requirements for surrounding environments;

• Construction impacts on nearby residents.

Articulated unit substations can be widely applied in:

• Commercial centers;

• Residential areas;

• Metro projects;

• Public buildings.

Their advantages include:

• Small footprint;

• Easy noise control;

• Improved appearance;

• Faster construction speed.

For example, a coastal city grid modernization project replaced traditional civil-built substations with 10kV prefabricated substations. The system integrated:

• High-voltage incoming feeders;

• Power transformers;

• Low-voltage distribution systems.

Equipped with an intelligent monitoring system, it achieved:

• Voltage monitoring;

• Current data acquisition;

• Temperature monitoring;

• Remote fault alarms.

2. Industrial Parks and Manufacturing Facilities

Manufacturing industries, metal processing plants, chemical industries, and automobile factories have extremely high requirements for power supply reliability.

Articulated unit substations can be configured according to enterprise requirements, including:

• Multiple parallel operating units;

• Dual power supply systems;

• Intelligent protection systems.

For example, an overseas industrial park adopted multiple 2500kVA compact substations. Through a modular power distribution layout, the project achieved:

• Regional power supply;

• Reduced line losses;

• Improved power reliability.

During future expansion, additional power supply units can be quickly added to meet increasing electricity demand.

3. Renewable Energy Projects

Solar photovoltaic plants and wind farms are usually located in remote areas where environmental conditions are complex and construction schedules are demanding.

These projects typically require completion of the entire power conversion process:

Low-voltage power generation output → Voltage boosting → Medium-voltage grid connection

Common configurations include:

• 0.8kV/35kV

• 690V/35kV

• 1.14kV/35kV

The equipment integrates:

• Step-up transformers;

• High-voltage switchgear;

• Protection devices;

• Monitoring systems.

This integrated design reduces on-site installation workload and improves project construction efficiency.

4. Infrastructure and Transportation Projects

Projects such as:

• Railways;

• Airports;

• Ports;

• Urban rail transit systems

have extremely high requirements for power supply continuity.

At the same time, these projects often face:

• Tight construction schedules;

• Complex construction environments;

• Distributed power supply locations.

Articulated unit substations can quickly provide:

• Power for mechanical equipment;

• Lighting power supply;

• Control system power.

They are widely used in:

• Railway power systems;

• Port machinery power supply;

• Airport facilities;

• Urban transportation infrastructure.

5. Temporary Power Supply and Emergency Power Applications

Emergency situations such as:

• Disaster recovery;

• Temporary construction sites;

• Large-scale events;

• Short-term industrial projects

require rapid and reliable power deployment.

Articulated unit substations feature:

• Mobility;

• Fast installation;

• Reusability.

Compared with temporary traditional distribution systems, they can significantly improve:

• Operational safety;

• Power supply reliability;

• Deployment efficiency.

VI. Installation Guide

1. Urban Distribution Networks

With the continuous development of urbanization, traditional substations face challenges such as limited land resources, strict requirements for surrounding environments, and construction impacts on residents. Articulated Unit Substations can be widely applied in commercial centers, residential areas, metro projects, and public buildings. Their key advantages include compact footprint, convenient noise control, attractive appearance, and rapid deployment.

In one coastal city grid upgrade project, a 10kV prefabricated substation was adopted to replace traditional civil-built substations. The system integrated medium-voltage incoming switchgear, power transformer, and low-voltage distribution equipment into a single unit. An intelligent monitoring system was installed to achieve voltage monitoring, current measurement, temperature monitoring, and remote alarm functions.

2. Industrial Parks and Manufacturing Facilities

Manufacturing plants, metal processing industries, chemical enterprises, and automotive factories have extremely high requirements for power supply reliability. Articulated Unit Substations can be configured with multiple units operating in parallel, dual power supply systems, and intelligent protection systems according to customer requirements.

For example, an overseas industrial park adopted multiple 2500kVA unit substations. Through modular distribution design, the project achieved regional power supply, reduced line losses, improved power reliability, and allowed rapid expansion by adding new power supply units during future development.

3. Renewable Energy Projects

Photovoltaic power plants and wind farms are usually located in remote areas where environmental conditions are complex and construction schedules are demanding.

These projects typically require a complete power conversion process:

Low-voltage power output → Voltage boosting → Medium-voltage grid connection

Common configurations include:

• 0.8kV/35kV

• 690V/35kV

• 1.14kV/35kV

The integrated system combines:

• Step-up transformer

• High-voltage switchgear

• Protection devices

• Monitoring and control systems

This significantly reduces onsite installation workload and improves project construction efficiency.

4. Infrastructure and Transportation Projects

Railways, airports, ports, and other infrastructure projects require highly reliable power supply. At the same time, these projects often involve tight schedules, complex construction environments, and dispersed power demand points.

Articulated Unit Substations can provide rapid power solutions for:

• Railway power systems

• Port equipment power supply

• Airport facilities

• Urban rail transit systems

They can quickly provide:

• Power supply for mechanical equipment

• Lighting power

• Control system power

5. Temporary Power Supply and Emergency Power Applications

Disaster recovery, temporary construction sites, large-scale events, and short-term industrial projects require fast and reliable power deployment.

Articulated Unit Substations feature:

• Mobility

• Fast installation

• Reusability

Compared with temporary traditional distribution systems, they significantly improve safety, reliability, and deployment efficiency.

VI. Installation Guidelines

Although Articulated Unit Substations adopt factory-prefabricated manufacturing methods, onsite installation quality directly affects long-term operational reliability. For large industrial projects, renewable energy projects, and overseas engineering applications, installation must strictly comply with technical requirements.

1. Preliminary Preparation

Before equipment arrives onsite, the following works must be completed:

• Foundation construction

• Cable trench and cable routing preparation

• Grounding system installation

The foundation must meet requirements for:

• Equipment weight

• Seismic resistance

• Drainage

• Cable entry and exit arrangement

Key inspection points include:

Foundation Level Accuracy

The foundation level should be measured using:

• Laser measuring equipment

• Level instruments

Excessive deviation may cause:

• Enclosure deformation

• Door closing problems

• Uneven mechanical stress on internal equipment

Embedded Components

Embedded parts must accurately match the equipment base frame.

Cable Entry Design

The foundation should reserve:

• High-voltage cable openings

• Low-voltage cable openings

• Control cable channels

The design should consider:

• Waterproof protection

• Prevention of small animal entry

• Future maintenance convenience

Outdoor installations normally require drainage slopes and anti-water accumulation structures.

Grounding System

The grounding system includes:

• Protective grounding

• Working grounding

• Lightning protection grounding

Typical requirements:

• Ground resistance ≤4Ω

• Reliable grounding of metal enclosure

• Secure grounding connections

Special projects such as:

• Data centers

• Substations

• Renewable energy plants

may require lower grounding resistance according to local standards.

2. Equipment Receiving Inspection

Inspection items include:

Appearance Inspection

Check:

• Enclosure deformation

• Surface scratches

• Integrity of anti-corrosion coating

• Door locks and hinges

For overseas transportation projects, special attention should be paid to:

• Marine transportation vibration impact

• Moisture damage to packaging

Accessories Inspection

Verify:

• Operation manuals

• Electrical drawings

• Factory test reports

• Certificates

• Spare parts

• Operation tools

• Grounding accessories

• Spare components

Internal Equipment Inspection

Check:

• Transformer condition

• Switchgear condition

• Busbar connections

• Secondary wiring

Ensure:

• No looseness

• No damage

• No abnormal conditions

3. Lifting and Positioning

Before lifting, a detailed lifting plan, safety measures, and personnel responsibilities must be established.

Suitable lifting equipment should be selected, such as:

• Mobile cranes

• Crawler cranes

It is strictly prohibited to lift equipment using:

• Non-standard lifting points

• The top structure of the enclosure

Use manufacturer-designated lifting points to:

• Maintain balance

• Avoid collision

• Prevent enclosure deformation

• Prevent internal equipment displacement

After installation on the foundation, verify:

• Levelness

• Vertical alignment

• Anchor bolt condition

4. Electrical Connections

Primary Cable Connection

Confirm that cable specifications meet requirements for:

• Rated voltage

• Current carrying capacity

• Short-circuit withstand capability

After connection:

• Verify A/B/C phase sequence

• Confirm phase relationship

This prevents:

• Motor reverse rotation

• Abnormal equipment operation

Secondary Control Wiring

Includes:

• Protection circuits

• Control circuits

• Communication lines

• Signal acquisition systems

Modern intelligent unit substations usually include:

• PLC controllers

• Intelligent protection relays

• Remote communication modules

Through IEC 61850 communication, the system enables:

• Data acquisition

• Condition monitoring

• Remote maintenance

Grounding Connection

Ensure reliable grounding of:

• Enclosure

• Transformer tank

• Metal parts of switchgear

5. Commissioning and Testing

Individual Equipment Tests

Transformer Testing

Includes:

• Insulation performance testing

• Transformer ratio testing

• Winding resistance testing

• Temperature control system testing

Switchgear Testing

Includes:

• Breaker opening and closing operation

• Mechanical operation tests

• Protection function tests

Control System Testing

Includes:

• Signal feedback verification

• Communication status testing

• Alarm function verification

System Integration Testing

Verify:

• Protection logic

• Control functions

• Communication functions

• Interlocking relationships

Energization Test

Before official operation:

• No-load operation test

• Phase verification

• Voltage measurement

• Temperature rise observation

Confirm:

• No abnormal noise

• No abnormal temperature rise

• No false protection operation

6. Acceptance and Final Operation

Acceptance includes:

Technical Parameter Verification

Confirm:

• Rated capacity

• Voltage level

• Protection rating

• Protection configuration

Electrical Testing

Including:

• Insulation test

• Grounding test

• Protection relay test

Documentation Review

Required documents include:

• Factory test reports

• Installation records

• Commissioning reports

• Equipment drawings

• Maintenance manuals

Complete documentation provides an important basis for future operation and maintenance.

VII. Future Development Trends

With global energy transition and industrial digitalization, Articulated Unit Substations are developing toward higher efficiency, smarter operation, and improved environmental adaptability.

1. Increasing Intelligence

Future unit substations will integrate:

• Online monitoring

• Data analytics

• Remote control

• Condition prediction

Through intelligent sensors, systems can monitor:

• Temperature

• Current

• Voltage

• Partial discharge

• Equipment operating conditions

This enables early detection of potential failures.

2. Growing Renewable Energy Applications

The rapid growth of:

• Solar power

• Wind energy

• Energy storage

will continue increasing demand for modular substations.

Future renewable projects will increasingly rely on:

• Integrated step-up substations

• Smart unit substations

• Digital monitoring systems

3. Improved Environmental Adaptability

Complex environments such as:

• Desert regions

• Coastal areas

• Cold climates

• Tropical zones

require higher equipment reliability.

Future designs will focus more on:

• Corrosion resistance

• Moisture protection

• Heat dissipation

• Dust protection

through:

• Advanced materials

• Optimized structures

to improve lifecycle reliability.

VIII. Summary

With continuous development of global industrialization, electrification, and renewable energy industries, power infrastructure is moving toward faster deployment, higher efficiency, and smarter operation.

Although traditional substations are technically mature, they are gradually becoming less suitable for some modern projects due to limitations in:

• Construction period

• Land occupation

• Onsite installation complexity

• Environmental adaptability

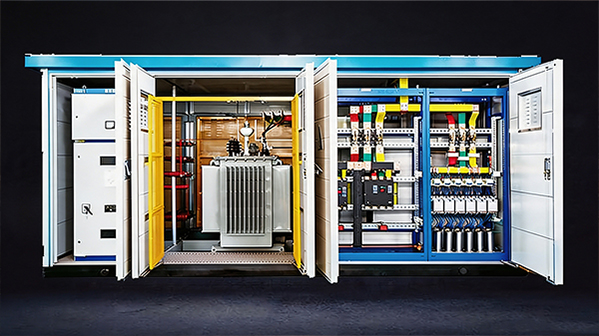

Articulated Unit Substations integrate:

• Power transformers

• Medium and high-voltage switchgear

• Low-voltage distribution systems

• Protection and control systems

• Intelligent communication equipment

into a complete factory-built unit, achieving efficient connection from manufacturing to onsite operation.

From practical applications, Articulated Unit Substations have become important solutions for:

• Urban distribution upgrades

• Industrial parks

• Renewable energy projects

• Data center power supply

• Ports and airports

• Temporary and emergency power systems

In the future, with rapid AI data center construction, renewable energy expansion, industrial automation development, and global grid modernization, demand for fast-deployment, highly reliable, highly integrated power distribution equipment will continue to grow.

IX. Frequently Asked Questions (FAQ)

Q1: What is the difference between an Articulated Unit Substation and a traditional substation?

Traditional substations are constructed onsite, requiring separate installation of transformers, switchgear, control equipment, and supporting buildings, resulting in longer construction periods.

An Articulated Unit Substation adopts factory-prefabricated manufacturing. Before delivery, the equipment has completed structural assembly, electrical connection, and performance testing. Onsite work mainly includes:

• Foundation preparation

• Lifting installation

• Cable connection

• Commissioning

It provides faster construction, simpler installation, and more stable quality.

Q2: Which industries use Articulated Unit Substations?

Applications include:

Industrial Sector

• Manufacturing plants

• Steel factories

• Chemical facilities

• Mining enterprises

Renewable Energy Sector

• Solar power plants

• Wind farms

• Energy storage projects

Urban Infrastructure

• Commercial buildings

• Residential areas

• Metro systems

• Airports

• Ports

Special Applications

• Temporary power

• Emergency power supply

• Overseas engineering projects

Q3: What are common protection ratings for unit substations?

Common protection ratings include:

IP54

Suitable for:

• Normal outdoor environments

• Urban distribution projects

• Industrial parks

Provides:

• Dust protection

• Splash water protection

IP65

Suitable for:

• High humidity areas

• Desert environments

• Coastal regions

Provides higher protection capability.

Special environments such as:

• Marine salt spray

• Chemical corrosion

• High-temperature regions

require additional design involving:

• Anti-corrosion materials

• Sealing structures

• Environmental control systems

Q4: Can Articulated Unit Substations be used in renewable energy projects?

Yes.

Renewable energy projects are one of the major application fields.

For photovoltaic projects, the equipment usually performs:

PV inverter output → Voltage boosting → Medium-voltage grid connection

Common configurations include:

• 0.8kV/35kV

• 1kV/35kV

• 10kV/35kV

Advantages include:

• Fast installation

• Convenient transportation

• Adaptability to remote environments

Q5: What is the typical service life?

The design life is usually:

30-40 years

Actual service life depends on:

• Operating environment

• Load level

• Maintenance quality

• Protection rating

Coastal areas require attention to:

• Corrosion protection

• Moisture protection

High-temperature regions require focus on:

• Cooling performance

• Insulation lifespan

Proper design and maintenance can significantly extend operational life.

Q6: What should be considered when selecting unit substations for overseas projects?

Important factors include:

Voltage Standards

• North America: 480V systems

• Europe: 10kV/20kV systems

• Middle East: 11kV/22kV systems

Environmental Conditions

• Temperature

• Humidity

• Altitude

• Salt spray

• Dust

Certification Requirements

• IEC standards

• Local electrical regulations

• Project specifications

Transportation Conditions

• Marine moisture protection

• Packaging protection

• Long-distance transportation stability

Q7: What are the future development directions?

Future development will focus on three areas:

1. Intelligence

• Online monitoring

• Remote communication

• Condition diagnosis

• Unmanned operation

• Predictive maintenance

2. Higher Efficiency

• High-efficiency transformers

• Low-loss design

• Smart energy management

• Reduced lifecycle operating costs

3. Modularization

• Standardized modules

• Rapid expansion

• Flexible combinations

• Adaptation to different project scales
