Zisheng Electric treats the transformer surge arrester interface as an insulation-coordination and installation decision, not as a loose accessory added at the end of a purchase order. An arrester can be correctly selected on a data sheet yet offer weaker protection than expected if its location, connections, grounding route or maintenance access changes after the transformer drawings are approved. The useful procurement question is therefore not simply “which arrester?” It is “which protection arrangement has been studied, allocated to a supplier, drawn, built and checked at site?”
This guide is for EPC engineers, owners and buyers reviewing an oil-immersed power transformer or distribution substation package. It sets out the information to request and the evidence to release. Numerical ratings, protective margins and clearances must come from the project insulation study and the applicable edition of the specifications; no universal arrester value should be copied from a different voltage class or network.
Start with the system single-line diagram and the transformer insulation data. Establish the highest continuous operating voltage at the arrester location, temporary overvoltage duty, expected surge exposure, transformer withstand levels, terminal arrangement and earthing philosophy. Determine whether the device sits on a transformer-mounted bracket, at the cable sealing end, on the adjacent structure or within switchgear. Each placement changes the conductor path and the party responsible for installation. A line-side device and a transformer-terminal device may serve different design purposes; the study should explain the selected arrangement.
The engineering reference framework is IEC 60071-1 insulation coordination, alongside the transformer insulation-level and dielectric-test provisions of IEC 60076-3. A metal-oxide arrester specification can reference IEC 60099-4 where it applies. These references define topics and test families; they do not replace the project-specific coordination calculation or prove that one catalogue item fits every utility.
Mark the ownership of the arrester body, mounting steel, insulating base if required, line terminal, flexible conductor, earth lead, grading hardware, surge counter or disconnector, terminal-box interface and weather protection. Record whether the transformer vendor supplies loose parts, factory-mounted parts or only reserved fixing points. Include terminal heights, bolt patterns, permissible terminal loads and lifting or transport removal notes. Without a boundary schedule, the transformer and substation contractors may each expect the other to supply a short but critical conductor.
A coordination report usually compares an arrester’s protective characteristics with equipment withstand levels under defined waveforms and assumptions. The designer then needs a physical route that preserves those assumptions. Long leads and loops add inductive voltage during a fast surge; the voltage at the transformer terminal is not necessarily identical to the arrester’s catalogue residual voltage. Review both line and earth connections as part of the protected path, keep them direct where the layout allows, and have the study owner check the as-built geometry. Do not invent a maximum lead length: the acceptable arrangement depends on the waveform, current, equipment withstand and actual geometry.
The location must also respect clearances to earthed metal and adjacent phases, creepage or pollution requirements, wind and seismic support criteria where specified, heat and vibration exposure, and access for visual inspection or replacement. For the transformer terminal itself, the related bushing selection guide is a useful cross-check: the bushing’s external geometry and terminal loading envelope affect what can be mounted nearby. An arrester should not become an unintended mechanical support for the conductor.
A cable-fed transformer may have a termination enclosure, sheath bonding arrangement and short accessible space that constrain mounting. An overhead-line connection presents a different surge exposure and often a different structure and access route. If a cable box or bus duct is supplied by another contractor, draw the interface at the exact handover flange or terminal rather than relying on a generic substation sketch. Ask for the cable termination outline, connector dimensions and earthing layout before approving bracket fabrication.
Interface decision | Input to request | Evidence to release | Why it matters |
|---|---|---|---|
Arrester electrical duty | System voltage range, temporary overvoltage study, surge assumptions, insulation levels | Approved coordination calculation and selected device data | A nominal system voltage alone does not establish continuous or temporary duty. |
Protected terminal and location | Single-line diagram, transformer GA, cable or line termination drawings | Dimensioned arrangement with responsible supplier | Distance and route alter the voltage seen by the protected terminal. |
Lead and earth route | Conductor sizes, terminal loads, earth grid interface and bend envelope | Approved route drawing and site inspection points | Loops, support loads and poor bonding can defeat the intended installation. |
Mounting and environment | Pollution, weather, access, structural loading and transport envelope | Bracket drawing, material and coating schedule | Electrical fit does not prove mechanical or maintenance fit. |
Factory/site boundary | Supply matrix, FAT scope, loose-parts list and erection sequence | Signed inspection plan and handover dossier | Missing accessories are often discovered only during erection. |
The table is an approval workflow, not a substitute for the specification. Each row should name an owner and a date. For example, a bracket can be released for fabrication only after the transformer outline and arrester outline agree; a site crew should not drill a tank or clamp a bushing to resolve a late dimensional conflict.
The arrester supplier should provide continuous operating voltage, rated voltage, temporary-overvoltage capability, protective levels under stated discharge conditions, energy or charge-handling information as applicable, short-circuit or pressure-relief performance, housing material, creepage distance, terminal and mounting details, and the relevant test declarations. The coordination engineer must choose and verify these values against the actual system. Request the edition of each cited standard and ask for exceptions explicitly. A declaration of conformity by itself does not demonstrate that the device is correctly applied to this transformer.
Review altitude, pollution, salt deposition, ultraviolet exposure, rain, wind, dust and site temperature as project inputs rather than assuming a regional default. External insulation and cooling of nearby equipment can be affected differently by those conditions. A high-altitude site may need a separate air-clearance review; a coastal site may need a stronger pollution and corrosion discussion. Record the real site values and the utility’s written interface requirements, if any. Where utility rules are unavailable, label the approval as pending instead of inventing a standard utility preference.
Use the transformer’s guaranteed insulation levels and terminal arrangement in the design review. The technical bid evaluation checklist can help procurement teams keep technical exceptions visible alongside price and delivery. For a new power transformer, compare the protection interface against the specific 132 kV / 138 kV power transformer envelope only where that product family is relevant; its page is not a project-specific arrester approval.
A bracket is a small part with a large coordination footprint. It needs a defined fixing method, corrosion protection, strength under conductor forces and site loads, space for tool access, and a route for the earth lead. The assembly must avoid tank internals, weld restrictions, radiator removal paths and lifting clearances. If the arrester travels separately, its packing, tag number and on-site assembly drawing need to match the transformer shipping list. A general-arrangement drawing that shows a symbol but not a dimensioned support cannot close the issue.
Check the transformer’s bushings, neutral equipment, conservator pipework and cooling accessories in the same 3D or dimensioned drawing review. The shortest electrical path is useful only if it remains safe to assemble and maintain. Define how a surge counter or monitoring contact will be wired, and keep that auxiliary circuit separate from the primary surge-current path. If digital contacts are requested, align the signal list with the control-panel designer and the sensor and signal FAT review.
Factory acceptance should verify what is within the agreed supply boundary: device identity and traceability, manufacturer test records, correct bracket and terminal hardware, dimensional fit, labels, protective coatings, transport removal provisions and continuity or bonding checks where specified. Witness points should be written into the inspection and test plan before production. The transformer dielectric tests under its agreed specification remain distinct from an arrester manufacturer’s type or routine tests. Do not claim that a transformer FAT proves the final surge-protection performance of a site assembly it has not seen.
If factory mounting is impractical because of shipping height or damage risk, make a trial fit or documented dimensional check. Photograph the mounting points and label the loose parts. Capture conductor lengths and lug types in a controlled list. Record deviations and approve changes through engineering before the unit ships. The factory release file should state exactly what remains for site installation rather than using a generic “complete” checkbox.

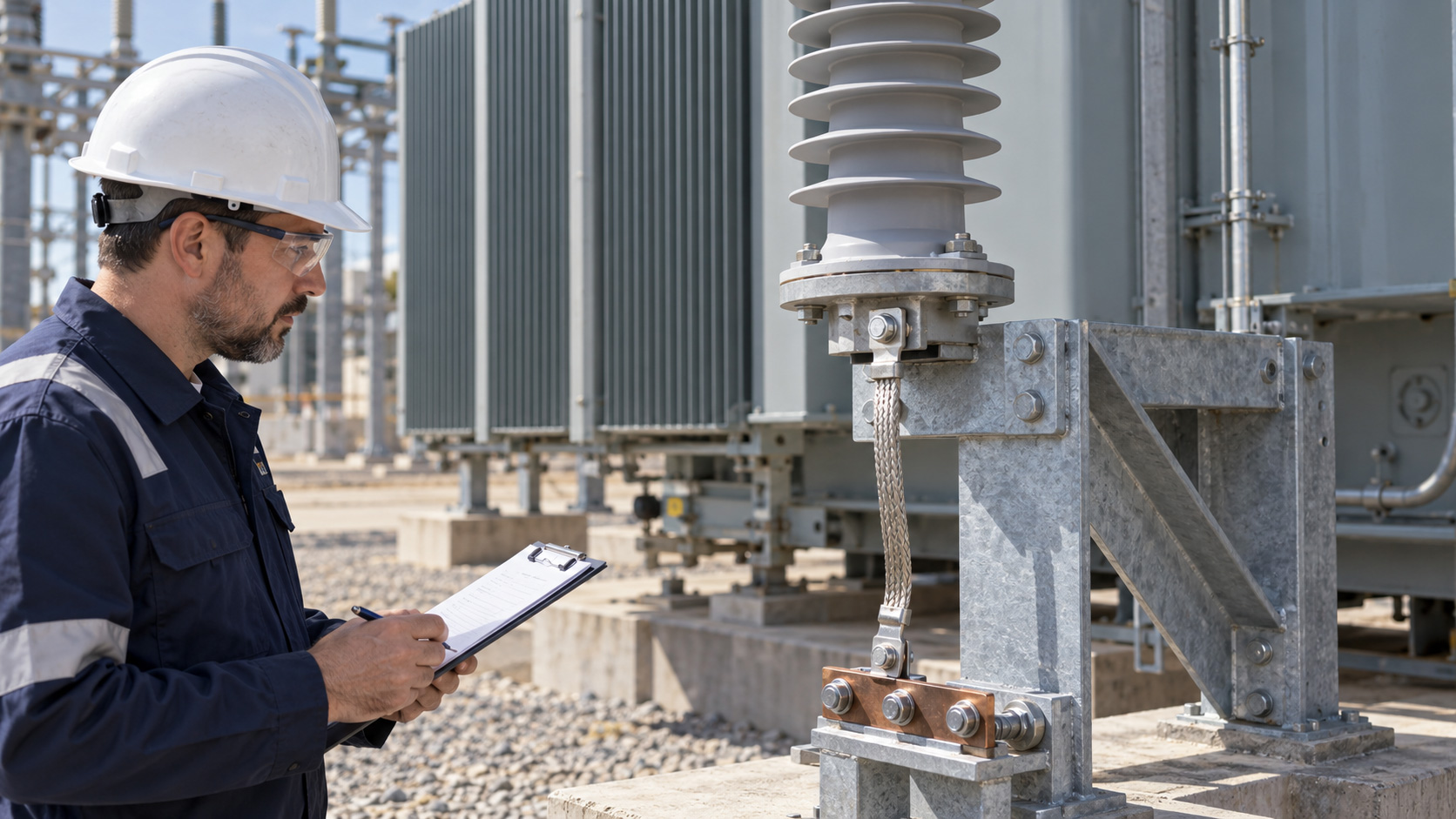

At arrival, inspect packaging, housing condition, terminals, labels and loose-parts counts. Before energization, compare the installed position and lead routing with the approved drawing, confirm torque records under the manufacturer’s instructions, verify earth continuity and terminal clearances, and check that no transport locks or temporary covers remain. Confirm the counter or disconnector orientation and accessibility if supplied. Any change to the protected terminal, conductor route or earthing path should return to the coordination engineer for acceptance.
The site test plan must be compatible with the installed device. Test voltage application, disconnection and reconnection requirements should be set by the responsible commissioning engineer and manufacturer instructions; careless testing through an arrester can create a false failure or damage. Record the final as-built arrangement, device serial numbers, inspection photos and maintenance instructions in the handover package. These records make future replacement more reliable because a buyer can match the duty and mechanical envelope instead of ordering from a faded nameplate alone.
Ask bidders to return a completed interface schedule: system data used, transformer withstand values, arrester selected, protective levels and assumptions, terminal location, outline and bracket drawings, lead and earth details, environmental basis, factory/site scope, testing evidence, spares and exceptions. Separate “included” from “by others.” If the arrester is purchased through a separate switchyard contract, the transformer specification still needs terminal and mounting information. A bid that says “surge arresters as required” leaves too much design and commercial uncertainty.
Evaluate deviations by consequence. A different housing technology, bracket position or connection path might be acceptable, but the bidder should show the updated calculation, clearances and maintenance impact. A late substitution should not be accepted solely because its rated voltage matches the old item. Tie the approval to the exact drawing revision and device model, and carry the same revision into FAT and site inspection documents.
For a transformer surge arrester interface review on a Zisheng Electric power transformer or a 10–35 kV oil-immersed transformer, send the drawings, data sheets, load list, technical specification, single-line diagram, grid parameters, environmental conditions and installation-site conditions. Include the insulation-coordination study and cable or overhead-line interface drawings where available. Our engineering team will review the requirements and respond to project inquiries within 24 hours.
